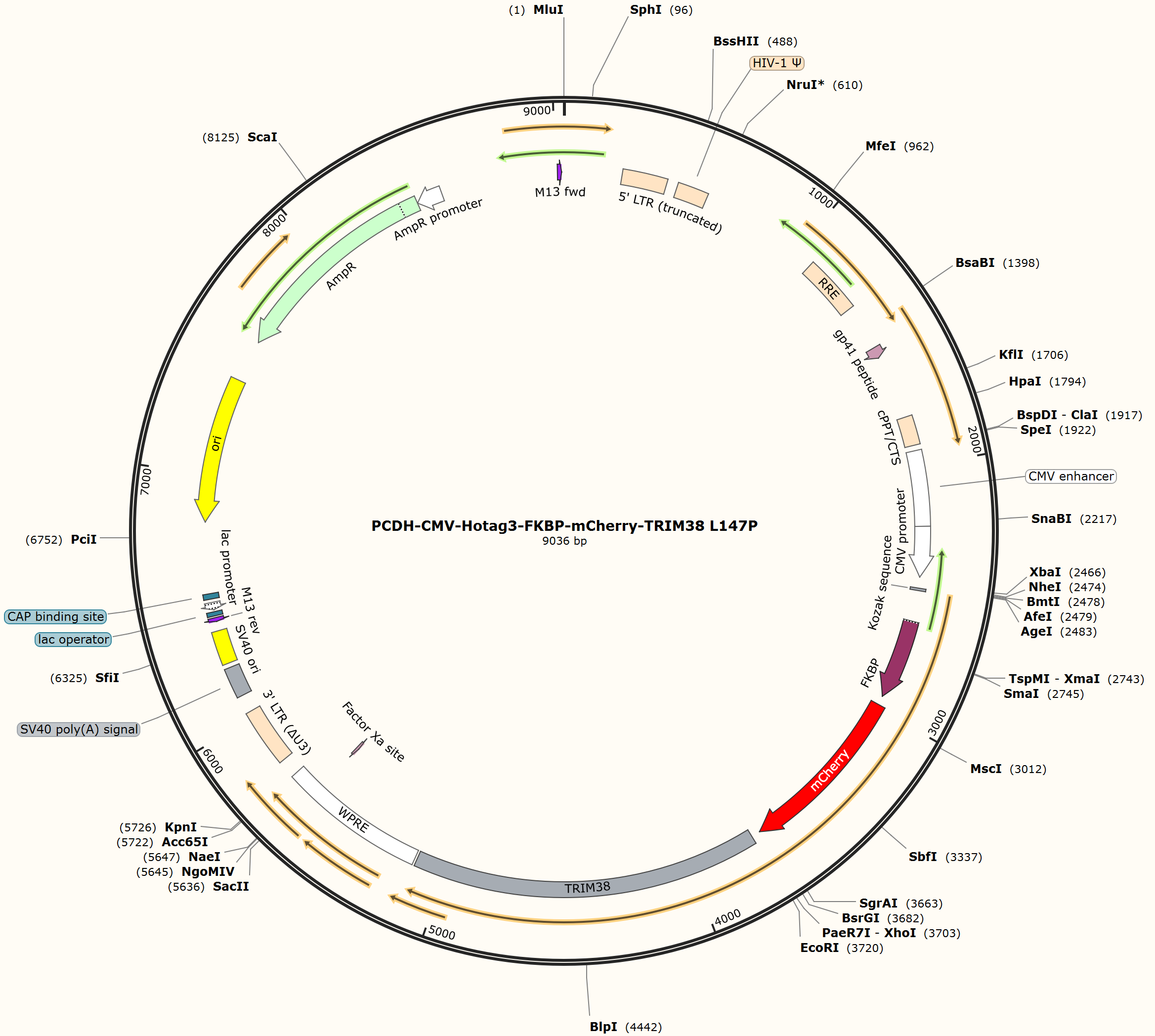

PCDH-CMV-Hotag3-FKBP-mCherry-TRIM38 L147P

LOCUS       PCDH-CMV-Hotag3-FKBP-mCherry-TRIM38 L147P               9036 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9036)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 13, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9036
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1493..1537
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     regulatory      2490..2499
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             2625..2948
                     /codon_start=1
                     /product="human FK506-binding protein FKBP12"
                     /label=FKBP
                     /translation="MGVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNK
                     PFKFMLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPHATLVFDVEL
                     LKLE"
     CDS             2985..3689
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     misc_feature    3726..5123
                     /label=TRIM38
     misc_feature    5133..5720
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5604..5615)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5793..6026
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6098..6219
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6238..6373
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6411..6427)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6435..6451
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6459..6489)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6504..6525
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6813..7401)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7572..8432)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8433..8537)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     9011..9027
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggg cgagatcgcc aagagcctga
     2521 aggagatcgc caaatccctg aaggagattg cctggtccct gaaggaaatc gccaagtccc
     2581 tgaagggcgg cggctccgga ggctctggag gatctggcgg cagcatggga gtgcaggtgg
     2641 aaaccatctc cccaggagac gggcgcacct tccccaagcg cggccagacc tgcgtggtgc
     2701 actacaccgg gatgcttgaa gatggaaaga aatttgattc ctcccgggac agaaacaagc
     2761 cctttaagtt tatgctaggc aagcaggagg tgatccgagg ctgggaagaa ggggttgccc
     2821 agatgagtgt gggtcagaga gccaaactga ctatatctcc agattatgcc tatggtgcca
     2881 ctgggcaccc aggcatcatc ccaccacatg ccactctcgt cttcgatgtg gagcttctaa
     2941 aactggaagg cggaagtgga ggatctggag gttcaggtgg ttctgtgagc aagggcgagg
     3001 aggataacat ggccatcatc aaggagttca tgcgcttcaa ggtgcacatg gagggctccg
     3061 tgaacggcca cgagttcgag atcgagggcg agggcgaggg ccgcccctac gagggcaccc
     3121 agaccgccaa gctgaaggtg accaagggtg gccccctgcc cttcgcctgg gacatcctgt
     3181 cccctcagtt catgtacggc tccaaggcct acgtgaagca ccccgccgac atccccgact
     3241 acttgaagct gtccttcccc gagggcttca agtgggagcg cgtgatgaac ttcgaggacg
     3301 gcggcgtggt gaccgtgacc caggactcct ccctgcagga cggcgagttc atctacaagg
     3361 tgaagctgcg cggcaccaac ttcccctccg acggccccgt aatgcagaag aagaccatgg
     3421 gctgggaggc ctcctccgag cggatgtacc ccgaggacgg cgccctgaag ggcgagatca
     3481 agcagaggct gaagctgaag gacggcggcc actacgacgc tgaggtcaag accacctaca
     3541 aggccaagaa gcccgtgcag ctgcccggcg cctacaacgt caacatcaag ttggacatca
     3601 cctcccacaa cgaggactac accatcgtgg aacagtacga acgcgccgag ggccgccact
     3661 ccaccggcgg catggacgag ctgtacaagt ccggactcag atctcgagct caagcttcgg
     3721 aattcatggc ctcaaccacc agcaccaaga agatgatgga ggaagccacc tgctccatct
     3781 gcctgagcct gatgacgaac ccagtaagca tcaactgtgg acacagctac tgccacttgt
     3841 gtataacaga cttctttaaa aacccaagcc aaaagcaact gaggcaggag acattctgct
     3901 gtccccagtg tcgggctcca tttcatatgg atagcctccg acccaacaag cagctgggaa
     3961 gcctcattga agccctcaaa gagacggatc aagaaatgtc atgtgaggaa cacggagagc
     4021 agttccacct gttctgcgaa gacgaggggc agctcatctg ctggcgctgt gagcgggcac
     4081 cacagcacaa agggcacacc acagctcttg ttgaagacgt atgccagggc tacaaggaaa
     4141 agctccagaa agctgtgaca aaaccgaagc aacttgaaga cagatgtacg gagcagaagc
     4201 tgtccacagc aatgcgaata actaaatgga aagagaaggt acagattcag agacaaaaaa
     4261 tccggtctga ctttaagaat ctccagtgtt tcctacatga ggaagagaag tcttatctct
     4321 ggaggctgga gaaagaagaa caacagactc tgagtagact gagggactat gaggctggtc
     4381 tggggctgaa gagcaatgaa ctcaagagcc acatcctgga actggaggaa aaatgtcagg
     4441 gctcagccca gaaattgctg cagaatgtga atgacacttt gagcaggagt tgggctgtga
     4501 agctggaaac atcagaggct gtctccttgg aacttcatac tatgtgcaat gtttccaagc
     4561 tttacttcga tgtgaagaaa atgttaagga gtcatcaagt tagtgtgact ctggatccag
     4621 atacagctca tcacgaacta attctctctg aggatcggag acaagtgact cgtggataca
     4681 cccaggagaa tcaggacaca tcttccagga gatttactgc cttcccctgt gtcttgggtt
     4741 gtgaaggctt cacctcagga agacgttact ttgaagtgga tgttggcgaa ggaaccggat
     4801 gggatttagg agtttgtatg gaaaatgtgc agaggggcac tggcatgaag caagagcctc
     4861 agtctggatt ctggaccctc aggctgtgca aaaagaaagg ctatgtagca cttacttctc
     4921 ccccaacttc ccttcatctg catgagcagc ccctgcttgt gggaattttt ctggactatg
     4981 aggccggagt tgtatccttt tataacggga atactggctg ccacatcttt actttcccga
     5041 aggcttcctt ctctgatact ctccggccct atttccaggt ttatcaatat tctcctttgt
     5101 ttctgcctcc cccaggtgac taatagggat ccaatcaacc tctggattac aaaatttgtg
     5161 aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt
     5221 taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata
     5281 aatcctggtt gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg
     5341 tgtgcactgt gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc
     5401 tcctttccgg gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct
     5461 gccttgcccg ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt
     5521 cggggaagct gacgtccttt ccatggctgc tcgcctgtgt tgccacctgg attctgcgcg
     5581 ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc
     5641 tgctgccggc tctgcggcct cttccgcgtc tccgccttcg ccctcagacg agtcggatct
     5701 ccctttggcc gcctccccgc cggtaccttt aagaccaatg acttacaagg cagctgtaga
     5761 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaaa
     5821 ataagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga
     5881 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
     5941 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
     6001 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt
     6061 ataacttgca aagaaatgaa tatcagagag tgagaggaac ttgtttattg cagcttataa
     6121 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     6181 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctggc tctagctatc
     6241 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     6301 atttatgcag aggccgaggc cgcctcggcc tctgagctat tccagaagta gtgaggaggc
     6361 ttttttggag gcctagactt ttgcagagac ggcccaaatt cgtaatcatg gtcatagctg
     6421 tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata
     6481 aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca
     6541 ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc
     6601 gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg
     6661 cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta
     6721 tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc
     6781 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     6841 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     6901 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     6961 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     7021 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     7081 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     7141 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     7201 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aaggacagta
     7261 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     7321 tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg
     7381 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     7441 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     7501 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     7561 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     7621 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     7681 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     7741 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     7801 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     7861 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     7921 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     7981 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     8041 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     8101 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     8161 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     8221 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     8281 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     8341 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     8401 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     8461 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     8521 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgtcta agaaaccatt
     8581 attatcatga cattaaccta taaaaatagg cgtatcacga ggccctttcg tctcgcgcgt
     8641 ttcggtgatg acggtgaaaa cctctgacac atgcagctcc cggagacggt cacagcttgt
     8701 ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg cgtcagcggg tgttggcggg
     8761 tgtcggggct ggcttaacta tgcggcatca gagcagattg tactgagagt gcaccatatg
     8821 cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ccattcgcca
     8881 ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag
     8941 ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg taacgccagg gttttcccag
     9001 tcacgacgtt gtaaaacgac ggccagtgcc aagctg
//
