| 出品公司: | Guntram Suske |
|---|---|
| 载体名称: | pN3 |
| 质粒类型: | Gateway系统载体 |
| 高拷贝/低拷贝: | -- |
| 启动子: | CMV |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 3996bp |
| 5' 测序引物及序列: | CMV-F: CGCAAATGGGCGGTAGGCGTG |
| 3' 测序引物及序列: | -- |
| 载体标签: | -- |
| 载体抗性: | Kanamycin |
| 筛选标记: | Neomycin |
| 备注: | pN3 was constructed by removing the GFP moiety from pEGFP-N3 (Clontech) with BamHI and NotI. |
| 产品目录号: | Addgene plasmid 24544 |
| 稳定性: | 瞬表达 |
| 组成型: | -- |
| 病毒/非病毒: | 非病毒 |
买家导航
pN3载体质粒基本信息

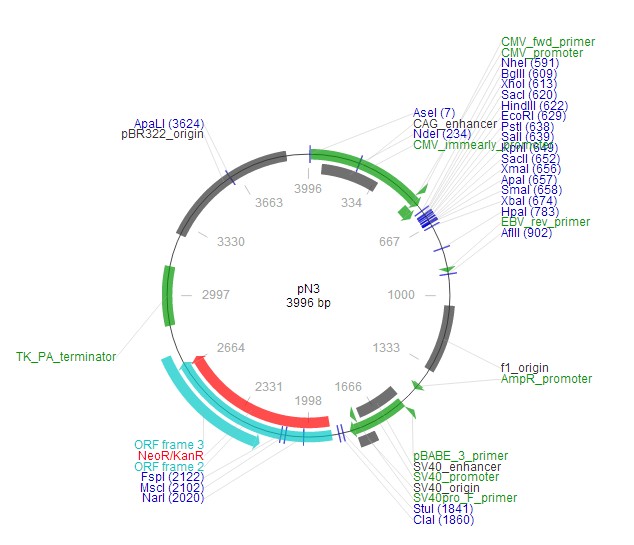

pN3质粒图谱载体图谱和pN3载体序列质粒序列多克隆位点信息
pN3质粒载体简介
pN3质粒序列载体序列
LOCUS pN3 3996 bp DNA SYN
DEFINITION pN3
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..3996
/organism="pN3"
/mol_type="other DNA"
promoter 10..562
/label="CMV_immearly_promoter"
misc_feature 65..352
/label="CAG_enhancer"
misc_feature 519..539
/label="CMV_fwd_primer"
promoter 520..589
/label="CMV_promoter"
misc_feature 875..894
/label="EBV_rev_primer"
rep_origin complement(1044..1350)
/label="f1_origin"
promoter 1429..1457
/label="AmpR_promoter"
misc_feature complement(1523..1543)
/label="pBABE_3_primer"
misc_feature complement(1529..1744)
/label="SV40_enhancer"
promoter 1541..1809
/label="SV40_promoter"
rep_origin 1708..1785
/label="SV40_origin"
misc_feature 1770..1789
/label="SV40pro_F_primer"
CDS 1892..2686
/label="ORF frame 2"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
gene 1895..2683
/label="NeoR/KanR"
/gene="NeoR/KanR"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR
PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL
LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE
EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY
QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*"
CDS complement(2201..2737)
/label="ORF frame 3"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
terminator 2861..3130
/label="TK_PA_terminator"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
rep_origin 3278..3897
/label="pBR322_origin"
/translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA
VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA
VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ
PPHCISHDGYFLGRSKVR*"
ORIGIN
1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG
661 GATCGGCCGC GACTCTAGAT CATAATCAGC CATACCACAT TTGTAGAGGT TTTACTTGCT
721 TTAAAAAACC TCCCACACCT CCCCCTGAAC CTGAAACATA AAATGAATGC AATTGTTGTT
781 GTTAACTTGT TTATTGCAGC TTATAATGGT TACAAATAAA GCAATAGCAT CACAAATTTC
841 ACAAATAAAG CATTTTTTTC ACTGCATTCT AGTTGTGGTT TGTCCAAACT CATCAATGTA
901 TCTTAAGGCG TAAATTGTAA GCGTTAATAT TTTGTTAAAA TTCGCGTTAA ATTTTTGTTA
961 AATCAGCTCA TTTTTTAACC AATAGGCCGA AATCGGCAAA ATCCCTTATA AATCAAAAGA
1021 ATAGACCGAG ATAGGGTTGA GTGTTGTTCC AGTTTGGAAC AAGAGTCCAC TATTAAAGAA
1081 CGTGGACTCC AACGTCAAAG GGCGAAAAAC CGTCTATCAG GGCGATGGCC CACTACGTGA
1141 ACCATCACCC TAATCAAGTT TTTTGGGGTC GAGGTGCCGT AAAGCACTAA ATCGGAACCC
1201 TAAAGGGAGC CCCCGATTTA GAGCTTGACG GGGAAAGCCG GCGAACGTGG CGAGAAAGGA
1261 AGGGAAGAAA GCGAAAGGAG CGGGCGCTAG GGCGCTGGCA AGTGTAGCGG TCACGCTGCG
1321 CGTAACCACC ACACCCGCCG CGCTTAATGC GCCGCTACAG GGCGCGTCAG GTGGCACTTT
1381 TCGGGGAAAT GTGCGCGGAA CCCCTATTTG TTTATTTTTC TAAATACATT CAAATATGTA
1441 TCCGCTCATG AGACAATAAC CCTGATAAAT GCTTCAATAA TATTGAAAAA GGAAGAGTCC
1501 TGAGGCGGAA AGAACCAGCT GTGGAATGTG TGTCAGTTAG GGTGTGGAAA GTCCCCAGGC
1561 TCCCCAGCAG GCAGAAGTAT GCAAAGCATG CATCTCAATT AGTCAGCAAC CAGGTGTGGA
1621 AAGTCCCCAG GCTCCCCAGC AGGCAGAAGT ATGCAAAGCA TGCATCTCAA TTAGTCAGCA
1681 ACCATAGTCC CGCCCCTAAC TCCGCCCATC CCGCCCCTAA CTCCGCCCAG TTCCGCCCAT
1741 TCTCCGCCCC ATGGCTGACT AATTTTTTTT ATTTATGCAG AGGCCGAGGC CGCCTCGGCC
1801 TCTGAGCTAT TCCAGAAGTA GTGAGGAGGC TTTTTTGGAG GCCTAGGCTT TTGCAAAGAT
1861 CGATCAAGAG ACAGGATGAG GATCGTTTCG CATGATTGAA CAAGATGGAT TGCACGCAGG
1921 TTCTCCGGCC GCTTGGGTGG AGAGGCTATT CGGCTATGAC TGGGCACAAC AGACAATCGG
1981 CTGCTCTGAT GCCGCCGTGT TCCGGCTGTC AGCGCAGGGG CGCCCGGTTC TTTTTGTCAA
2041 GACCGACCTG TCCGGTGCCC TGAATGAACT GCAAGACGAG GCAGCGCGGC TATCGTGGCT
2101 GGCCACGACG GGCGTTCCTT GCGCAGCTGT GCTCGACGTT GTCACTGAAG CGGGAAGGGA
2161 CTGGCTGCTA TTGGGCGAAG TGCCGGGGCA GGATCTCCTG TCATCTCACC TTGCTCCTGC
2221 CGAGAAAGTA TCCATCATGG CTGATGCAAT GCGGCGGCTG CATACGCTTG ATCCGGCTAC
2281 CTGCCCATTC GACCACCAAG CGAAACATCG CATCGAGCGA GCACGTACTC GGATGGAAGC
2341 CGGTCTTGTC GATCAGGATG ATCTGGACGA AGAGCATCAG GGGCTCGCGC CAGCCGAACT
2401 GTTCGCCAGG CTCAAGGCGA GCATGCCCGA CGGCGAGGAT CTCGTCGTGA CCCATGGCGA
2461 TGCCTGCTTG CCGAATATCA TGGTGGAAAA TGGCCGCTTT TCTGGATTCA TCGACTGTGG
2521 CCGGCTGGGT GTGGCGGACC GCTATCAGGA CATAGCGTTG GCTACCCGTG ATATTGCTGA
2581 AGAGCTTGGC GGCGAATGGG CTGACCGCTT CCTCGTGCTT TACGGTATCG CCGCTCCCGA
2641 TTCGCAGCGC ATCGCCTTCT ATCGCCTTCT TGACGAGTTC TTCTGAGCGG GACTCTGGGG
2701 TTCGAAATGA CCGACCAAGC GACGCCCAAC CTGCCATCAC GAGATTTCGA TTCCACCGCC
2761 GCCTTCTATG AAAGGTTGGG CTTCGGAATC GTTTTCCGGG ACGCCGGCTG GATGATCCTC
2821 CAGCGCGGGG ATCTCATGCT GGAGTTCTTC GCCCACCCTA GGGGGAGGCT AACTGAAACA
2881 CGGAAGGAGA CAATACCGGA AGGAACCCGC GCTATGACGG CAATAAAAAG ACAGAATAAA
2941 ACGCACGGTG TTGGGTCGTT TGTTCATAAA CGCGGGGTTC GGTCCCAGGG CTGGCACTCT
3001 GTCGATACCC CACCGAGACC CCATTGGGGC CAATACGCCC GCGTTTCTTC CTTTTCCCCA
3061 CCCCACCCCC CAAGTTCGGG TGAAGGCCCA GGGCTCGCAG CCAACGTCGG GGCGGCAGGC
3121 CCTGCCATAG CCTCAGGTTA CTCATATATA CTTTAGATTG ATTTAAAACT TCATTTTTAA
3181 TTTAAAAGGA TCTAGGTGAA GATCCTTTTT GATAATCTCA TGACCAAAAT CCCTTAACGT
3241 GAGTTTTCGT TCCACTGAGC GTCAGACCCC GTAGAAAAGA TCAAAGGATC TTCTTGAGAT
3301 CCTTTTTTTC TGCGCGTAAT CTGCTGCTTG CAAACAAAAA AACCACCGCT ACCAGCGGTG
3361 GTTTGTTTGC CGGATCAAGA GCTACCAACT CTTTTTCCGA AGGTAACTGG CTTCAGCAGA
3421 GCGCAGATAC CAAATACTGT CCTTCTAGTG TAGCCGTAGT TAGGCCACCA CTTCAAGAAC
3481 TCTGTAGCAC CGCCTACATA CCTCGCTCTG CTAATCCTGT TACCAGTGGC TGCTGCCAGT
3541 GGCGATAAGT CGTGTCTTAC CGGGTTGGAC TCAAGACGAT AGTTACCGGA TAAGGCGCAG
3601 CGGTCGGGCT GAACGGGGGG TTCGTGCACA CAGCCCAGCT TGGAGCGAAC GACCTACACC
3661 GAACTGAGAT ACCTACAGCG TGAGCTATGA GAAAGCGCCA CGCTTCCCGA AGGGAGAAAG
3721 GCGGACAGGT ATCCGGTAAG CGGCAGGGTC GGAACAGGAG AGCGCACGAG GGAGCTTCCA
3781 GGGGGAAACG CCTGGTATCT TTATAGTCCT GTCGGGTTTC GCCACCTCTG ACTTGAGCGT
3841 CGATTTTTGT GATGCTCGTC AGGGGGGCGG AGCCTATGGA AAAACGCCAG CAACGCGGCC
3901 TTTTTACGGT TCCTGGCCTT TTGCTGGCCT TTTGCTCACA TGTTCTTTCC TGCGTTATCC
3961 CCTGATTCTG TGGATAACCG TATTACCGCC ATGCAT
//
pN3载体图谱质粒图谱pdf版和pN3载体序列质粒序列等相关资料下载
pN3质粒载体应用举例
