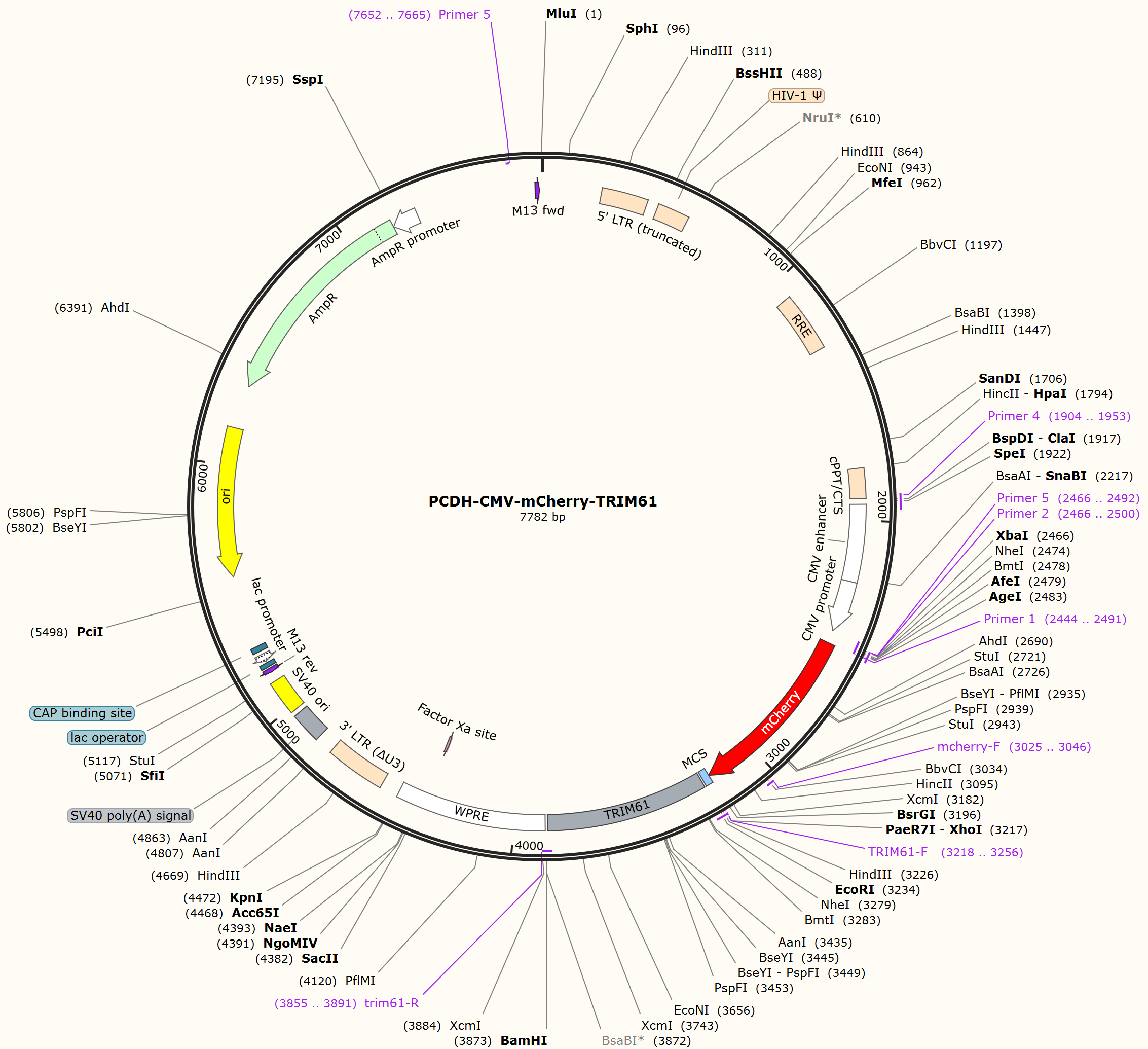

PCDH-CMV-mCherry-TRIM61

LOCUS       PCDH-CMV-mCherry-TRIM61           7782 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7782)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 11, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7782
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3218..3256
                     /label=TRIM61-F
     misc_feature    3240..3869
                     /label=TRIM61
     primer_bind     complement(3855..3891)
                     /label=trim61-R
     misc_feature    3879..4466
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4350..4361)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4539..4772
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4844..4965
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      4984..5119
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5157..5173)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5181..5197
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5205..5235)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5250..5271
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5559..6147)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6318..7178)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7179..7283)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(7652..7665)
                     /label=Primer 5
     primer_bind     7757..7773
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggaatttgt tacggccctg gctgacctcc gagcagaggc tagctgtccc atctgtctgg
     3301 actacttgaa agacccagtg accatcagct gtgggcataa cttctgtctc tcctgcatca
     3361 ttatgtcctg gaaggatcta catgatagtt tcccctgccc cttttgccac ttttgctgtc
     3421 cagaaaggaa atttataagc aatccccagc tgggtagttt gactgaaatt gctaagcaac
     3481 tccagataag aagcaagaag aggaagaggc aggaagagaa gcatgtgtgt aagaagcata
     3541 atcaggtttt gactttcttc tgtcagaaag acctagagct tttatgtcca aggtgcagtt
     3601 tgtccactga tcaccagcat cactgtgttt ggcccataaa gaaggctgcc tcctatcata
     3661 ggaaaaaact ggaggaatac aatgcaccgt ggaaggagag agtggaacta attgaaaaag
     3721 tcataactat gcaaaccagg aaatcactgg aactgaagaa aaagatggag tctccttctg
     3781 tcaccaggct ggagtgcagt tgcacgatct cggctcactt caacctccgc ctcccgggat
     3841 caagcgattc ttctgcctct ggctcctgat agggatccaa tcaacctctg gattacaaaa
     3901 tttgtgaaag attgactggt attcttaact atgttgctcc ttttacgcta tgtggatacg
     3961 ctgctttaat gcctttgtat catgctattg cttcccgtat ggctttcatt ttctcctcct
     4021 tgtataaatc ctggttgctg tctctttatg aggagttgtg gcccgttgtc aggcaacgtg
     4081 gcgtggtgtg cactgtgttt gctgacgcaa cccccactgg ttggggcatt gccaccacct
     4141 gtcagctcct ttccgggact ttcgctttcc ccctccctat tgccacggcg gaactcatcg
     4201 ccgcctgcct tgcccgctgc tggacagggg ctcggctgtt gggcactgac aattccgtgg
     4261 tgttgtcggg gaagctgacg tcctttccat ggctgctcgc ctgtgttgcc acctggattc
     4321 tgcgcgggac gtccttctgc tacgtccctt cggccctcaa tccagcggac cttccttccc
     4381 gcggcctgct gccggctctg cggcctcttc cgcgtctccg ccttcgccct cagacgagtc
     4441 ggatctccct ttggccgcct ccccgccggt acctttaaga ccaatgactt acaaggcagc
     4501 tgtagatctt agccactttt taaaagaaaa ggggggactg gaagggctaa ttcactccca
     4561 acgaaaataa gatctgcttt ttgcttgtac tgggtctctc tggttagacc agatctgagc
     4621 ctgggagctc tctggctaac tagggaaccc actgcttaag cctcaataaa gcttgccttg
     4681 agtgcttcaa gtagtgtgtg cccgtctgtt gtgtgactct ggtaactaga gatccctcag
     4741 acccttttag tcagtgtgga aaatctctag cagtagtagt tcatgtcatc ttattattca
     4801 gtatttataa cttgcaaaga aatgaatatc agagagtgag aggaacttgt ttattgcagc
     4861 ttataatggt tacaaataaa gcaatagcat cacaaatttc acaaataaag catttttttc
     4921 actgcattct agttgtggtt tgtccaaact catcaatgta tcttatcatg tctggctcta
     4981 gctatcccgc ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt
     5041 ttttttattt atgcagaggc cgaggccgcc tcggcctctg agctattcca gaagtagtga
     5101 ggaggctttt ttggaggcct agacttttgc agagacggcc caaattcgta atcatggtca
     5161 tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc cacacaacat acgagccgga
     5221 agcataaagt gtaaagcctg gggtgcctaa tgagtgagct aactcacatt aattgcgttg
     5281 cgctcactgc ccgctttcca gtcgggaaac ctgtcgtgcc agctgcatta atgaatcggc
     5341 caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt ccgcttcctc gctcactgac
     5401 tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa ggcggtaata
     5461 cggttatcca cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa aggccagcaa
     5521 aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt tccataggct ccgcccccct
     5581 gacgagcatc acaaaaatcg acgctcaagt cagaggtggc gaaacccgac aggactataa
     5641 agataccagg cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg
     5701 cttaccggat acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca
     5761 cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa
     5821 ccccccgttc agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg
     5881 gtaagacacg acttatcgcc actggcagca gccactggta acaggattag cagagcgagg
     5941 tatgtaggcg gtgctacaga gttcttgaag tggtggccta actacggcta cactagaagg
     6001 acagtatttg gtatctgcgc tctgctgaag ccagttacct tcggaaaaag agttggtagc
     6061 tcttgatccg gcaaacaaac caccgctggt agcggtggtt tttttgtttg caagcagcag
     6121 attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac ggggtctgac
     6181 gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc aaaaaggatc
     6241 ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag tatatatgag
     6301 taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt
     6361 ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag
     6421 ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca
     6481 gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact
     6541 ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca
     6601 gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg
     6661 tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc
     6721 atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg
     6781 gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca
     6841 tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt
     6901 atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc gccacatagc
     6961 agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc
     7021 ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca
     7081 tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa
     7141 aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat
     7201 tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa
     7261 aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctga cgtctaagaa
     7321 accattatta tcatgacatt aacctataaa aataggcgta tcacgaggcc ctttcgtctc
     7381 gcgcgtttcg gtgatgacgg tgaaaacctc tgacacatgc agctcccgga gacggtcaca
     7441 gcttgtctgt aagcggatgc cgggagcaga caagcccgtc agggcgcgtc agcgggtgtt
     7501 ggcgggtgtc ggggctggct taactatgcg gcatcagagc agattgtact gagagtgcac
     7561 catatgcggt gtgaaatacc gcacagatgc gtaaggagaa aataccgcat caggcgccat
     7621 tcgccattca ggctgcgcaa ctgttgggaa gggcgatcgg tgcgggcctc ttcgctatta
     7681 cgccagctgg cgaaaggggg atgtgctgca aggcgattaa gttgggtaac gccagggttt
     7741 tcccagtcac gacgttgtaa aacgacggcc agtgccaagc tg
//
