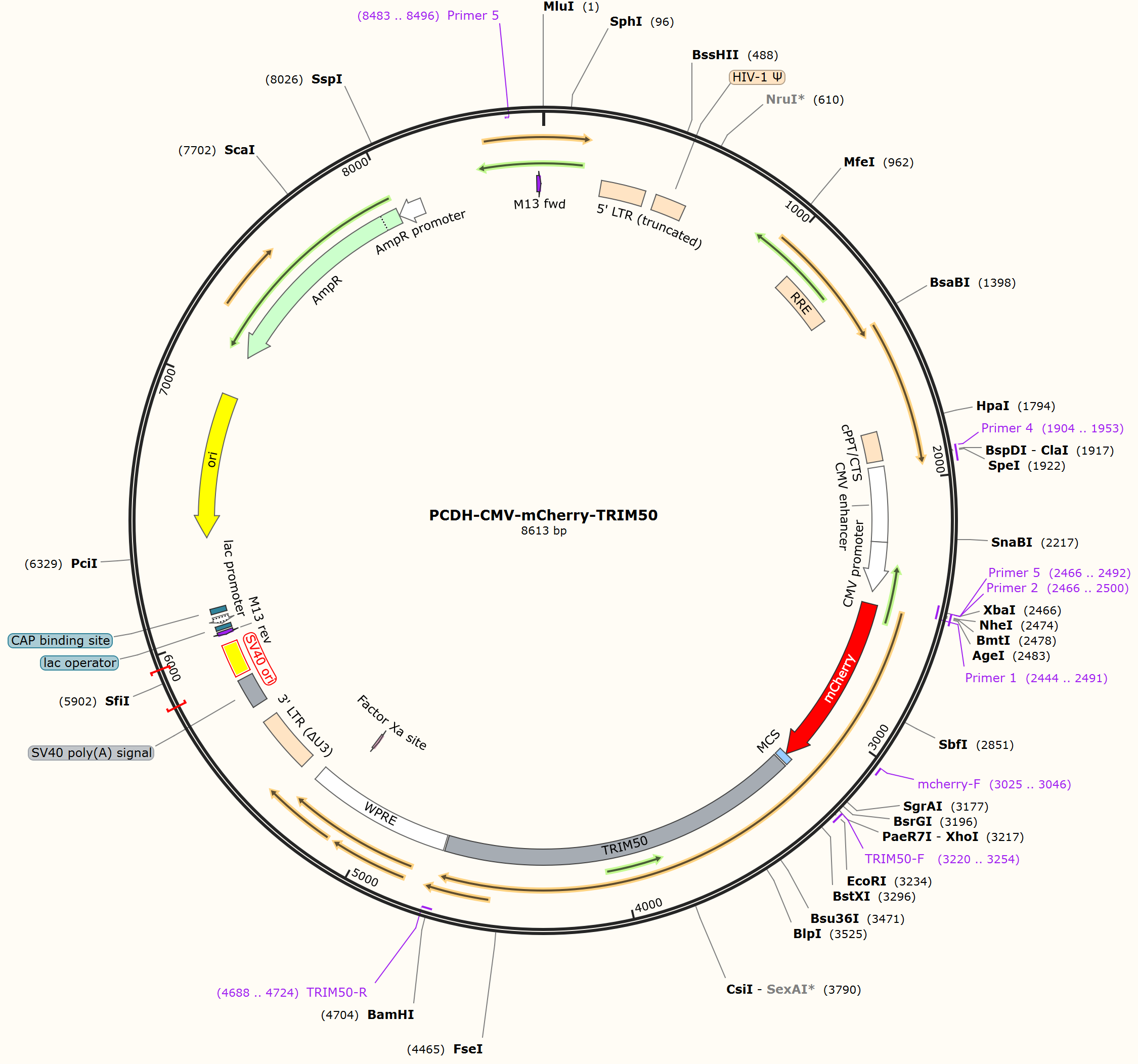

PCDH-CMV-mCherry-TRIM50

LOCUS       PCDH-CMV-mCherry-TRIM50              8613 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8613)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8613
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3254
                     /label=TRIM50-F
     misc_feature    3240..4703
                     /label=TRIM50
     primer_bind     complement(4688..4724)
                     /label=TRIM50-R
     misc_feature    4710..5297
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5181..5192)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5370..5603
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5675..5796
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5815..5950
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5988..6004)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6012..6028
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6036..6066)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6081..6102
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6390..6978)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7149..8009)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8010..8114)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8483..8496)
                     /label=Primer 5
     primer_bind     8588..8604
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcttggca ggtgagcctg ccagagctgg aggaccggct tcagtgtccc atctgcctgg
     3301 aggtcttcaa ggagcccctg atgctgcagt gtggccactc ttactgcaag ggctgcctgg
     3361 tttccctgtc ctgccacctg gatgccgagc tgcgctgccc cgtgtgccgg caggcggtgg
     3421 acggcagcag ctccctgccc aacgtctccc tggccagggt gatcgaagcc ctgaggctcc
     3481 ctggggaccc ggagcccaag gtctgcgtgc accaccggaa cccgctcagc cttttctgcg
     3541 agaaggacca ggagctcatc tgtggcctct gcggtctgct gggctcccac caacaccacc
     3601 cggtcacgcc cgtctccacc gtctacagcc gcatgaagga ggagctcgca gccctcatct
     3661 ctgagctgaa gcaggagcag aaaaaggtgg atgagctcat cgccaaactg gtgaacaacc
     3721 ggacccgaat cgtcaatgag tcggatgtct tcagctgggt gatccgccgc gagttccagg
     3781 agctgcacca cctggtggat gaggagaagg cccgctgcct ggaggggata gggggtcaca
     3841 cccgtggcct ggtggcctcc ctggacatgc agctggagca ggcccaggga acccgggagc
     3901 ggctggccca agccgagtgt gtgctggaac agttcggcaa tgaggaccac cacaagttca
     3961 tccggaagtt ccactccatg gcctccagag cagagatgcc gcaggcccgg cccttagaag
     4021 gcgcattcag ccccatctcc ttcaagccag gcctccacca ggctgacatc aagctgaccg
     4081 tgtggaaaag gctcttccgg aaagttttgc cagccccgga gcctctcaag ttggaccctg
     4141 ccactgccca cccactcctg gagctctcca agggcaacac ggtggtgcag tgcgggcttc
     4201 tggcccagcg gcgagccagc cagcctgagc gcttcgacta cagcacctgc gtcctggcca
     4261 gccgcggctt ctcctgcggc cgccactact gggaggtggt ggtgggcagc aagagcgact
     4321 ggcgcctggg ggtcatcaag ggcacagcca gccgtaaggg caagctgaac aggtcccccg
     4381 agcacggcgt gtggctgatc ggcctgaagg agggccgggt gtacgaagcc tttgcctgcc
     4441 cccgggtacc cctgcccgtg gccggccacc cccaccgcat cgggctctac ctgcactatg
     4501 agcagggcga actcaccttc ttcgatgccg accgccccga tgacctgcgg ccgctctaca
     4561 ccttccaggc cgacttccag ggcaagctct accccatcct ggacacctgc tggcacgaga
     4621 ggggcagcaa ctcgctgccc atggtgctgc ccccgcccag cgggcctggc cccctcagcc
     4681 ccgagcagcc caccaagctg tagggatcca atcaacctct ggattacaaa atttgtgaaa
     4741 gattgactgg tattcttaac tatgttgctc cttttacgct atgtggatac gctgctttaa
     4801 tgcctttgta tcatgctatt gcttcccgta tggctttcat tttctcctcc ttgtataaat
     4861 cctggttgct gtctctttat gaggagttgt ggcccgttgt caggcaacgt ggcgtggtgt
     4921 gcactgtgtt tgctgacgca acccccactg gttggggcat tgccaccacc tgtcagctcc
     4981 tttccgggac tttcgctttc cccctcccta ttgccacggc ggaactcatc gccgcctgcc
     5041 ttgcccgctg ctggacaggg gctcggctgt tgggcactga caattccgtg gtgttgtcgg
     5101 ggaagctgac gtcctttcca tggctgctcg cctgtgttgc cacctggatt ctgcgcggga
     5161 cgtccttctg ctacgtccct tcggccctca atccagcgga ccttccttcc cgcggcctgc
     5221 tgccggctct gcggcctctt ccgcgtctcc gccttcgccc tcagacgagt cggatctccc
     5281 tttggccgcc tccccgccgg tacctttaag accaatgact tacaaggcag ctgtagatct
     5341 tagccacttt ttaaaagaaa aggggggact ggaagggcta attcactccc aacgaaaata
     5401 agatctgctt tttgcttgta ctgggtctct ctggttagac cagatctgag cctgggagct
     5461 ctctggctaa ctagggaacc cactgcttaa gcctcaataa agcttgcctt gagtgcttca
     5521 agtagtgtgt gcccgtctgt tgtgtgactc tggtaactag agatccctca gaccctttta
     5581 gtcagtgtgg aaaatctcta gcagtagtag ttcatgtcat cttattattc agtatttata
     5641 acttgcaaag aaatgaatat cagagagtga gaggaacttg tttattgcag cttataatgg
     5701 ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt cactgcattc
     5761 tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctggctct agctatcccg
     5821 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
     5881 tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt
     5941 tttggaggcc tagacttttg cagagacggc ccaaattcgt aatcatggtc atagctgttt
     6001 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     6061 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     6121 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     6181 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     6241 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     6301 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     6361 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     6421 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     6481 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     6541 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     6601 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     6661 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     6721 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     6781 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag gacagtattt
     6841 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     6901 ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc
     6961 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
     7021 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
     7081 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
     7141 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
     7201 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
     7261 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
     7321 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
     7381 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
     7441 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
     7501 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
     7561 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
     7621 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
     7681 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
     7741 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
     7801 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
     7861 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
     7921 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
     7981 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
     8041 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
     8101 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtctaaga aaccattatt
     8161 atcatgacat taacctataa aaataggcgt atcacgaggc cctttcgtct cgcgcgtttc
     8221 ggtgatgacg gtgaaaacct ctgacacatg cagctcccgg agacggtcac agcttgtctg
     8281 taagcggatg ccgggagcag acaagcccgt cagggcgcgt cagcgggtgt tggcgggtgt
     8341 cggggctggc ttaactatgc ggcatcagag cagattgtac tgagagtgca ccatatgcgg
     8401 tgtgaaatac cgcacagatg cgtaaggaga aaataccgca tcaggcgcca ttcgccattc
     8461 aggctgcgca actgttggga agggcgatcg gtgcgggcct cttcgctatt acgccagctg
     8521 gcgaaagggg gatgtgctgc aaggcgatta agttgggtaa cgccagggtt ttcccagtca
     8581 cgacgttgta aaacgacggc cagtgccaag ctg
//
