pYSJ24

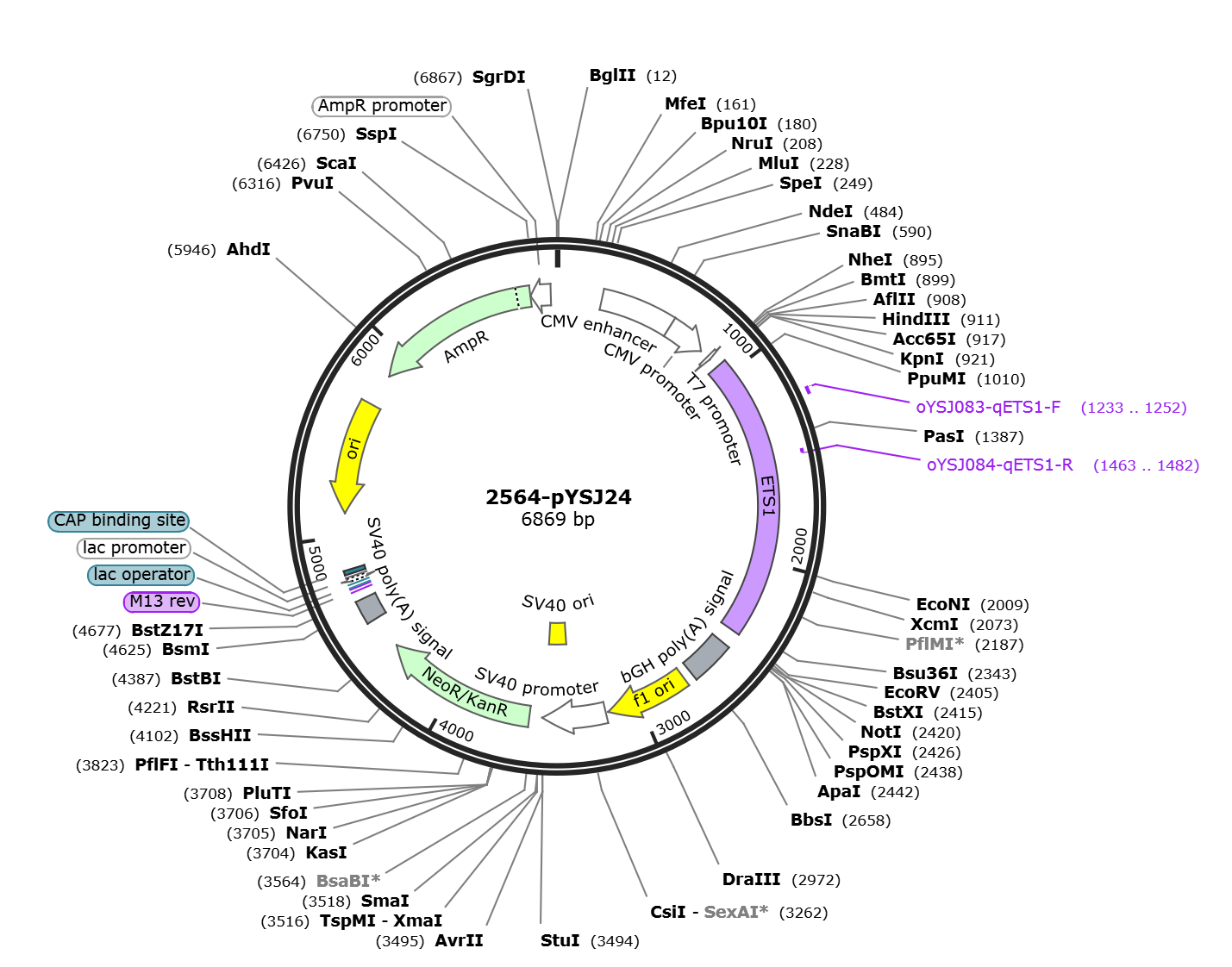

LOCUS       pYSJ24               6869 bp DNA     circular SYN 29-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6869)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6869
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..958
                     /label=oYSJ063-ETS1-F
     misc_feature    935..2389
                     /label=ETS1
     primer_bind     1233..1252
                     /label=oYSJ083-qETS1-F
     primer_bind     complement(1463..1482)
                     /label=oYSJ084-qETS1-R
     primer_bind     1631..1652
                     /label=oYSJTP001-ETS1-F
     primer_bind     complement(2146..2171)
                     /label=oYSJTP002-ETS1-R
     primer_bind     complement(2371..2413)
                     /label=oYSJ064-ETS1-R
     polyA_signal    2469..2693
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2739..3167
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3181..3510
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3361..3496
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3577..4371
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4545..4666
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4715..4731)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4739..4755
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4763..4793)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4808..4829
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5117..5702)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5873..6733)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6734..6838)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgagc tactttgtgg attctgctgg
      961 gagcagcccc gtcccttact cagcgcctcg tcctgcagtg gtgaggcaag gacctagcaa
     1021 cacttatgaa gatcctcgaa tgaactgtgg tttccagtcc aattatcacc agcaaagacc
     1081 ttgctacccc ttttgggatg agatggcaac tcaggaagtt cctactggtc ttgaacactg
     1141 tgtctcagat atggaatgtg cagatgtccc actattaact ccaagcagca aagaaatgat
     1201 gtctcaagca ttaaaagcta ctttcagtgg tttcactaaa gaacagcaac gactggggat
     1261 cccaaaagac ccccggcagt ggacagaaac ccatgttcgg gactgggtga tgtgggctgt
     1321 gaatgaattc agcctgaaag gtgtagactt ccagaagttc tgtatgaatg gagcagccct
     1381 ctgcgccctg ggtaaagact gctttctcga gctggcccca gactttgttg gggacatctt
     1441 atgggaacat ctagagatcc tgcagaaaga ggatgtgaaa ccatatcaag ttaatggagt
     1501 caacccagcc tatccagaat cccgctatac ctcggattac ttcattagct atggtattga
     1561 gcatgcccag tgtgttccac catcggagtt ctcagagccc agcttcatca cagagtccta
     1621 tcagacgctc catcccatca gctcggaaga gctcctctcc ctcaagtatg agaatgacta
     1681 cccctcggtc attctccgag accctctcca gacagacacc ttgcagaatg actactttgc
     1741 tatcaaacaa gaagtcgtca ccccagacaa catgtgcatg gggaggacca gtcgtggtaa
     1801 actcgggggc caggactctt ttgaaagcat agagagctac gatagttgtg atcgcctcac
     1861 ccagtcctgg agcagccagt catctttcaa cagcctgcag cgtgttccct cctatgacag
     1921 cttcgactca gaggactatc cggctgccct gcccaaccac aagcccaagg gcaccttcaa
     1981 ggactatgtg cgggaccgtg ctgacctcaa taaggacaag cctgtcattc ctgctgctgc
     2041 cctagctggc tacacaggca gtggaccaat ccagctatgg cagtttcttc tggaattact
     2101 cactgataaa tcctgtcagt cttttatcag ctggacagga gatggctggg aattcaaact
     2161 ttctgaccca gatgaggtgg ccaggagatg gggaaagagg aaaaacaaac ctaagatgaa
     2221 ttatgagaaa ctgagccgtg gcctacgcta ctattacgac aaaaacatca tccacaagac
     2281 agcggggaaa cgctacgtgt accgctttgt gtgtgacctg cagagcctgc tggggtacac
     2341 ccctgaggag ctgcacgcca tgctggacgt caagccagat gccgacgagt aagaattctg
     2401 cagatatcca gcacagtggc ggccgctcga gtctagaggg cccgtttaaa cccgctgatc
     2461 agcctcgact gtgccttcta gttgccagcc atctgttgtt tgcccctccc ccgtgccttc
     2521 cttgaccctg gaaggtgcca ctcccactgt cctttcctaa taaaatgagg aaattgcatc
     2581 gcattgtctg agtaggtgtc attctattct ggggggtggg gtggggcagg acagcaaggg
     2641 ggaggattgg gaagacaata gcaggcatgc tggggatgcg gtgggctcta tggcttctga
     2701 ggcggaaaga accagctggg gctctagggg gtatccccac gcgccctgta gcggcgcatt
     2761 aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc
     2821 gcccgctcct ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca
     2881 agctctaaat cgggggctcc ctttagggtt ccgatttagt gctttacggc acctcgaccc
     2941 caaaaaactt gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt
     3001 tcgccctttg acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac
     3061 aacactcaac cctatctcgg tctattcttt tgatttataa gggattttgc cgatttcggc
     3121 ctattggtta aaaaatgagc tgatttaaca aaaatttaac gcgaattaat tctgtggaat
     3181 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     3241 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga
     3301 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc
     3361 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     3421 tttatttatg cagaggccga ggccgcctct gcctctgagc tattccagaa gtagtgagga
     3481 ggcttttttg gaggcctagg cttttgcaaa aagctcccgg gagcttgtat atccattttc
     3541 ggatctgatc aagagacagg atgaggatcg tttcgcatga ttgaacaaga tggattgcac
     3601 gcaggttctc cggccgcttg ggtggagagg ctattcggct atgactgggc acaacagaca
     3661 atcggctgct ctgatgccgc cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt
     3721 gtcaagaccg acctgtccgg tgccctgaat gaactgcagg acgaggcagc gcggctatcg
     3781 tggctggcca cgacgggcgt tccttgcgca gctgtgctcg acgttgtcac tgaagcggga
     3841 agggactggc tgctattggg cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct
     3901 cctgccgaga aagtatccat catggctgat gcaatgcggc ggctgcatac gcttgatccg
     3961 gctacctgcc cattcgacca ccaagcgaaa catcgcatcg agcgagcacg tactcggatg
     4021 gaagccggtc ttgtcgatca ggatgatctg gacgaagagc atcaggggct cgcgccagcc
     4081 gaactgttcg ccaggctcaa ggcgcgcatg cccgacggcg aggatctcgt cgtgacccat
     4141 ggcgatgcct gcttgccgaa tatcatggtg gaaaatggcc gcttttctgg attcatcgac
     4201 tgtggccggc tgggtgtggc ggaccgctat caggacatag cgttggctac ccgtgatatt
     4261 gctgaagagc ttggcggcga atgggctgac cgcttcctcg tgctttacgg tatcgccgct
     4321 cccgattcgc agcgcatcgc cttctatcgc cttcttgacg agttcttctg agcgggactc
     4381 tggggttcga aatgaccgac caagcgacgc ccaacctgcc atcacgagat ttcgattcca
     4441 ccgccgcctt ctatgaaagg ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga
     4501 tcctccagcg cggggatctc atgctggagt tcttcgccca ccccaacttg tttattgcag
     4561 cttataatgg ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt
     4621 cactgcattc tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctgtatac
     4681 cgtcgacctc tagctagagc ttggcgtaat catggtcata gctgtttcct gtgtgaaatt
     4741 gttatccgct cacaattcca cacaacatac gagccggaag cataaagtgt aaagcctggg
     4801 gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc gctttccagt
     4861 cgggaaacct gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg agaggcggtt
     4921 tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc
     4981 tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg
     5041 ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg
     5101 ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac
     5161 gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg
     5221 gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct
     5281 ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg
     5341 tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct
     5401 gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac
     5461 tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt
     5521 tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc
     5581 tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca
     5641 ccgctggtag cggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc
     5701 aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt
     5761 aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa
     5821 aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat
     5881 gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct
     5941 gactccccgt cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg
     6001 caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag
     6061 ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta
     6121 attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg
     6181 ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg
     6241 gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct
     6301 ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta
     6361 tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg
     6421 gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc
     6481 cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg
     6541 gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga
     6601 tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg
     6661 ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat
     6721 gttgaatact catactcttc ctttttcaat attattgaag catttatcag ggttattgtc
     6781 tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca
     6841 catttccccg aaaagtgcca cctgacgtc
//
