pYSJ8

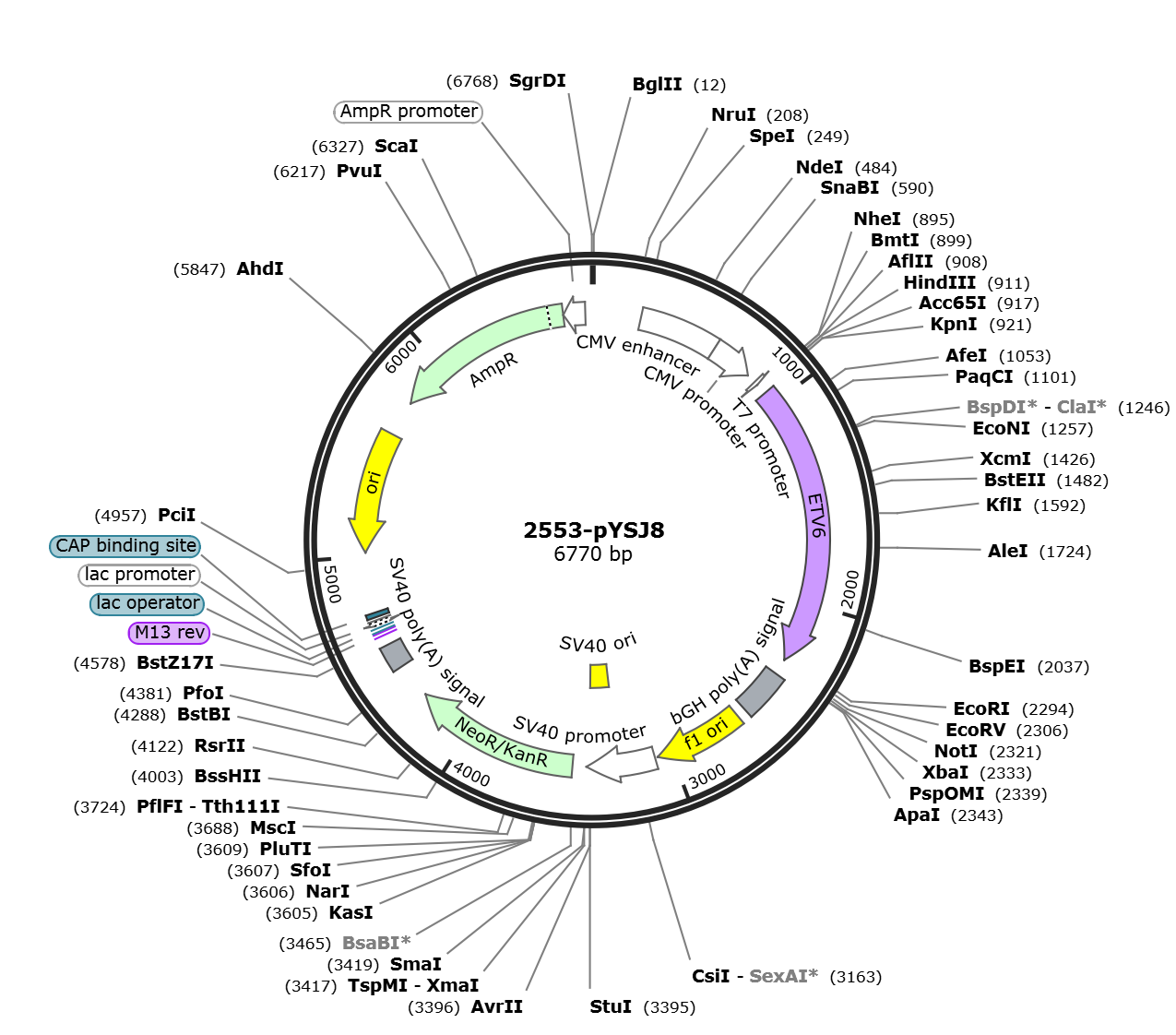

LOCUS       pYSJ8               6770 bp DNA     circular SYN 25-OCT-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6770)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6770
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..957
                     /label=oYSJ043-ETV6-F
     CDS             935..2293
                     /codon_start=1
                     /label=ETV6
                     /translation="MSETPAQCSIKQERISYTPPESPVPSYASSTPLHVPVPRALRMEE
                     DSIRLPAHLRLQPIYWSRDDVAQWLKWAENEFSLRPIDSNTFEMNGKALLLLTKEDFRY
                     RSPHSGDVLYELLQHILKQRKPRILFSPFFHPGNSIHTQPEVILHQNHEEDNCVQRTPR
                     PSVDNVHHNPPTIELLHRSRSPITTNHRPSPDPEQRPLRSPLDNMIRRLSPAERAQGPR
                     PHQENNHQESYPLSVSPMENNHCPASSESHPKPSSPRQESTRVIQLMPSPIMHPLILNP
                     RHSVDFKQSRLSEDGLHREGKPINLSHREDLAYMNHIMVSVSPPEEHAMPIGRIADCRL
                     LWDYVYQLLSDSRYENFIRWEDKESKIFRIVDPNGLARLWGNHKNRTNMTYEKMSRALR
                     HYYKLNIIRKEPGQRLLFRFMKTPDEIMSGRTDRLEHLESQELDEQIYQEDEC"
     primer_bind     935..957
                     /label=oYSJ033-ETV6-F
     primer_bind     1218..1239
                     /label=QL303 F
     primer_bind     complement(1323..1344)
                     /label=QL304 R
     primer_bind     complement(2260..2314)
                     /label=oYSJ044-ETV6-R
     primer_bind     complement(2260..2293)
                     /label=oYSJ034-ETV6-R
     primer_bind     2353..2371
                     /label=oQZ311
     polyA_signal    2370..2594
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2591..2613)
                     /label=oQZ312
     primer_bind     2599..2613
                     /label=oQZ313
     rep_origin      2640..3068
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3082..3411
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3262..3397
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3478..4272
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4446..4567
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4616..4632)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4640..4656
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4664..4694)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4709..4730
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5018..5603)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5774..6634)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6635..6739)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgtct gagactcctg ctcagtgtag
      961 cattaagcag gaacgaattt catatacacc tccagagagc ccagtgccga gttacgcttc
     1021 ctcgacgcca cttcatgttc cagtgcctcg agcgctcagg atggaggaag actcgatccg
     1081 cctgcctgcg cacctgcgct tgcagccaat ttactggagc agggatgacg tagcccagtg
     1141 gctcaagtgg gctgaaaatg agttttcttt aaggccaatt gacagcaaca cgtttgaaat
     1201 gaatggcaaa gctctcctgc tgctgaccaa agaggacttt cgctatcgat ctcctcattc
     1261 aggtgatgtg ctctatgaac tccttcagca tattctgaag cagaggaaac ctcggattct
     1321 tttttcacca ttcttccacc ctggaaactc tatacacaca cagccggagg tcatactgca
     1381 tcagaaccat gaagaagata actgtgtcca gaggaccccc aggccatccg tggataatgt
     1441 gcaccataac cctcccacca ttgaactgtt gcaccgctcc aggtcaccta tcacgacaaa
     1501 tcaccggcct tctcctgacc ccgagcagcg gcccctccgg tcccccctgg acaacatgat
     1561 ccgccgcctc tccccggctg agagagctca gggacccagg ccgcaccagg agaacaacca
     1621 ccaggagtcc taccctctgt cagtgtctcc catggagaat aatcactgcc cagcgtcctc
     1681 cgagtcccac ccgaagccat ccagcccccg gcaggagagc acacgcgtga tccagctgat
     1741 gcccagcccc atcatgcacc ctctgatcct gaacccccgg cactccgtgg atttcaaaca
     1801 gtccaggctc tccgaggacg ggctgcatag ggaagggaag cccatcaacc tctctcatcg
     1861 ggaagacctg gcttacatga accacatcat ggtctctgtc tccccgcctg aagagcacgc
     1921 catgcccatt gggagaatag cagactgtag actgctttgg gattacgtct atcagttgct
     1981 ttctgacagc cggtacgaaa acttcatccg atgggaggac aaagaatcca aaatattccg
     2041 gatagtggat cccaacggac tggctcgact gtggggaaac cataagaaca gaacaaacat
     2101 gacctatgag aaaatgtcca gagccctgcg ccactactac aaactaaaca ttatcaggaa
     2161 ggagccagga caaaggcttt tgttcaggtt tatgaaaacc ccagatgaaa tcatgagtgg
     2221 ccgaacagac cgtctggagc acctagagtc ccaggagctg gatgaacaaa tataccaaga
     2281 agatgaatgc tgagaattct gcagatatcc agcacagtgg cggccgctcg agtctagagg
     2341 gcccgtttaa acccgctgat cagcctcgac tgtgccttct agttgccagc catctgttgt
     2401 ttgcccctcc cccgtgcctt ccttgaccct ggaaggtgcc actcccactg tcctttccta
     2461 ataaaatgag gaaattgcat cgcattgtct gagtaggtgt cattctattc tggggggtgg
     2521 ggtggggcag gacagcaagg gggaggattg ggaagacaat agcaggcatg ctggggatgc
     2581 ggtgggctct atggcttctg aggcggaaag aaccagctgg ggctctaggg ggtatcccca
     2641 cgcgccctgt agcggcgcat taagcgcggc gggtgtggtg gttacgcgca gcgtgaccgc
     2701 tacacttgcc agcgccctag cgcccgctcc tttcgctttc ttcccttcct ttctcgccac
     2761 gttcgccggc tttccccgtc aagctctaaa tcgggggctc cctttagggt tccgatttag
     2821 tgctttacgg cacctcgacc ccaaaaaact tgattagggt gatggttcac gtagtgggcc
     2881 atcgccctga tagacggttt ttcgcccttt gacgttggag tccacgttct ttaatagtgg
     2941 actcttgttc caaactggaa caacactcaa ccctatctcg gtctattctt ttgatttata
     3001 agggattttg ccgatttcgg cctattggtt aaaaaatgag ctgatttaac aaaaatttaa
     3061 cgcgaattaa ttctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca
     3121 gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccaggtg tggaaagtcc
     3181 ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccata
     3241 gtcccgcccc taactccgcc catcccgccc ctaactccgc ccagttccgc ccattctccg
     3301 ccccatggct gactaatttt ttttatttat gcagaggccg aggccgcctc tgcctctgag
     3361 ctattccaga agtagtgagg aggctttttt ggaggcctag gcttttgcaa aaagctcccg
     3421 ggagcttgta tatccatttt cggatctgat caagagacag gatgaggatc gtttcgcatg
     3481 attgaacaag atggattgca cgcaggttct ccggccgctt gggtggagag gctattcggc
     3541 tatgactggg cacaacagac aatcggctgc tctgatgccg ccgtgttccg gctgtcagcg
     3601 caggggcgcc cggttctttt tgtcaagacc gacctgtccg gtgccctgaa tgaactgcag
     3661 gacgaggcag cgcggctatc gtggctggcc acgacgggcg ttccttgcgc agctgtgctc
     3721 gacgttgtca ctgaagcggg aagggactgg ctgctattgg gcgaagtgcc ggggcaggat
     3781 ctcctgtcat ctcaccttgc tcctgccgag aaagtatcca tcatggctga tgcaatgcgg
     3841 cggctgcata cgcttgatcc ggctacctgc ccattcgacc accaagcgaa acatcgcatc
     3901 gagcgagcac gtactcggat ggaagccggt cttgtcgatc aggatgatct ggacgaagag
     3961 catcaggggc tcgcgccagc cgaactgttc gccaggctca aggcgcgcat gcccgacggc
     4021 gaggatctcg tcgtgaccca tggcgatgcc tgcttgccga atatcatggt ggaaaatggc
     4081 cgcttttctg gattcatcga ctgtggccgg ctgggtgtgg cggaccgcta tcaggacata
     4141 gcgttggcta cccgtgatat tgctgaagag cttggcggcg aatgggctga ccgcttcctc
     4201 gtgctttacg gtatcgccgc tcccgattcg cagcgcatcg ccttctatcg ccttcttgac
     4261 gagttcttct gagcgggact ctggggttcg aaatgaccga ccaagcgacg cccaacctgc
     4321 catcacgaga tttcgattcc accgccgcct tctatgaaag gttgggcttc ggaatcgttt
     4381 tccgggacgc cggctggatg atcctccagc gcggggatct catgctggag ttcttcgccc
     4441 accccaactt gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt
     4501 tcacaaataa agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg
     4561 tatcttatca tgtctgtata ccgtcgacct ctagctagag cttggcgtaa tcatggtcat
     4621 agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata cgagccggaa
     4681 gcataaagtg taaagcctgg ggtgcctaat gagtgagcta actcacatta attgcgttgc
     4741 gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc
     4801 aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact
     4861 cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag gcggtaatac
     4921 ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa
     4981 aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc cgcccccctg
     5041 acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca ggactataaa
     5101 gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg accctgccgc
     5161 ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct catagctcac
     5221 gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac
     5281 cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag tccaacccgg
     5341 taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc agagcgaggt
     5401 atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac actagaagaa
     5461 cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga gttggtagct
     5521 cttgatccgg caaacaaacc accgctggta gcggtttttt tgtttgcaag cagcagatta
     5581 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
     5641 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca
     5701 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa
     5761 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat
     5821 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct
     5881 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt
     5941 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat
     6001 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta
     6061 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg
     6121 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt
     6181 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg
     6241 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg
     6301 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc
     6361 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa
     6421 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac
     6481 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt
     6541 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg
     6601 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa
     6661 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
     6721 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
//
