| 出品公司: | Addgene |
|---|---|
| 载体名称: | PX544 或 PX544 SpCas9(del1098-1368) |
| 质粒类型: | CRISPR-Cas9载体；基因敲除载体；哺乳动物细胞载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 插入位点: | 限制性内切酶，多克隆位点 |
| 启动子: | Cbh |
| 载体大小: | 7434 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | BGH Reverse：TAGAAGGCACAGTCGAGG |
| 载体标签: | 3XFLAG (N ter) |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | -- |
| 克隆菌株: | Stbl3 |
| 宿主细胞（系）: | 哺乳动物细胞 |
| 备注: | Truncated form of SpCas9 without C' domain |
| 产品目录号: | #58889 |
| 稳定性: | 瞬表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
PX544载体质粒基本信息

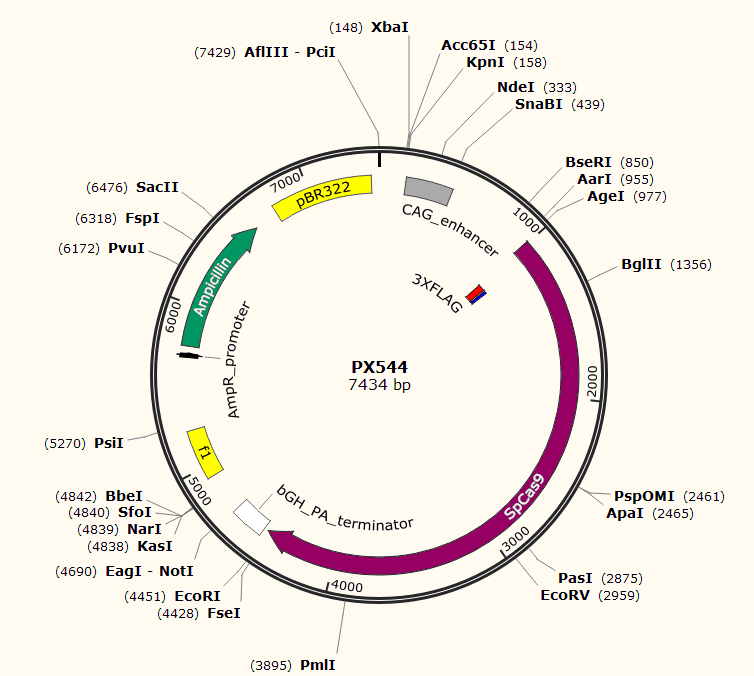

PX544质粒图谱载体图谱和PX544载体序列质粒序列多克隆位点信息
PX544质粒载体简介
PX544质粒序列载体序列
LOCUS PX544 SpCas9(del1098-1368) 7434 bp DNA SYN
DEFINITION PX544 SpCas9(del1098-1368)
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..7434
/organism="PX544 SpCas9(del1098-1368)"
/mol_type="other DNA"
misc_feature 164..451
/label="CAG_enhancer"
CDS complement(968..3625)
/label="ORF frame 3"
/translation="MVHIVVGQPVDVQFLVHVHIPPILQVVQVQLLVLQLGVFHGVFF
QDLAAQLFDALFDPLHSLAAVLLSLLGGLVLSGHFDHDVLGLVPAHHFHELVHHLHCL
QDALLNGGAAGQIGNVLVQAIALAGHLGFLDVLFKGQAVVVDQLHEVSVGEAVGLQEI
QDCLAGLLVPDAVDQLPAQPAPAGVSPPLQLLHHFVVEQVGIGFQPFLDHLSVLKQCQ
GQHDIFQNVLVFLIVQEVLVLDNFQQIVVCAQGGVEPIFHAGDFHGVEALDFLEVVLF
QLLHGHFPVGLEQQVHDGLFLLAAQEGGLSHSLGHVFHFGQLVIHGEVLVQQAVLGQH
LLVGQVLIEVGHPLDEALGGSALVHHFLEVPGGDGFLALSGHPGESAVSPGQRAHVVG
DAEGQDLLDLFPVVLQEWVKIFLPPQNGVQLSQVDLVGDAAVVEGPLLPQQVLSVQLH
EQFLGAVHLFQDGLDELVELFLAGSAVNVAGVAVLALVEENLFVLLRQLLPHESFQQG
QVLVVLVVSLDHRGAQGGLGDLGVHSQDVAQQDGVGQVLGGQKQVGVLVADLGQQVVQ
VVVVGVLAQLQFGILGQVEVALEVGGQAQAQGNQVSEQAILLLAGQLGDQIFQPSALA
QSGRQDGLGVHAAGVDGVFLEQLVVGLHQLDEQLVHVAVVGVQVALDQEVAPELDHVG
QGQIDQPQVGLVGAVHQFLSQVVDGGVLLVVGHLVHDVAEDGVPLVLLILFHQEGLFQ
SVEEAVVHLGHLVAEDLLQIADPVLPSGVSSSGGSLQPGGLGCFAAVEQQGSDQVLLD
AVPVGVAQHLEFLAGHLVLVGDHGPAHRVGADVQADAVLLVGCWDSVDTDLPLLLWGH
LIVIVFVINIMILVVSVVVLIVHGGTGPT*"
CDS 989..4450
/label="ORF frame 2"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 992..1012
/label="FLAG"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 1013..1033
/label="FLAG"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 1034..1057
/label="FLAG"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 1064..1084
/label="SV40 NLS"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 1064..1087
/label="SV40 NLS"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 1070..1084
/label="NLS"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature complement(4475..4492)
/label="BGH_rev_primer"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
terminator 4478..4681
/label="bGH_PA_terminator"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
rep_origin 4929..5235
/label="f1_origin"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
misc_feature 5503..5525
/label="pGEX_3_primer"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
promoter 5684..5712
/label="AmpR_promoter"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
gene 5754..6614
/label="Ampicillin"
/gene="Ampicillin"
/translation="MDYKDHDGDYKDHDIDYKDDDDKMAPKKKRKVGIHGVPAADKKY
SIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATR
LKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGN
IVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNS
DVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGL
FGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKN
LSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFD
QSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIP
HQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKS
EETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKV
KYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVED
RFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLF
DDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDS
LTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENI
VIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQ
NGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEV
VKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQ
ILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNA
VVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTKRPAATKKA
GQAKKKK*"
CDS 5754..6614
/label="ORF frame 3"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
rep_origin 6769..7388
/label="pBR322_origin"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcaaag cccgggcgtc
61 gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc gcgcagagag ggagtggcca
121 actccatcac taggggttcc tgcggcctct agaggtaccc gttacataac ttacggtaaa
181 tggcccgcct ggctgaccgc ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt
241 tcccatagta acgccaatag ggactttcca ttgacgtcaa tgggtggagt atttacggta
301 aactgcccac ttggcagtac atcaagtgta tcatatgcca agtacgcccc ctattgacgt
361 caatgacggt aaatggcccg cctggcatta tgcccagtac atgaccttat gggactttcc
421 tacttggcag tacatctacg tattagtcat cgctattacc atggtcgagg tgagccccac
481 gttctgcttc actctcccca tctccccccc ctccccaccc ccaattttgt atttatttat
541 tttttaatta ttttgtgcag cgatgggggc gggggggggg ggggggcgcg cgccaggcgg
601 ggcggggcgg ggcgaggggc ggggcggggc gaggcggaga ggtgcggcgg cagccaatca
661 gagcggcgcg ctccgaaagt ttccttttat ggcgaggcgg cggcggcggc ggccctataa
721 aaagcgaagc gcgcggcggg cgggagtcgc tgcgacgctg ccttcgcccc gtgccccgct
781 ccgccgccgc ctcgcgccgc ccgccccggc tctgactgac cgcgttactc ccacaggtga
841 gcgggcggga cggcccttct cctccgggct gtaattagct gagcaagagg taagggttta
901 agggatggtt ggttggtggg gtattaatgt ttaattacct ggagcacctg cctgaaatca
961 ctttttttca ggttGGACCG GTGCCACCAT GGACTATAAG GACCACGACG GAGACTACAA
1021 GGATCATGAT ATTGATTACA AAGACGATGA CGATAAGATG GCCCCAAAGA AGAAGCGGAA
1081 GGTCGGTATC CACGGAGTCC CAGCAGCCGA CAAGAAGTAC AGCATCGGCC TGGACATCGG
1141 CACCAACTCT GTGGGCTGGG CCGTGATCAC CGACGAGTAC AAGGTGCCCA GCAAGAAATT
1201 CAAGGTGCTG GGCAACACCG ACCGGCACAG CATCAAGAAG AACCTGATCG GAGCCCTGCT
1261 GTTCGACAGC GGCGAAACAG CCGAGGCCAC CCGGCTGAAG AGAACCGCCA GAAGAAGATA
1321 CACCAGACGG AAGAACCGGA TCTGCTATCT GCAAGAGATC TTCAGCAACG AGATGGCCAA
1381 GGTGGACGAC AGCTTCTTCC ACAGACTGGA AGAGTCCTTC CTGGTGGAAG AGGATAAGAA
1441 GCACGAGCGG CACCCCATCT TCGGCAACAT CGTGGACGAG GTGGCCTACC ACGAGAAGTA
1501 CCCCACCATC TACCACCTGA GAAAGAAACT GGTGGACAGC ACCGACAAGG CCGACCTGCG
1561 GCTGATCTAT CTGGCCCTGG CCCACATGAT CAAGTTCCGG GGCCACTTCC TGATCGAGGG
1621 CGACCTGAAC CCCGACAACA GCGACGTGGA CAAGCTGTTC ATCCAGCTGG TGCAGACCTA
1681 CAACCAGCTG TTCGAGGAAA ACCCCATCAA CGCCAGCGGC GTGGACGCCA AGGCCATCCT
1741 GTCTGCCAGA CTGAGCAAGA GCAGACGGCT GGAAAATCTG ATCGCCCAGC TGCCCGGCGA
1801 GAAGAAGAAT GGCCTGTTCG GAAACCTGAT TGCCCTGAGC CTGGGCCTGA CCCCCAACTT
1861 CAAGAGCAAC TTCGACCTGG CCGAGGATGC CAAACTGCAG CTGAGCAAGG ACACCTACGA
1921 CGACGACCTG GACAACCTGC TGGCCCAGAT CGGCGACCAG TACGCCGACC TGTTTCTGGC
1981 CGCCAAGAAC CTGTCCGACG CCATCCTGCT GAGCGACATC CTGAGAGTGA ACACCGAGAT
2041 CACCAAGGCC CCCCTGAGCG CCTCTATGAT CAAGAGATAC GACGAGCACC ACCAGGACCT
2101 GACCCTGCTG AAAGCTCTCG TGCGGCAGCA GCTGCCTGAG AAGTACAAAG AGATTTTCTT
2161 CGACCAGAGC AAGAACGGCT ACGCCGGCTA CATTGACGGC GGAGCCAGCC AGGAAGAGTT
2221 CTACAAGTTC ATCAAGCCCA TCCTGGAAAA GATGGACGGC ACCGAGGAAC TGCTCGTGAA
2281 GCTGAACAGA GAGGACCTGC TGCGGAAGCA GCGGACCTTC GACAACGGCA GCATCCCCCA
2341 CCAGATCCAC CTGGGAGAGC TGCACGCCAT TCTGCGGCGG CAGGAAGATT TTTACCCATT
2401 CCTGAAGGAC AACCGGGAAA AGATCGAGAA GATCCTGACC TTCCGCATCC CCTACTACGT
2461 GGGCCCTCTG GCCAGGGGAA ACAGCAGATT CGCCTGGATG ACCAGAAAGA GCGAGGAAAC
2521 CATCACCCCC TGGAACTTCG AGGAAGTGGT GGACAAGGGC GCTTCCGCCC AGAGCTTCAT
2581 CGAGCGGATG ACCAACTTCG ATAAGAACCT GCCCAACGAG AAGGTGCTGC CCAAGCACAG
2641 CCTGCTGTAC GAGTACTTCA CCGTGTATAA CGAGCTGACC AAAGTGAAAT ACGTGACCGA
2701 GGGAATGAGA AAGCCCGCCT TCCTGAGCGG CGAGCAGAAA AAGGCCATCG TGGACCTGCT
2761 GTTCAAGACC AACCGGAAAG TGACCGTGAA GCAGCTGAAA GAGGACTACT TCAAGAAAAT
2821 CGAGTGCTTC GACTCCGTGG AAATCTCCGG CGTGGAAGAT CGGTTCAACG CCTCCCTGGG
2881 CACATACCAC GATCTGCTGA AAATTATCAA GGACAAGGAC TTCCTGGACA ATGAGGAAAA
2941 CGAGGACATT CTGGAAGATA TCGTGCTGAC CCTGACACTG TTTGAGGACA GAGAGATGAT
3001 CGAGGAACGG CTGAAAACCT ATGCCCACCT GTTCGACGAC AAAGTGATGA AGCAGCTGAA
3061 GCGGCGGAGA TACACCGGCT GGGGCAGGCT GAGCCGGAAG CTGATCAACG GCATCCGGGA
3121 CAAGCAGTCC GGCAAGACAA TCCTGGATTT CCTGAAGTCC GACGGCTTCG CCAACAGAAA
3181 CTTCATGCAG CTGATCCACG ACGACAGCCT GACCTTTAAA GAGGACATCC AGAAAGCCCA
3241 GGTGTCCGGC CAGGGCGATA GCCTGCACGA GCACATTGCC AATCTGGCCG GCAGCCCCGC
3301 CATTAAGAAG GGCATCCTGC AGACAGTGAA GGTGGTGGAC GAGCTCGTGA AAGTGATGGG
3361 CCGGCACAAG CCCGAGAACA TCGTGATCGA AATGGCCAGA GAGAACCAGA CCACCCAGAA
3421 GGGACAGAAG AACAGCCGCG AGAGAATGAA GCGGATCGAA GAGGGCATCA AAGAGCTGGG
3481 CAGCCAGATC CTGAAAGAAC ACCCCGTGGA AAACACCCAG CTGCAGAACG AGAAGCTGTA
3541 CCTGTACTAC CTGCAGAATG GGCGGGATAT GTACGTGGAC CAGGAACTGG ACATCAACCG
3601 GCTGTCCGAC TACGATGTGG ACCATATCGT GCCTCAGAGC TTTCTGAAGG ACGACTCCAT
3661 CGACAACAAG GTGCTGACCA GAAGCGACAA GAACCGGGGC AAGAGCGACA ACGTGCCCTC
3721 CGAAGAGGTC GTGAAGAAGA TGAAGAACTA CTGGCGGCAG CTGCTGAACG CCAAGCTGAT
3781 TACCCAGAGA AAGTTCGACA ATCTGACCAA GGCCGAGAGA GGCGGCCTGA GCGAACTGGA
3841 TAAGGCCGGC TTCATCAAGA GACAGCTGGT GGAAACCCGG CAGATCACAA AGCACGTGGC
3901 ACAGATCCTG GACTCCCGGA TGAACACTAA GTACGACGAG AATGACAAGC TGATCCGGGA
3961 AGTGAAAGTG ATCACCCTGA AGTCCAAGCT GGTGTCCGAT TTCCGGAAGG ATTTCCAGTT
4021 TTACAAAGTG CGCGAGATCA ACAACTACCA CCACGCCCAC GACGCCTACC TGAACGCCGT
4081 CGTGGGAACC GCCCTGATCA AAAAGTACCC TAAGCTGGAA AGCGAGTTCG TGTACGGCGA
4141 CTACAAGGTG TACGACGTGC GGAAGATGAT CGCCAAGAGC GAGCAGGAAA TCGGCAAGGC
4201 TACCGCCAAG TACTTCTTCT ACAGCAACAT CATGAACTTT TTCAAGACCG AGATTACCCT
4261 GGCCAACGGC GAGATCCGGA AGCGGCCTCT GATCGAGACA AACGGCGAAA CCGGGGAGAT
4321 CGTGTGGGAT AAGGGCCGGG ATTTTGCCAC CGTGCGGAAA GTGCTGAGCA TGCCCCAAGT
4381 GAATATCGTG AAAAAGACCA AAAGGCCGGC GGCCACGAAA AAGGCCGGCC AGGCAAAAAA
4441 GAAAAAGtaa gaattcCTAG AGCTCGCTGA TCAGCCTCGA CTGTGCCTTC TAGTTGCCAG
4501 CCATCTGTTG TTTGCCCCTC CCCCGTGCCT TCCTTGACCC TGGAAGGTGC CACTCCCACT
4561 GTCCTTTCCT AATAAAATGA GGAAATTGCA TCGCATTGTC TGAGTAGGTG TCATTCTATT
4621 CTGGGGGGTG GGGTGGGGCA GGACAGCAAG GGGGAGGATT GGGAAGAgAA TAGCAGGCAT
4681 GCTGGGGAgc ggccgcagga acccctagtg atggagttgg ccactccctc tctgcgcgct
4741 cgctcgctca ctgaggccgg gcgaccaaag gtcgcccgac gcccgggctt tgcccgggcg
4801 gcctcagtga gcgagcgagc gcgcagctgc ctgcaggggc gcctgatgcg gtattttctc
4861 cttacgcatc tgtgcggtat ttcacaccgc atacgtcaaa gcaaccatag tacgcgccct
4921 gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg
4981 ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg
5041 gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac
5101 ggcacctcga ccccaaaaaa cttgatttgg gtgatggttc acgtagtggg ccatcgccct
5161 gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt
5221 tccaaactgg aacaacactc aaccctatct cgggctattc ttttgattta taagggattt
5281 tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt
5341 ttaacaaaat attaacgttt acaattttat ggtgcactct cagtacaatc tgctctgatg
5401 ccgcatagtt aagccagccc cgacacccgc caacacccgc tgacgcgccc tgacgggctt
5461 gtctgctccc ggcatccgct tacagacaag ctgtgaccgt ctccgggagc tgcatgtgtc
5521 agaggttttc accgtcatca ccgaaacgcg cgagacgaaa gggcctcgtg atacgcctat
5581 ttttataggt taatgtcatg ataataatgg tttcttagac gtcaggtggc acttttcggg
5641 gaaatgtgcg cggaacccct atttgtttat ttttctaaat acattcaaat atgtatccgc
5701 tcatgagaca ataaccctga taaatgcttc aataatattg aaaaaggaag agtatgagta
5761 ttcaacattt ccgtgtcgcc cttattccct tttttgcggc attttgcctt cctgtttttg
5821 ctcacccaga aacgctggtg aaagtaaaag atgctgaaga tcagttgggt gcacgagtgg
5881 gttacatcga actggatctc aacagcggta agatccttga gagttttcgc cccgaagaac
5941 gttttccaat gatgagcact tttaaagttc tgctatgtgg cgcggtatta tcccgtattg
6001 acgccgggca agagcaactc ggtcgccgca tacactattc tcagaatgac ttggttgagt
6061 actcaccagt cacagaaaag catcttacgg atggcatgac agtaagagaa ttatgcagtg
6121 ctgccataac catgagtgat aacactgcgg ccaacttact tctgacaacg atcggaggac
6181 cgaaggagct aaccgctttt ttgcacaaca tgggggatca tgtaactcgc cttgatcgtt
6241 gggaaccgga gctgaatgaa gccataccaa acgacgagcg tgacaccacg atgcctgtag
6301 caatggcaac aacgttgcgc aaactattaa ctggcgaact acttactcta gcttcccggc
6361 aacaattaat agactggatg gaggcggata aagttgcagg accacttctg cgctcggccc
6421 ttccggctgg ctggtttatt gctgataaat ctggagccgg tgagcgtgga agccgcggta
6481 tcattgcagc actggggcca gatggtaagc cctcccgtat cgtagttatc tacacgacgg
6541 ggagtcaggc aactatggat gaacgaaata gacagatcgc tgagataggt gcctcactga
6601 ttaagcattg gtaactgtca gaccaagttt actcatatat actttagatt gatttaaaac
6661 ttcattttta atttaaaagg atctaggtga agatcctttt tgataatctc atgaccaaaa
6721 tcccttaacg tgagttttcg ttccactgag cgtcagaccc cgtagaaaag atcaaaggat
6781 cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc
6841 taccagcggt ggtttgtttg ccggatcaag agctaccaac tctttttccg aaggtaactg
6901 gcttcagcag agcgcagata ccaaatactg tccttctagt gtagccgtag ttaggccacc
6961 acttcaagaa ctctgtagca ccgcctacat acctcgctct gctaatcctg ttaccagtgg
7021 ctgctgccag tggcgataag tcgtgtctta ccgggttgga ctcaagacga tagttaccgg
7081 ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac acagcccagc ttggagcgaa
7141 cgacctacac cgaactgaga tacctacagc gtgagctatg agaaagcgcc acgcttcccg
7201 aagggagaaa ggcggacagg tatccggtaa gcggcagggt cggaacagga gagcgcacga
7261 gggagcttcc agggggaaac gcctggtatc tttatagtcc tgtcgggttt cgccacctct
7321 gacttgagcg tcgatttttg tgatgctcgt caggggggcg gagcctatgg aaaaacgcca
7381 gcaacgcggc ctttttacgg ttcctggcct tttgctggcc ttttgctcac atgt
//
