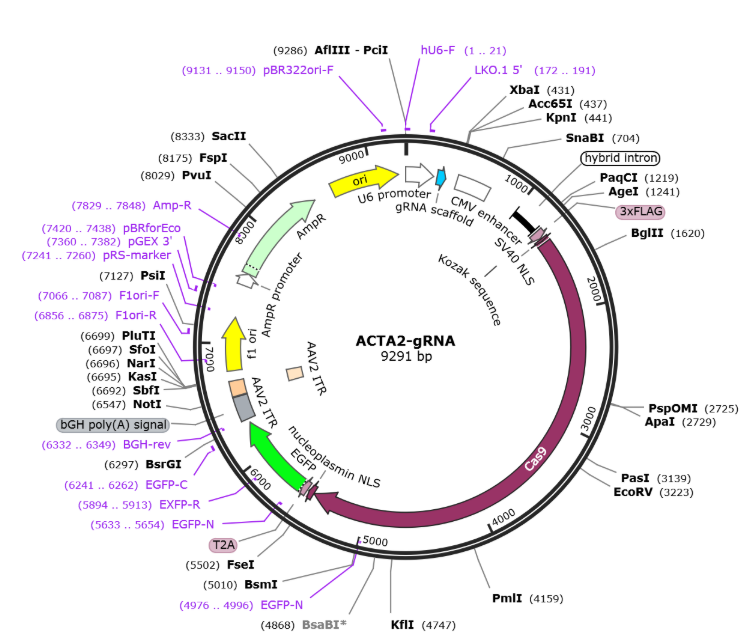

ACTA2-gRNA

LOCUS       ACTA2-gRNA         9291 bp DNA     circular SYN 02-JUL-2026
DEFINITION  to express Cas9 from S. pyogenes with 2A-EGFP and sgRNA targeting
            human ACTA2 locus at the end of the endogenous coding sequence.
ACCESSION   .
VERSION     .
KEYWORDS    ACTA2-gRNA
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9291)
  AUTHORS   Kwong G, Marquez HA, Yang C, Wong JY, Kotton DN
  TITLE     Generation of a Purified iPSC-Derived Smooth Muscle-like Population
            for Cell Sheet Engineering.
  JOURNAL   Stem Cell Reports. 2019 Sep 10;13(3):499-514. doi:
            10.1016/j.stemcr.2019.07.014. Epub 2019 Aug 15.
  PUBMED    31422908
REFERENCE   2  (bases 1 to 9291)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 15, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; doi:
            "10.1016/j.stemcr.2019.07.014"; journalName: "Stem Cell Reports";
            date: "2019-09-10- 10"; volume: "13"; issue: "3"; pages: "499-514"
FEATURES             Location/Qualifiers
     source          1..9291
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        1..241
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1..21
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     172..191
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        271..346
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     enhancer        443..728
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer;
                     contains an 18-bp deletion relative to the standard CMV
                     enhancer"
     intron          1008..1235
                     /label=hybrid intron
                     /note="hybrid between chicken beta-actin (CBA) and minute
                     virus of mice (MMV) introns (Gray et al., 2011)"
     regulatory      1247..1256
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             1256..1321
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     CDS             1328..1348
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             1373..5473
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="DKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
                     VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
                     KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
                     LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
                     KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
                     YYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS
                     EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
                     AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
                     AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
                     SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
                     IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
                     ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
                     NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
                     ATLIHQSITGLYETRIDLSQLGGD"
     primer_bind     complement(4976..4996)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     CDS             5474..5521
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     CDS             5537..5590
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     CDS             5591..6304
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     primer_bind     complement(5633..5654)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(5894..5913)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     6241..6262
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     primer_bind     complement(6332..6349)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    6338..6545
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   6554..6694
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   6554..6683
                     /label=AAV2 ITR
     rep_origin      6769..7224
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6856..6875)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     7066..7087
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(7241..7260)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     7360..7382
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(7420..7438)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        7506..7610
                     /gene="bla"
                     /label=AmpR promoter
     CDS             7611..8471
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(7829..7848)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      8642..9230
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     9131..9150
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
       61 ataattggaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
      121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
      181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
      241 cgaaacaccg tgttttagaa gcatttgcgg gttttagagc tagaaatagc aagttaaaat
      301 aaggctagtc cgttatcaac ttgaaaaagt ggcaccgagt cggtgctttt ttgttttaga
      361 gctagaaata gcaagttaaa ataaggctag tccgttttta gcgcgtgcgc caattctgca
      421 gacaaatggc tctagaggta cccgttacat aacttacggt aaatggcccg cctggctgac
      481 cgcccaacga cccccgccca ttgacgtcaa tagtaacgcc aatagggact ttccattgac
      541 gtcaatgggt ggagtattta cggtaaactg cccacttggc agtacatcaa gtgtatcata
      601 tgccaagtac gccccctatt gacgtcaatg acggtaaatg gcccgcctgg cattgtgccc
      661 agtacatgac cttatgggac tttcctactt ggcagtacat ctacgtatta gtcatcgcta
      721 ttaccatggt cgaggtgagc cccacgttct gcttcactct ccccatctcc cccccctccc
      781 cacccccaat tttgtattta tttatttttt aattattttg tgcagcgatg ggggcggggg
      841 gggggggggg gcgcgcgcca gggggggggg gggggggggg gggggggggg gggggggggg
      901 gggggggggc ggcggcagcc aatcagagcg gcgcgctccg aaagtttcct tttatggcga
      961 ggcggcggcg gcggcggccc tataaaaagc gaagcgcgcg gcgggcggga gtcgctgcgc
     1021 gctgccttcg ccccgtgccc cgctccgccg ccgcctcgcg ccgcccgccc cggctctgac
     1081 tgaccgcgtt actcccacag gtgagcgggc gggacggccc ttctcctccg ggctgtaatt
     1141 agctgagcaa gaggtaaggg tttaagggat ggttggttgg tggggtatta atgtttaatt
     1201 acctggagca cctgcctgaa atcacttttt ttcaggttgg accggtgcca ccatggacta
     1261 taaggaccac gacggagact acaaggatca tgatattgat tacaaagacg atgacgataa
     1321 gatggcccca aagaagaagc ggaaggtcgg tatccacgga gtcccagcag ccgacaagaa
     1381 gtacagcatc ggcctggaca tcggcaccaa ctctgtgggc tgggccgtga tcaccgacga
     1441 gtacaaggtg cccagcaaga aattcaaggt gctgggcaac accgaccggc acagcatcaa
     1501 gaagaacctg atcggagccc tgctgttcga cagcggcgaa acagccgagg ccacccggct
     1561 gaagagaacc gccagaagaa gatacaccag acggaagaac cggatctgct atctgcaaga
     1621 gatcttcagc aacgagatgg ccaaggtgga cgacagcttc ttccacagac tggaagagtc
     1681 cttcctggtg gaagaggata agaagcacga gcggcacccc atcttcggca acatcgtgga
     1741 cgaggtggcc taccacgaga agtaccccac catctaccac ctgagaaaga aactggtgga
     1801 cagcaccgac aaggccgacc tgcggctgat ctatctggcc ctggcccaca tgatcaagtt
     1861 ccggggccac ttcctgatcg agggcgacct gaaccccgac aacagcgacg tggacaagct
     1921 gttcatccag ctggtgcaga cctacaacca gctgttcgag gaaaacccca tcaacgccag
     1981 cggcgtggac gccaaggcca tcctgtctgc cagactgagc aagagcagac ggctggaaaa
     2041 tctgatcgcc cagctgcccg gcgagaagaa gaatggcctg ttcggaaacc tgattgccct
     2101 gagcctgggc ctgaccccca acttcaagag caacttcgac ctggccgagg atgccaaact
     2161 gcagctgagc aaggacacct acgacgacga cctggacaac ctgctggccc agatcggcga
     2221 ccagtacgcc gacctgtttc tggccgccaa gaacctgtcc gacgccatcc tgctgagcga
     2281 catcctgaga gtgaacaccg agatcaccaa ggcccccctg agcgcctcta tgatcaagag
     2341 atacgacgag caccaccagg acctgaccct gctgaaagct ctcgtgcggc agcagctgcc
     2401 tgagaagtac aaagagattt tcttcgacca gagcaagaac ggctacgccg gctacattga
     2461 cggcggagcc agccaggaag agttctacaa gttcatcaag cccatcctgg aaaagatgga
     2521 cggcaccgag gaactgctcg tgaagctgaa cagagaggac ctgctgcgga agcagcggac
     2581 cttcgacaac ggcagcatcc cccaccagat ccacctggga gagctgcacg ccattctgcg
     2641 gcggcaggaa gatttttacc cattcctgaa ggacaaccgg gaaaagatcg agaagatcct
     2701 gaccttccgc atcccctact acgtgggccc tctggccagg ggaaacagca gattcgcctg
     2761 gatgaccaga aagagcgagg aaaccatcac cccctggaac ttcgaggaag tggtggacaa
     2821 gggcgcttcc gcccagagct tcatcgagcg gatgaccaac ttcgataaga acctgcccaa
     2881 cgagaaggtg ctgcccaagc acagcctgct gtacgagtac ttcaccgtgt ataacgagct
     2941 gaccaaagtg aaatacgtga ccgagggaat gagaaagccc gccttcctga gcggcgagca
     3001 gaaaaaggcc atcgtggacc tgctgttcaa gaccaaccgg aaagtgaccg tgaagcagct
     3061 gaaagaggac tacttcaaga aaatcgagtg cttcgactcc gtggaaatct ccggcgtgga
     3121 agatcggttc aacgcctccc tgggcacata ccacgatctg ctgaaaatta tcaaggacaa
     3181 ggacttcctg gacaatgagg aaaacgagga cattctggaa gatatcgtgc tgaccctgac
     3241 actgtttgag gacagagaga tgatcgagga acggctgaaa acctatgccc acctgttcga
     3301 cgacaaagtg atgaagcagc tgaagcggcg gagatacacc ggctggggca ggctgagccg
     3361 gaagctgatc aacggcatcc gggacaagca gtccggcaag acaatcctgg atttcctgaa
     3421 gtccgacggc ttcgccaaca gaaacttcat gcagctgatc cacgacgaca gcctgacctt
     3481 taaagaggac atccagaaag cccaggtgtc cggccagggc gatagcctgc acgagcacat
     3541 tgccaatctg gccggcagcc ccgccattaa gaagggcatc ctgcagacag tgaaggtggt
     3601 ggacgagctc gtgaaagtga tgggccggca caagcccgag aacatcgtga tcgaaatggc
     3661 cagagagaac cagaccaccc agaagggaca gaagaacagc cgcgagagaa tgaagcggat
     3721 cgaagagggc atcaaagagc tgggcagcca gatcctgaaa gaacaccccg tggaaaacac
     3781 ccagctgcag aacgagaagc tgtacctgta ctacctgcag aatgggcggg atatgtacgt
     3841 ggaccaggaa ctggacatca accggctgtc cgactacgat gtggaccata tcgtgcctca
     3901 gagctttctg aaggacgact ccatcgacaa caaggtgctg accagaagcg acaagaaccg
     3961 gggcaagagc gacaacgtgc cctccgaaga ggtcgtgaag aagatgaaga actactggcg
     4021 gcagctgctg aacgccaagc tgattaccca gagaaagttc gacaatctga ccaaggccga
     4081 gagaggcggc ctgagcgaac tggataaggc cggcttcatc aagagacagc tggtggaaac
     4141 ccggcagatc acaaagcacg tggcacagat cctggactcc cggatgaaca ctaagtacga
     4201 cgagaatgac aagctgatcc gggaagtgaa agtgatcacc ctgaagtcca agctggtgtc
     4261 cgatttccgg aaggatttcc agttttacaa agtgcgcgag atcaacaact accaccacgc
     4321 ccacgacgcc tacctgaacg ccgtcgtggg aaccgccctg atcaaaaagt accctaagct
     4381 ggaaagcgag ttcgtgtacg gcgactacaa ggtgtacgac gtgcggaaga tgatcgccaa
     4441 gagcgagcag gaaatcggca aggctaccgc caagtacttc ttctacagca acatcatgaa
     4501 ctttttcaag accgagatta ccctggccaa cggcgagatc cggaagcggc ctctgatcga
     4561 gacaaacggc gaaaccgggg agatcgtgtg ggataagggc cgggattttg ccaccgtgcg
     4621 gaaagtgctg agcatgcccc aagtgaatat cgtgaaaaag accgaggtgc agacaggcgg
     4681 cttcagcaaa gagtctatcc tgcccaagag gaacagcgat aagctgatcg ccagaaagaa
     4741 ggactgggac cctaagaagt acggcggctt cgacagcccc accgtggcct attctgtgct
     4801 ggtggtggcc aaagtggaaa agggcaagtc caagaaactg aagagtgtga aagagctgct
     4861 ggggatcacc atcatggaaa gaagcagctt cgagaagaat cccatcgact ttctggaagc
     4921 caagggctac aaagaagtga aaaaggacct gatcatcaag ctgcctaagt actccctgtt
     4981 cgagctggaa aacggccgga agagaatgct ggcctctgcc ggcgaactgc agaagggaaa
     5041 cgaactggcc ctgccctcca aatatgtgaa cttcctgtac ctggccagcc actatgagaa
     5101 gctgaagggc tcccccgagg ataatgagca gaaacagctg tttgtggaac agcacaagca
     5161 ctacctggac gagatcatcg agcagatcag cgagttctcc aagagagtga tcctggccga
     5221 cgctaatctg gacaaagtgc tgtccgccta caacaagcac cgggataagc ccatcagaga
     5281 gcaggccgag aatatcatcc acctgtttac cctgaccaat ctgggagccc ctgccgcctt
     5341 caagtacttt gacaccacca tcgaccggaa gaggtacacc agcaccaaag aggtgctgga
     5401 cgccaccctg atccaccaga gcatcaccgg cctgtacgag acacggatcg acctgtctca
     5461 gctgggaggc gacaaaaggc cggcggccac gaaaaaggcc ggccaggcaa aaaagaaaaa
     5521 ggaattcggc agtggagagg gcagaggaag tctgctaaca tgcggtgacg tcgaggagaa
     5581 tcctggccca gtgagcaagg gcgaggagct gttcaccggg gtggtgccca tcctggtcga
     5641 gctggacggc gacgtaaacg gccacaagtt cagcgtgtcc ggcgagggcg agggcgatgc
     5701 cacctacggc aagctgaccc tgaagttcat ctgcaccacc ggcaagctgc ccgtgccctg
     5761 gcccaccctc gtgaccaccc tgacctacgg cgtgcagtgc ttcagccgct accccgacca
     5821 catgaagcag cacgacttct tcaagtccgc catgcccgaa ggctacgtcc aggagcgcac
     5881 catcttcttc aaggacgacg gcaactacaa gacccgcgcc gaggtgaagt tcgagggcga
     5941 caccctggtg aaccgcatcg agctgaaggg catcgacttc aaggaggacg gcaacatcct
     6001 ggggcacaag ctggagtaca actacaacag ccacaacgtc tatatcatgg ccgacaagca
     6061 gaagaacggc atcaaggtga acttcaagat ccgccacaac atcgaggacg gcagcgtgca
     6121 gctcgccgac cactaccagc agaacacccc catcggcgac ggccccgtgc tgctgcccga
     6181 caaccactac ctgagcaccc agtccgccct gagcaaagac cccaacgaga agcgcgatca
     6241 catggtcctg ctggagttcg tgaccgccgc cgggatcact ctcggcatgg acgagctgta
     6301 caaggaattc taactagagc tcgctgatca gcctcgactg tgccttctag ttgccagcca
     6361 tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac tcccactgtc
     6421 ctttcctaat aaaatgagga aattgcatcg cattgtctga gtaggtgtca ttctattctg
     6481 gggggtgggg tggggcagga cagcaagggg gaggattggg aagagaatag caggcatgct
     6541 ggggagcggc cgcaggaacc cctagtgatg gagttggcca ctccctctct gcgcgctcgc
     6601 tcgctcactg aggccgggcg accaaaggtc gcccgacgcc cgggctttgc ccgggcggcc
     6661 tcagtgagcg agcgagcgcg cagctgcctg caggggcgcc tgatgcggta ttttctcctt
     6721 acgcatctgt gcggtatttc acaccgcata cgtcaaagca accatagtac gcgccctgta
     6781 gcggcgcatt aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca
     6841 gcgccttagc gcccgctcct ttcgctttct tcccttcctt tctcgccacg ttcgccggct
     6901 ttccccgtca agctctaaat cgggggctcc ctttagggtt ccgatttagt gctttacggc
     6961 acctcgaccc caaaaaactt gatttgggtg atggttcacg tagtgggcca tcgccctgat
     7021 agacggtttt tcgccctttg acgttggagt ccacgttctt taatagtgga ctcttgttcc
     7081 aaactggaac aacactcaac tctatctcgg gctattcttt tgatttataa gggattttgc
     7141 cgatttcggt ctattggtta aaaaatgagc tgatttaaca aaaatttaac gcgaatttta
     7201 acaaaatatt aacgtttaca attttatggt gcactctcag tacaatctgc tctgatgccg
     7261 catagttaag ccagccccga cacccgccaa cacccgctga cgcgccctga cgggcttgtc
     7321 tgctcccggc atccgcttac agacaagctg tgaccgtctc cgggagctgc atgtgtcaga
     7381 ggttttcacc gtcatcaccg aaacgcgcga gacgaaaggg cctcgtgata cgcctatttt
     7441 tataggttaa tgtcatgata ataatggttt cttagacgtc aggtggcact tttcggggaa
     7501 atgtgcgcgg aacccctatt tgtttatttt tctaaataca ttcaaatatg tatccgctca
     7561 tgagacaata accctgataa atgcttcaat aatattgaaa aaggaagagt atgagtattc
     7621 aacatttccg tgtcgccctt attccctttt ttgcggcatt ttgccttcct gtttttgctc
     7681 acccagaaac gctggtgaaa gtaaaagatg ctgaagatca gttgggtgca cgagtgggtt
     7741 acatcgaact ggatctcaac agcggtaaga tccttgagag ttttcgcccc gaagaacgtt
     7801 ttccaatgat gagcactttt aaagttctgc tatgtggcgc ggtattatcc cgtattgacg
     7861 ccgggcaaga gcaactcggt cgccgcatac actattctca gaatgacttg gttgagtact
     7921 caccagtcac agaaaagcat cttacggatg gcatgacagt aagagaatta tgcagtgctg
     7981 ccataaccat gagtgataac actgcggcca acttacttct gacaacgatc ggaggaccga
     8041 aggagctaac cgcttttttg cacaacatgg gggatcatgt aactcgcctt gatcgttggg
     8101 aaccggagct gaatgaagcc ataccaaacg acgagcgtga caccacgatg cctgtagcaa
     8161 tggcaacaac gttgcgcaaa ctattaactg gcgaactact tactctagct tcccggcaac
     8221 aattaataga ctggatggag gcggataaag ttgcaggacc acttctgcgc tcggcccttc
     8281 cggctggctg gtttattgct gataaatctg gagccggtga gcgtggaagc cgcggtatca
     8341 ttgcagcact ggggccagat ggtaagccct cccgtatcgt agttatctac acgacgggga
     8401 gtcaggcaac tatggatgaa cgaaatagac agatcgctga gataggtgcc tcactgatta
     8461 agcattggta actgtcagac caagtttact catatatact ttagattgat ttaaaacttc
     8521 atttttaatt taaaaggatc taggtgaaga tcctttttga taatctcatg accaaaatcc
     8581 cttaacgtga gttttcgttc cactgagcgt cagaccccgt agaaaagatc aaaggatctt
     8641 cttgagatcc tttttttctg cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac
     8701 cagcggtggt ttgtttgccg gatcaagagc taccaactct ttttccgaag gtaactggct
     8761 tcagcagagc gcagatacca aatactgttc ttctagtgta gccgtagtta ggccaccact
     8821 tcaagaactc tgtagcaccg cctacatacc tcgctctgct aatcctgtta ccagtggctg
     8881 ctgccagtgg cgataagtcg tgtcttaccg ggttggactc aagacgatag ttaccggata
     8941 aggcgcagcg gtcgggctga acggggggtt cgtgcacaca gcccagcttg gagcgaacga
     9001 cctacaccga actgagatac ctacagcgtg agctatgaga aagcgccacg cttcccgaag
     9061 ggagaaaggc ggacaggtat ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg
     9121 agcttccagg gggaaacgcc tggtatcttt atagtcctgt cgggtttcgc cacctctgac
     9181 ttgagcgtcg atttttgtga tgctcgtcag gggggcggag cctatggaaa aacgccagca
     9241 acgcggcctt tttacggttc ctggcctttt gctggccttt tgctcacatg t
//
