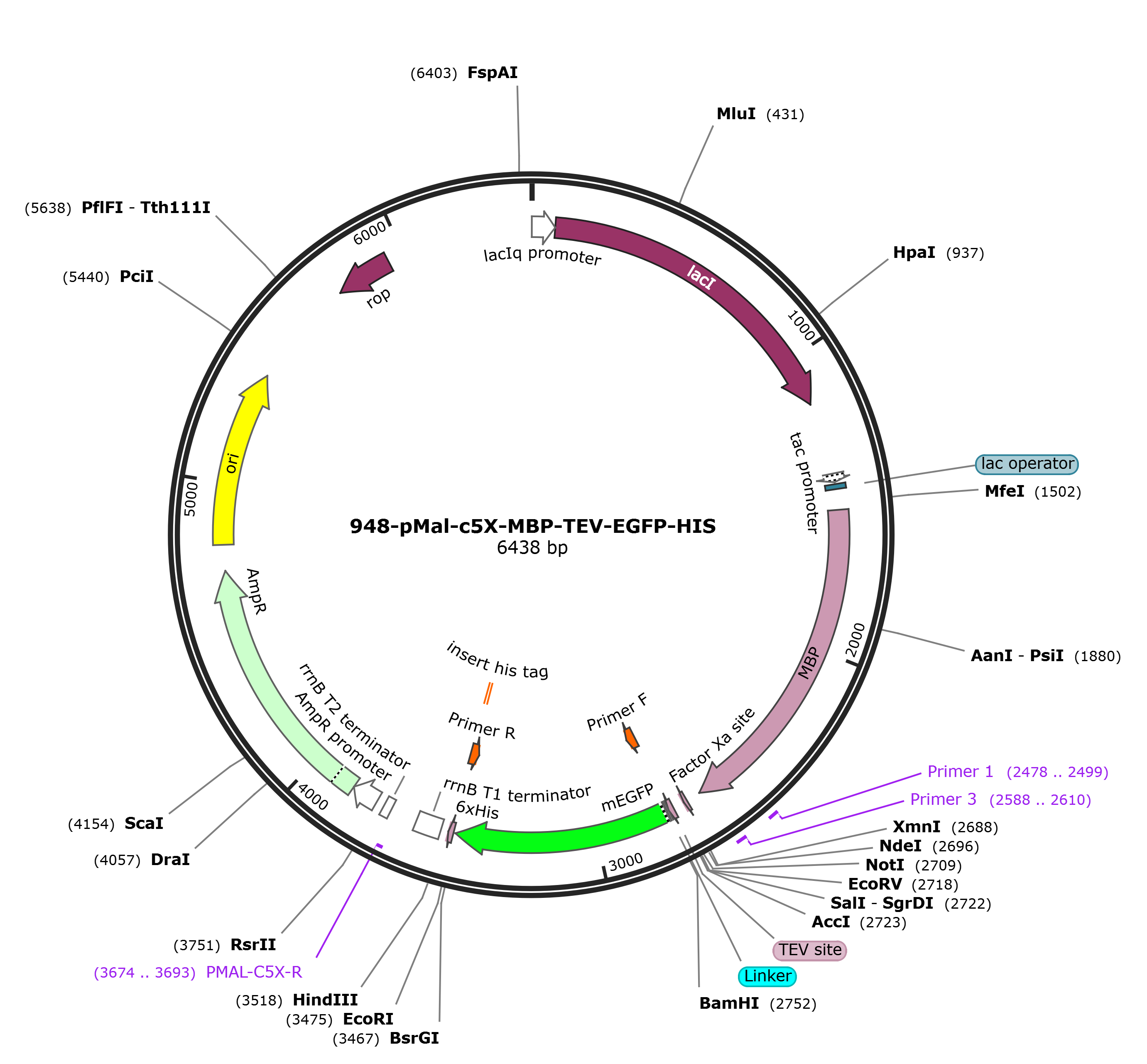

pMAL-c5x-EGFP

LOCUS       pMAL-c5x-EGFP              6438 bp DNA     circular SYN 14-OCT-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6438)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Apr 17, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6438
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        3..80
                     /gene="lacI (mutant)"
                     /label=lacIq promoter
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             81..1163
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     misc_feature    1406..1434
                     /label=tac promoter
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac UV5 promoters"
     protein_bind    1442..1458
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             1528..2628
                     /codon_start=1
                     /gene="malE (mutated)"
                     /product="maltose binding protein from E. coli"
                     /label=MBP
                     /note="This version of the gene does not encode a signal
                     sequence, so MBP will remain in the cytosol."
                     /translation="MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLE
                     EKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKL
                     IAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIA
                     ADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGE
                     TAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFL
                     ENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAF
                     WYAVRTAVINAASGRQTVDEALKDAQT"
     primer_bind     2478..2499
                     /label=Primer 1
     primer_bind     2588..2610
                     /label=Primer 3
     CDS             2677..2688
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     CDS             2728..2745
                     /codon_start=1
                     /product="tobacco etch virus (TEV) protease recognition and
                     cleavage site"
                     /label=TEV site
                     /translation="ENLYFQ"
     misc_feature    2737..2775
                     /label=Primer F
     misc_feature    2746..2751
                     /label=Linker
     CDS             2758..3474
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=mEGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     misc_feature    complement(3457..3495)
                     /label=Primer R
     CDS             3481..3498
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     CDS             3481..3498
                     /codon_start=1
                     /label=insert his tag
                     /translation="HHHHHH"
     terminator      3524..3610
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     primer_bind     complement(3674..3693)
                     /label=PMAL-C5X-R
     terminator      3702..3729
                     /label=rrnB T2 terminator
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     promoter        3757..3847
                     /gene="bla"
                     /label=AmpR promoter
     CDS             3848..4708
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      4796..5384
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5754..5945)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /label=rop
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
ORIGIN
        1 ccgacaccat cgaatggtgc aaaacctttc gcggtatggc atgatagcgc ccggaagaga
       61 gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca gagtatgccg
      121 gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt tctgcgaaaa
      181 cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac cgcgtggcac
      241 aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt ctggccctgc
      301 acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg ggtgccagcg
      361 tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg gtgcacaatc
      421 ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac caggatgcca
      481 ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc tctgaccaga
      541 cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc gtggagcatc
      601 tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt tctgtctcgg
      661 cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt cagccgatag
      721 cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg caaatgctga
      781 atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg ctgggcgcaa
      841 tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatttcggta gtgggatacg
      901 acgataccga agacagctca tgttatatcc cgccgttaac caccatcaaa caggattttc
      961 gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc caggcggtga
     1021 agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg gcgcccaata
     1081 cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca cgacaggttt
     1141 cccgactgga aagcgggcag tgagcgcaac gcaattaatg taagttagct cactcattag
     1201 gcacaattct catgtttgac agcttatcat cgactgcacg gtgcaccaat gcttctggcg
     1261 tcaggcagcc atcggaagct gtggtatggc tgtgcaggtc gtaaatcact gcataattcg
     1321 tgtcgctcaa ggcgcactcc cgttctggat aatgtttttt gcgccgacat cataacggtt
     1381 ctggcaaata ttctgaaatg agctgttgac aattaatcat cggctcgtat aatgtgtgga
     1441 attgtgagcg gataacaatt tcacacagga aacagccagt ccgtttaggt gttttcacga
     1501 gcaattgacc aacaaggacc atagattatg aaaatcgaag aaggtaaact ggtaatctgg
     1561 attaacggcg ataaaggcta taacggtctc gctgaagtcg gtaagaaatt cgagaaagat
     1621 accggaatta aagtcaccgt tgagcatccg gataaactgg aagagaaatt cccacaggtt
     1681 gcggcaactg gcgatggccc tgacattatc ttctgggcac acgaccgctt tggtggctac
     1741 gctcaatctg gcctgttggc tgaaatcacc ccggacaaag cgttccagga caagctgtat
     1801 ccgtttacct gggatgccgt acgttacaac ggcaagctga ttgcttaccc gatcgctgtt
     1861 gaagcgttat cgctgattta taacaaagat ctgctgccga acccgccaaa aacctgggaa
     1921 gagatcccgg cgctggataa agaactgaaa gcgaaaggta agagcgcgct gatgttcaac
     1981 ctgcaagaac cgtacttcac ctggccgctg attgctgctg acgggggtta tgcgttcaag
     2041 tatgaaaacg gcaagtacga cattaaagac gtgggcgtgg ataacgctgg cgcgaaagcg
     2101 ggtctgacct tcctggttga cctgattaaa aacaaacaca tgaatgcaga caccgattac
     2161 tccatcgcag aagctgcctt taataaaggc gaaacagcga tgaccatcaa cggcccgtgg
     2221 gcatggtcca acatcgacac cagcaaagtg aattatggtg taacggtact gccgaccttc
     2281 aagggtcaac catccaaacc gttcgttggc gtgctgagcg caggtattaa cgccgccagt
     2341 ccgaacaaag agctggcaaa agagttcctc gaaaactatc tgctgactga tgaaggtctg
     2401 gaagcggtta ataaagacaa accgctgggt gccgtagcgc tgaagtctta cgaggaagag
     2461 ttggtgaaag atccgcgtat tgccgccact atggaaaacg cccagaaagg tgaaatcatg
     2521 ccgaacatcc cgcagatgtc cgctttctgg tatgccgtgc gtactgcggt gatcaacgcc
     2581 gccagcggtc gtcagactgt cgatgaagcc ctgaaagacg cgcagactaa ttcgagctcg
     2641 aacaacaaca acaataacaa taacaacaac ctcgggatcg agggaaggat ttcacatatg
     2701 tccatgggcg gccgcgatat cgtcgacgaa aacctgtatt ttcagtcgga tggatccatg
     2761 gtgagcaagg gcgaggagct gttcaccggg gtggtgccca tcctggtcga gctggacggc
     2821 gacgtaaacg gccacaagtt cagcgtgtcc ggcgagggcg agggcgatgc cacctacggc
     2881 aagctgaccc tgaagttcat ctgcaccacc ggcaagctgc ccgtgccctg gcccaccctc
     2941 gtgaccaccc tgacctacgg cgtgcagtgc ttcagccgct accccgacca catgaagcag
     3001 cacgacttct tcaagtccgc catgcccgaa ggctacgtcc aggagcgcac catcttcttc
     3061 aaggacgacg gcaactacaa gacccgcgcc gaggtgaagt tcgagggcga caccctggtg
     3121 aaccgcatcg agctgaaggg catcgacttc aaggaggacg gcaacatcct ggggcacaag
     3181 ctggagtaca actacaacag ccacaacgtc tatatcatgg ccgacaagca gaagaacggc
     3241 atcaaggtga acttcaagat ccgccacaac atcgaggacg gcagcgtgca gctcgccgac
     3301 cactaccagc agaacacccc catcggcgac ggccccgtgc tgctgcccga caaccactac
     3361 ctgagcaccc agtccaagct gagcaaagac cccaacgaga agcgcgatca catggtcctg
     3421 ctggagttcg tgaccgccgc cgggatcact ctcggcatgg acgagctgta caaggaattc
     3481 caccaccacc accaccacta actgcaggta attaaataag cttcaaataa aacgaaaggc
     3541 tcagtcgaaa gactgggcct ttcgttttat ctgttgtttg tcggtgaacg ctctcctgag
     3601 taggacaaat ccgccgggag cggatttgaa cgttgcgaag caacggcccg gagggtggcg
     3661 ggcaggacgc ccgccataaa ctgccaggca tcaaattaag cagaaggcca tcctgacgga
     3721 tggccttttt gcgtttctac aaactctttc ggtccgttgt ttatttttct aaatacattc
     3781 aaatatgtat ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag
     3841 gaagagtatg agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg
     3901 ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt
     3961 gggtgcacga gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt
     4021 tcgccccgaa gaacgtttcc caatgatgag cacttttaaa gttctgctat gtggcgcggt
     4081 attatcccgt gttgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa
     4141 tgacttggtt gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag
     4201 agaattatgc agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac
     4261 aacgatcgga ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac
     4321 tcgccttgat cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac
     4381 cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac
     4441 tctagcttcc cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact
     4501 tctgcgctcg gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg
     4561 tgggtctcgc ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt
     4621 tatctacacg acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat
     4681 aggtgcctca ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta
     4741 gattgatttc cttaggactg agcgtcaacc ccgtagaaaa gatcaaagga tcttcttgag
     4801 atcctttttt tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg
     4861 tggtttgttt gccggatcaa gagctaccaa ctctttttcc gaaggtaact ggcttcagca
     4921 gagcgcagat accaaatact gtccttctag tgtagccgta gttaggccac cacttcaaga
     4981 actctgtagc accgcctaca tacctcgctc tgctaatcct gttaccagtg gctgctgcca
     5041 gtggcgataa gtcgtgtctt accgggttgg actcaagacg atagttaccg gataaggcgc
     5101 agcggtcggg ctgaacgggg ggttcgtgca cacagcccag cttggagcga acgacctaca
     5161 ccgaactgag atacctacag cgtgagctat gagaaagcgc cacgcttccc gaagggagaa
     5221 aggcggacag gtatccggta agcggcaggg tcggaacagg agagcgcacg agggagcttc
     5281 cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc
     5341 gtcgattttt gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg
     5401 cctttttacg gttcctggcc ttttgctggc cttttgctca catgttcttt cctgcgttat
     5461 cccctgattc tgtggataac cgtattaccg cctttgagtg agctgatacc gctcgccgca
     5521 gccgaacgac cgagcgcagc gagtcagtga gcgaggaagc ggaagagcgc ctgatgcggt
     5581 attttctcct tacgcatctg tgcggtattt cacaccgcat ataaggtgca ctgtgactgg
     5641 gtcatggctg cgccccgaca cccgccaaca cccgctgacg cgccctgacg ggcttgtctg
     5701 ctcccggcat ccgcttacag acaagctgtg accgtctccg ggagctgcat gtgtcagagg
     5761 ttttcaccgt catcaccgaa acgcgcgagg cagctgcggt aaagctcatc agcgtggtcg
     5821 tgcagcgatt cacagatgtc tgcctgttca tccgcgtcca gctcgttgag tttctccaga
     5881 agcgttaatg tctggcttct gataaagcgg gccatgttaa gggcggtttt ttcctgtttg
     5941 gtcactgatg cctccgtgta agggggattt ctgttcatgg gggtaatgat accgatgaaa
     6001 cgagagagga tgctcacgat acgggttact gatgatgaac atgcccggtt actggaacgt
     6061 tgtgagggta aacaactggc ggtatggatg cggcgggacc agagaaaaat cactcagggt
     6121 caatgccagc gcttcgttaa tacagatgta ggtgttccac agggtagcca gcagcatcct
     6181 gcgatgcaga tccggaacat aatggtgcag ggcgctgact tccgcgtttc cagactttac
     6241 gaaacacgga aaccgaagac cattcatgtt gttgctcagg tcgcagacgt tttgcagcag
     6301 cagtcgcttc acgttcgctc gcgtatcggt gattcattct gctaaccagt aaggcaaccc
     6361 cgccagccta gccgggtcct caacgacagg agcacgatca tgcgcacccg tggccaggac
     6421 ccaacgctgc ccgaaatt
//
