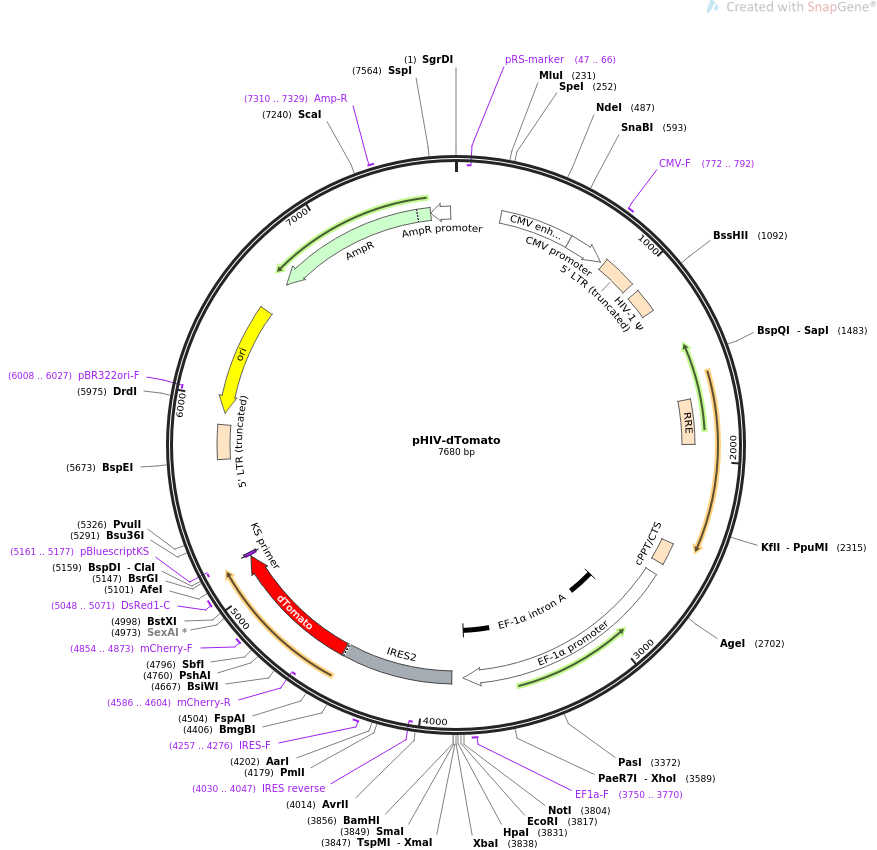

pHIV-dTomato

LOCUS       pHIV-dTomato                7680 bp ds-DNA     circular SYN 23-APR-2020
DEFINITION  self-inactivating lentiviral plasmid for co-expression of your gene
            of interest and dTomato.
ACCESSION   .
VERSION     .
KEYWORDS    pHIV-dTomato
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7680)
  TITLE     pHIV-dTomato
REFERENCE   2  (bases 1 to 7680)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Apr 23, 2020 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7680
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(47..66)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        238..617
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        619..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     772..792
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             835..1015
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1062..1187
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1684..1917
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    2444..2561
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2624..3802
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     intron          2855..3793
                     /label=EF-1-alpha intron A
                     /note="intron upstream of the start codon of human
                     EF-1-alpha"
     primer_bind     3750..3770
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     misc_feature    3863..4449
                     /label=IRES2
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     primer_bind     complement(4030..4047)
                     /label=IRES reverse
                     /note="IRES internal ribosome entry site, reverse primer.
                     Also called pCDH-rev"
     primer_bind     4257..4276
                     /label=IRES-F
                     /note="IRES internal ribosome entry site, forward primer"
     CDS             4450..5154
                     /codon_start=1
                     /product="dimeric variant of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=dTomato
                     /note="mammalian codon-optimized"
                     /translation="MSVSKGEEVIKEFMRFKVRMEGSMNGHEFEIEGEGEGRPYEGTQT
                     AKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYKKLSFPEGFKWERVMNFEDG
                     GLVTVTQDSSLQDGTLIYKVKMRGTNFPPDGPVMQKKTMGWEASTERLYPRDGVLKGEI
                     HQALKLKDGGHYLVEFKTIYMAKKPVQLPGYYYVDTKLDITSHNEDYTIVEQYERSEGR
                     HHLFLYGMDELYK"
     primer_bind     complement(4586..4604)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     4854..4873
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     primer_bind     5048..5071
                     /label=DsRed1-C
                     /note="DsRed1, forward primer"
     primer_bind     complement(5160..5176)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(5161..5177)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     LTR             5686..5866
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     rep_origin      complement(5928..6516)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(6008..6027)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6687..7547)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     7310..7329
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7548..7652)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac
      241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat
      301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg
      361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt
      421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag
      481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc
      541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag
      601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt
      661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc
      721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg
      781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct
      841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     1501 aaagtaagac caccgcacag caagcggccg gccgctgatc ttcagacctg gaggaggaga
     1561 tatgagggac aattggagaa gtgaattata taaatataaa gtagtaaaaa ttgaaccatt
     1621 aggagtagca cccaccaagg caaagagaag agtggtgcag agagaaaaaa gagcagtggg
     1681 aataggagct ttgttccttg ggttcttggg agcagcagga agcactatgg gcgcagcgtc
     1741 aatgacgctg acggtacagg ccagacaatt attgtctggt atagtgcagc agcagaacaa
     1801 tttgctgagg gctattgagg cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa
     1861 gcagctccag gcaagaatcc tggctgtgga aagataccta aaggatcaac agctcctggg
     1921 gatttggggt tgctctggaa aactcatttg caccactgct gtgccttgga atgctagttg
     1981 gagtaataaa tctctggaac agatttggaa tcacacgacc tggatggagt gggacagaga
     2041 aattaacaat tacacaagct taatacactc cttaattgaa gaatcgcaaa accagcaaga
     2101 aaagaatgaa caagaattat tggaattaga taaatgggca agtttgtgga attggtttaa
     2161 cataacaaat tggctgtggt atataaaatt attcataatg atagtaggag gcttggtagg
     2221 tttaagaata gtttttgctg tactttctat agtgaataga gttaggcagg gatattcacc
     2281 attatcgttt cagacccacc tcccaacccc gaggggaccc gacaggcccg aaggaataga
     2341 agaagaaggt ggagagagag acagagacag atccattcga ttagtgaacg gatcggcact
     2401 gcgtgcgcca attctgcaga caaatggcag tattcatcca caattttaaa agaaaagggg
     2461 ggattggggg gtacagtgca ggggaaagaa tagtagacat aatagcaaca gacatacaaa
     2521 ctaaagaatt acaaaaacaa attacaaaaa ttcaaaattt tcgggtttat tacagggaca
     2581 gcagagatcc agtttggtta gtaccgggcc cgctctagcg tgaggctccg gtgcccgtca
     2641 gtgggcagag cgcacatcgc ccacagtccc cgagaagttg gggggagggg tcggcaattg
     2701 aaccggtgcc tagagaaggt ggcgcggggt aaactgggaa agtgatgtcg tgtactggct
     2761 ccgccttttt cccgagggtg ggggagaacc gtatataagt gcagtagtcg ccgtgaacgt
     2821 tctttttcgc aacgggtttg ccgccagaac acaggtaagt gccgtgtgtg gttcccgcgg
     2881 gcctggcctc tttacgggtt atggcccttg cgtgccttga attacttcca cctggctgca
     2941 gtacgtgatt cttgatcccg agcttcgggt tggaagtggg tgggagagtt cgaggccttg
     3001 cgcttaagga gccccttcgc ctcgtgcttg agttgaggcc tggcctgggc gctggggccg
     3061 ccgcgtgcga atctggtggc accttcgcgc ctgtctcgct gctttcgata agtctctagc
     3121 catttaaaat ttttgatgac ctgctgcgac gctttttttc tggcaagata gtcttgtaaa
     3181 tgcgggccaa gatctgcaca ctggtatttc ggtttttggg gccgcgggcg gcgacggggc
     3241 ccgtgcgtcc cagcgcacat gttcggcgag gcggggcctg cgagcgcggc caccgagaat
     3301 cggacggggg tagtctcaag ctggccggcc tgctctggtg cctggcctcg cgccgccgtg
     3361 tatcgccccg ccctgggcgg caaggctggc ccggtcggca ccagttgcgt gagcggaaag
     3421 atggccgctt cccggccctg ctgcagggag ctcaaaatgg aggacgcggc gctcgggaga
     3481 gcgggcgggt gagtcaccca cacaaaggaa aagggccttt ccgtcctcag ccgtcgcttc
     3541 atgtgactcc acggagtacc gggcgccgtc caggcacctc gattagttct cgagcttttg
     3601 gagtacgtcg tctttaggtt ggggggaggg gttttatgcg atggagtttc cccacactga
     3661 gtgggtggag actgaagtta ggccagcttg gcacttgatg taattctcct tggaatttgc
     3721 cctttttgag tttggatctt ggttcattct caagcctcag acagtggttc aaagtttttt
     3781 tcttccattt caggtgtcgt gagcggccgc tgaactgaat tcatcgacgt taactattct
     3841 agagtacccg ggctaggatc cgcccctctc cctccccccc ccctaacgtt actggccgaa
     3901 gccgcttgga ataaggccgg tgtgcgtttg tctatatgtt attttccacc atattgccgt
     3961 cttttggcaa tgtgagggcc cggaaacctg gccctgtctt cttgacgagc attcctaggg
     4021 gtctttcccc tctcgccaaa ggaatgcaag gtctgttgaa tgtcgtgaag gaagcagttc
     4081 ctctggaagc ttcttgaaga caaacaacgt ctgtagcgac cctttgcagg cagcggaacc
     4141 ccccacctgg cgacaggtgc ctctgcggcc aaaagccacg tgtataagat acacctgcaa
     4201 aggcggcaca accccagtgc cacgttgtga gttggatagt tgtggaaaga gtcaaatggc
     4261 tctcctcaag cgtattcaac aaggggctga aggatgccca gaaggtaccc cattgtatgg
     4321 gatctgatct ggggcctcgg tacacatgct ttacatgtgt ttagtcgagg ttaaaaaaac
     4381 gtctaggccc cccgaaccac ggggacgtgg ttttcctttg aaaaacacga tgataatatg
     4441 gccacaacca tgtcagtgag caagggcgag gaggtcatca aagagttcat gcgcttcaag
     4501 gtgcgcatgg agggctccat gaacggccac gagttcgaga tcgagggcga gggcgagggc
     4561 cgcccctacg agggcaccca gaccgccaag ctgaaggtga ccaagggcgg ccccctgccc
     4621 ttcgcctggg acatcctgtc cccccagttc atgtacggct ccaaggcgta cgtgaagcac
     4681 cccgccgaca tccccgatta caagaagctg tccttccccg agggcttcaa gtgggagcgc
     4741 gtgatgaact tcgaggacgg cggtctggtg accgtgaccc aggactcctc cctgcaggac
     4801 ggcacgctga tctacaaggt gaagatgcgc ggcaccaact tcccccccga cggccccgta
     4861 atgcagaaga agaccatggg ctgggaggcc tccaccgagc gcctgtaccc ccgcgacggc
     4921 gtgctgaagg gcgagatcca ccaggccctg aagctgaagg acggcggcca ctacctggtg
     4981 gagttcaaga ccatctacat ggccaagaag cccgtgcaac tgcccggcta ctactacgtg
     5041 gacaccaagc tggacatcac ctcccacaac gaggactaca ccatcgtgga acagtacgag
     5101 cgctccgagg gccgccacca cctgttcctg tacggcatgg acgagctgta caagtaaatc
     5161 gataccgtcg acctcgatcg agacctagaa aaacatggag caatcacaag tagcaataca
     5221 gcagctacca atgctgattg tgcctggcta gaagcacaag aggaggagga ggtgggtttt
     5281 ccagtcacac ctcaggtacc tttaagacca atgacttaca aggcagctgt agatcttagc
     5341 cactttttaa aagaaaaggg gggactggaa gggctaattc actcccaacg aagacaagat
     5401 atccttgatc tgtggatcta ccacacacaa ggctacttcc ctgattggca gaactacaca
     5461 ccagggccag ggatcagata tccactgacc tttggatggt gctacaagct agtaccagtt
     5521 gagcaagaga aggtagaaga agccaatgaa ggagagaaca cccgcttgtt acaccctgtg
     5581 agcctgcatg ggatggatga cccggagaga gaagtattag agtggaggtt tgacagccgc
     5641 ctagcatttc atcacatggc ccgagagctg catccggact gtactgggtc tctctggtta
     5701 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
     5761 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
     5821 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagcat gtgagcaaaa
     5881 ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc
     5941 cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca
     6001 ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg
     6061 accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct
     6121 catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt
     6181 gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag
     6241 tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc
     6301 agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac
     6361 actagaagaa cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga
     6421 gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc
     6481 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     6541 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     6601 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     6661 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     6721 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     6781 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     6841 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     6901 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     6961 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     7021 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     7081 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     7141 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     7201 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     7261 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     7321 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     7381 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     7441 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     7501 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     7561 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     7621 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
//
