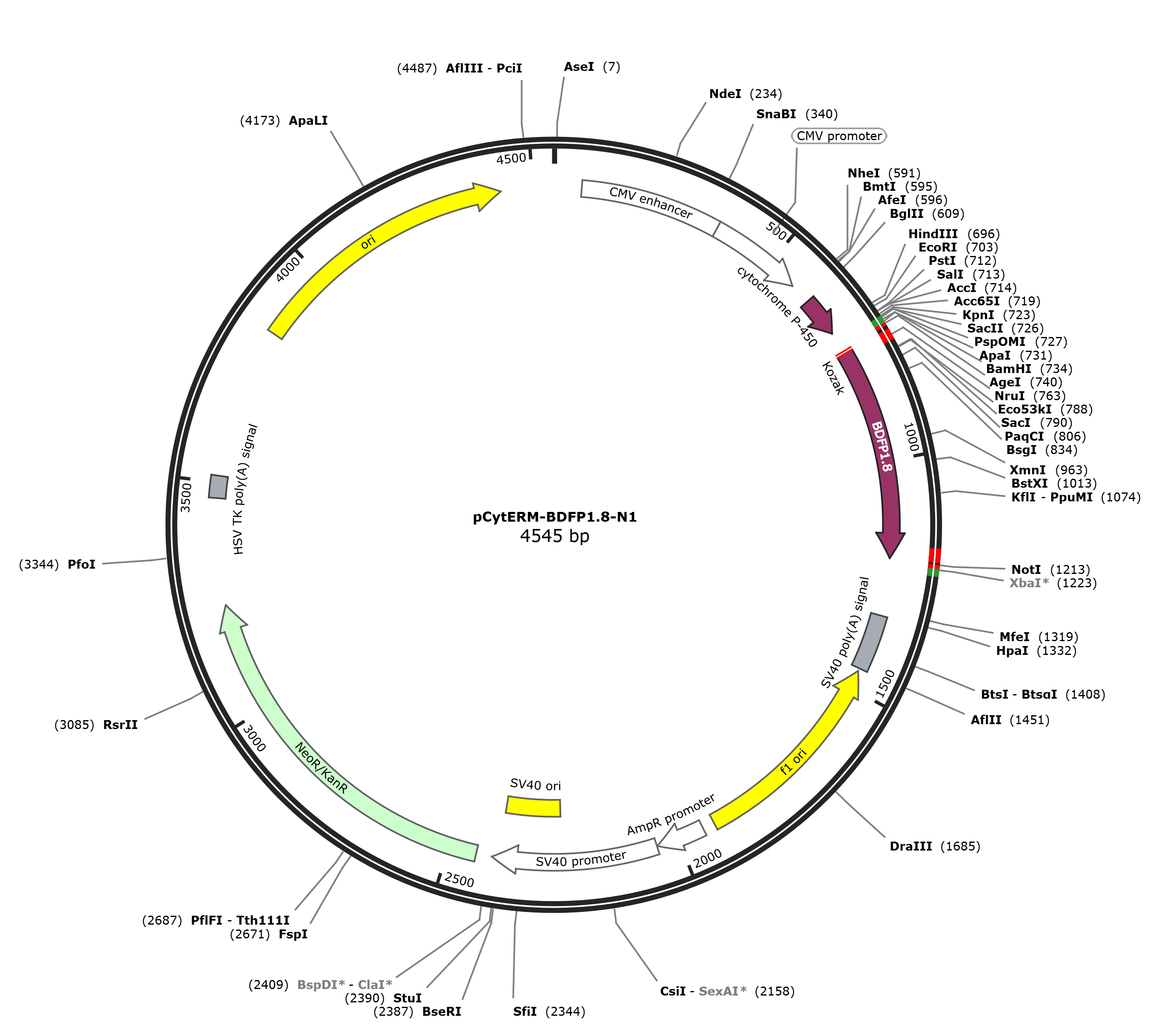

pCytERM-BDFP1.8-N1

LOCUS       pCytERM-BDFP1.8-N1               4545 bp DNA     circular SYN 27-MAY-2024
DEFINITION  Vector for fusing EGFP to the C-terminus of a partner protein. For
            other reading frames, use pEGFP-N2 or pEGFP-N3.
ACCESSION   U55762
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4545)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4545
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             615..701
                     /codon_start=1
                     /product="cytochrome P-450 IIC1, partial [Oryctolagus
                     cuniculus]
                     Sequence ID: AAA31436.1Length: 56Number of Matches: 1"
                     /label=cytochrome P-450
                     /translation="MDPVVVLGLCLSCLLLLSLWKQSYGGGKL"
     primer_bind     725..774
                     /label=0222-377-F
     misc_feature    747..752
                     /label=Kozak
     CDS             753..1208
                     /codon_start=1
                     /label=BDFP1.8
                     /translation="MANREVVETLKELLADGEKRVQVAGVIGTNAAEVVKTAVSLLFQE
                     YPELVSPGGCAYTTRRYNKCVRDMNYFLRMCSYAIVAGGASVLDGRMLAGLRDTFNSLG
                     IPLGPVARGIQLMKKIVKEKLATAGMTNIAFVDEPFDYIARVISETEI"
     primer_bind     complement(1182..1234)
                     /label=0222-377-R
     polyA_signal    1333..1454
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1461..1916)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1943..2047
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2049..2406
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2257..2392
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2441..3235
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3467..3514
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      3843..4431
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctatggac cctgtggtgg tgctggggct ctgtctctcc tgtttgcttc
      661 tcctttcact ctggaaacag agctatgggg gagggaagct tcgaattctg cagtcgacgg
      721 taccgcgggc ccgggatcca ccggtcgcca ccatggccaa tcgcgaggtt gttgagaccc
      781 tgaaggagct cctggctgac ggggagaaga gagtgcaggt ggctggagtg attgggacta
      841 acgctgccga agttgtcaag accgccgtgt cacttctgtt tcaggagtac ccagagttgg
      901 tgtcccctgg cgggtgtgcc tatacaacaa ggcgctacaa caagtgtgtg agggacatga
      961 actacttcct caggatgtgt agctacgcca tcgtggccgg gggcgccagc gtcttggatg
     1021 gaaggatgct ggccgggctg cgggatacat tcaactccct cggcatccct ctgggtcccg
     1081 tggcccgggg catccaactg atgaagaaga tcgtcaaaga gaaactggcg acagccggca
     1141 tgactaacat tgcatttgtc gatgagccct ttgactacat cgcccgtgtg attagtgaaa
     1201 cggaaattta agcggccgcg actctagatc ataatcagcc ataccacatt tgtagaggtt
     1261 ttacttgctt taaaaaacct cccacacctc cccctgaacc tgaaacataa aatgaatgca
     1321 attgttgttg ttaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc
     1381 acaaatttca caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc
     1441 atcaatgtat cttaaggcgt aaattgtaag cgttaatatt ttgttaaaat tcgcgttaaa
     1501 tttttgttaa atcagctcat tttttaacca ataggccgaa atcggcaaaa tcccttataa
     1561 atcaaaagaa tagaccgaga tagggttgag tgttgttcca gtttggaaca agagtccact
     1621 attaaagaac gtggactcca acgtcaaagg gcgaaaaacc gtctatcagg gcgatggccc
     1681 actacgtgaa ccatcaccct aatcaagttt tttggggtcg aggtgccgta aagcactaaa
     1741 tcggaaccct aaagggagcc cccgatttag agcttgacgg ggaaagccgg cgaacgtggc
     1801 gagaaaggaa gggaagaaag cgaaaggagc gggcgctagg gcgctggcaa gtgtagcggt
     1861 cacgctgcgc gtaaccacca cacccgccgc gcttaatgcg ccgctacagg gcgcgtcagg
     1921 tggcactttt cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc
     1981 aaatatgtat ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag
     2041 gaagagtcct gaggcggaaa gaaccagctg tggaatgtgt gtcagttagg gtgtggaaag
     2101 tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta gtcagcaacc
     2161 aggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat
     2221 tagtcagcaa ccatagtccc gcccctaact ccgcccatcc cgcccctaac tccgcccagt
     2281 tccgcccatt ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc
     2341 gcctcggcct ctgagctatt ccagaagtag tgaggaggct tttttggagg cctaggcttt
     2401 tgcaaagatc gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt
     2461 gcacgcaggt tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca
     2521 gacaatcggc tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct
     2581 ttttgtcaag accgacctgt ccggtgccct gaatgaactg caagacgagg cagcgcggct
     2641 atcgtggctg gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc
     2701 gggaagggac tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct
     2761 tgctcctgcc gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga
     2821 tccggctacc tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg
     2881 gatggaagcc ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc
     2941 agccgaactg ttcgccaggc tcaaggcgag catgcccgac ggcgaggatc tcgtcgtgac
     3001 ccatggcgat gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat
     3061 cgactgtggc cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga
     3121 tattgctgaa gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc
     3181 cgctcccgat tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg
     3241 actctggggt tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat
     3301 tccaccgccg ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg
     3361 atgatcctcc agcgcgggga tctcatgctg gagttcttcg cccaccctag ggggaggcta
     3421 actgaaacac ggaaggagac aataccggaa ggaacccgcg ctatgacggc aataaaaaga
     3481 cagaataaaa cgcacggtgt tgggtcgttt gttcataaac gcggggttcg gtcccagggc
     3541 tggcactctg tcgatacccc accgagaccc cattggggcc aatacgcccg cgtttcttcc
     3601 ttttccccac cccacccccc aagttcgggt gaaggcccag ggctcgcagc caacgtcggg
     3661 gcggcaggcc ctgccatagc ctcaggttac tcatatatac tttagattga tttaaaactt
     3721 catttttaat ttaaaaggat ctaggtgaag atcctttttg ataatctcat gaccaaaatc
     3781 ccttaacgtg agttttcgtt ccactgagcg tcagaccccg tagaaaagat caaaggatct
     3841 tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta
     3901 ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc tttttccgaa ggtaactggc
     3961 ttcagcagag cgcagatacc aaatactgtc cttctagtgt agccgtagtt aggccaccac
     4021 ttcaagaact ctgtagcacc gcctacatac ctcgctctgc taatcctgtt accagtggct
     4081 gctgccagtg gcgataagtc gtgtcttacc gggttggact caagacgata gttaccggat
     4141 aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac agcccagctt ggagcgaacg
     4201 acctacaccg aactgagata cctacagcgt gagctatgag aaagcgccac gcttcccgaa
     4261 gggagaaagg cggacaggta tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg
     4321 gagcttccag ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg ccacctctga
     4381 cttgagcgtc gatttttgtg atgctcgtca ggggggcgga gcctatggaa aaacgccagc
     4441 aacgcggcct ttttacggtt cctggccttt tgctggcctt ttgctcacat gttctttcct
     4501 gcgttatccc ctgattctgt ggataaccgt attaccgcca tgcat
//
