| 质粒名称: | pAAV-CAG-EGFP-P2A-mCherry |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0000298 |
| 产品用途: | Expresses EGFP and mCherry in mammalian cells culture |
| 存储实验室: | KIRYL PIATKEVICH Lab |
|
载体骨架基本信息 |
|
| 载体名称: | pAAV |
| 表达系统: | 哺乳动物表达 |
| 启动子: | CAG |
| 拷贝数: | 高拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | DH5a，TOP10 |
|
插入基因信息 |
|
| 插入基因名称: | EGFP, mCherry |
| 物种来源: | Synthetic, synthetic |
| 密码子优化: | 哺乳动物表达优化 |
|
文献引用方法 |
|
| 参考文献部分: |
Bright and stable monomeric green fluorescent protein derived from StayGold
Zhang H., Lesnov G.D., Subach O.M., Zhang W., Kuzmicheva T.P., Vlaskina A.V., Samygina V.R., Chen L., Ye X., Nikolaeva A.Y., Gabdulkhakov A., Papadaki S., Qin W., Borshchevskiy V., Perfilov M.M., Gavrikov A.S., Drobizhev M., Mishin A.S., Piatkevich K.D., Subach F.V.
Nat. Methods 2024 214 21, 657–665 (2024)
|
pAAV-CAG-EGFP-P2A-mCherry
价格：元
规格： 2ug质粒（仅用于转化提取） 转染级去内毒素液体即用质粒100μg 转染级去内毒素液体即用质粒500μg 转染级去内毒素液体即用质粒1mg 更大规格-质粒构建-质粒定制-请联系我们
联系方式：I47-825O-882O
买家导航
pAAV-CAG-EGFP-P2A-mCherry载体质粒基本信息

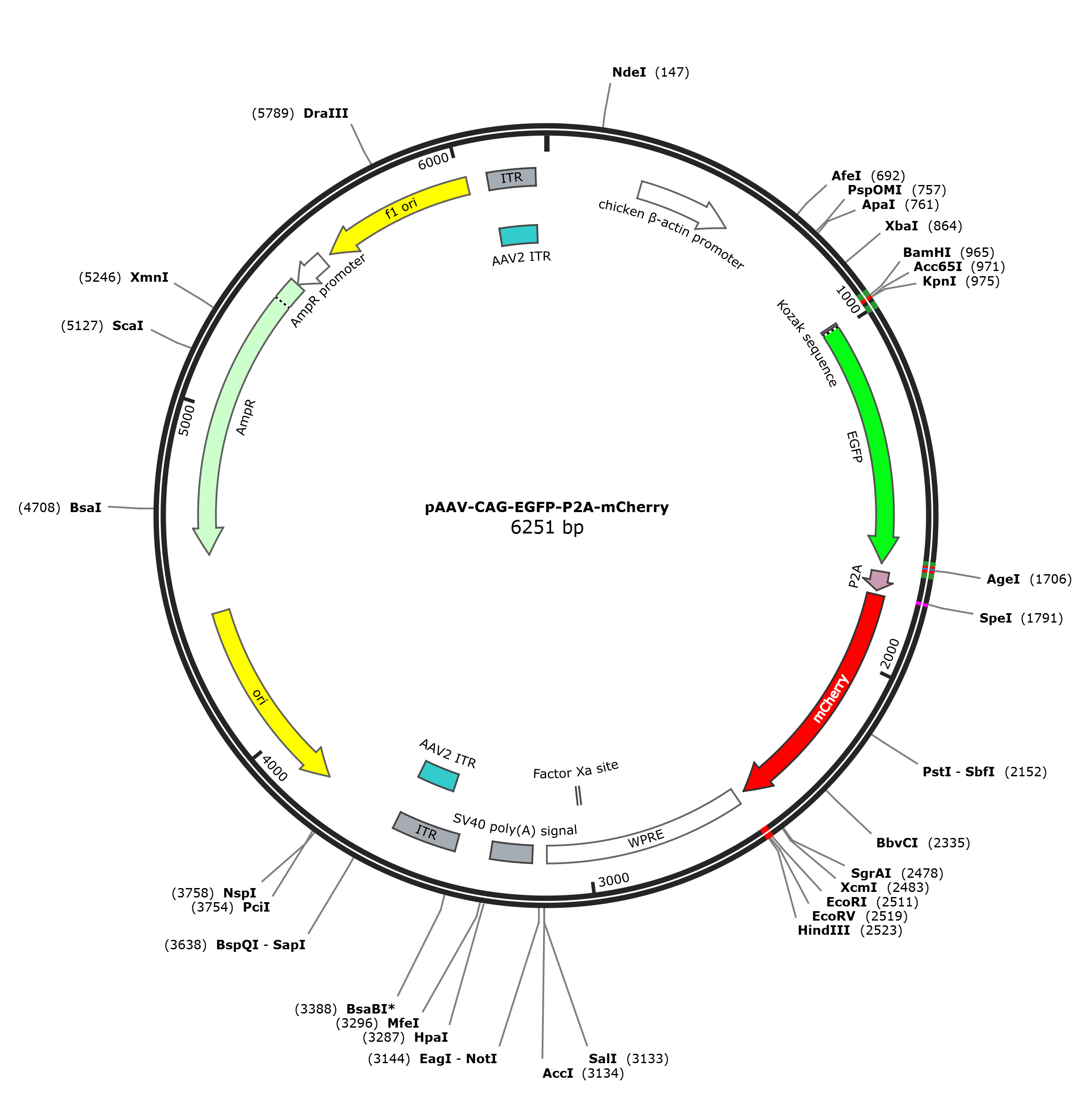

pAAV-CAG-EGFP-P2A-mCherry质粒图谱载体图谱和pAAV-CAG-EGFP-P2A-mCherry载体序列质粒序列多克隆位点信息
pAAV-CAG-EGFP-P2A-mCherry质粒载体简介
pAAV-CAG-EGFP-P2A-mCherry质粒序列载体序列
LOCUS pAAV-CAG-EGFP-P2A-mCherry 6251 bp DNA circular SYN 01-NOV-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 6251)
AUTHORS Triple Threat
TITLE Direct Submission
JOURNAL Exported Jul 5, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..6251
/mol_type="other DNA"
/organism="synthetic DNA construct"
promoter 279..556
/label=chicken beta-actin promoter
misc_feature 981..986
/label=Kozak sequence
CDS 987..1703
/codon_start=1
/product="enhanced GFP"
/label=EGFP
/translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
EFVTAAGITLGMDELYK"
CDS 1728..1784
/codon_start=1
/product="2A peptide from porcine teschovirus-1
polyprotein"
/label=P2A
/note="Eukaryotic ribosomes fail to insert a peptide bond
between the Gly and Pro residues, yielding separate
polypeptides."
/translation="ATNFSLLKQAGDVEENPGP"
CDS 1797..2507
/codon_start=1
/product="monomeric derivative of DsRed fluorescent protein
(Shaner et al., 2004)"
/label=mCherry
/note="mammalian codon-optimized"
/translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
EGRHSTGGMDELYK"
misc_feature 2535..3123
/label=WPRE
/note="woodchuck hepatitis virus posttranscriptional
regulatory element"
CDS complement(3006..3017)
/codon_start=1
/product="Factor Xa recognition and cleavage site"
/label=Factor Xa site
/translation="IEGR"
polyA_signal 3166..3287
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
misc_feature 3390..3579
/label=ITR
repeat_region 3449..3578
/label=AAV2 ITR
rep_origin complement(3815..4403)
/direction=LEFT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(4574..5434)
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
promoter complement(5435..5539)
/gene="bla"
/label=AmpR promoter
rep_origin complement(5565..6020)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
misc_feature 6081..6221
/label=ITR
repeat_region 6092..6221
/label=AAV2 ITR
ORIGIN
1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
961 aattggatcc ggtaccctaa gccaccatgg tgagcaaggg cgaggagctg ttcaccgggg
1021 tggtgcccat cctggtcgag ctggacggcg acgtaaacgg ccacaagttc agcgtgtccg
1081 gcgagggcga gggcgatgcc acctacggca agctgaccct gaagttcatc tgcaccaccg
1141 gcaagctgcc cgtgccctgg cccaccctcg tgaccaccct gacctacggc gtgcagtgct
1201 tcagccgcta ccccgaccac atgaagcagc acgacttctt caagtccgcc atgcccgaag
1261 gctacgtcca ggagcgcacc atcttcttca aggacgacgg caactacaag acccgcgccg
1321 aggtgaagtt cgagggcgac accctggtga accgcatcga gctgaagggc atcgacttca
1381 aggaggacgg caacatcctg gggcacaagc tggagtacaa ctacaacagc cacaacgtct
1441 atatcatggc cgacaagcag aagaacggca tcaaggtgaa cttcaagatc cgccacaaca
1501 tcgaggacgg cagcgtgcag ctcgccgacc actaccagca gaacaccccc atcggcgacg
1561 gccccgtgct gctgcccgac aaccactacc tgagcaccca gtccgccctg agcaaagacc
1621 ccaacgagaa gcgcgatcac atggtcctgc tggagttcgt gaccgccgcc gggatcactc
1681 tcggcatgga cgagctgtac aagcgaccgg ttcacgtggg aagtggggct acaaacttct
1741 cactgctgaa acaggccggg gatgtggagg aaaacccagg accacacgtg actagtatgg
1801 tgagcaaggg cgaggaggat aacatggcca tcatcaagga gttcatgcgc ttcaaggtgc
1861 acatggaggg ctccgtgaac ggccacgagt tcgagatcga gggcgagggc gagggccgcc
1921 cctacgaggg cacccagacc gccaagctga aggtgaccaa gggtggcccc ctgcccttcg
1981 cctgggacat cctgtcccct cagttcatgt acggctccaa ggcctacgtg aagcaccccg
2041 ccgacatccc cgactacttg aagctgtcct tccccgaggg cttcaagtgg gagcgcgtga
2101 tgaacttcga ggacggcggc gtggtgaccg tgacccagga ctcctccctg caggacggcg
2161 agttcatcta caaggtgaag ctgcgcggca ccaacttccc ctccgacggc cccgtaatgc
2221 agaagaagac catgggctgg gaggcctcct ccgagcggat gtaccccgag gacggcgccc
2281 tgaagggcga gatcaagcag aggctgaagc tgaaggacgg cggccactac gacgctgagg
2341 tcaagaccac ctacaaggcc aagaagcccg tgcagctgcc cggcgcctac aacgtcaaca
2401 tcaagttgga catcacctcc cacaacgagg actacaccat cgtggaacag tacgaacgcg
2461 ccgagggccg ccactccacc ggcggcatgg acgagctgta caagtagtaa gaattcgata
2521 tcaagcttat cgataatcaa cctctggatt acaaaatttg tgaaagattg actggtattc
2581 ttaactatgt tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg
2641 ctattgcttc ccgtatggct ttcattttct cctccttgta taaatcctgg ttgctgtctc
2701 tttatgagga gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg
2761 acgcaacccc cactggttgg ggcattgcca ccacctgtca gctcctttcc gggactttcg
2821 ctttccccct ccctattgcc acggcggaac tcatcgccgc ctgccttgcc cgctgctgga
2881 caggggctcg gctgttgggc actgacaatt ccgtggtgtt gtcggggaaa tcatcgtcct
2941 ttccttggct gctcgcctgt gttgccacct ggattctgcg cgggacgtcc ttctgctacg
3001 tcccttcggc cctcaatcca gcggaccttc cttcccgcgg cctgctgccg gctctgcggc
3061 ctcttccgcg tcttcgcctt cgccctcaga cgagtcggat ctccctttgg gccgcctccc
3121 cgcatcgata ccgtcgaccc gggcggccgc ttcgagcaga catgataaga tacattgatg
3181 agtttggaca aaccacaact agaatgcagt gaaaaaaatg ctttatttgt gaaatttgtg
3241 atgctattgc tttatttgta accattataa gctgcaataa acaagttaac aacaacaatt
3301 gcattcattt tatgtttcag gttcaggggg agatgtggga ggttttttaa agcaagtaaa
3361 acctctacaa atgtggtaaa atcgataagg atcttcctag agcatggcta cgtagataag
3421 tagcatggcg ggttaatcat taactacaag gaacccctag tgatggagtt ggccactccc
3481 tctctgcgcg ctcgctcgct cactgaggcc gggcgaccaa aggtcgcccg acgcccgggc
3541 tttgcccggg cggcctcagt gagcgagcga gcgcgcagct gcattaatga atcggccaac
3601 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc
3661 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
3721 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
3781 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
3841 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
3901 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
3961 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
4021 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
4081 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
4141 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
4201 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag
4261 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
4321 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta
4381 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
4441 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca
4501 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa
4561 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat
4621 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct
4681 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt
4741 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat
4801 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta
4861 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg
4921 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt
4981 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg
5041 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg
5101 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc
5161 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa
5221 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac
5281 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt
5341 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg
5401 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa
5461 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
5521 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctaaattg taagcgttaa
5581 tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc
5641 cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt tgagtgttgt
5701 tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa
5761 aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa gttttttggg
5821 gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg
5881 acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc
5941 tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa
6001 tgcgccgcta cagggcgcgt cccattcgcc attcaggctg cgcaactgtt gggaagggcg
6061 atcggtgcgg gcctcttcgc tattacgcca gctgcgcgct cgctcgctca ctgaggccgc
6121 ccgggcaaag cccgggcgtc gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc
6181 gcgcagagag ggagtggcca actccatcac taggggttcc ttgtagttaa tgattaaccc
6241 gccatgctac t
//
pAAV-CAG-EGFP-P2A-mCherry载体图谱质粒图谱pdf版和pAAV-CAG-EGFP-P2A-mCherry载体序列质粒序列等相关资料下载
pAAV-CAG-EGFP-P2A-mCherry质粒载体应用举例
- 上一篇：pAAV-CAG-(n1)StayGold(c4)-P2A-mCherry
- 下一篇：没有了
