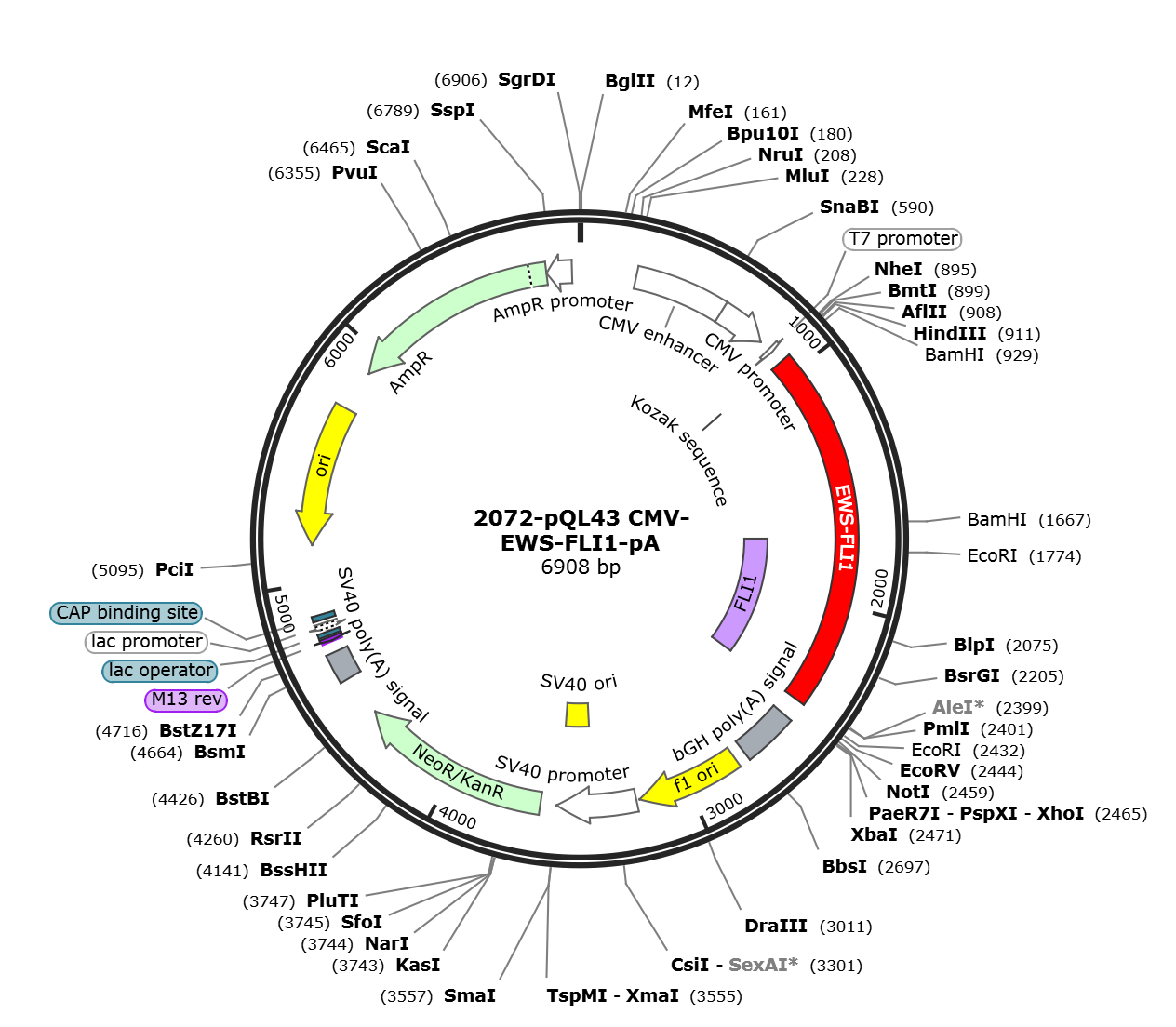

pQL43

LOCUS       pQL43              6908 bp DNA     circular SYN 24-OCT-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6908)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Aug 17, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6908
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     213..234
                     /label=QL237 EF-A-F
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     897..955
                     /label=QL166 EWS-FL1-F
     primer_bind     913..955
                     /label=QL141-F
     primer_bind     914..955
                     /label=QL79 EWS-FLI1-F QL171-F
     primer_bind     927..955
                     /label=QL168-F
     primer_bind     929..955
                     /label=QL107 EWS-F
     regulatory      933..938
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    935..2428
                     /label=EWS-FLI1
     primer_bind     1239..1260
                     /label=QL184 EWS-F
     primer_bind     complement(1343..1364)
                     /label=QL185 EWS-R
     primer_bind     1490..1512
                     /label=QL148
     primer_bind     complement(1573..1595)
                     /label=QL149
     primer_bind     1639..1661
                     /label=QL150
     primer_bind     1668..1689
                     /label=QL188 EF-F
     primer_bind     complement(1706..1726)
                     /label=QL 108 EWS-R
     primer_bind     complement(1706..1726)
                     /label=QL172-R
     primer_bind     complement(1706..1726)
                     /label=QL195 EWS-R
     primer_bind     complement(1706..1726)
                     /label=QL197 EWS-R(FEV)
     primer_bind     complement(1706..1726)
                     /label=QL199 EWS-R(ETV1)
     misc_feature    1727..2428
                     /label=FLI1
     primer_bind     complement(1752..1774)
                     /label=QL151
     primer_bind     complement(1757..1778)
                     /label=QL189 EF-R
     primer_bind     1808..1829
                     /label=QL186 FLI-F
     primer_bind     complement(1918..1939)
                     /label=QL187 FLI-R
     primer_bind     complement(2408..2452)
                     /label=QL80 EWS-FLI1-R
     primer_bind     complement(2408..2432)
                     /label=QL142-R
     primer_bind     complement(2408..2428)
                     /label=引物 1
     primer_bind     complement(2412..2437)
                     /label=QL169-R
     primer_bind     complement(2412..2431)
                     /label=QL167 EWS-FL1-R
     primer_bind     complement(2471..2490)
                     /label=QL 108 EWS-R
     primer_bind     2491..2509
                     /label=oQZ311
     polyA_signal    2508..2732
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2729..2751)
                     /label=oQZ312
     primer_bind     2737..2751
                     /label=oQZ313
     rep_origin      2778..3206
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3220..3549
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3400..3535
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3616..4410
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4584..4705
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4754..4770)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4778..4794
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4802..4832)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4847..4868
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5156..5741)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5912..6772)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6773..6877)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatggcg tccacggatt acagtaccta
      961 tagccaagct gcagcgcagc agggctacag tgcttacacc gcccagccca ctcaaggata
     1021 tgcacagacc acccaggcat atgggcaaca aagctatgga acctatggac agcccactga
     1081 tgtcagctat acccaggctc agaccactgc aacctatggg cagaccgcct atgcaacttc
     1141 ttatggacag cctcccactg gttatactac tccaactgcc ccccaggcat acagccagcc
     1201 tgtccagggg tatggcactg gtgcttatga taccaccact gctacagtca ccaccaccca
     1261 ggcctcctat gcagctcagt ctgcatatgg cactcagcct gcttatccag cctatgggca
     1321 gcagccagca gccactgcac ctacaagacc gcaggatgga aacaagccca ctgagactag
     1381 tcaacctcaa tctagcacag ggggttacaa ccagcccagc ctaggatatg gacagagtaa
     1441 ctacagttat ccccaggtac ctgggagcta ccccatgcag ccagtcactg cacctccatc
     1501 ctaccctcct accagctatt cctctacaca gccgactagt tatgatcaga gcagttactc
     1561 tcagcagaac acctatgggc aaccgagcag ctatggacag cagagtagct atggtcaaca
     1621 aagcagctat gggcagcagc ctcccactag ttacccaccc caaactggat cctacagcca
     1681 agctccaagt caatatagcc aacagagcag cagctacggg cagcagaacc cttcttatga
     1741 ctcagtcaga agaggagctt ggggcaataa catgaattct ggcctcaaca aaagtcctcc
     1801 ccttggaggg gcacaaacga tcagtaagaa tacagagcaa cggccccagc cagatccgta
     1861 tcagatcctg ggcccgacca gcagtcgcct agccaaccct ggaagcgggc agatccagct
     1921 gtggcaattc ctcctggagc tgctctccga cagcgccaac gccagctgta tcacctggga
     1981 ggggaccaac ggggagttca aaatgacgga ccccgatgag gtggccaggc gctggggcga
     2041 gcggaaaagc aagcccaaca tgaattacga caagctgagc cgggccctcc gttattacta
     2101 tgataaaaac attatgacca aagtgcacgg caaaagatat gcttacaaat ttgacttcca
     2161 cggcattgcc caggctctgc agccacatcc gaccgagtcg tccatgtaca agtacccttc
     2221 tgacatctcc tacatgcctt cctaccatgc ccaccagcag aaggtgaact ttgtccctcc
     2281 ccatccatcc tccatgcctg tcacttcctc cagcttcttt ggagccgcat cacaatactg
     2341 gacctccccc acggggggaa tctaccccaa ccccaacgtc ccccgccatc ctaacaccca
     2401 cgtgccttca cacttaggca gctactacta agaattctgc agatatccag cacagtggcg
     2461 gccgctcgag tctagagggc ccgtttaaac ccgctgatca gcctcgactg tgccttctag
     2521 ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac
     2581 tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga gtaggtgtca
     2641 ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg aagacaatag
     2701 caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa ccagctgggg
     2761 ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt
     2821 tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt tcgctttctt
     2881 cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc
     2941 tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg attagggtga
     3001 tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc
     3061 cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc ctatctcggt
     3121 ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa aaaatgagct
     3181 gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt agggtgtgga
     3241 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     3301 accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc
     3361 aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc
     3421 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     3481 gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc
     3541 ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca agagacagga
     3601 tgaggatcgt ttcgcatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg
     3661 gtggagaggc tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc
     3721 gtgttccggc tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt
     3781 gccctgaatg aactgcagga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt
     3841 ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc
     3901 gaagtgccgg ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc
     3961 atggctgatg caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac
     4021 caagcgaaac atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag
     4081 gatgatctgg acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag
     4141 gcgcgcatgc ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat
     4201 atcatggtgg aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg
     4261 gaccgctatc aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa
     4321 tgggctgacc gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc
     4381 ttctatcgcc ttcttgacga gttcttctga gcgggactct ggggttcgaa atgaccgacc
     4441 aagcgacgcc caacctgcca tcacgagatt tcgattccac cgccgccttc tatgaaaggt
     4501 tgggcttcgg aatcgttttc cgggacgccg gctggatgat cctccagcgc ggggatctca
     4561 tgctggagtt cttcgcccac cccaacttgt ttattgcagc ttataatggt tacaaataaa
     4621 gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt
     4681 tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct agctagagct
     4741 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     4801 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     4861 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     4921 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg
     4981 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
     5041 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
     5101 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     5161 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     5221 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     5281 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     5341 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     5401 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     5461 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     5521 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     5581 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     5641 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtttttttg
     5701 tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt
     5761 ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat
     5821 tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct
     5881 aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta
     5941 tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa
     6001 ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac
     6061 gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa
     6121 gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag
     6181 taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg
     6241 tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag
     6301 ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg
     6361 tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc
     6421 ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat
     6481 tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata
     6541 ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa
     6601 aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca
     6661 actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc
     6721 aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc
     6781 tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg
     6841 aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac
     6901 ctgacgtc
//
