pAAV-CAG-BDFP1.8

LOCUS       pAAV-CAG-BDFP1.8               5182 bp DNA     circular SYN 21-APR-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5182)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jun 25, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

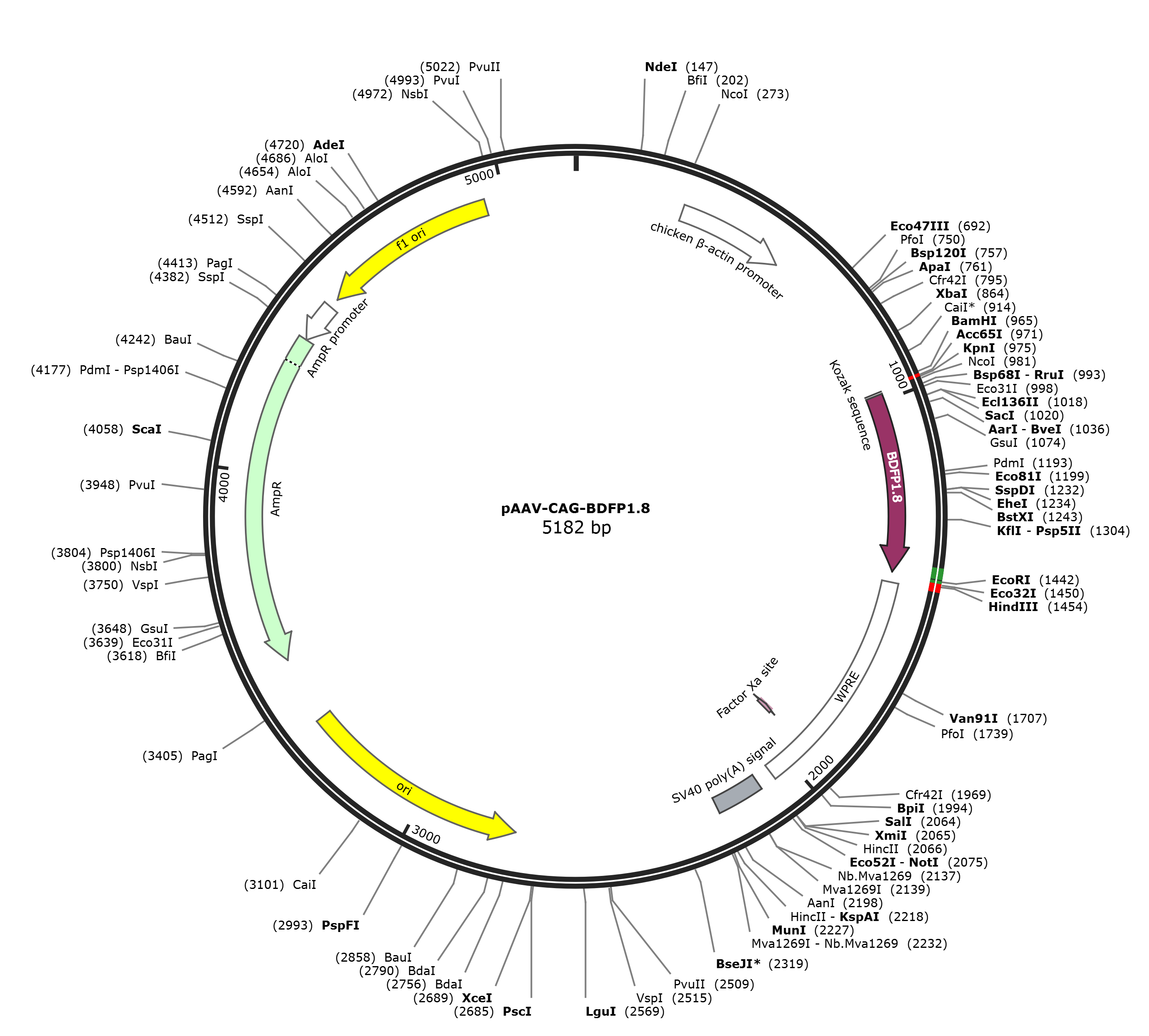

FEATURES             Location/Qualifiers
     source          1..5182
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     regulatory      977..982
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             983..1438
                     /codon_start=1
                     /label=BDFP1.8
                     /translation="MANREVVETLKELLADGEKRVQVAGVIGTNAAEVVKTAVSLLFQE
                     YPELVSPGGCAYTTRRYNKCVRDMNYFLRMCSYAIVAGGASVLDGRMLAGLRDTFNSLG
                     IPLGPVARGIQLMKKIVKEKLATAGMTNIAFVDEPFDYIARVISETEI"
     primer_bind     complement(1413..1467)
                     /label=0503-BDFP1.8-R
     misc_feature    1466..2054
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(1937..1948)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    2097..2218
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(2746..3334)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3505..4365)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4366..4470)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(4496..4951)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccgcca ccatggccaa tcgcgaggtt gttgagaccc tgaaggagct
     1021 cctggctgac ggggagaaga gagtgcaggt ggctggagtg attgggacta acgctgccga
     1081 agttgtcaag accgccgtgt cacttctgtt tcaggagtac ccagagttgg tgtcccctgg
     1141 cgggtgtgcc tatacaacaa ggcgctacaa caagtgtgtg agggacatga actacttcct
     1201 caggatgtgt agctacgcca tcgtggccgg gggcgccagc gtcttggatg gaaggatgct
     1261 ggccgggctg cgggatacat tcaactccct cggcatccct ctgggtcccg tggcccgggg
     1321 catccaactg atgaagaaga tcgtcaaaga gaaactggcg acagccggca tgactaacat
     1381 tgcatttgtc gatgagccct ttgactacat cgcccgtgtg attagtgaaa cggaaattta
     1441 agaattcgat atcaagctta tcgataatca acctctggat tacaaaattt gtgaaagatt
     1501 gactggtatt cttaactatg ttgctccttt tacgctatgt ggatacgctg ctttaatgcc
     1561 tttgtatcat gctattgctt cccgtatggc tttcattttc tcctccttgt ataaatcctg
     1621 gttgctgtct ctttatgagg agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac
     1681 tgtgtttgct gacgcaaccc ccactggttg gggcattgcc accacctgtc agctcctttc
     1741 cgggactttc gctttccccc tccctattgc cacggcggaa ctcatcgccg cctgccttgc
     1801 ccgctgctgg acaggggctc ggctgttggg cactgacaat tccgtggtgt tgtcggggaa
     1861 atcatcgtcc tttccttggc tgctcgcctg tgttgccacc tggattctgc gcgggacgtc
     1921 cttctgctac gtcccttcgg ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc
     1981 ggctctgcgg cctcttccgc gtcttcgcct tcgccctcag acgagtcgga tctccctttg
     2041 ggccgcctcc ccgcatcgat accgtcgacc cgggcggccg cttcgagcag acatgataag
     2101 atacattgat gagtttggac aaaccacaac tagaatgcag tgaaaaaaat gctttatttg
     2161 tgaaatttgt gatgctattg ctttatttgt aaccattata agctgcaata aacaagttaa
     2221 caacaacaat tgcattcatt ttatgtttca ggttcagggg gagatgtggg aggtttttta
     2281 aagcaagtaa aacctctaca aatgtggtaa aatcgataag gatcttccta gagcatggct
     2341 acgtagataa gtagcatggc gggttaatca ttaactacaa ggaaccccta gtgatggagt
     2401 tggccactcc ctctctgcgc gctcgctcgc tcactgaggc cgggcgacca aaggtcgccc
     2461 gacgcccggg ctttgcccgg gcggcctcag tgagcgagcg agcgcgcagc tgcattaatg
     2521 aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg cttcctcgct
     2581 cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc
     2641 ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg
     2701 ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg
     2761 cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg
     2821 actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac
     2881 cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca
     2941 tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt
     3001 gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc
     3061 caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag
     3121 agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac
     3181 tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt
     3241 tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa
     3301 gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg
     3361 gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa
     3421 aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat
     3481 atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc
     3541 gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat
     3601 acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc
     3661 ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc
     3721 tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag
     3781 ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg tggtgtcacg
     3841 ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg
     3901 atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag
     3961 taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt
     4021 catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga
     4081 atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc
     4141 acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc
     4201 aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc
     4261 ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc
     4321 cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca
     4381 atattattga agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat
     4441 ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctaaatt
     4501 gtaagcgtta atattttgtt aaaattcgcg ttaaattttt gttaaatcag ctcatttttt
     4561 aaccaatagg ccgaaatcgg caaaatccct tataaatcaa aagaatagac cgagataggg
     4621 ttgagtgttg ttccagtttg gaacaagagt ccactattaa agaacgtgga ctccaacgtc
     4681 aaagggcgaa aaaccgtcta tcagggcgat ggcccactac gtgaaccatc accctaatca
     4741 agttttttgg ggtcgaggtg ccgtaaagca ctaaatcgga accctaaagg gagcccccga
     4801 tttagagctt gacggggaaa gccggcgaac gtggcgagaa aggaagggaa gaaagcgaaa
     4861 ggagcgggcg ctagggcgct ggcaagtgta gcggtcacgc tgcgcgtaac caccacaccc
     4921 gccgcgctta atgcgccgct acagggcgcg tcccattcgc cattcaggct gcgcaactgt
     4981 tgggaagggc gatcggtgcg ggcctcttcg ctattacgcc agctgcgcgc tcgctcgctc
     5041 actgaggccg cccgggcaaa gcccgggcgt cgggcgacct ttggtcgccc ggcctcagtg
     5101 agcgagcgag cgcgcagaga gggagtggcc aactccatca ctaggggttc cttgtagtta
     5161 atgattaacc cgccatgcta ct
//
