pElectra1-Actin

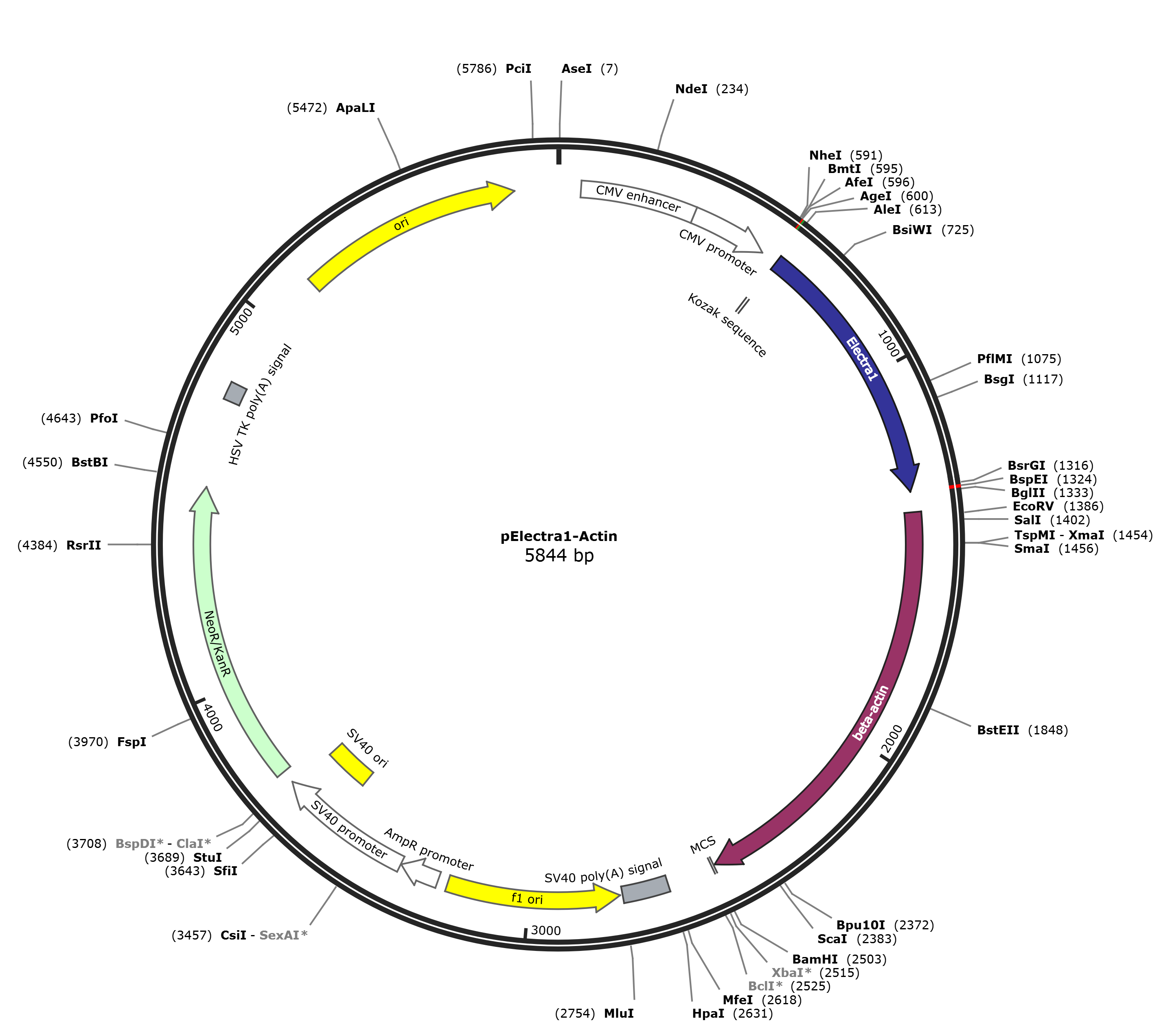

LOCUS       pElectra1-Actin               5844 bp DNA     circular SYN 29-MAY-2023
DEFINITION  Vector for fusing photoactivatable mCherry to the N-terminus of a
            partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5844)
  AUTHORS   Clontech
  TITLE     Direct Submission
  JOURNAL   Exported Jun 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5844
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     regulatory      607..616
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             613..1323
                     /codon_start=1
                     /label=Electra1
                     /translation="MVSKGEELIEENMRMKVVMEGSVNGHQFKCTGEGEGRPYEGVQTM
                     RIKVIEGGPLPFAFDILATSFLFGSKTFIKYPADIPDFFKQSFPEGFTWERVTRYEDGG
                     VVTVTQDTSLEDGGLVYNVKVRGVNFPSNGPVMQKKTEGWEPFTEMMYPANGGLRGYTD
                     IALKVDGDGHLHANIVTTYRSKKTVGDIKMPGVHAVDYRLERVEESDNETYVVLREVAV
                     AKYSNLGGGMDELYK"
     primer_bind     1120..1140
                     /label=0623-CalypsoMid
     CDS             1378..2499
                     /codon_start=1
                     /label=beta-actin
                     /translation="DDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVG
                     MGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLL
                     TEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVP
                     IYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDF
                     EQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSI
                     MKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWI
                     GGSILASLSTFQQMWISKQEYDESGPSIVHRKCF"
     primer_bind     1500..1525
                     /label=0312Actin-F
     misc_feature    2503..2508
                     /label=MCS
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     polyA_signal    2632..2753
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2698..2733)
                     /label=SV40-F
     primer_bind     complement(2708..2733)
                     /label=SV40-R-seq
     primer_bind     complement(2723..2742)
                     /label=SV40-R-Universal
     rep_origin      complement(2760..3215)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3242..3346
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3348..3705
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3556..3691
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3740..4534
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    4766..4813
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      5142..5730
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatggtgtc taagggcgaa gagctgatcg aggaaaatat gcgtatgaag
      661 gtggtcatgg aaggttcggt caacggccac caattcaaat gcacaggtga aggagaaggc
      721 agaccgtacg agggagtgca aaccatgagg atcaaagtca tcgagggagg acccctgcca
      781 tttgcctttg acattcttgc cacgtcgttc ctgttcggca gcaagacctt tatcaagtac
      841 ccggccgaca tccctgattt cttcaaacag tcctttcctg agggctttac ttgggaaaga
      901 gttacgagat acgaagatgg tggagtcgtc accgtcacgc aggacaccag ccttgaggat
      961 ggggggctcg tctacaacgt caaggtcaga ggggtaaact ttccctccaa tggtcccgtg
     1021 atgcagaaga agaccgaggg ttgggagcct ttcacagaga tgatgtatcc agcaaatggt
     1081 ggtctgagag gatataccga catcgcactg aaagttgatg gtgatggcca tctgcacgcc
     1141 aacatcgtga caacttacag gtcaaaaaag accgtcgggg acatcaagat gcccggtgtc
     1201 catgccgttg attaccgcct ggaaagggtc gaagagagtg acaatgaaac ctacgtagtg
     1261 ctaagagaag tggcagttgc caaatacagc aaccttggtg gtggcatgga cgagctgtac
     1321 aagtccggac tcagatctgg cagcggtgga ggcagcgcat ccggcggaag cggaagcgat
     1381 gatgatatcg ccgcgctcgt cgtcgacaac ggctccggca tgtgcaaggc cggcttcgcg
     1441 ggcgacgatg ccccccgggc cgtcttcccc tccatcgtgg ggcgccccag gcaccagggc
     1501 gtgatggtgg gcatgggtca gaaggattcc tatgtgggcg acgaggccca gagcaagaga
     1561 ggcatcctca ccctgaagta ccccatcgag cacggcatcg tcaccaactg ggacgacatg
     1621 gagaaaatct ggcaccacac cttctacaat gagctgcgtg tggctcccga ggagcacccc
     1681 gtgctgctga ccgaggcccc cctgaacccc aaggccaacc gcgagaagat gacccagatc
     1741 atgtttgaga ccttcaacac cccagccatg tacgttgcta tccaggctgt gctatccctg
     1801 tacgcctctg gccgtaccac tggcatcgtg atggactccg gtgacggggt cacccacact
     1861 gtgcccatct acgaggggta tgccctcccc catgccatcc tgcgtctgga cctggctggc
     1921 cgggacctga ctgactacct catgaagatc ctcaccgagc gcggctacag cttcaccacc
     1981 acggccgagc gggaaatcgt gcgtgacatt aaggagaagc tgtgctacgt cgccctggac
     2041 ttcgagcaag agatggccac ggctgcttcc agctcctccc tggagaagag ctacgagctg
     2101 cctgacggcc aggtcatcac cattggcaat gagcggttcc gctgccctga ggcactcttc
     2161 cagccttcct tcctgggcat ggagtcctgt ggcatccacg aaactacctt caactccatc
     2221 atgaagtgtg acgtggacat ccgcaaagac ctgtacgcca acacagtgct gtctggcggc
     2281 accaccatgt accctggcat tgccgacagg atgcagaagg agatcactgc cctggcaccc
     2341 agcacaatga agatcaagat cattgctcct cctgagcgca agtactccgt gtggatcggc
     2401 ggctccatcc tggcctcgct gtccaccttc cagcagatgt ggatcagcaa gcaggagtat
     2461 gacgagtccg gcccctccat cgtccaccgc aaatgcttct agggatccac cggatctaga
     2521 taactgatca taatcagcca taccacattt gtagaggttt tacttgcttt aaaaaacctc
     2581 ccacacctcc ccctgaacct gaaacataaa atgaatgcaa ttgttgttgt taacttgttt
     2641 attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca
     2701 tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttaacgcgta
     2761 aattgtaagc gttaatattt tgttaaaatt cgcgttaaat ttttgttaaa tcagctcatt
     2821 ttttaaccaa taggccgaaa tcggcaaaat cccttataaa tcaaaagaat agaccgagat
     2881 agggttgagt gttgttccag tttggaacaa gagtccacta ttaaagaacg tggactccaa
     2941 cgtcaaaggg cgaaaaaccg tctatcaggg cgatggccca ctacgtgaac catcacccta
     3001 atcaagtttt ttggggtcga ggtgccgtaa agcactaaat cggaacccta aagggagccc
     3061 ccgatttaga gcttgacggg gaaagccggc gaacgtggcg agaaaggaag ggaagaaagc
     3121 gaaaggagcg ggcgctaggg cgctggcaag tgtagcggtc acgctgcgcg taaccaccac
     3181 acccgccgcg cttaatgcgc cgctacaggg cgcgtcaggt ggcacttttc ggggaaatgt
     3241 gcgcggaacc cctatttgtt tatttttcta aatacattca aatatgtatc cgctcatgag
     3301 acaataaccc tgataaatgc ttcaataata ttgaaaaagg aagagtcctg aggcggaaag
     3361 aaccagctgt ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc
     3421 agaagtatgc aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc
     3481 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg
     3541 cccctaactc cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
     3601 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc
     3661 cagaagtagt gaggaggctt ttttggaggc ctaggctttt gcaaagatcg atcaagagac
     3721 aggatgagga tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc
     3781 ttgggtggag aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc
     3841 cgccgtgttc cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc
     3901 cggtgccctg aatgaactgc aagacgaggc agcgcggcta tcgtggctgg ccacgacggg
     3961 cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt
     4021 gggcgaagtg ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc
     4081 catcatggct gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga
     4141 ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga
     4201 tcaggatgat ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct
     4261 caaggcgagc atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc
     4321 gaatatcatg gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt
     4381 ggcggaccgc tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg
     4441 cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat
     4501 cgccttctat cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc
     4561 gaccaagcga cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa
     4621 aggttgggct tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat
     4681 ctcatgctgg agttcttcgc ccaccctagg gggaggctaa ctgaaacacg gaaggagaca
     4741 ataccggaag gaacccgcgc tatgacggca ataaaaagac agaataaaac gcacggtgtt
     4801 gggtcgtttg ttcataaacg cggggttcgg tcccagggct ggcactctgt cgatacccca
     4861 ccgagacccc attggggcca atacgcccgc gtttcttcct tttccccacc ccacccccca
     4921 agttcgggtg aaggcccagg gctcgcagcc aacgtcgggg cggcaggccc tgccatagcc
     4981 tcaggttact catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc
     5041 taggtgaaga tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc
     5101 cactgagcgt cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg
     5161 cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg
     5221 gatcaagagc taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca
     5281 aatactgtcc ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg
     5341 cctacatacc tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg
     5401 tgtcttaccg ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga
     5461 acggggggtt cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac
     5521 ctacagcgtg agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat
     5581 ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc
     5641 tggtatcttt atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga
     5701 tgctcgtcag gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc
     5761 ctggcctttt gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg
     5821 gataaccgta ttaccgccat gcat
//
