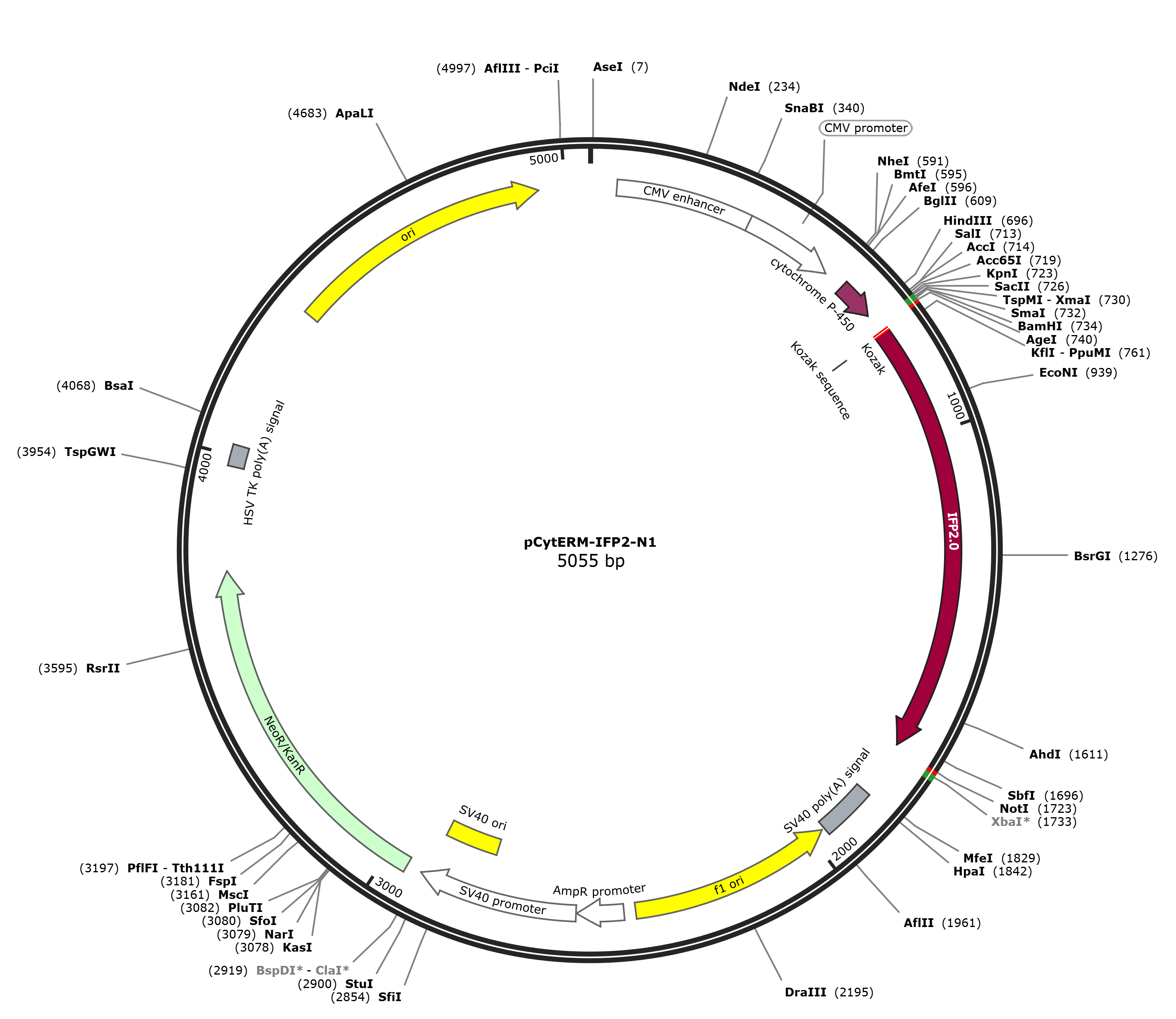

pCytERM-IFP2-N1

LOCUS      pCytERM-IFP2-N1                5055 bp DNA     circular SYN 27-MAY-2024
DEFINITION  Vector for fusing EGFP to the C-terminus of a partner protein. For
            other reading frames, use pEGFP-N2 or pEGFP-N3.
ACCESSION   U55762
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5055)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5055
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             615..701
                     /codon_start=1
                     /product="cytochrome P-450 IIC1, partial [Oryctolagus
                     cuniculus]
                     Sequence ID: AAA31436.1Length: 56Number of Matches: 1"
                     /label=cytochrome P-450
                     /translation="MDPVVVLGLCLSCLLLLSLWKQSYGGGKL"
     misc_feature    747..752
                     /label=Kozak
     CDS             753..1718
                     /codon_start=1
                     /product="bacteriophytochrome-based monomeric infrared
                     fluorescent protein (Yu et al., 2014)"
                     /label=IFP2.0
                     /translation="MARDPQPFFPPLYLGGPEITTENCEREPIHIPGSIQPHGALLTAD
                     GHSGEVLQVSLNAATFLGQEPTVLRGQTLAALLPDQWPALQTALPPGCQDALQYRATLD
                     WPAAGHLSLTVHRVAELLILEFEPTEAWDSIGPHALRNAMFALESAPNLRALAEVATQT
                     VRELSGFDRVMLYKFAPDATGEVIAEARREGMQAYLGHRFPASTTPAQARALYTRHLLR
                     LTADTRAAAVPLDPVLNPQTNAPTPLGGAVLRATSPMHMQYLRNMGVGSSLSVSVVVGG
                     QLWGLIVCHHQTPYVLPPDLRTTLEYLGRLLSLQVQRKEA"
     regulatory      753..756
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     polyA_signal    1843..1964
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1971..2426)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2453..2557
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2559..2916
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2767..2902
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2951..3745
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3977..4024
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4353..4941
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctatggac cctgtggtgg tgctggggct ctgtctctcc tgtttgcttc
      661 tcctttcact ctggaaacag agctatgggg gagggaagct tcgaattctg cagtcgacgg
      721 taccgcgggc ccgggatcca ccggtcgcca ccatggctcg ggaccctcaa cctttcttcc
      781 ctcctctgta tctcggagga ccagagatca ctactgagaa ctgcgagcgg gaacctatac
      841 atataccagg ttctattcaa cctcatggag cactgctcac agccgatgga cattctggcg
      901 aggtgctgca agtttcactc aacgcagcca ctttcctggg ccaggaacca actgttctgc
      961 ggggacagac cctggcagcc ctgctgccag accagtggcc tgctctgcag actgccctgc
     1021 ctccaggctg ccaggacgcc ctgcagtatc gcgccaccct ggattggccc gccgccggac
     1081 acctgagcct gaccgtgcat agggtggccg agctgctgat tctggaattc gagcctactg
     1141 aggcatggga ctctattgga ccccacgctc tgagaaatgc aatgttcgct ctggagagtg
     1201 ctcctaatct ccgggcactg gctgaagtcg caacccaaac agtccgggaa ctgtcaggtt
     1261 tcgaccgggt gatgctgtac aagtttgcac cagacgcaac aggagaggtt attgccgaag
     1321 caaggcgcga gggcatgcag gcttacctcg ggcataggtt tcccgcatcc accacccctg
     1381 cacaagctag ggccctctac acaagacacc tgctccggct gaccgcagac accagggctg
     1441 cagcagtgcc cctcgacccc gtgctgaatc cccagacaaa tgctcctaca cctctgggcg
     1501 gagctgtcct cagagctaca tccccaatgc acatgcagta cctgaggaat atgggagtgg
     1561 gctcctccct gagcgtcagc gtcgtggtcg gcggccagct gtggggactg attgtctgcc
     1621 accatcagac accctacgtg ctgccacccg atctgcggac caccctggag tatctgggga
     1681 ggctcctgtc cctgcaggtg cagaggaaag aagcctgata agcggccgcg actctagatc
     1741 ataatcagcc ataccacatt tgtagaggtt ttacttgctt taaaaaacct cccacacctc
     1801 cccctgaacc tgaaacataa aatgaatgca attgttgttg ttaacttgtt tattgcagct
     1861 tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc atttttttca
     1921 ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttaaggcgt aaattgtaag
     1981 cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa atcagctcat tttttaacca
     2041 ataggccgaa atcggcaaaa tcccttataa atcaaaagaa tagaccgaga tagggttgag
     2101 tgttgttcca gtttggaaca agagtccact attaaagaac gtggactcca acgtcaaagg
     2161 gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa ccatcaccct aatcaagttt
     2221 tttggggtcg aggtgccgta aagcactaaa tcggaaccct aaagggagcc cccgatttag
     2281 agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc
     2341 gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc
     2401 gcttaatgcg ccgctacagg gcgcgtcagg tggcactttt cggggaaatg tgcgcggaac
     2461 ccctatttgt ttatttttct aaatacattc aaatatgtat ccgctcatga gacaataacc
     2521 ctgataaatg cttcaataat attgaaaaag gaagagtcct gaggcggaaa gaaccagctg
     2581 tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     2641 caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg ctccccagca
     2701 ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc gcccctaact
     2761 ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta
     2821 atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt ccagaagtag
     2881 tgaggaggct tttttggagg cctaggcttt tgcaaagatc gatcaagaga caggatgagg
     2941 atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg cttgggtgga
     3001 gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg ccgccgtgtt
     3061 ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt ccggtgccct
     3121 gaatgaactg caagacgagg cagcgcggct atcgtggctg gccacgacgg gcgttccttg
     3181 cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat tgggcgaagt
     3241 gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat ccatcatggc
     3301 tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg accaccaagc
     3361 gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg atcaggatga
     3421 tctggacgaa gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc tcaaggcgag
     3481 catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc cgaatatcat
     3541 ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg tggcggaccg
     3601 ctatcaggac atagcgttgg ctacccgtga tattgctgaa gagcttggcg gcgaatgggc
     3661 tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca tcgccttcta
     3721 tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac cgaccaagcg
     3781 acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga aaggttgggc
     3841 ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga tctcatgctg
     3901 gagttcttcg cccaccctag ggggaggcta actgaaacac ggaaggagac aataccggaa
     3961 ggaacccgcg ctatgacggc aataaaaaga cagaataaaa cgcacggtgt tgggtcgttt
     4021 gttcataaac gcggggttcg gtcccagggc tggcactctg tcgatacccc accgagaccc
     4081 cattggggcc aatacgcccg cgtttcttcc ttttccccac cccacccccc aagttcgggt
     4141 gaaggcccag ggctcgcagc caacgtcggg gcggcaggcc ctgccatagc ctcaggttac
     4201 tcatatatac tttagattga tttaaaactt catttttaat ttaaaaggat ctaggtgaag
     4261 atcctttttg ataatctcat gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg
     4321 tcagaccccg tagaaaagat caaaggatct tcttgagatc ctttttttct gcgcgtaatc
     4381 tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc ggatcaagag
     4441 ctaccaactc tttttccgaa ggtaactggc ttcagcagag cgcagatacc aaatactgtc
     4501 cttctagtgt agccgtagtt aggccaccac ttcaagaact ctgtagcacc gcctacatac
     4561 ctcgctctgc taatcctgtt accagtggct gctgccagtg gcgataagtc gtgtcttacc
     4621 gggttggact caagacgata gttaccggat aaggcgcagc ggtcgggctg aacggggggt
     4681 tcgtgcacac agcccagctt ggagcgaacg acctacaccg aactgagata cctacagcgt
     4741 gagctatgag aaagcgccac gcttcccgaa gggagaaagg cggacaggta tccggtaagc
     4801 ggcagggtcg gaacaggaga gcgcacgagg gagcttccag ggggaaacgc ctggtatctt
     4861 tatagtcctg tcgggtttcg ccacctctga cttgagcgtc gatttttgtg atgctcgtca
     4921 ggggggcgga gcctatggaa aaacgccagc aacgcggcct ttttacggtt cctggccttt
     4981 tgctggcctt ttgctcacat gttctttcct gcgttatccc ctgattctgt ggataaccgt
     5041 attaccgcca tgcat
//
