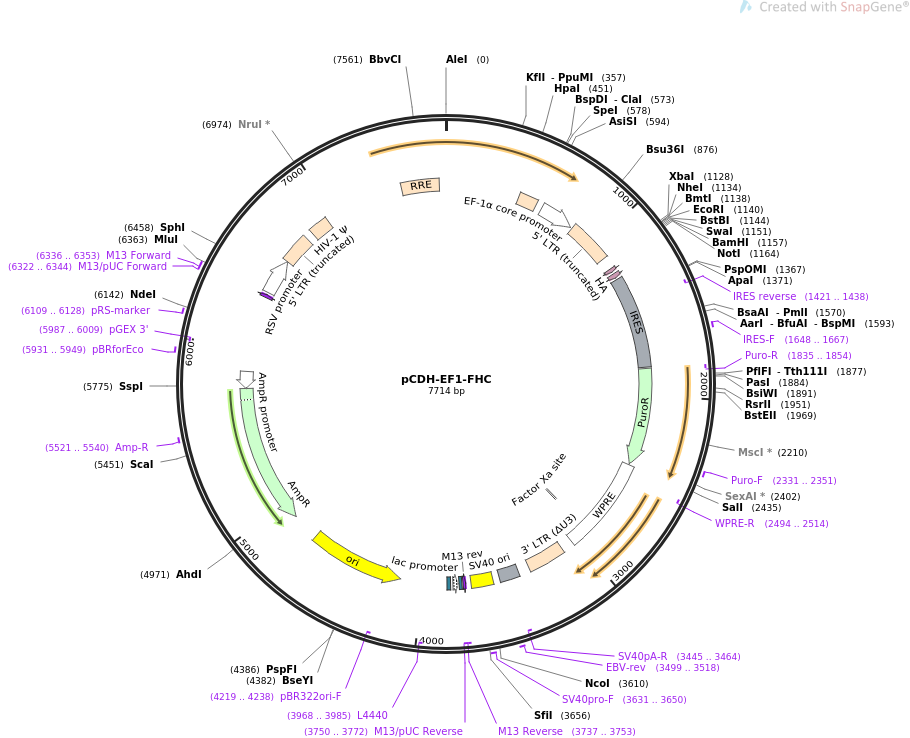

pCDH-EF1-FHC

LOCUS       pCDH-EF1-FHC                7714 bp ds-DNA     circular SYN 23-MAR-2020
DEFINITION  lentiviral vector with Flag, HA tags.
ACCESSION   .
VERSION     .
KEYWORDS    pCDH-EF1-FHC
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7714)
  AUTHORS   Yousefzadeh MJ, Wyatt DW, Takata K, Mu Y, Hensley SC, Tomida J,
            Bylund GO, Doublie S, Johansson E, Ramsden DA, McBride KM, Wood RD
  TITLE     Mechanism of suppression of chromosomal instability by DNA
            polymerase POLQ.
  JOURNAL   PLoS Genet. 2014 Oct 2;10(10):e1004654. doi:
            10.1371/journal.pgen.1004654. eCollection 2014 Oct.
  PUBMED    25275444
REFERENCE   2  (bases 1 to 7714)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Mar 23, 2020 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7714
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    455..571
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        614..825
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     LTR             838..1106
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from human
                     T-cell leukemia virus (HTLV) type 1"
     CDS             1178..1201
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     CDS             1217..1243
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     misc_feature    1254..1826
                     /label=IRES
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     primer_bind     complement(1421..1438)
                     /label=IRES reverse
                     /note="IRES internal ribosome entry site, reverse primer.
                     Also called pCDH-rev"
     primer_bind     1648..1667
                     /label=IRES-F
                     /note="IRES internal ribosome entry site, forward primer"
     CDS             1835..2434
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(1835..1854)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     2331..2351
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     misc_feature    2441..3029
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2494..2514)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(2912..2923)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             3103..3336
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    3408..3529
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3445..3464)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3499..3518
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      3569..3704
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3631..3650
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(3737..3753)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3737..3753)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3750..3772)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3761..3777
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3785..3815)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3830..3851
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(3968..3985)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4139..4727)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4219..4238)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4898..5758)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5521..5540
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5759..5863)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     5931..5949
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(5987..6009)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     6109..6128
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     6322..6344
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     6336..6353
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     6337..6353
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        6368..6594
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             6595..6775
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    6822..6947
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    7440..7673
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
ORIGIN
        1 ctgtgccttg gaatgctagt tggagtaata aatctctgga acagatttgg aatcacacga
       61 cctggatgga gtgggacaga gaaattaaca attacacaag cttaatacac tccttaattg
      121 aagaatcgca aaaccagcaa gaaaagaatg aacaagaatt attggaatta gataaatggg
      181 caagtttgtg gaattggttt aacataacaa attggctgtg gtatataaaa ttattcataa
      241 tgatagtagg aggcttggta ggtttaagaa tagtttttgc tgtactttct atagtgaata
      301 gagttaggca gggatattca ccattatcgt ttcagaccca cctcccaacc ccgaggggac
      361 ccgacaggcc cgaaggaata gaagaagaag gtggagagag agacagagac agatccattc
      421 gattagtgaa cggatctcga cggtatcggt taacttttaa aagaaaaggg gggattgggg
      481 ggtacagtgc aggggaaaga atagtagaca taatagcaac agacatacaa actaaagaat
      541 tacaaaaaca aattacaaaa ttcaaaattt tatcgatact agtggatctg cgatcgctcc
      601 ggtgcccgtc agtgggcaga gcgcacatcg cccacagtcc ccgagaagtt ggggggaggg
      661 gtcggcaatt gaacgggtgc ctagagaagg tggcgcgggg taaactggga aagtgatgtc
      721 gtgtactggc tccgcctttt tcccgagggt gggggagaac cgtatataag tgcagtagtc
      781 gccgtgaacg ttctttttcg caacgggttt gccgccagaa cacagctgaa gcttcgaggg
      841 gctcgcatct ctccttcacg cgcccgccgc cctacctgag gccgccatcc acgccggttg
      901 agtcgcgttc tgccgcctcc cgcctgtggt gcctcctgaa ctgcgtccgc cgtctaggta
      961 agtttaaagc tcaggtcgag accgggcctt tgtccggcgc tcccttggag cctacctaga
     1021 ctcagccggc tctccacgct ttgcctgacc ctgcttgctc aactctacgt ctttgtttcg
     1081 ttttctgttc tgcgccgtta cagatccaag ctgtgaccgg cgcctactct agagctagcg
     1141 aattcgaatt taaatcggat ccgcggccgc tggaggagac tacaaggacg acgatgacaa
     1201 gtcggccgct ggaggatacc cctacgacgt gcccgactac gcctagggcc gcgcccctct
     1261 ccctcccccc cccctaacgt tactggccga agccgcttgg aataaggccg gtgtgcgttt
     1321 gtctatatgt tattttccac catattgccg tcttttggca atgtgagggc ccggaaacct
     1381 ggccctgtct tcttgacgag cattcctagg ggtctttccc ctctcgccaa aggaatgcaa
     1441 ggtctgttga atgtcgtgaa ggaagcagtt cctctggaag cttcttgaag acaaacaacg
     1501 tctgtagcga ccctttgcag gcagcggaac cccccacctg gcgacaggtg cctctgcggc
     1561 caaaagccac gtgtataaga tacacctgca aaggcggcac aaccccagtg ccacgttgtg
     1621 agttggatag ttgtggaaag agtcaaatgg ctctcctcaa gcgtattcaa caaggggctg
     1681 aaggatgccc agaaggtacc ccattgtatg ggatctgatc tggggcctcg gtgcacatgc
     1741 tttacatgtg tttagtcgag gttaaaaaaa cgtctaggcc ccccgaacca cggggacgtg
     1801 gttttccttt gaaaaacacg ataatacctc cggaatgacc gagtacaagc ccacggtgcg
     1861 cctcgccacc cgcgacgacg tccccagggc cgtacgcacc ctcgccgccg cgttcgccga
     1921 ctaccccgcc acgcgccaca ccgtcgatcc ggaccgccac atcgagcggg tcaccgagct
     1981 gcaagaactc ttcctcacgc gcgtcgggct cgacatcggc aaggtgtggg tcgcggacga
     2041 cggcgccgcg gtggcggtct ggaccacgcc ggagagcgtc gaagcggggg cggtgttcgc
     2101 cgagatcggc ccgcgcatgg ccgagttgag cggttcccgg ctggccgcgc agcaacagat
     2161 ggaaggcctc ctggcgccgc accggcccaa ggagcccgcg tggttcctgg ccaccgtcgg
     2221 cgtctcgccc gaccaccagg gcaagggtct gggcagcgcc gtcgtgctcc ccggagtgga
     2281 ggcggccgag cgcgccgggg tgcccgcctt cctggagacc tccgcgcccc gcaacctccc
     2341 cttctacgag cggctcggct tcaccgtcac cgccgacgtc gaggtgcccg aaggaccgcg
     2401 cacctggtgc atgacccgca agcccggtgc ctaggtcgac aatcaacctc tggattacaa
     2461 aatttgtgaa agattgactg gtattcttaa ctatgttgct ccttttacgc tatgtggata
     2521 cgctgcttta atgcctttgt atcatgctat tgcttcccgt atggctttca ttttctcctc
     2581 cttgtataaa tcctggttgc tgtctcttta tgaggagttg tggcccgttg tcaggcaacg
     2641 tggcgtggtg tgcactgtgt ttgctgacgc aacccccact ggttggggca ttgccaccac
     2701 ctgtcagctc ctttccggga ctttcgcttt ccccctccct attgccacgg cggaactcat
     2761 cgccgcctgc cttgcccgct gctggacagg ggctcggctg ttgggcactg acaattccgt
     2821 ggtgttgtcg gggaaatcat cgtcctttcc ttggctgctc gcctgtgttg ccacctggat
     2881 tctgcgcggg acgtccttct gctacgtccc ttcggccctc aatccagcgg accttccttc
     2941 ccgcggcctg ctgccggctc tgcggcctct tccgcgtctt cgccttcgcc ctcagacgag
     3001 tcggatctcc ctttgggccg cctccccgcc tggtaccttt aagaccaatg acttacaagg
     3061 cagctgtaga tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact
     3121 cccaacgaag ataagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct
     3181 gagcctggga gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc
     3241 cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc
     3301 tcagaccctt ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta
     3361 ttcagtattt ataacttgca aagaaatgaa tatcagagag tgagaggaac ttgtttattg
     3421 cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt
     3481 tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctggc
     3541 tctagctatc ccgcccctaa ctccgcccat cccgccccta actccgccca gttccgccca
     3601 ttctccgccc catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc
     3661 ctctgagcta ttccagaagt agtgaggagg cttttttgga ggcctagact tttgcagaga
     3721 ccaaattcgt aatcatgtca tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc
     3781 cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa tgagtgagct
     3841 aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac ctgtcgtgcc
     3901 agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt
     3961 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag
     4021 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca
     4081 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
     4141 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
     4201 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
     4261 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
     4321 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
     4381 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
     4441 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
     4501 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
     4561 actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag ccagttacct
     4621 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt
     4681 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     4741 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     4801 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     4861 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     4921 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     4981 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     5041 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     5101 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     5161 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     5221 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     5281 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     5341 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     5401 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     5461 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     5521 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     5581 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     5641 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     5701 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     5761 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     5821 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     5881 tgccacctga cgtctaagaa accattatta tcatgacatt aacctataaa aataggcgta
     5941 tcacgaggcc ctttcgtctc gcgcgtttcg gtgatgacgg tgaaaacctc tgacacatgc
     6001 agctcccgga gacggtcaca gcttgtctgt aagcggatgc cgggagcaga caagcccgtc
     6061 agggcgcgtc agcgggtgtt ggcgggtgtc ggggctggct taactatgcg gcatcagagc
     6121 agattgtact gagagtgcac catatgcggt gtgaaatacc gcacagatgc gtaaggagaa
     6181 aataccgcat caggcgccat tcgccattca ggctgcgcaa ctgttgggaa gggcgatcgg
     6241 tgcgggcctc ttcgctatta cgccagctgg cgaaaggggg atgtgctgca aggcgattaa
     6301 gttgggtaac gccagggttt tcccagtcac gacgttgtaa aacgacggcc agtgccaagc
     6361 tgacgcgtgt agtcttatgc aatactcttg tagtcttgca acatggtaac gatgagttag
     6421 caacatgcct tacaaggaga gaaaaagcac cgtgcatgcc gattggtgga agtaaggtgg
     6481 tacgatcgtg ccttattagg aaggcaacag acgggtctga catggattgg acgaaccact
     6541 gaattgccgc attgcagaga tattgtattt aagtgcctag ctcgatacat aaacgggtct
     6601 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
     6661 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
     6721 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     6781 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     6841 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     6901 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     6961 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     7021 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     7081 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     7141 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     7201 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     7261 aaagtaagac caccgcacag caagcggcca ctgatcttca gacctggagg aggagatatg
     7321 agggacaatt ggagaagtga attatataaa tataaagtag taaaaattga accattagga
     7381 gtagcaccca ccaaggcaaa gagaagagtg gtgcagagag aaaaaagagc agtgggaata
     7441 ggagctttgt tccttgggtt cttgggagca gcaggaagca ctatgggcgc agcgtcaatg
     7501 acgctgacgg tacaggccag acaattattg tctggtatag tgcagcagca gaacaatttg
     7561 ctgagggcta ttgaggcgca acagcatctg ttgcaactca cagtctgggg catcaagcag
     7621 ctccaggcaa gaatcctggc tgtggaaaga tacctaaagg atcaacagct cctggggatt
     7681 tggggttgct ctggaaaact catttgcacc actg
//
