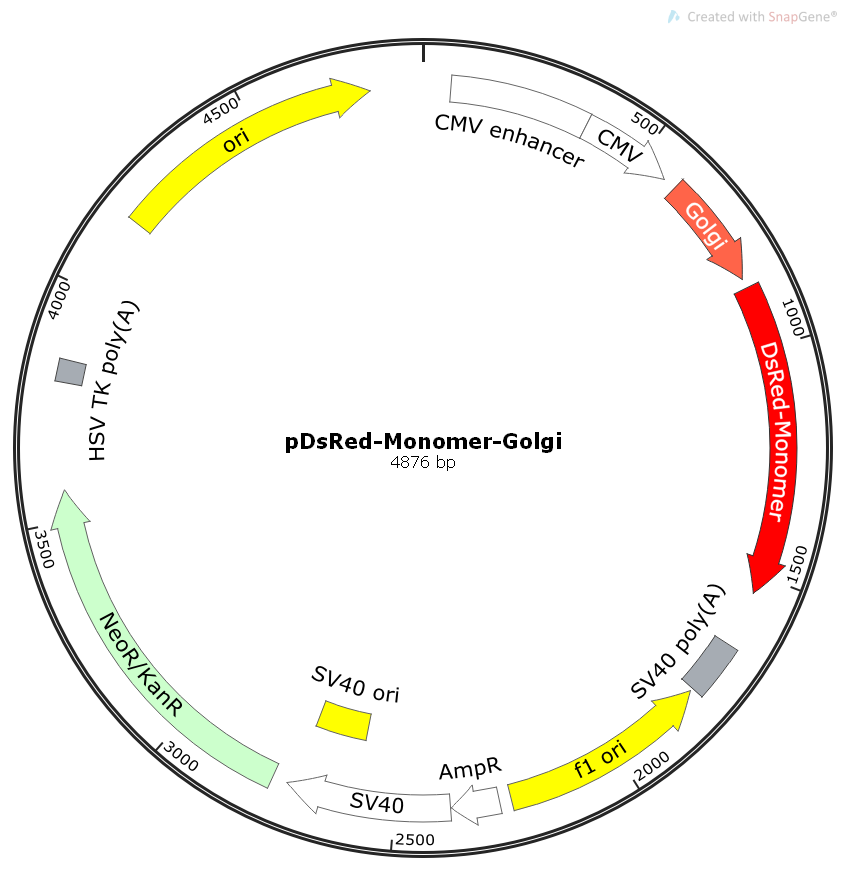

pDsRed-Monomer-Golgi

LOCUS       pDsRed-Monomer-Golgi                4876 bp ds-DNA     circular SYN 26-JUL-2019
DEFINITION  synthetic circular DNA
KEYWORDS    pDsRed-Monomer-Golgi
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4876)
  AUTHORS   .
  TITLE     Direct Submission
FEATURES             Location/Qualifiers
     source          1..4876
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    597..842
                     /label=Golgi
     CDS             864..1541
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Strongin et al., 2007)"
                     /label=DsRed-Monomer
                     /note="mammalian codon-optimized"
                     /translation="MDNTEDVIKEFMQFKVRMEGSVNGHYFEIEGEGEGKPYEGTQTAK
                     LQVTKGGPLPFAWDILSPQFQYGSKAYVKHPADIPDYMKLSFPEGFTWERSMNFEDGGV
                     VEVQQDSSLQDGTFIYKVKFKGVNFPADGPVMQKKTAGWEPSTEKLYPQDGVLKGEISH
                     ALKLKDGGHYTCDFKTVYKAKKPVQLPGNHYVDSKLDITNHNEDYTVVEQYEHAEARHS
                     GSQ"
     polyA_signal    1664..1785
                     /label=SV40 poly(A)
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1792..2247)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2274..2378
                     /gene="bla"
                     /label=AmpR
     promoter        2380..2737
                     /label=SV40
                     /note="SV40 enhancer and early promoter"
     rep_origin      2588..2723
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2772..3566
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3798..3845
                     /label=HSV TK poly(A)
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4174..4762
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
BASE COUNT         1137 a         1347 c         1310 g         1081 t
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatga
      601 ggcttcggga gccgctcctg agcggcagcg ccgcgatgcc aggcgcgtcc ctacagcggg
      661 cctgccgcct gctcgtggcc gtctgcgctc tgcaccttgg cgtcaccctc gtttactacc
      721 tggctggccg cgacctgagc cgcctgcccc aactggtcgg agtctccaca ccgctgcagg
      781 gcggctcgaa cagtgccgcc gccatcgggc agtcctccgg ggagctccgg accggagggg
      841 ccaaggatcc accggtcgcc accatggaca acaccgagga cgtcatcaag gagttcatgc
      901 agttcaaggt gcgcatggag ggctccgtga acggccacta cttcgagatc gagggcgagg
      961 gcgagggcaa gccctacgag ggcacccaga ccgccaagct gcaggtgacc aagggcggcc
     1021 ccctgccctt cgcctgggac atcctgtccc cccagttcca gtacggctcc aaggcctacg
     1081 tgaagcaccc cgccgacatc cccgactaca tgaagctgtc cttccccgag ggcttcacct
     1141 gggagcgctc catgaacttc gaggacggcg gcgtggtgga ggtgcagcag gactcctccc
     1201 tgcaggacgg caccttcatc tacaaggtga agttcaaggg cgtgaacttc cccgccgacg
     1261 gccccgtaat gcagaagaag actgccggct gggagccctc caccgagaag ctgtaccccc
     1321 aggacggcgt gctgaagggc gagatctccc acgccctgaa gctgaaggac ggcggccact
     1381 acacctgcga cttcaagacc gtgtacaagg ccaagaagcc cgtgcagctg cccggcaacc
     1441 actacgtgga ctccaagctg gacatcacca accacaacga ggactacacc gtggtggagc
     1501 agtacgagca cgccgaggcc cgccactccg gctcccagta gagcggccgc gactctagat
     1561 cataatcagc cataccacat ttgtagaggt tttacttgct ttaaaaaacc tcccacacct
     1621 ccccctgaac ctgaaacata aaatgaatgc aattgttgtt gttaacttgt ttattgcagc
     1681 ttataatggt tacaaataaa gcaatagcat cacaaatttc acaaataaag catttttttc
     1741 actgcattct agttgtggtt tgtccaaact catcaatgta tcttaaggcg taaattgtaa
     1801 gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta aatcagctca ttttttaacc
     1861 aataggccga aatcggcaaa atcccttata aatcaaaaga atagaccgag atagggttga
     1921 gtgttgttcc agtttggaac aagagtccac tattaaagaa cgtggactcc aacgtcaaag
     1981 ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga accatcaccc taatcaagtt
     2041 ttttggggtc gaggtgccgt aaagcactaa atcggaaccc taaagggagc ccccgattta
     2101 gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga agggaagaaa gcgaaaggag
     2161 cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg cgtaaccacc acacccgccg
     2221 cgcttaatgc gccgctacag ggcgcgtcag gtggcacttt tcggggaaat gtgcgcggaa
     2281 cccctatttg tttatttttc taaatacatt caaatatgta tccgctcatg agacaataac
     2341 cctgataaat gcttcaataa tattgaaaaa ggaagagtcc tgaggcggaa agaaccagct
     2401 gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc tccccagcag gcagaagtat
     2461 gcaaagcatg catctcaatt agtcagcaac caggtgtgga aagtccccag gctccccagc
     2521 aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accatagtcc cgcccctaac
     2581 tccgcccatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact
     2641 aatttttttt atttatgcag aggccgaggc cgcctcggcc tctgagctat tccagaagta
     2701 gtgaggaggc ttttttggag gcctaggctt ttgcaaagat cgatcaagag acaggatgag
     2761 gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc gcttgggtgg
     2821 agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat gccgccgtgt
     2881 tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg tccggtgccc
     2941 tgaatgaact gcaagacgag gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt
     3001 gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta ttgggcgaag
     3061 tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta tccatcatgg
     3121 ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc gaccaccaag
     3181 cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc gatcaggatg
     3241 atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg ctcaaggcga
     3301 gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca
     3361 tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt gtggcggacc
     3421 gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc ggcgaatggg
     3481 ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc atcgccttct
     3541 atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga ccgaccaagc
     3601 gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg aaaggttggg
     3661 cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg atctcatgct
     3721 ggagttcttc gcccacccta gggggaggct aactgaaaca cggaaggaga caataccgga
     3781 aggaacccgc gctatgacgg caataaaaag acagaataaa acgcacggtg ttgggtcgtt
     3841 tgttcataaa cgcggggttc ggtcccaggg ctggcactct gtcgataccc caccgagacc
     3901 ccattggggc caatacgccc gcgtttcttc cttttcccca ccccaccccc caagttcggg
     3961 tgaaggccca gggctcgcag ccaacgtcgg ggcggcaggc cctgccatag cctcaggtta
     4021 ctcatatata ctttagattg atttaaaact tcatttttaa tttaaaagga tctaggtgaa
     4081 gatccttttt gataatctca tgaccaaaat cccttaacgt gagttttcgt tccactgagc
     4141 gtcagacccc gtagaaaaga tcaaaggatc ttcttgagat cctttttttc tgcgcgtaat
     4201 ctgctgcttg caaacaaaaa aaccaccgct accagcggtg gtttgtttgc cggatcaaga
     4261 gctaccaact ctttttccga aggtaactgg cttcagcaga gcgcagatac caaatactgt
     4321 tcttctagtg tagccgtagt taggccacca cttcaagaac tctgtagcac cgcctacata
     4381 cctcgctctg ctaatcctgt taccagtggc tgctgccagt ggcgataagt cgtgtcttac
     4441 cgggttggac tcaagacgat agttaccgga taaggcgcag cggtcgggct gaacgggggg
     4501 ttcgtgcaca cagcccagct tggagcgaac gacctacacc gaactgagat acctacagcg
     4561 tgagctatga gaaagcgcca cgcttcccga agggagaaag gcggacaggt atccggtaag
     4621 cggcagggtc ggaacaggag agcgcacgag ggagcttcca gggggaaacg cctggtatct
     4681 ttatagtcct gtcgggtttc gccacctctg acttgagcgt cgatttttgt gatgctcgtc
     4741 aggggggcgg agcctatgga aaaacgccag caacgcggcc tttttacggt tcctggcctt
     4801 ttgctggcct tttgctcaca tgttctttcc tgcgttatcc cctgattctg tggataaccg
     4861 tattaccgcc atgcat
//
