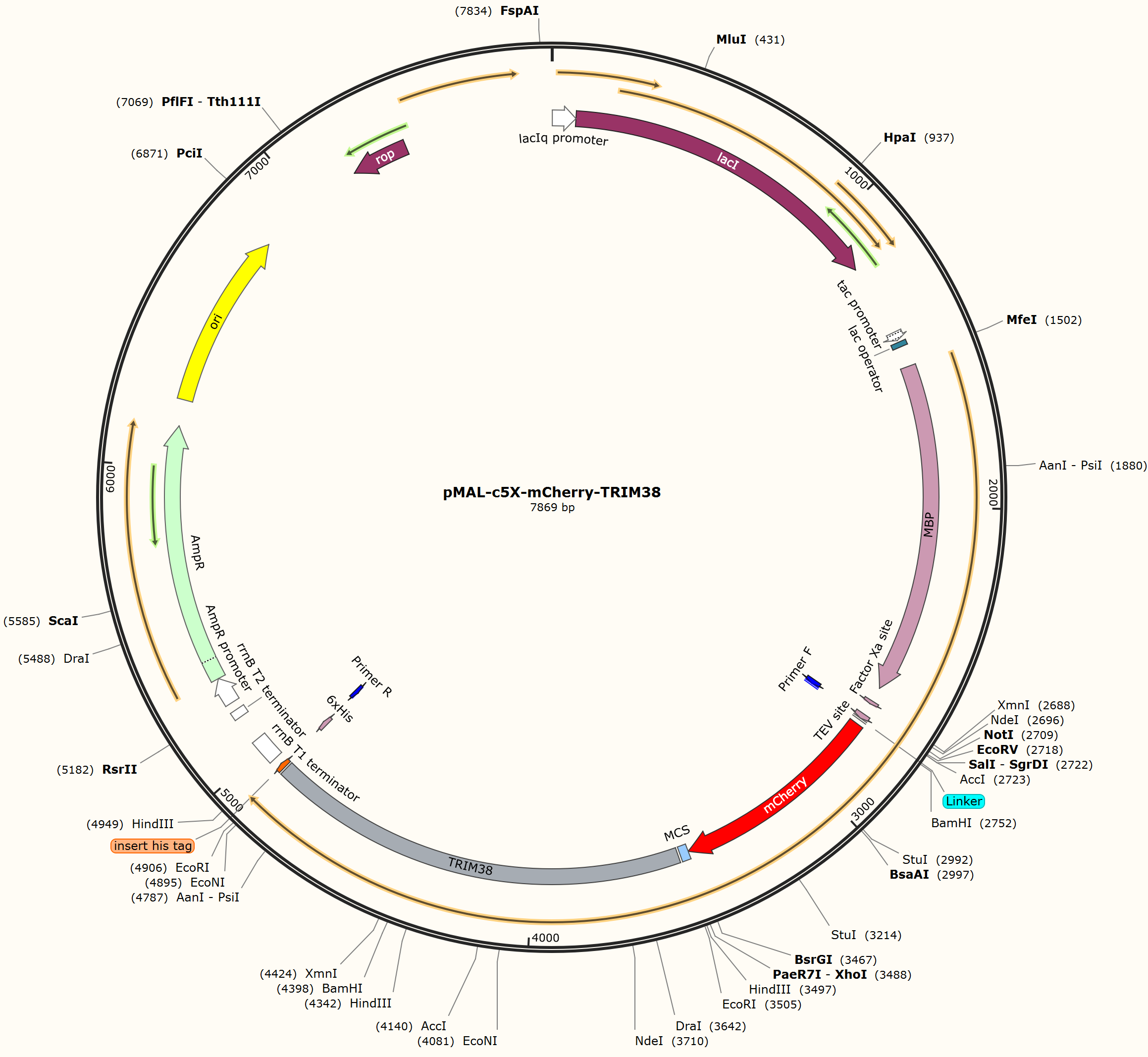

pMAL-c5X-mCherry-TRIM38

LOCUS       pMAL-c5X-mCherry-TRIM38               7869 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7869)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Apr 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7869
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        3..80
                     /gene="lacI (mutant)"
                     /label=lacIq promoter
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             81..1163
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     misc_feature    1406..1434
                     /label=tac promoter
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac UV5 promoters"
     protein_bind    1442..1458
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             1528..2628
                     /codon_start=1
                     /gene="malE (mutated)"
                     /product="maltose binding protein from E. coli"
                     /label=MBP
                     /note="This version of the gene does not encode a signal
                     sequence, so MBP will remain in the cytosol."
                     /translation="MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLE
                     EKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKL
                     IAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIA
                     ADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGE
                     TAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFL
                     ENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAF
                     WYAVRTAVINAASGRQTVDEALKDAQT"
     CDS             2677..2688
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     CDS             2728..2745
                     /codon_start=1
                     /product="tobacco etch virus (TEV) protease recognition and
                     cleavage site"
                     /label=TEV site
                     /translation="ENLYFQ"
     misc_feature    2728..2745
                     /label=Primer F
     misc_feature    2746..2751
                     /label=Primer F
     misc_feature    2746..2751
                     /label=Linker
     CDS             2767..3474
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    3475..3503
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3511..4905
                     /label=TRIM38
     CDS             complement(4912..4929)
                     /codon_start=1
                     /label=Primer R
                     /translation="VVVVVV"
     CDS             4912..4929
                     /codon_start=1
                     /label=insert his tag
                     /translation="HHHHHH"
     CDS             4912..4929
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     terminator      4955..5041
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     terminator      5133..5160
                     /label=rrnB T2 terminator
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     promoter        5188..5278
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5279..6139
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      6227..6815
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7185..7376)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /label=rop
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
ORIGIN
        1 ccgacaccat cgaatggtgc aaaacctttc gcggtatggc atgatagcgc ccggaagaga
       61 gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca gagtatgccg
      121 gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt tctgcgaaaa
      181 cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac cgcgtggcac
      241 aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt ctggccctgc
      301 acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg ggtgccagcg
      361 tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg gtgcacaatc
      421 ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac caggatgcca
      481 ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc tctgaccaga
      541 cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc gtggagcatc
      601 tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt tctgtctcgg
      661 cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt cagccgatag
      721 cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg caaatgctga
      781 atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg ctgggcgcaa
      841 tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatttcggta gtgggatacg
      901 acgataccga agacagctca tgttatatcc cgccgttaac caccatcaaa caggattttc
      961 gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc caggcggtga
     1021 agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg gcgcccaata
     1081 cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca cgacaggttt
     1141 cccgactgga aagcgggcag tgagcgcaac gcaattaatg taagttagct cactcattag
     1201 gcacaattct catgtttgac agcttatcat cgactgcacg gtgcaccaat gcttctggcg
     1261 tcaggcagcc atcggaagct gtggtatggc tgtgcaggtc gtaaatcact gcataattcg
     1321 tgtcgctcaa ggcgcactcc cgttctggat aatgtttttt gcgccgacat cataacggtt
     1381 ctggcaaata ttctgaaatg agctgttgac aattaatcat cggctcgtat aatgtgtgga
     1441 attgtgagcg gataacaatt tcacacagga aacagccagt ccgtttaggt gttttcacga
     1501 gcaattgacc aacaaggacc atagattatg aaaatcgaag aaggtaaact ggtaatctgg
     1561 attaacggcg ataaaggcta taacggtctc gctgaagtcg gtaagaaatt cgagaaagat
     1621 accggaatta aagtcaccgt tgagcatccg gataaactgg aagagaaatt cccacaggtt
     1681 gcggcaactg gcgatggccc tgacattatc ttctgggcac acgaccgctt tggtggctac
     1741 gctcaatctg gcctgttggc tgaaatcacc ccggacaaag cgttccagga caagctgtat
     1801 ccgtttacct gggatgccgt acgttacaac ggcaagctga ttgcttaccc gatcgctgtt
     1861 gaagcgttat cgctgattta taacaaagat ctgctgccga acccgccaaa aacctgggaa
     1921 gagatcccgg cgctggataa agaactgaaa gcgaaaggta agagcgcgct gatgttcaac
     1981 ctgcaagaac cgtacttcac ctggccgctg attgctgctg acgggggtta tgcgttcaag
     2041 tatgaaaacg gcaagtacga cattaaagac gtgggcgtgg ataacgctgg cgcgaaagcg
     2101 ggtctgacct tcctggttga cctgattaaa aacaaacaca tgaatgcaga caccgattac
     2161 tccatcgcag aagctgcctt taataaaggc gaaacagcga tgaccatcaa cggcccgtgg
     2221 gcatggtcca acatcgacac cagcaaagtg aattatggtg taacggtact gccgaccttc
     2281 aagggtcaac catccaaacc gttcgttggc gtgctgagcg caggtattaa cgccgccagt
     2341 ccgaacaaag agctggcaaa agagttcctc gaaaactatc tgctgactga tgaaggtctg
     2401 gaagcggtta ataaagacaa accgctgggt gccgtagcgc tgaagtctta cgaggaagag
     2461 ttggtgaaag atccgcgtat tgccgccact atggaaaacg cccagaaagg tgaaatcatg
     2521 ccgaacatcc cgcagatgtc cgctttctgg tatgccgtgc gtactgcggt gatcaacgcc
     2581 gccagcggtc gtcagactgt cgatgaagcc ctgaaagacg cgcagactaa ttcgagctcg
     2641 aacaacaaca acaataacaa taacaacaac ctcgggatcg agggaaggat ttcacatatg
     2701 tccatgggcg gccgcgatat cgtcgacgaa aacctgtatt ttcagtcgga tggatccagt
     2761 ggaagcatgg tgagcaaggg cgaggaggat aacatggcca tcatcaagga gttcatgcgc
     2821 ttcaaggtgc acatggaggg ctccgtgaac ggccacgagt tcgagatcga gggcgagggc
     2881 gagggccgcc cctacgaggg cacccagacc gccaagctga aggtgaccaa gggtggcccc
     2941 ctgcccttcg cctgggacat cctgtcccct cagttcatgt acggctccaa ggcctacgtg
     3001 aagcaccccg ccgacatccc cgactacttg aagctgtcct tccccgaggg cttcaagtgg
     3061 gagcgcgtga tgaacttcga ggacggcggc gtggtgaccg tgacccagga ctcctccctg
     3121 caggacggcg agttcatcta caaggtgaag ctgcgcggca ccaacttccc ctccgacggc
     3181 cccgtaatgc agaagaagac catgggctgg gaggcctcct ccgagcggat gtaccccgag
     3241 gacggcgccc tgaagggcga gatcaagcag aggctgaagc tgaaggacgg cggccactac
     3301 gacgctgagg tcaagaccac ctacaaggcc aagaagcccg tgcagctgcc cggcgcctac
     3361 aacgtcaaca tcaagttgga catcacctcc cacaacgagg actacaccat cgtggaacag
     3421 tacgaacgcg ccgagggccg ccactccacc ggcggcatgg acgagctgta caagtccgga
     3481 ctcagatctc gagctcaagc ttcggaattc atggcctcaa ccaccagcac caagaagatg
     3541 atggaggaag ccacctgctc catctgcctg agcctgatga cgaacccagt aagcatcaac
     3601 tgtggacaca gctactgcca cttgtgtata acagacttct ttaaaaaccc aagccaaaag
     3661 caactgaggc aggagacatt ctgctgtccc cagtgtcggg ctccatttca tatggatagc
     3721 ctccgaccca acaagcagct gggaagcctc attgaagccc tcaaagagac ggatcaagaa
     3781 atgtcatgtg aggaacacgg agagcagttc cacctgttct gcgaagacga ggggcagctc
     3841 atctgctggc gctgtgagcg ggcaccacag cacaaagggc acaccacagc tcttgttgaa
     3901 gacgtatgcc agggctacaa ggaaaagctc cagaaagctg tgacaaaact gaagcaactt
     3961 gaagacagat gtacggagca gaagctgtcc acagcaatgc gaataactaa atggaaagag
     4021 aaggtacaga ttcagagaca aaaaatccgg tctgacttta agaatctcca gtgtttccta
     4081 catgaggaag agaagtctta tctctggagg ctggagaaag aagaacaaca gactctgagt
     4141 agactgaggg actatgaggc tggtctgggg ctgaagagca atgaactcaa gagccacatc
     4201 ctggaactgg aggaaaaatg tcagggctca gcccagaaat tgctgcagaa tgtgaatgac
     4261 actttgagca ggagttgggc tgtgaagctg gaaacatcag aggctgtctc cttggaactt
     4321 catactatgt gcaatgtttc caagctttac ttcgatgtga agaaaatgtt aaggagtcat
     4381 caagttagtg tgactctgga tccagataca gctcatcacg aactaattct ctctgaggat
     4441 cggagacaag tgactcgtgg atacacccag gagaatcagg acacatcttc caggagattt
     4501 actgccttcc cctgtgtctt gggttgtgaa ggcttcacct caggaagacg ttactttgaa
     4561 gtggatgttg gcgaaggaac cggatgggat ttaggagttt gtatggaaaa tgtgcagagg
     4621 ggcactggca tgaagcaaga gcctcagtct ggattctgga ccctcaggct gtgcaaaaag
     4681 aaaggctatg tagcacttac ttctccccca acttcccttc atctgcatga gcagcccctg
     4741 cttgtgggaa tttttctgga ctatgaggcc ggagttgtat ccttttataa cgggaatact
     4801 ggctgccaca tctttacttt cccgaaggct tccttctctg atactctccg gccctatttc
     4861 caggtttatc aatattctcc tttgtttctg cctcccccag gtgacgaatt ccaccaccac
     4921 caccaccact aactgcaggt aattaaataa gcttcaaata aaacgaaagg ctcagtcgaa
     4981 agactgggcc tttcgtttta tctgttgttt gtcggtgaac gctctcctga gtaggacaaa
     5041 tccgccggga gcggatttga acgttgcgaa gcaacggccc ggagggtggc gggcaggacg
     5101 cccgccataa actgccaggc atcaaattaa gcagaaggcc atcctgacgg atggcctttt
     5161 tgcgtttcta caaactcttt cggtccgttg tttatttttc taaatacatt caaatatgta
     5221 tccgctcatg agacaataac cctgataaat gcttcaataa tattgaaaaa ggaagagtat
     5281 gagtattcaa catttccgtg tcgcccttat tccctttttt gcggcatttt gccttcctgt
     5341 ttttgctcac ccagaaacgc tggtgaaagt aaaagatgct gaagatcagt tgggtgcacg
     5401 agtgggttac atcgaactgg atctcaacag cggtaagatc cttgagagtt ttcgccccga
     5461 agaacgtttc ccaatgatga gcacttttaa agttctgcta tgtggcgcgg tattatcccg
     5521 tgttgacgcc gggcaagagc aactcggtcg ccgcatacac tattctcaga atgacttggt
     5581 tgagtactca ccagtcacag aaaagcatct tacggatggc atgacagtaa gagaattatg
     5641 cagtgctgcc ataaccatga gtgataacac tgcggccaac ttacttctga caacgatcgg
     5701 aggaccgaag gagctaaccg cttttttgca caacatgggg gatcatgtaa ctcgccttga
     5761 tcgttgggaa ccggagctga atgaagccat accaaacgac gagcgtgaca ccacgatgcc
     5821 tgtagcaatg gcaacaacgt tgcgcaaact attaactggc gaactactta ctctagcttc
     5881 ccggcaacaa ttaatagact ggatggaggc ggataaagtt gcaggaccac ttctgcgctc
     5941 ggcccttccg gctggctggt ttattgctga taaatctgga gccggtgagc gtgggtctcg
     6001 cggtatcatt gcagcactgg ggccagatgg taagccctcc cgtatcgtag ttatctacac
     6061 gacggggagt caggcaacta tggatgaacg aaatagacag atcgctgaga taggtgcctc
     6121 actgattaag cattggtaac tgtcagacca agtttactca tatatacttt agattgattt
     6181 ccttaggact gagcgtcaac cccgtagaaa agatcaaagg atcttcttga gatccttttt
     6241 ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt
     6301 tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc agagcgcaga
     6361 taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag aactctgtag
     6421 caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc agtggcgata
     6481 agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg cagcggtcgg
     6541 gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac accgaactga
     6601 gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca
     6661 ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt ccagggggaa
     6721 acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt
     6781 tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg gcctttttac
     6841 ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta tcccctgatt
     6901 ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc agccgaacga
     6961 ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg tattttctcc
     7021 ttacgcatct gtgcggtatt tcacaccgca tataaggtgc actgtgactg ggtcatggct
     7081 gcgccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct gctcccggca
     7141 tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag gttttcaccg
     7201 tcatcaccga aacgcgcgag gcagctgcgg taaagctcat cagcgtggtc gtgcagcgat
     7261 tcacagatgt ctgcctgttc atccgcgtcc agctcgttga gtttctccag aagcgttaat
     7321 gtctggcttc tgataaagcg ggccatgtta agggcggttt tttcctgttt ggtcactgat
     7381 gcctccgtgt aagggggatt tctgttcatg ggggtaatga taccgatgaa acgagagagg
     7441 atgctcacga tacgggttac tgatgatgaa catgcccggt tactggaacg ttgtgagggt
     7501 aaacaactgg cggtatggat gcggcgggac cagagaaaaa tcactcaggg tcaatgccag
     7561 cgcttcgtta atacagatgt aggtgttcca cagggtagcc agcagcatcc tgcgatgcag
     7621 atccggaaca taatggtgca gggcgctgac ttccgcgttt ccagacttta cgaaacacgg
     7681 aaaccgaaga ccattcatgt tgttgctcag gtcgcagacg ttttgcagca gcagtcgctt
     7741 cacgttcgct cgcgtatcgg tgattcattc tgctaaccag taaggcaacc ccgccagcct
     7801 agccgggtcc tcaacgacag gagcacgatc atgcgcaccc gtggccagga cccaacgctg
     7861 cccgaaatt
//
