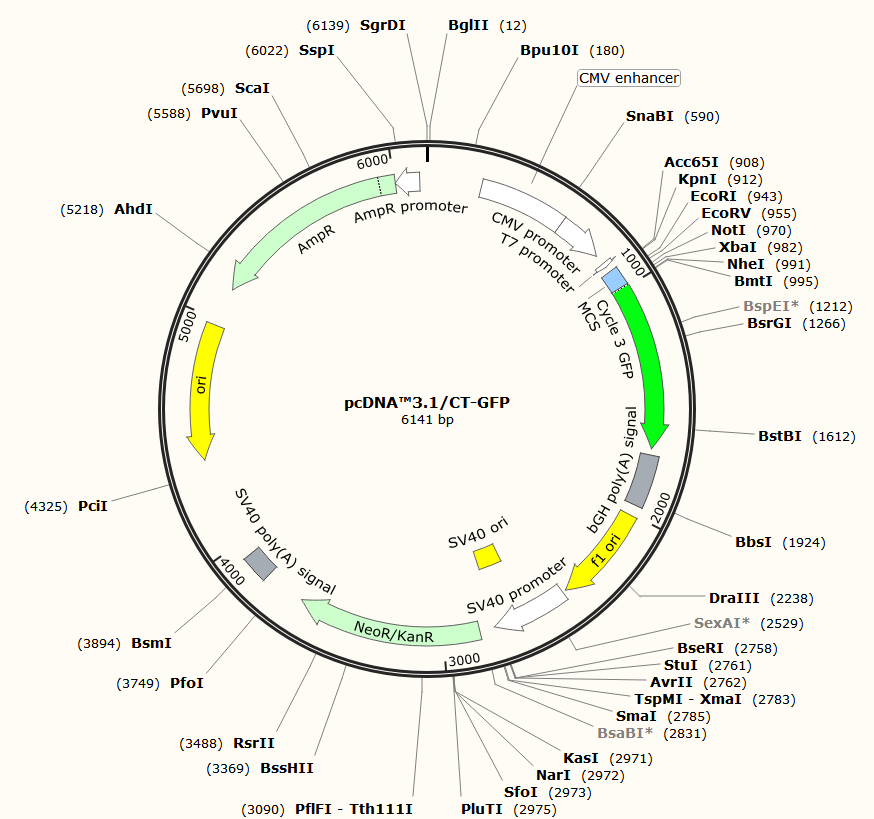

pcDNA3.1/CT-GFP

LOCUS       pcDNA3.1-CT-GFP                6141 bp ds-DNA     circular SYN 24-OCT-2017
DEFINITION  Vector for expressing C-terminally GFP-tagged proteins in mammalian
            cells.
ACCESSION   .
VERSION     .
KEYWORDS    pcDNA3.1 CT-GFP (2)
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6141)
  AUTHORS   Thermo Fisher (Invitrogen)
  TITLE     Direct Submission
  JOURNAL   Exported Saturday, November 16, 2019 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6141
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        235..614
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     misc_feature    908..987
                     /note="MCS"
                     /note="multiple cloning site"
     CDS             988..1707
                     /codon_start=1
                     /product="Cycle 3 GFP (Crameri et al., 1996)"
                     /note="Cycle 3 GFP"
                     /note="mammalian codon-optimized"
                     /translation="MASKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTFSYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYITADKQKNGIK
                     ANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITHGMDELYK"
     polyA_signal    1735..1959
                     /note="bGH poly(A) signal"
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2005..2433
                     /direction=RIGHT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2447..2777
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      2628..2763
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2844..3638
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3814..3935
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(4386..4974)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5145..6005)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6006..6110)
                     /gene="bla"
                     /note="AmpR promoter"
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtcgactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggac tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagt
      901 taagcttggt accgagctcg gatccactag tccagtgtgg tggaattctg cagatatcca
      961 gcacagtggc ggccgctcga gtctagaatg gctagcaaag gagaagaact tttcactgga
     1021 gttgtcccaa ttcttgttga attagatggt gatgttaatg ggcacaaatt ttctgtcagt
     1081 ggagagggtg aaggtgatgc tacatacgga aagcttaccc ttaaatttat ttgcactact
     1141 ggaaaactac ctgttccatg gccaacactt gtcactactt tctcttatgg tgttcaatgc
     1201 ttttcccgtt atccggatca tatgaaacgg catgactttt tcaagagtgc catgcccgaa
     1261 ggttatgtac aggaacgcac tatatctttc aaagatgacg ggaactacaa gacgcgtgct
     1321 gaagtcaagt ttgaaggtga tacccttgtt aatcgtatcg agttaaaagg tattgatttt
     1381 aaagaagatg gaaacattct cggacacaaa ctcgagtaca actataactc acacaatgta
     1441 tacatcacgg cagacaaaca aaagaatgga atcaaagcta acttcaaaat tcgccacaac
     1501 attgaagatg gatccgttca actagcagac cattatcaac aaaatactcc aattggcgat
     1561 ggccctgtcc ttttaccaga caaccattac ctgtcgacac aatctgccct ttcgaaagat
     1621 cccaacgaaa agcgtgacca catggtcctt cttgagtttg taactgctgc tgggattaca
     1681 catggcatgg atgagctcta caaataatga attaaacccg ctgatcagcc tcgactgtgc
     1741 cttctagttg ccagccatct gttgtttgcc cctcccccgt gccttccttg accctggaag
     1801 gtgccactcc cactgtcctt tcctaataaa atgaggaaat tgcatcgcat tgtctgagta
     1861 ggtgtcattc tattctgggg ggtggggtgg ggcaggacag caagggggag gattgggaag
     1921 acaatagcag gcatgctggg gatgcggtgg gctctatggc ttctgaggcg gaaagaacca
     1981 gctggggctc tagggggtat ccccacgcgc cctgtagcgg cgcattaagc gcggcgggtg
     2041 tggtggttac gcgcagcgtg accgctacac ttgccagcgc cctagcgccc gctcctttcg
     2101 ctttcttccc ttcctttctc gccacgttcg ccggctttcc ccgtcaagct ctaaatcggg
     2161 gcatcccttt agggttccga tttagtgctt tacggcacct cgaccccaaa aaacttgatt
     2221 agggtgatgg ttcacgtagt gggccatcgc cctgatagac ggtttttcgc cctttgacgt
     2281 tggagtccac gttctttaat agtggactct tgttccaaac tggaacaaca ctcaacccta
     2341 tctcggtcta ttcttttgat ttataaggga ttttggggat ttcggcctat tggttaaaaa
     2401 atgagctgat ttaacaaaaa tttaacgcga attaattctg tggaatgtgt gtcagttagg
     2461 gtgtggaaag tccccaggct ccccaggcag gcagaagtat gcaaagcatg catctcaatt
     2521 agtcagcaac caggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca
     2581 tgcatctcaa ttagtcagca accatagtcc cgcccctaac tccgcccatc ccgcccctaa
     2641 ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt atttatgcag
     2701 aggccgaggc cgcctctgcc tctgagctat tccagaagta gtgaggaggc ttttttggag
     2761 gcctaggctt ttgcaaaaag ctcccgggag cttgtatatc cattttcgga tctgatcaag
     2821 agacaggatg aggatcgttt cgcatgattg aacaagatgg attgcacgca ggttctccgg
     2881 ccgcttgggt ggagaggcta ttcggctatg actgggcaca acagacaatc ggctgctctg
     2941 atgccgccgt gttccggctg tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc
     3001 tgtccggtgc cctgaatgaa ctgcaggacg aggcagcgcg gctatcgtgg ctggccacga
     3061 cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga agcgggaagg gactggctgc
     3121 tattgggcga agtgccgggg caggatctcc tgtcatctca ccttgctcct gccgagaaag
     3181 tatccatcat ggctgatgca atgcggcggc tgcatacgct tgatccggct acctgcccat
     3241 tcgaccacca agcgaaacat cgcatcgagc gagcacgtac tcggatggaa gccggtcttg
     3301 tcgatcagga tgatctggac gaagagcatc aggggctcgc gccagccgaa ctgttcgcca
     3361 ggctcaaggc gcgcatgccc gacggcgagg atctcgtcgt gacccatggc gatgcctgct
     3421 tgccgaatat catggtggaa aatggccgct tttctggatt catcgactgt ggccggctgg
     3481 gtgtggcgga ccgctatcag gacatagcgt tggctacccg tgatattgct gaagagcttg
     3541 gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat cgccgctccc gattcgcagc
     3601 gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc gggactctgg ggttcgcgaa
     3661 atgaccgacc aagcgacgcc caacctgcca tcacgagatt tcgattccac cgccgccttc
     3721 tatgaaaggt tgggcttcgg aatcgttttc cgggacgccg gctggatgat cctccagcgc
     3781 ggggatctca tgctggagtt cttcgcccac cccaacttgt ttattgcagc ttataatggt
     3841 tacaaataaa gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct
     3901 agttgtggtt tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct
     3961 agctagagct tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc
     4021 acaattccac acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga
     4081 gtgagctaac tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg
     4141 tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg
     4201 cgctcttccg cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg
     4261 gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga
     4321 aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg
     4381 gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag
     4441 aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc
     4501 gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg
     4561 ggaagcgtgg cgctttctca atgctcacgc tgtaggtatc tcagttcggt gtaggtcgtt
     4621 cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc
     4681 ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc
     4741 actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg
     4801 tggcctaact acggctacac tagaaggaca gtatttggta tctgcgctct gctgaagcca
     4861 gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc
     4921 ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat
     4981 cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt
     5041 ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt
     5101 tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc
     5161 agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc
     5221 gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata
     5281 ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg
     5341 gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc
     5401 cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct
     5461 acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa
     5521 cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt
     5581 cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca
     5641 ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac
     5701 tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca
     5761 atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt
     5821 tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc
     5881 actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca
     5941 aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata
     6001 ctcatactct tcctttttca atattattga agcatttatc agggttattg tctcatgagc
     6061 ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc
     6121 cgaaaagtgc cacctgacgt c
//
