pENTR/H1/TO

价格:1800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pENTR/H1/TO
质粒类型: Gateway系统载体;入门载体
高拷贝/低拷贝: --
启动子: Human HI/TO
克隆方法: 多克隆位点,限制性内切酶
载体大小: 3869 bp
5' 测序引物及序列: M13 Fwd
3' 测序引物及序列: M13 Rev
载体标签: --
载体抗性: Kanamycin
筛选标记: Zeocin
备注:
Contains a hybrid promoter consisting of human H1 promoter and two tetracycline operator sequence for RNA Polymerase III-dependant,

regulated expression of the short hairpin RNA (shRNA).
产品目录号: K4920-00
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

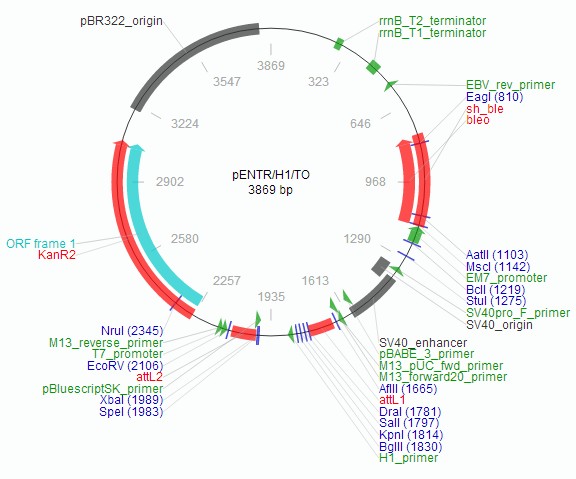

pENTR-H1-TO载体图谱



载体简介

载体序列

LOCUS       pENTR/H1/TO    3869 bp    DNA    SYN    06-Mar-2014
DEFINITION  pENTR/H1/TO
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..3869
                     /organism="pENTR/H1/TO"
                     /mol_type="other DNA"
     terminator      complement(268..295)
                     /label="rrnB_T2_terminator"
     terminator      complement(427..470)
                     /label="rrnB_T1_terminator"
     misc_feature    complement(532..551)
                     /label="EBV_rev_primer"
     terminator      complement(518..637)
                     /label="SV40_PA_terminator"
     misc_feature    complement(772..1146)
                     /label="sh_ble"
     gene            complement(775..1146)
                     /label="bleo"
                     /gene="bleo"
     promoter        complement(1147..1214)
                     /label="EM7_promoter"
     misc_feature    complement(1328..1347)
                     /label="SV40pro_F_primer"
     rep_origin      complement(1332..1409)
                     /label="SV40_origin"
     promoter        complement(1308..1576)
                     /label="SV40_promoter"
     misc_feature    1379..1594
                     /label="SV40_enhancer"
     misc_feature    1574..1594
                     /label="pBABE_3_primer"
     misc_feature    1633..1655
                     /label="M13_pUC_fwd_primer"
     misc_feature    1648..1664
                     /label="M13_forward20_primer"
     misc_feature    complement(1680..1779)
                     /label="attL1"
     misc_feature    1848..1867
                     /label="H1_primer"
     misc_feature    complement(1978..1994)
                     /label="pBluescriptSK_primer"
     misc_feature    1994..2093
                     /label="attL2"
     promoter        complement(2111..2129)
                     /label="T7_promoter"
     misc_feature    complement(2130..2148)
                     /label="M13_reverse_primer"
     CDS             2263..3072
                     /label="KanR2"
                     /gene="KanR2"
                     /note="ORF frame 1"
                     /translation="MSHIQRETSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYGK
                     PDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVD
                     ASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRV
                     GIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
     gene            2263..3072
                     /label="KanR2"
                     /gene="KanR2"
     rep_origin      3203..3822
                     /label="pBR322_origin"
ORIGIN
    1 CTTTCCTGCG TTATCCCCTG ATTCTGTGGA TAACCGTATT ACCGCCTTTG AGTGAGCTGA
   61 TACCGCTCGC CGCAGCCGAA CGACCGAGCG CAGCGAGTCA GTGAGCGAGG AAGCGGAAGA
  121 GCGCCCAATA CGCAAACCGC CTCTCCCCGC GCGTTGGCCG ATTCATTAAT GCAGCTGGCA
  181 CGACAGGTTT CCCGACTGGA AAGCGGGCAG TGAGCGCAAC GCAATTAATA CGCGTACCGC
  241 TAGCCAGGAA GAGTTTGTAG AAACGCAAAA AGGCCATCCG TCAGGATGGC CTTCTGCTTA
  301 GTTTGATGCC TGGCAGTTTA TGGCGGGCGT CCTGCCCGCC ACCCTCCGGG CCGTTGCTTC
  361 ACAACGTTCA AATCCGCTCC CGGCGGATTT GTCCTACTCA GGAGAGCGTT CACCGACAAA
  421 CAACAGATAA AACGAAAGGC CCAGTCTTCC GACTGAGCCT TTCGTTTTAT TTGATGCCTG
  481 GCAGTTCCCT ACTCTCGCGT TAATTCGCCC TTAGACATGA TAAGATACAT TGATGAGTTT
  541 GGACAAACCA CAACTAGAAT GCAGTGAAAA AAATGCTTTA TTTGTGAAAT TTGTGATGCT
  601 ATTGCTTTAT TTGTAACCAT TATAAGCTGC AATAAACAAG TTGGGGTGGG CGAAGAACTC
  661 CAGCATGAGA TCCCCGCGCT GGAGGATCAT CCAGCCGGCG TCCCGGAAAA CGATTCCGAA
  721 GCCCAACCTT TCATAGAAGG CGGCGGTGGA ATCGAAATCT CGTAGCACGT GTCAGTCCTG
  781 CTCCTCGGCC ACGAAGTGCA CGCAGTTGCC GGCCGGGTCG CGCAGGGCGA ACTCCCGCCC
  841 CCACGGCTGC TCGCCGATCT CGGTCATGGC CGGCCCGGAG GCGTCCCGGA AGTTCGTGGA
  901 CACGACCTCC GACCACTCGG CGTACAGCTC GTCCAGGCCG CGCACCCACA CCCAGGCCAG
  961 GGTGTTGTCC GGCACCATCT GGTCCTGGAC CGCGCTGATG AACAGGGTCA CGTCGTCCCG
 1021 GACCACACCG GCGAAGTCGT CCTCCACGAA GTCCCGGGAG AACCCGAGCC GGTCGGTCCA
 1081 GAACTCGACC GCTCCGGCGA CGTCGCGCGC GGTGAGCACC GGAACGGCAC TGGTCAACTT
 1141 GGCCATGGTT TAGTTCCTCA CCTTGTCGTA TTATACTATG CCGATATACT ATGCCGATGA
 1201 TTAATTGTCA ACACGTGCTG ATCAGATCCG AAAATGGATA TACAAGCTCC CGGGAGCTTT
 1261 TTGCAAAAGC CTAGGCCTCC AAAAAAGCCT CCTCACTACT TCTGGAATAG CTCAGAGGCA
 1321 GAGGCGGCCT CGGCCTCTGC ATAAATAAAA AAAATTAGTC AGCCATGGGG CGGAGAATGG
 1381 GCGGAACTGG GCGGAGTTAG GGGCGGGATG GGCGGAGTTA GGGGCGGGAC TATGGTTGCT
 1441 GACTAATTGA GATGCATGCT TTGCATACTT CTGCCTGCTG GGGAGCCTGG GGACTTTCCA
 1501 CACCTGGTTG CTGACTAATT GAGATGCATG CTTTGCATAC TTCTGCCTGC TGGGGAGCCT
 1561 GGGGACTTTC CACACCCTAA CTGACACACA TTCCACAGCC GAAGGGCGAA TTAACGCTAG
 1621 CATGGATGTT TTCCCAGTCA CGACGTTGTA AAACGACGGC CAGTCTTAAG CTCGGGCCCC
 1681 AAATAATGAT TTTATTTTGA CTGATAGTGA CCTGTTCGTT GCAACAAATT GATGAGCAAT
 1741 GCTTTTTTAT AATGCCAACT TTGTACAAAA AAGCAGGCTT TAAAGGAACC AATTCAGTCG
 1801 ACTGGATCCG GTACCGGGCC CCCCCTCGAA GATCTAATAT TTGCATGTCG CTATGTGTTC
 1861 TGGGAAATCA CCATAAACGT GAAATCCCTA TCAGTGATAG AGACTTATAA GTTCCCTATC
 1921 AGTGATAGAG ACACCTTTTT TGTCGAGCTT CCTTCGGGAA GCTCTCCATA TTTTTTGGAT
 1981 CCACTAGTTC TAGACCCAGC TTTCTTGTAC AAAGTTGGCA TTATAAGAAA GCATTGCTTA
 2041 TCAATTTGTT GCAACGAACA GGTCACTATC AGTCAAAATA AAATCATTAT TTGCCATCCA
 2101 GCTGATATCC CCTATAGTGA GTCGTATTAC ATGGTCATAG CTGTTTCCTG GCAGCTCTGG
 2161 CCCGTGTCTC AAAATCTCTG ATGTTACATT GCACAAGATA AAAATATATC ATCATGAACA
 2221 ATAAAACTGT CTGCTTACAT AAACAGTAAT ACAAGGGGTG TTATGAGCCA TATTCAACGG
 2281 GAAACGTCGA GGCCGCGATT AAATTCCAAC ATGGATGCTG ATTTATATGG GTATAAATGG
 2341 GCTCGCGATA ATGTCGGGCA ATCAGGTGCG ACAATCTATC GCTTGTATGG GAAGCCCGAT
 2401 GCGCCAGAGT TGTTTCTGAA ACATGGCAAA GGTAGCGTTG CCAATGATGT TACAGATGAG
 2461 ATGGTCAGAC TAAACTGGCT GACGGAATTT ATGCCTCTTC CGACCATCAA GCATTTTATC
 2521 CGTACTCCTG ATGATGCATG GTTACTCACC ACTGCGATCC CCGGAAAAAC AGCATTCCAG
 2581 GTATTAGAAG AATATCCTGA TTCAGGTGAA AATATTGTTG ATGCGCTGGC AGTGTTCCTG
 2641 CGCCGGTTGC ATTCGATTCC TGTTTGTAAT TGTCCTTTTA ACAGCGATCG CGTATTTCGT
 2701 CTCGCTCAGG CGCAATCACG AATGAATAAC GGTTTGGTTG ATGCGAGTGA TTTTGATGAC
 2761 GAGCGTAATG GCTGGCCTGT TGAACAAGTC TGGAAAGAAA TGCATAAACT TTTGCCATTC
 2821 TCACCGGATT CAGTCGTCAC TCATGGTGAT TTCTCACTTG ATAACCTTAT TTTTGACGAG
 2881 GGGAAATTAA TAGGTTGTAT TGATGTTGGA CGAGTCGGAA TCGCAGACCG ATACCAGGAT
 2941 CTTGCCATCC TATGGAACTG CCTCGGTGAG TTTTCTCCTT CATTACAGAA ACGGCTTTTT
 3001 CAAAAATATG GTATTGATAA TCCTGATATG AATAAATTGC AGTTTCATTT GATGCTCGAT
 3061 GAGTTTTTCT AATCAGAATT GGTTAATTGG TTGTAACACT GGCAGAGCAT TACGCTGACT
 3121 TGACGGGACG GCGCAAGCTC ATGACCAAAA TCCCTTAACG TGAGTTACGC GTCGTTCCAC
 3181 TGAGCGTCAG ACCCCGTAGA AAAGATCAAA GGATCTTCTT GAGATCCTTT TTTTCTGCGC
 3241 GTAATCTGCT GCTTGCAAAC AAAAAAACCA CCGCTACCAG CGGTGGTTTG TTTGCCGGAT
 3301 CAAGAGCTAC CAACTCTTTT TCCGAAGGTA ACTGGCTTCA GCAGAGCGCA GATACCAAAT
 3361 ACTGTTCTTC TAGTGTAGCC GTAGTTAGGC CACCACTTCA AGAACTCTGT AGCACCGCCT
 3421 ACATACCTCG CTCTGCTAAT CCTGTTACCA GTGGCTGCTG CCAGTGGCGA TAAGTCGTGT
 3481 CTTACCGGGT TGGACTCAAG ACGATAGTTA CCGGATAAGG CGCAGCGGTC GGGCTGAACG
 3541 GGGGGTTCGT GCACACAGCC CAGCTTGGAG CGAACGACCT ACACCGAACT GAGATACCTA
 3601 CAGCGTGAGC TATGAGAAAG CGCCACGCTT CCCGAAGGGA GAAAGGCGGA CAGGTATCCG
 3661 GTAAGCGGCA GGGTCGGAAC AGGAGAGCGC ACGAGGGAGC TTCCAGGGGG AAACGCCTGG
 3721 TATCTTTATA GTCCTGTCGG GTTTCGCCAC CTCTGACTTG AGCGTCGATT TTTGTGATGC
 3781 TCGTCAGGGG GGCGGAGCCT ATGGAAAAAC GCCAGCAACG CGGCCTTTTT ACGGTTCCTG
 3841 GCCTTTTGCT GGCCTTTTGC TCACATGTT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
