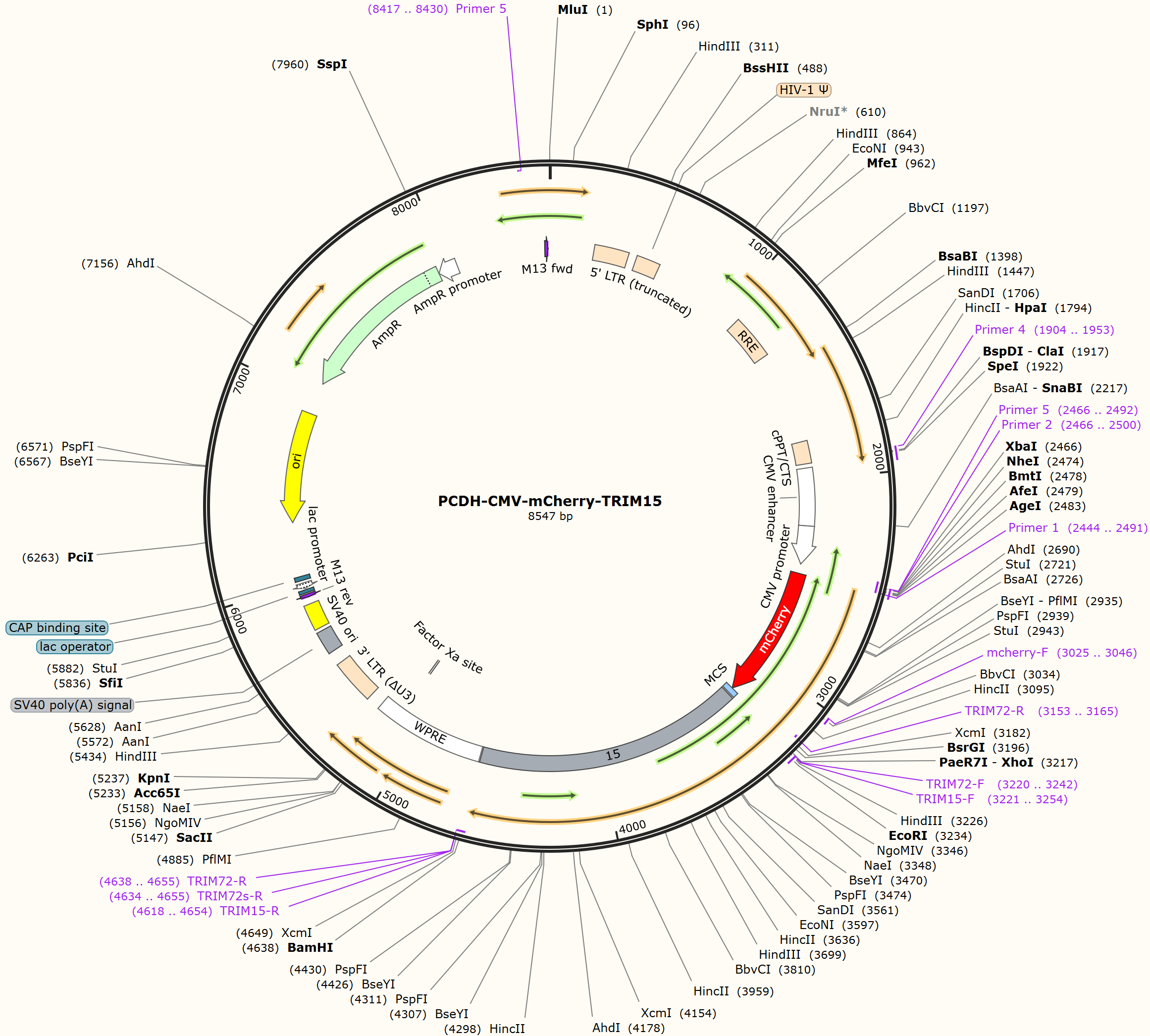

PCDH-CMV-mCherry-TRIM15

LOCUS       PCDH-CMV-mCherry-TRIM15              8547 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8547)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8547
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     primer_bind     complement(3153..3165)
                     /label=TRIM72-R
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3220..3242
                     /label=TRIM72-F
     primer_bind     3221..3254
                     /label=TRIM15-F
     misc_feature    3240..4637
                     /label=15
     primer_bind     complement(4618..4654)
                     /label=TRIM15-R
     primer_bind     complement(4634..4655)
                     /label=TRIM72s-R
     primer_bind     complement(4638..4655)
                     /label=TRIM72-R
     misc_feature    4644..5231
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5115..5126)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5304..5537
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5609..5730
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5749..5884
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5922..5938)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5946..5962
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5970..6000)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6015..6036
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6324..6912)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7083..7943)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7944..8048)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8417..8430)
                     /label=Primer 5
     primer_bind     8522..8538
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgcccgcaac cccgtccctg aaggtggtcc atgagctgcc tgcctgtacc ctctgtgcgg
     3301 ggccgctgga ggatgcggtg accattccct gtggacacac cttctgccgg ctctgcctcc
     3361 ccgcgctctc ccagatgggg gcccaatcct cgggcaagat cctgctctgc ccgctctgcc
     3421 aagaggagga gcaggcagag actcccatgg cccctgtgcc cctgggcccg ctgggagaaa
     3481 cttactgcga ggagcacggc gagaagatct acttcttctg cgagaacgat gccgagttcc
     3541 tctgtgtgtt ctgcagggag ggtcccacgc accaggcgca caccgtgggg ttcctggacg
     3601 aggccattca gccctaccgg gatcgtctca ggagtcgact ggaagctctg agcacggaga
     3661 gagatgagat tgaggatgta aagtgtcaag aagaccagaa gcttcaagtg ctgctgactc
     3721 agatcgaaag caagaagcat caggtggaaa cagcttttga gaggctgcag caggagctgg
     3781 agcagcagcg atgtctcctg ctggccaggc tgagggagct ggagcagcag atttggaagg
     3841 agagggatga atatatcaca aaggtctctg aggaagtcac ccggcttgga gcccaggtca
     3901 aggagctgga ggagaagtgt cagcagccag caagtgagct tctacaagat gtcagagtca
     3961 accagagcag gtgtgagatg aagacttttg tgagtcctga ggccatttct cctgaccttg
     4021 tcaagaagat ccgtgatttc cacaggaaaa tactcaccct cccagagatg atgaggatgt
     4081 tctcagaaaa cttggcgcat catctggaaa tagattcagg ggtcatcact ctggaccctc
     4141 agaccgccag ccggagcctg gttctctcgg aagacaggaa gtcagtgagg tacacccggc
     4201 agaagaagaa cctgccagac agccccctgc gcttcgacgg cctcccggcg gttctgggct
     4261 tcccgggctt ctcctccggg cgccaccgct ggcaggttga cctgcagctg ggcgacggcg
     4321 gcggctgcac ggtgggggtg gccggggagg gggtgaggag gaagggagag atgggactca
     4381 gcgccgagga cggcgtctgg gccgtgatca tctcgcacca gcagtgctgg gccagcacct
     4441 ccccgggcac cgacctgccg ctgagcgaga tcccgcgcgg cgtgagagtc gccctggact
     4501 acgaggcggg gcaggtgacc ctccacaacg cccagaccca ggagcccatc ttcaccttca
     4561 ctgcctcttt ctccggcaaa gtcttccctt tctttgccgt ctggaaaaaa ggttcctgcc
     4621 ttacgctgaa aggctaggga tccaatcaac ctctggatta caaaatttgt gaaagattga
     4681 ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt
     4741 tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt
     4801 tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg
     4861 tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg
     4921 ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc
     4981 gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaagc
     5041 tgacgtcctt tccatggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct
     5101 tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg
     5161 ctctgcggcc tcttccgcgt ctccgccttc gccctcagac gagtcggatc tccctttggc
     5221 cgcctccccg ccggtacctt taagaccaat gacttacaag gcagctgtag atcttagcca
     5281 ctttttaaaa gaaaaggggg gactggaagg gctaattcac tcccaacgaa aataagatct
     5341 gctttttgct tgtactgggt ctctctggtt agaccagatc tgagcctggg agctctctgg
     5401 ctaactaggg aacccactgc ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt
     5461 gtgtgcccgt ctgttgtgtg actctggtaa ctagagatcc ctcagaccct tttagtcagt
     5521 gtggaaaatc tctagcagta gtagttcatg tcatcttatt attcagtatt tataacttgc
     5581 aaagaaatga atatcagaga gtgagaggaa cttgtttatt gcagcttata atggttacaa
     5641 ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg
     5701 tggtttgtcc aaactcatca atgtatctta tcatgtctgg ctctagctat cccgccccta
     5761 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     5821 gaggccgagg ccgcctcggc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     5881 ggcctagact tttgcagaga cggcccaaat tcgtaatcat ggtcatagct gtttcctgtg
     5941 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     6001 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     6061 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     6121 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     6181 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     6241 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     6301 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     6361 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     6421 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     6481 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     6541 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     6601 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     6661 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     6721 acagagttct tgaagtggtg gcctaactac ggctacacta gaaggacagt atttggtatc
     6781 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     6841 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     6901 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     6961 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     7021 ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac
     7081 agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc
     7141 atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt accatctggc
     7201 cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata
     7261 aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc
     7321 cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc
     7381 aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca
     7441 ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa
     7501 gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca
     7561 ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt
     7621 tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt
     7681 tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg
     7741 ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga
     7801 tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc
     7861 agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg
     7921 acacggaaat gttgaatact catactcttc ctttttcaat attattgaag catttatcag
     7981 ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg
     8041 gttccgcgca catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg
     8101 acattaacct ataaaaatag gcgtatcacg aggccctttc gtctcgcgcg tttcggtgat
     8161 gacggtgaaa acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg
     8221 gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc
     8281 tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa
     8341 ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc gccattcgcc attcaggctg
     8401 cgcaactgtt gggaagggcg atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa
     8461 gggggatgtg ctgcaaggcg attaagttgg gtaacgccag ggttttccca gtcacgacgt
     8521 tgtaaaacga cggccagtgc caagctg
//
