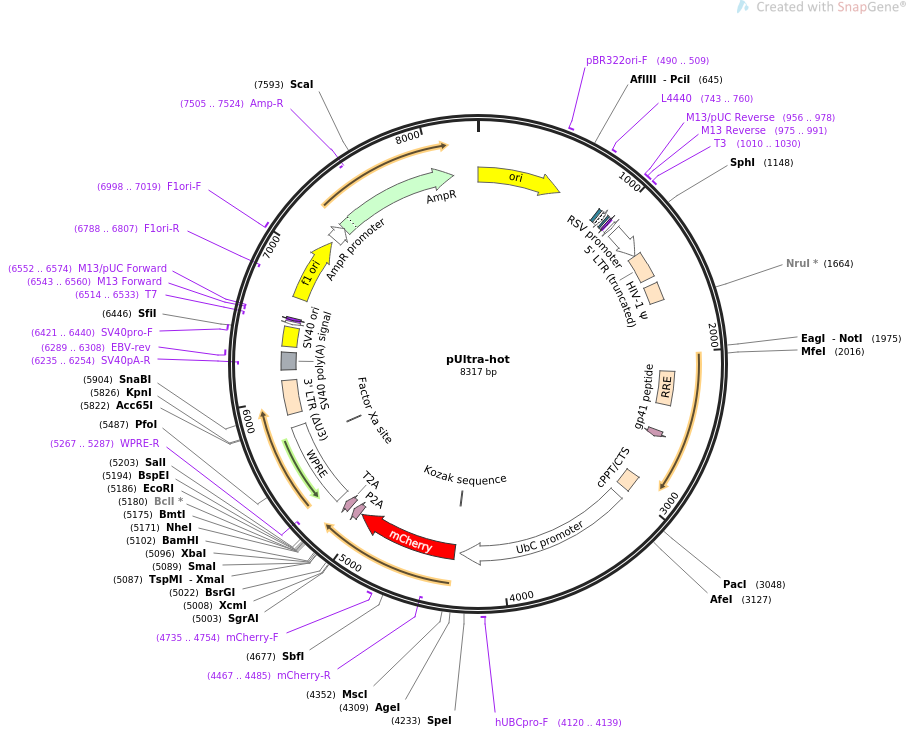

pUltra-hot

LOCUS       pUltra-hot                8317 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  3rd generation Lentiviral vector for bi-cistronic expression of
            mCherry and the gene of interest.
ACCESSION   .
VERSION     .
KEYWORDS    pUltra-hot
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8317)
  TITLE     pUltra series
REFERENCE   2  (bases 1 to 8317)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8317
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      1..589
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     490..509
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     743..760
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    877..898
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        913..943
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    951..967
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     956..978
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     975..991
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     975..991
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     1010..1030
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        1012..1030
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     promoter        1058..1284
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             1285..1465
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1512..1637
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    2130..2363
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             2548..2592
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    2890..3007
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        3072..4283
                     /label=UbC promoter
                     /note="human ubiquitin C promoter"
     primer_bind     4120..4139
                     /label=hUBCpro-F
                     /note="Human Ubiquitin C (UbC) promoter, forward primer"
     regulatory      4316..4325
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             4322..5029
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(4467..4485)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     4735..4754
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     CDS             5039..5095
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             5117..5170
                     /codon_start=1
                     /product="2A peptide from Thosea asigna virus capsid
                     protein"
                     /label=T2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="EGRGSLLTCGDVEENPGP"
     misc_feature    5214..5802
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(5267..5287)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(5685..5696)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5893..6126
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6198..6319
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(6235..6254)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     6289..6308
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      6359..6494
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     6421..6440
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(6514..6533)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(6515..6533)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(6543..6560)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(6543..6559)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(6552..6574)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      6701..7156
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6788..6807)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6998..7019
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     promoter        7182..7286
                     /gene="bla"
                     /label=AmpR promoter
     CDS             7287..8147
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(7505..7524)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
ORIGIN
        1 ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac caccgctacc
       61 agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg taactggctt
      121 cagcagagcg cagataccaa atactgttct tctagtgtag ccgtagttag gccaccactt
      181 caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac cagtggctgc
      241 tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt taccggataa
      301 ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg agcgaacgac
      361 ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc ttcccgaagg
      421 gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc gcacgaggga
      481 gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc acctctcact
      541 tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa acgccagcaa
      601 cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt tctttcctgc
      661 gttatcccct gattctgtgg ataaccgtat taccgccttt gagtgagctg ataccgctcg
      721 ccgcagccga acgaccgagc gcagcgagtc agtgagcgag gaagcggaag agcgcccaat
      781 acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgcagctggc acgacaggtt
      841 tcccgactgg aaagcgggca gtgagcgcaa cgcaattaat gtgagttagc tcactcatta
      901 ggcaccccag gctttacact ttatgcttcc ggctcgtatg ttgtgtggaa ttgtgagcgg
      961 ataacaattt cacacaggaa acagctatga ccatgattac gccaagcgcg caattaaccc
     1021 tcactaaagg gaacaaaagc tggagctgca agcttaatgt agtcttatgc aatactcttg
     1081 tagtcttgca acatggtaac gatgagttag caacatgcct tacaaggaga gaaaaagcac
     1141 cgtgcatgcc gattggtgga agtaaggtgg tacgatcgtg ccttattagg aaggcaacag
     1201 acgggtctga catggattgg acgaaccact gaattgccgc attgcagaga tattgtattt
     1261 aagtgcctag ctcgatacat aaacgggtct ctctggttag accagatctg agcctgggag
     1321 ctctctggct aactagggaa cccactgctt aagcctcaat aaagcttgcc ttgagtgctt
     1381 caagtagtgt gtgcccgtct gttgtgtgac tctggtaact agagatccct cagacccttt
     1441 tagtcagtgt ggaaaatctc tagcagtggc gcccgaacag ggacttgaaa gcgaaaggga
     1501 aaccagagga gctctctcga cgcaggactc ggcttgctga agcgcgcacg gcaagaggcg
     1561 aggggcggcg actggtgagt acgccaaaaa ttttgactag cggaggctag aaggagagag
     1621 atgggtgcga gagcgtcagt attaagcggg ggagaattag atcgcgatgg gaaaaaattc
     1681 ggttaaggcc agggggaaag aaaaaatata aattaaaaca tatagtatgg gcaagcaggg
     1741 agctagaacg attcgcagtt aatcctggcc tgttagaaac atcagaaggc tgtagacaaa
     1801 tactgggaca gctacaacca tcccttcaga caggatcaga agaacttaga tcattatata
     1861 atacagtagc aaccctctat tgtgtgcatc aaaggataga gataaaagac accaaggaag
     1921 ctttagacaa gatagaggaa gagcaaaaca aaagtaagac caccgcacag caagcggccg
     1981 ctgatcttca gacctggagg aggagatatg agggacaatt ggagaagtga attatataaa
     2041 tataaagtag taaaaattga accattagga gtagcaccca ccaaggcaaa gagaagagtg
     2101 gtgcagagag aaaaaagagc agtgggaata ggagctttgt tccttgggtt cttgggagca
     2161 gcaggaagca ctatgggcgc agcgtcaatg acgctgacgg tacaggccag acaattattg
     2221 tctggtatag tgcagcagca gaacaatttg ctgagggcta ttgaggcgca acagcatctg
     2281 ttgcaactca cagtctgggg catcaagcag ctccaggcaa gaatcctggc tgtggaaaga
     2341 tacctaaagg atcaacagct cctggggatt tggggttgct ctggaaaact catttgcacc
     2401 actgctgtgc cttggaatgc tagttggagt aataaatctc tggaacagat ttggaatcac
     2461 acgacctgga tggagtggga cagagaaatt aacaattaca caagcttaat acactcctta
     2521 attgaagaat cgcaaaacca gcaagaaaag aatgaacaag aattattgga attagataaa
     2581 tgggcaagtt tgtggaattg gtttaacata acaaattggc tgtggtatat aaaattattc
     2641 ataatgatag taggaggctt ggtaggttta agaatagttt ttgctgtact ttctatagtg
     2701 aatagagtta ggcagggata ttcaccatta tcgtttcaga cccacctccc aaccccgagg
     2761 ggacccgaca ggcccgaagg aatagaagaa gaaggtggag agagagacag agacagatcc
     2821 attcgattag tgaacggatc ggcactgcgt gcgccaattc tgcagacaaa tggcagtatt
     2881 catccacaat tttaaaagaa aaggggggat tggggggtac agtgcagggg aaagaatagt
     2941 agacataata gcaacagaca tacaaactaa agaattacaa aaacaaatta caaaaattca
     3001 aaattttcgg gtttattaca gggacagcag agatccagtt tggttaatta acccgtgtcg
     3061 gctccagatc tggcctccgc gccgggtttt ggcgcctccc gcgggcgccc ccctcctcac
     3121 ggcgagcgct gccacgtcag acgaagggcg cagcgagcgt cctgatcctt ccgcccggac
     3181 gctcaggaca gcggcccgct gctcataaga ctcggcctta gaaccccagt atcagcagaa
     3241 ggacatttta ggacgggact tgggtgactc tagggcactg gttttctttc cagagagcgg
     3301 aacaggcgag gaaaagtagt cccttctcgg cgattctgcg gagggatctc cgtggggcgg
     3361 tgaacgccga tgattatata aggacgcgcc gggtgtggca cagctagttc cgtcgcagcc
     3421 gggatttggg tcgcggttct tgtttgtgga tcgctgtgat cgtcacttgg tgagtagcgg
     3481 gctgctgggc tggccggggc tttcgtggcc gccgggccgc tcggtgggac ggaagcgtgt
     3541 ggagagaccg ccaagggctg tagtctgggt ccgcgagcaa ggttgccctg aactgggggt
     3601 tggggggagc gcagcaaaat ggcggctgtt cccgagtctt gaatggaaga cgcttgtgag
     3661 gcgggctgtg aggtcgttga aacaaggtgg ggggcatggt gggcggcaag aacccaaggt
     3721 cttgaggcct tcgctaatgc gggaaagctc ttattcgggt gagatgggct ggggcaccat
     3781 ctggggaccc tgacgtgaag tttgtcactg actggagaac tcggtttgtc gtctgttgcg
     3841 ggggcggcag ttatggcggt gccgttgggc agtgcacccg tacctttggg agcgcgcgcc
     3901 ctcgtcgtgt cgtgacgtca cccgttctgt tggcttataa tgcagggtgg ggccacctgc
     3961 cggtaggtgt gcggtaggct tttctccgtc gcaggacgca gggttcgggc ctagggtagg
     4021 ctctcctgaa tcgacaggcg ccggacctct ggtgagggga gggataagtg aggcgtcagt
     4081 ttctttggtc ggttttatgt acctatcttc ttaagtagct gaagctccgg ttttgaacta
     4141 tgcgctcggg gttggcgagt gtgttttgtg aagtttttta ggcacctttt gaaatgtaat
     4201 catttgggtc aatatgtaat tttcagtgtt agactagtaa attgtccgct aaattctggc
     4261 cgtttttggc ttttttgtta gacgaagctt gggctgcagg tccgatccac cggtcgccac
     4321 catggtgagc aagggcgagg aggataacat ggccatcatc aaggagttca tgcgcttcaa
     4381 ggtgcacatg gagggctccg tgaacggcca cgagttcgag atcgagggcg agggcgaggg
     4441 ccgcccctac gagggcaccc agaccgccaa gctgaaggtg accaagggtg gccccctgcc
     4501 cttcgcctgg gacatcctgt cccctcagtt catgtacggc tccaaggcct acgtgaagca
     4561 ccccgccgac atccccgact acttgaagct gtccttcccc gagggcttca agtgggagcg
     4621 cgtgatgaac ttcgaggacg gcggcgtggt gaccgtgacc caggactcct ccctgcagga
     4681 cggcgagttc atctacaagg tgaagctgcg cggcaccaac ttcccctccg acggccccgt
     4741 aatgcagaag aagaccatgg gctgggaggc ctcctccgag cggatgtacc ccgaggacgg
     4801 cgccctgaag ggcgagatca agcagaggct gaagctgaag gacggcggcc actacgacgc
     4861 tgaggtcaag accacctaca aggccaagaa gcccgtgcag ctgcccggcg cctacaacgt
     4921 caacatcaag ttggacatca cctcccacaa cgaggactac accatcgtgg aacagtacga
     4981 acgcgccgag ggccgccact ccaccggcgg catggacgag ctgtacaagg gatctggagc
     5041 aacaaacttc tcactactca aacaagcagg tgacgtggag gagaatcccg ggccttctag
     5101 aggatccggc tccggcgagg gcaggggaag tctactaaca tgcggggacg tggaggaaaa
     5161 tcccggccca gctagcgtgt gatcagaatt cgttccggag tcgtcgactc gacaatcaac
     5221 ctctggatta caaaatttgt gaaagattga ctggtattct taactatgtt gctcctttta
     5281 cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt
     5341 tcattttctc ctccttgtat aaatcctggt tgctgtctct ttatgaggag ttgtggcccg
     5401 ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga cgcaaccccc actggttggg
     5461 gcattgccac cacctgtcag ctcctttccg ggactttcgc tttccccctc cctattgcca
     5521 cggcggaact catcgccgcc tgccttgccc gctgctggac aggggctcgg ctgttgggca
     5581 ctgacaattc cgtggtgttg tcggggaagc tgacgtcctt tccatggctg ctcgcctgtg
     5641 ttgccacctg gattctgcgc gggacgtcct tctgctacgt cccttcggcc ctcaatccag
     5701 cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc tcttccgcat cttcgccttc
     5761 gccctcagac gagtcggatc tccctttggg ccgcctcccc gcctggaatt aattcgagct
     5821 cggtaccttt aagaccaatg acttacaagg cagctgtaga tcttagccac tttttaaaag
     5881 aaaagggggg actggaaggg ctacgtaact cccaacgaag acaagatctg ctttttgctt
     5941 gtactgggtc tctctggtta gaccagatct gagcctggga gctctctggc taactaggga
     6001 acccactgct taagcctcaa taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc
     6061 tgttgtgtga ctctggtaac tagagatccc tcagaccctt ttagtcagtg tggaaaatct
     6121 ctagcagtag tagttcatgt catcttatta ttcagtattt ataacttgca aagaaatgaa
     6181 tatcagagag tgagaggaac ttgtttattg cagcttataa tggttacaaa taaagcaata
     6241 gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca
     6301 aactcatcaa tgtatcttat catgtctggc tctagctatc ccgcccctaa ctccgcccat
     6361 cccgccccta actccgccca gttccgccca ttctccgccc catggctgac taattttttt
     6421 tatttatgca gaggccgagg ccgcctcggc ctctgagcta ttccagaagt agtgaggagg
     6481 cttttttgga ggcctaggga cgtacccaat tcgccctata gtgagtcgta ttacgcgcgc
     6541 tcactggccg tcgttttaca acgtcgtgac tgggaaaacc ctggcgttac ccaacttaat
     6601 cgccttgcag cacatccccc tttcgccagc tggcgtaata gcgaagaggc ccgcaccgat
     6661 cgcccttccc aacagttgcg cagcctgaat ggcgaatggg acgcgccctg tagcggcgca
     6721 ttaagcgcgg cgggtgtggt ggttacgcgc agcgtgaccg ctacacttgc cagcgcccta
     6781 gcgcccgctc ctttcgcttt cttcccttcc tttctcgcca cgttcgccgg ctttccccgt
     6841 caagctctaa atcgggggct ccctttaggg ttccgattta gtgctttacg gcacctcgac
     6901 cccaaaaaac ttgattaggg tgatggttca cgtagtgggc catcgccctg atagacggtt
     6961 tttcgccctt tgacgttgga gtccacgttc tttaatagtg gactcttgtt ccaaactgga
     7021 acaacactca accctatctc ggtctattct tttgatttat aagggatttt gccgatttcg
     7081 gcctattggt taaaaaatga gctgatttaa caaaaattta acgcgaattt taacaaaata
     7141 ttaacgctta caatttaggt ggcacttttc ggggaaatgt gcgcggaacc cctatttgtt
     7201 tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc tgataaatgc
     7261 ttcaataata ttgaaaaagg aagagtatga gtattcaaca tttccgtgtc gcccttattc
     7321 ccttttttgc ggcattttgc cttcctgttt ttgctcaccc agaaacgctg gtgaaagtaa
     7381 aagatgctga agatcagttg ggtgcacgag tgggttacat cgaactggat ctcaacagcg
     7441 gtaagatcct tgagagtttt cgccccgaag aacgttttcc aatgatgagc acttttaaag
     7501 ttctgctatg tggcgcggta ttatcccgta ttgacgccgg gcaagagcaa ctcggtcgcc
     7561 gcatacacta ttctcagaat gacttggttg agtactcacc agtcacagaa aagcatctta
     7621 cggatggcat gacagtaaga gaattatgca gtgctgccat aaccatgagt gataacactg
     7681 cggccaactt acttctgaca acgatcggag gaccgaagga gctaaccgct tttttgcaca
     7741 acatggggga tcatgtaact cgccttgatc gttgggaacc ggagctgaat gaagccatac
     7801 caaacgacga gcgtgacacc acgatgcctg tagcaatggc aacaacgttg cgcaaactat
     7861 taactggcga actacttact ctagcttccc ggcaacaatt aatagactgg atggaggcgg
     7921 ataaagttgc aggaccactt ctgcgctcgg cccttccggc tggctggttt attgctgata
     7981 aatctggagc cggtgagcgt gggtctcgcg gtatcattgc agcactgggg ccagatggta
     8041 agccctcccg tatcgtagtt atctacacga cggggagtca ggcaactatg gatgaacgaa
     8101 atagacagat cgctgagata ggtgcctcac tgattaagca ttggtaactg tcagaccaag
     8161 tttactcata tatactttag attgatttaa aacttcattt ttaatttaaa aggatctagg
     8221 tgaagatcct ttttgataat ctcatgacca aaatccctta acgtgagttt tcgttccact
     8281 gagcgtcaga ccccgtagaa aagatcaaag gatcttc
//
