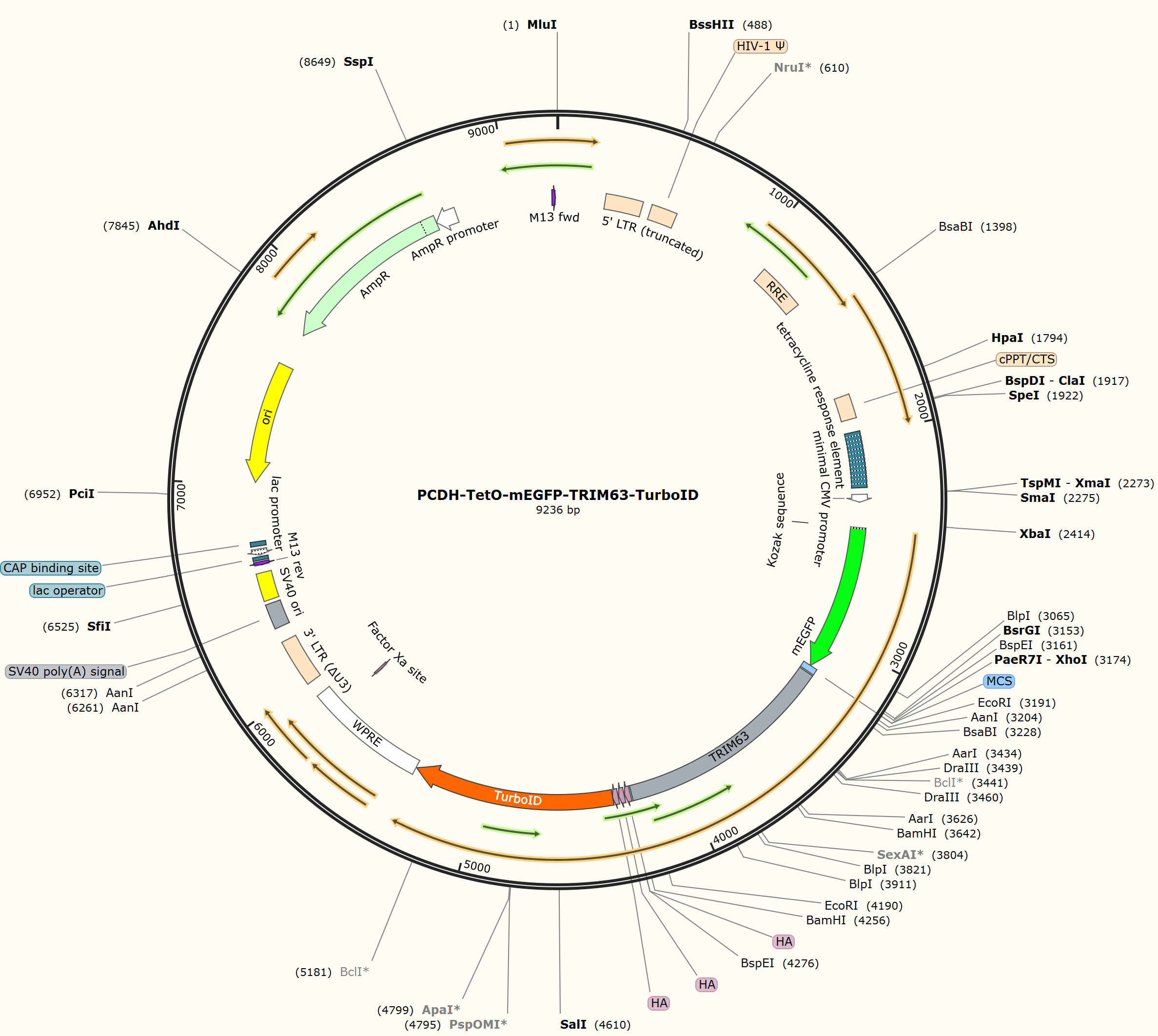

PCDH-TetO-mEGFP-TRIM63-TurboID

LOCUS       PCDH-TetO-mEGFP-TRIM63-TurboID           9236 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9236)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 13, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9236
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     protein_bind    1980..2250
                     /label=tetracycline response element
                     /bound_moiety="tetracycline repressor TetR"
                     /note="contains seven copies of the tetracycline operator
                     tetO"
     promoter        2283..2320
                     /label=minimal CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2444..3160
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=mEGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     regulatory      2444..2447
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    3161..3190
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3197..4255
                     /label=TRIM63
     CDS             4262..4288
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             4292..4318
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             4322..4348
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             4349..5329
                     /codon_start=1
                     /label=TurboID
                     /translation="ASKDNTVPLKLIALLANGEFHSGEQLGETLGMSRAAINKHIQTLR
                     DWGVDVFTVPGKGYSLPEPIPLLNAKQILGQLDGGSVAVLPVVDSTNQYLLDRIGELKS
                     GDACIAEYQQAGRGSRGRKWFSPFGANLYLSMFWRLKRGPAAIGLGPVIGIVMAEALRK
                     LGADKVRVKWPNDLYLQDRKLAGILVELAGITGDAAQIVIGAGINVAMRRVEESVVNQG
                     WITLQEAGINLDRNTLAATLIRELRAALELFEQEGLAPYLPRWEKLDNFINRPVKLIIG
                     DKEIFGISRGIDKQGALLLEQDGVIKPWMGGEISLRSAEKEFSRAD"
     misc_feature    5333..5920
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5804..5815)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5993..6226
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6298..6419
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6438..6573
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6611..6627)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6635..6651
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6659..6689)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6704..6725
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(7013..7601)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7772..8632)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8633..8737)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     9211..9227
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagtcgg gtttattaca gggacagcag agatccagtt tggttatcga gtttaccact
     1981 ccctatcagt gatagagaaa agtgaaagtc gagtttacca ctccctatca gtgatagaga
     2041 aaagtgaaag tcgagtttac cactccctat cagtgataga gaaaagtgaa agtcgagttt
     2101 accactccct atcagtgata gagaaaagtg aaagtcgagt ttaccactcc ctatcagtga
     2161 tagagaaaag tgaaagtcga gtttaccact ccctatcagt gatagagaaa agtgaaagtc
     2221 gagtttacca ctccctatca gtgatagaga aaagtgaaag tcgagctcgg tacccgggtc
     2281 gagtaggcgt gtacggtggg aggcctatat aagcagagct cgtttagtga accgtcagat
     2341 cgcctggaga cgccatccac gctgttttga cctccataga agacaccggg accgatccag
     2401 cctccgcggc ccctctagac cgctagcgct accggtcgcc accatggtga gcaagggcga
     2461 ggagctgttc accggggtgg tgcccatcct ggtcgagctg gacggcgacg taaacggcca
     2521 caagttcagc gtgtccggcg agggcgaggg cgatgccacc tacggcaagc tgaccctgaa
     2581 gttcatctgc accaccggca agctgcccgt gccctggccc accctcgtga ccaccctgac
     2641 ctacggcgtg cagtgcttca gccgctaccc cgaccacatg aagcagcacg acttcttcaa
     2701 gtccgccatg cccgaaggct acgtccagga gcgcaccatc ttcttcaagg acgacggcaa
     2761 ctacaagacc cgcgccgagg tgaagttcga gggcgacacc ctggtgaacc gcatcgagct
     2821 gaagggcatc gacttcaagg aggacggcaa catcctgggg cacaagctgg agtacaacta
     2881 caacagccac aacgtctata tcatggccga caagcagaag aacggcatca aggtgaactt
     2941 caagatccgc cacaacatcg aggacggcag cgtgcagctc gccgaccact accagcagaa
     3001 cacccccatc ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcacccagtc
     3061 caagctgagc aaagacccca acgagaagcg cgatcacatg gtcctgctgg agttcgtgac
     3121 cgccgccggg atcactctcg gcatggacga gctgtacaag tccggactca gatctcgagc
     3181 tcaagcttcg gaattcatgg attataagtc gagcctgatc caggatggga atcccatgga
     3241 gaacttggag aagcagctga tctgccctat ctgcctggag atgtttacca agccagtggt
     3301 catcttgccg tgccagcaca acctgtgccg gaagtgtgcc aatgacatct tccaggctgc
     3361 aaatccctac tggaccagcc ggggcagctc agtgtccatg tctggaggcc gtttccgctg
     3421 ccccacctgc cgccacgagg tgatcatgga tcgtcacgga gtgtacggcc tgcagaggaa
     3481 cctgctggtg gagaacatca tcgacatcta caaacaggag tgctccagtc ggccgctgca
     3541 gaagggcagt caccccatgt gcaaggagca cgaagatgag aaaatcaaca tctactgtct
     3601 cacgtgtgag gtgcccacct gctccatgtg caaggtgttt gggatccaca aggcctgcga
     3661 ggtggcccca ttgcagagtg tcttccaggg acaaaagact gaactgaata actgtatctc
     3721 catgctggtg gcggggaatg accgtgtgca gaccatcatc actcagctgg aggattcccg
     3781 tcgagtgacc aaggagaaca gtcaccaggt aaaggaagag ctgagccaga agtttgacac
     3841 gttgtatgcc atcctggatg agaagaaaag tgagttgctg cagcggatca cgcaggagca
     3901 ggagaaaaag cttagcttca tcgaggccct catccagcag taccaggagc agctggacaa
     3961 gtccacaaag ctggtggaaa ctgccatcca gtccctggac gagcctgggg gagccacctt
     4021 cctcttgact gccaagcaac tcatcaaaag cattgtggaa gcttccaagg gctgccagct
     4081 ggggaagaca gagcagggct ttgagaacat ggacttcttt actttggatt tagagcacat
     4141 agcagacgcc ctgagagcca ttgactttgg gacagatgag gaagaggaag aattcattga
     4201 agaagaagat caggaagagg aagagtccac agaagggaag gaagaaggac accagggatc
     4261 ctacccgtat gatgttccgg attacgctgg ctatccctac gacgtgcccg actatgccgg
     4321 gtacccctat gacgtcccag actacgcagc tagcaaagac aatactgtgc ctctgaagct
     4381 gatcgctctc ctggctaatg gcgagttcca tagtggcgaa cagctgggag aaaccctggg
     4441 catgtccagg gccgctatca acaagcacat tcagactctg cgcgactggg gcgtggacgt
     4501 gttcaccgtg cccggaaagg gctactctct gcccgagcct atcccgctgc tgaacgctaa
     4561 acagattctg ggacagctgg acggcgggag cgtggcagtc ctgcctgtgg tcgactccac
     4621 caatcagtac ctgctggatc gaatcggcga gctgaagagt ggggatgctt gcattgcaga
     4681 atatcagcag gcagggagag gaagcagagg gaggaaatgg ttctctcctt ttggagctaa
     4741 cctgtacctg agtatgtttt ggcgcctgaa gcggggacca gcagcaatcg gcctgggccc
     4801 ggtcatcgga attgtcatgg cagaagcgct gcgaaagctg ggagcagaca aggtgcgagt
     4861 caaatggccc aatgacctgt atctgcagga tagaaagctg gcaggcatcc tggtggagct
     4921 ggccggaata acaggcgatg ctgcacagat cgtcattggc gccgggatta acgtggctat
     4981 gaggcgcgtg gaggaaagcg tggtcaatca gggctggatc acactgcagg aagcagggat
     5041 taacctggac aggaatactc tggccgctac gctgatccga gagctgcggg cagccctgga
     5101 actgttcgag caggaaggcc tggctccata tctgccacgg tgggagaagc tggataactt
     5161 catcaataga cccgtgaagc tgatcattgg ggacaaagag attttcggga ttagccgggg
     5221 gattgataaa cagggagccc tgctgctgga acaggacgga gttatcaaac cctggatggg
     5281 cggagaaatc agtctgcggt ctgccgaaaa ggagttcagc agggccgact gaaatcaacc
     5341 tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg ctccttttac
     5401 gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc gtatggcttt
     5461 cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt tgtggcccgt
     5521 tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca ctggttgggg
     5581 cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc ctattgccac
     5641 ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc tgttgggcac
     5701 tgacaattcc gtggtgttgt cggggaagct gacgtccttt ccatggctgc tcgcctgtgt
     5761 tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc
     5821 ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc tccgccttcg
     5881 ccctcagacg agtcggatct ccctttggcc gcctccccgc cggtaccttt aagaccaatg
     5941 acttacaagg cagctgtaga tcttagccac tttttaaaag aaaagggggg actggaaggg
     6001 ctaattcact cccaacgaaa ataagatctg ctttttgctt gtactgggtc tctctggtta
     6061 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
     6121 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
     6181 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtag tagttcatgt
     6241 catcttatta ttcagtattt ataacttgca aagaaatgaa tatcagagag tgagaggaac
     6301 ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat
     6361 aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat
     6421 catgtctggc tctagctatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc
     6481 atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc tctgagctat
     6541 tccagaagta gtgaggaggc ttttttggag gcctagactt ttgcagagac ggcccaaatt
     6601 cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta tccgctcaca attccacaca
     6661 acatacgagc cggaagcata aagtgtaaag cctggggtgc ctaatgagtg agctaactca
     6721 cattaattgc gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc
     6781 attaatgaat cggccaacgc gcggggagag gcggtttgcg tattgggcgc tcttccgctt
     6841 cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta tcagctcact
     6901 caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag aacatgtgag
     6961 caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg tttttccata
     7021 ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg tggcgaaacc
     7081 cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg cgctctcctg
     7141 ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga agcgtggcgc
     7201 tttctcatag ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc tccaagctgg
     7261 gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt aactatcgtc
     7321 ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact ggtaacagga
     7381 ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg cctaactacg
     7441 gctacactag aaggacagta tttggtatct gcgctctgct gaagccagtt accttcggaa
     7501 aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt ggtttttttg
     7561 tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt
     7621 ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat
     7681 tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct
     7741 aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta
     7801 tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa
     7861 ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac
     7921 gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa
     7981 gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag
     8041 taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg
     8101 tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag
     8161 ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg
     8221 tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc
     8281 ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat
     8341 tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata
     8401 ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa
     8461 aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca
     8521 actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc
     8581 aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc
     8641 tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg
     8701 aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac
     8761 ctgacgtcta agaaaccatt attatcatga cattaaccta taaaaatagg cgtatcacga
     8821 ggccctttcg tctcgcgcgt ttcggtgatg acggtgaaaa cctctgacac atgcagctcc
     8881 cggagacggt cacagcttgt ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg
     8941 cgtcagcggg tgttggcggg tgtcggggct ggcttaacta tgcggcatca gagcagattg
     9001 tactgagagt gcaccatatg cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc
     9061 gcatcaggcg ccattcgcca ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg
     9121 cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg
     9181 taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc aagctg
//
