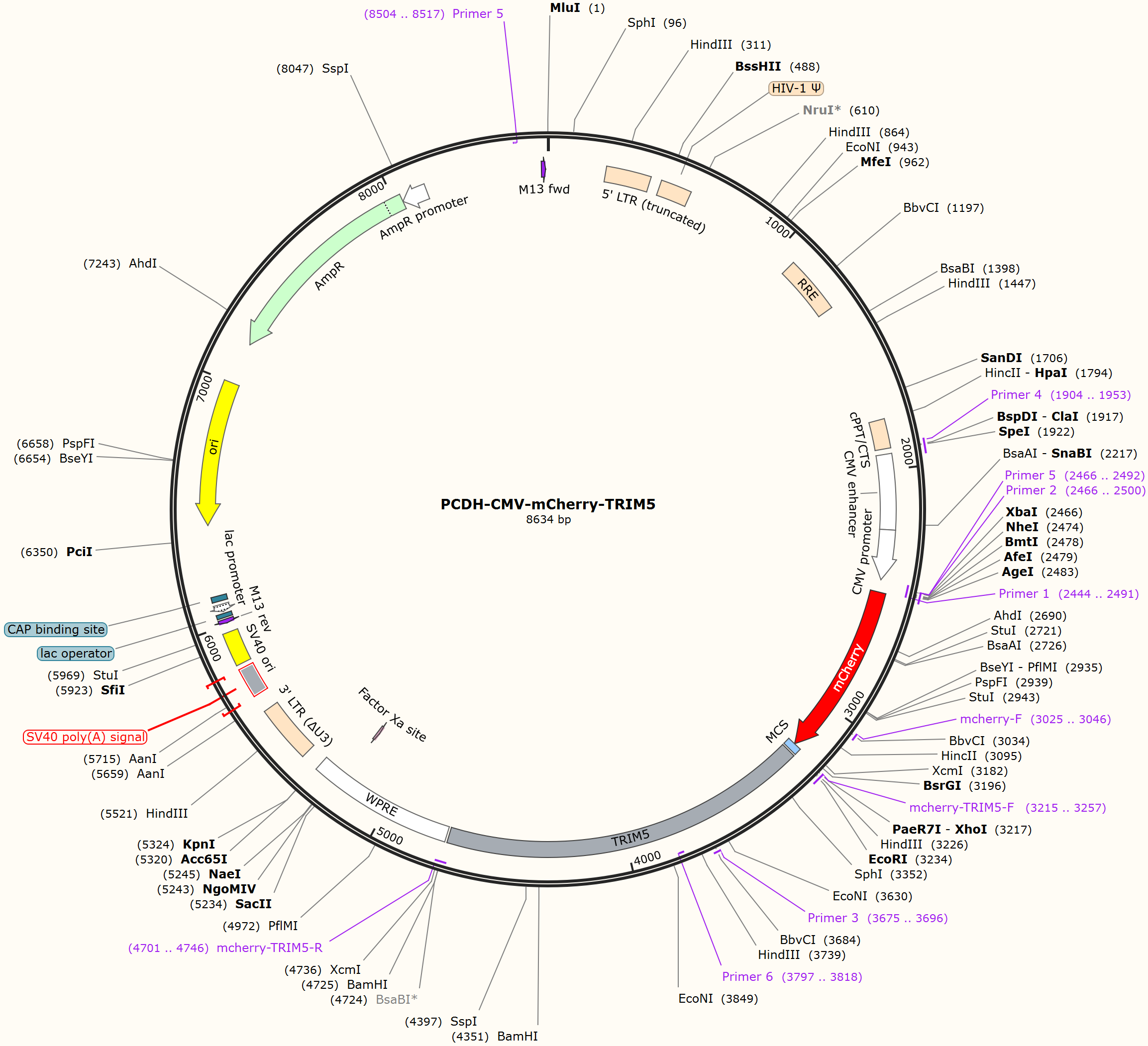

PCDH-CMV-mCherry-TRIM5

LOCUS       PCDH-CMV-mCherry-TRIM5          8634 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8634)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8634
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3215..3257
                     /label=mcherry-TRIM5-F
     misc_feature    3240..4721
                     /label=TRIM5
     primer_bind     3675..3696
                     /label=Primer 3
     primer_bind     complement(3797..3818)
                     /label=Primer 6
     primer_bind     complement(4701..4746)
                     /label=mcherry-TRIM5-R
     misc_feature    4731..5318
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5202..5213)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5391..5624
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5696..5817
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5836..5971
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6009..6025)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6033..6049
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6057..6087)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6102..6123
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6411..6999)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7170..8030)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8031..8135)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8504..8517)
                     /label=Primer 5
     primer_bind     8609..8625
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcttctgg aatcctggtt aatgtaaagg aggaggtgac ctgccccatc tgcctggaac
     3301 tcctgacaca acccctgagc ctggactgcg gccacagctt ctgccaagca tgcctcactg
     3361 caaaccacaa gaagtccatg ctagacaaag gagagagtag ctgccctgtg tgccggatca
     3421 gttaccagcc tgagaacata cggcctaatc ggcatgtagc caacatagtg gagaagctca
     3481 gggaggtcaa gttgagccca gaggggcaga aagttgatca ttgtgcacgc catggagaga
     3541 aacttctact cttctgtcag gaggacggga aggtcatttg ctggctttgt gagcggtctc
     3601 aggagcaccg tggtcaccac acgttcctca cagaggaggt tgcccgggag taccaagtga
     3661 agctccaggc agctctggag atgctgaggc agaagcagca ggaagctgaa gagttagaag
     3721 ctgacatcag agaagagaaa gcttcctgga agactcaaat acagtatgac aaaaccaacg
     3781 tcttggcaga ttttgagcaa ctgagagaca tcctggactg ggaggagagc aatgagctgc
     3841 aaaacctgga gaaggaggag gaagacattc tgaaaagcct tacgaactct gaaactgaga
     3901 tggtgcagca gacccagtcc ctgagagagc tcatctcaga tctggagcat cggctgcagg
     3961 ggtcagtgat ggagctgctt cagggtgtgg atggcgtcat aaaaaggacg gagaacgtga
     4021 ccttgaagaa gccagaaact tttccaaaaa atcaaaggag agtgtttcga gctcctgatc
     4081 tgaaaggaat gctagaagtg tttagagagc tgacagatgt ccgacgctac tgggttgatg
     4141 tgacagtggc tccaaacaac atttcatgtg ctgtcatttc tgaagataag agacaagtga
     4201 gctctccgaa accacagata atatatgggg cacgagggac aagataccag acatttgtga
     4261 atttcaatta ttgtactggc atcctgggct ctcaaagtat cacatcaggg aaacattact
     4321 gggaggtaga cgtgtccaag aaaactgctt ggatcctggg ggtatgtgct ggcttccaac
     4381 ctgatgcaat gtgtaatatt gaaaaaaatg aaaattatca acctaaatac ggctactggg
     4441 ttatagggtt agaggaagga gttaaatgta gtgctttcca ggatagttcc ttccatactc
     4501 cttctgttcc tttcattgtg cccctctctg tgattatttg tcctgatcgt gttggagttt
     4561 tcctagacta tgaggcttgc actgtctcat tcttcaatat cacaaaccat ggatttctca
     4621 tctataagtt ttctcactgt tctttttctc agcctgtatt tccatattta aatcctagaa
     4681 aatgtggagt ccccatgact ctgtgctcac caagctcttg atagggatcc aatcaacctc
     4741 tggattacaa aatttgtgaa agattgactg gtattcttaa ctatgttgct ccttttacgc
     4801 tatgtggata cgctgcttta atgcctttgt atcatgctat tgcttcccgt atggctttca
     4861 ttttctcctc cttgtataaa tcctggttgc tgtctcttta tgaggagttg tggcccgttg
     4921 tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc aacccccact ggttggggca
     4981 ttgccaccac ctgtcagctc ctttccggga ctttcgcttt ccccctccct attgccacgg
     5041 cggaactcat cgccgcctgc cttgcccgct gctggacagg ggctcggctg ttgggcactg
     5101 acaattccgt ggtgttgtcg gggaagctga cgtcctttcc atggctgctc gcctgtgttg
     5161 ccacctggat tctgcgcggg acgtccttct gctacgtccc ttcggccctc aatccagcgg
     5221 accttccttc ccgcggcctg ctgccggctc tgcggcctct tccgcgtctc cgccttcgcc
     5281 ctcagacgag tcggatctcc ctttggccgc ctccccgccg gtacctttaa gaccaatgac
     5341 ttacaaggca gctgtagatc ttagccactt tttaaaagaa aaggggggac tggaagggct
     5401 aattcactcc caacgaaaat aagatctgct ttttgcttgt actgggtctc tctggttaga
     5461 ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata
     5521 aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta
     5581 gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtagta gttcatgtca
     5641 tcttattatt cagtatttat aacttgcaaa gaaatgaata tcagagagtg agaggaactt
     5701 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     5761 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     5821 tgtctggctc tagctatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
     5881 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc
     5941 cagaagtagt gaggaggctt ttttggaggc ctagactttt gcagagacgg cccaaattcg
     6001 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     6061 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     6121 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     6181 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     6241 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     6301 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     6361 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     6421 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     6481 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     6541 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     6601 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     6661 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     6721 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     6781 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     6841 tacactagaa ggacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     6901 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     6961 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     7021 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     7081 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     7141 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     7201 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     7261 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     7321 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     7381 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     7441 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     7501 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     7561 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     7621 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     7681 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     7741 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     7801 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     7861 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     7921 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     7981 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     8041 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     8101 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     8161 gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg
     8221 ccctttcgtc tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg
     8281 gagacggtca cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg
     8341 tcagcgggtg ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta
     8401 ctgagagtgc accatatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc
     8461 atcaggcgcc attcgccatt caggctgcgc aactgttggg aagggcgatc ggtgcgggcc
     8521 tcttcgctat tacgccagct ggcgaaaggg ggatgtgctg caaggcgatt aagttgggta
     8581 acgccagggt tttcccagtc acgacgttgt aaaacgacgg ccagtgccaa gctg
//
