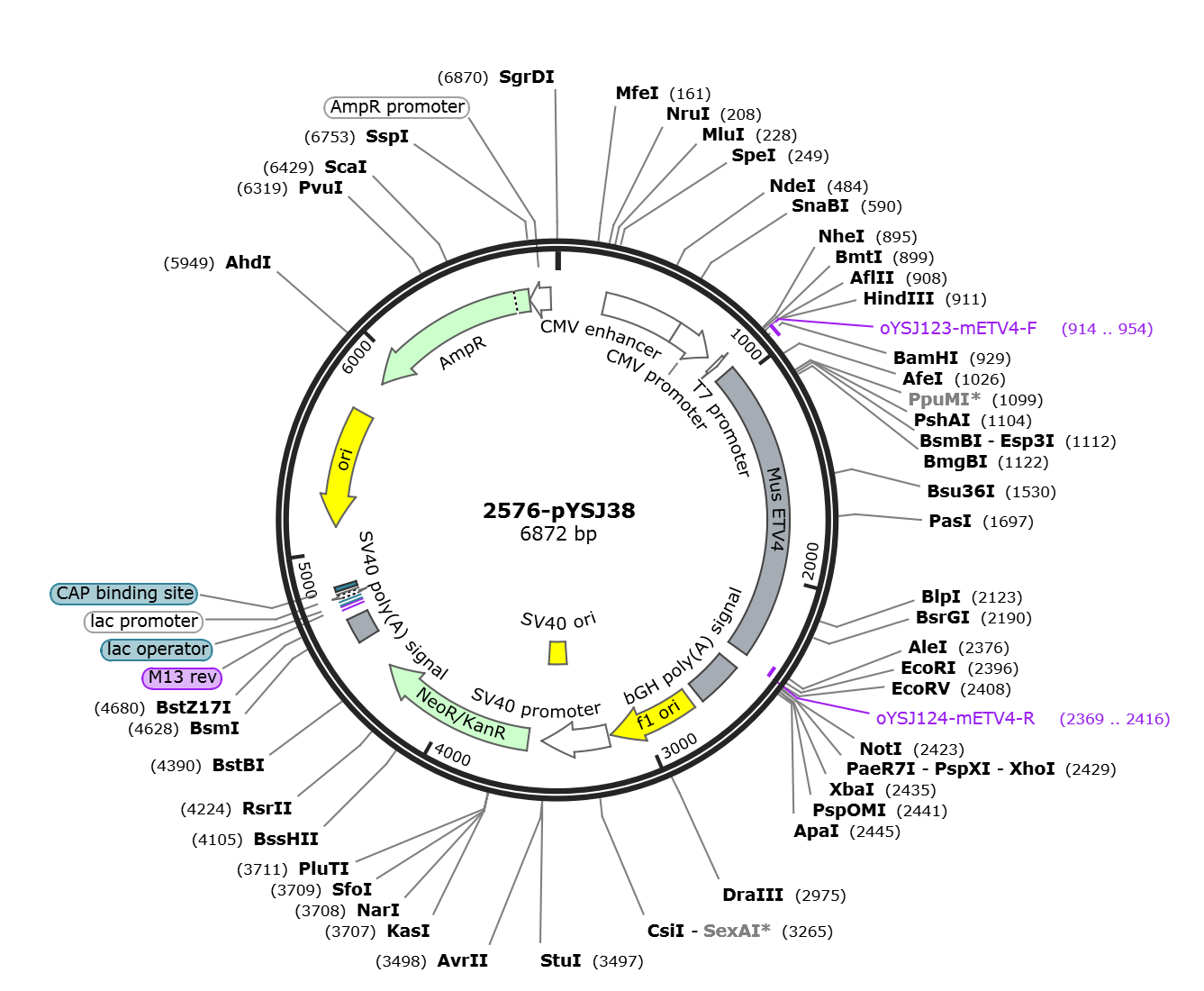

pYSJ38

LOCUS       pYSJ38               6872 bp DNA     circular SYN 18-DEC-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6872)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6872
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..954
                     /label=oYSJ123-mETV4-F
     misc_feature    935..2395
                     /label=Mus ETV4
     primer_bind     complement(2369..2416)
                     /label=oYSJ124-mETV4-R
     polyA_signal    2472..2696
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2742..3170
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3184..3513
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3364..3499
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3580..4374
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4548..4669
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4718..4734)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4742..4758
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4766..4796)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4811..4832
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5120..5705)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5876..6736)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6737..6841)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatggag cggaggatga aaggcggata
      961 cttggaccag cgagtgccct acaccttctg cagcaaatct cccggaaatg ggagcttggg
     1021 cgaagcgctg atggtcccgc agggaaagct catggacccg ggctccctgc cgccttccga
     1081 ctcagaagat ctcttccagg acctcagtca cttccaagag acgtggctcg cagaagctca
     1141 ggtaccggac agtgatgagc agtttgttcc tgatttccat tcagaaaact tagctttcca
     1201 tagccccacc accaggatca agaaggaacc ccagagtccc cgcacagacc ccgccctgtc
     1261 ctgcagcagg aagccaccac tcccctacca ccatggagag cagtgccttt actccagtgc
     1321 ctatgactcc cccagacaaa tcgccatcaa gtcccccgcc cccggtgccc ctggacagtc
     1381 gcccctgcag cccttttcca gggcagaaca gcagcagagc ctcctgagag cctccagctc
     1441 ttcccagtcc caccctggcc acgggtacct tggtgagcac agctccgtct tccagcagcc
     1501 cgtggacatg tgccactcct tcacatctcc tcagggaggg ggccgggaac ctctcccagc
     1561 cccctatcaa caccaactgt cggagccctg cccaccctac ccccagcaga acttcaagca
     1621 ggagtaccat gaccccctgt acgaacaggc tggccagccc gcttcaagcc agggtggggt
     1681 cagtgggcac aggtacccag gggcgggggt ggtgatcaaa caggagcgca cagacttcgc
     1741 ctacgactca gatgtccctg gatgtgcatc aatgtacctc cacccagagg gcttctctgg
     1801 accctctcca ggtgatggag tgatgggtta tggctatgaa aaatcccttc gaccattccc
     1861 agatgatgtc tgcattgtcc ctgaaaaatt tgaaggagac atcaagcagg aagggattgg
     1921 agctttccgg gaggggccac cctaccagcg ccggggtgcc ttacaactgt ggcagtttct
     1981 ggtggccctg ctggatgacc caacaaatgc tcatttcatt gcttggacag gccggggaat
     2041 ggagtttaaa ctaattgaac ctgaagaggt tgccaggctc tggggtatcc agaagaaccg
     2101 gccagccatg aattatgaca agctgagccg ctcgctgcga tactattatg agaaaggcat
     2161 catgcagaag gtggctggcg aacgctacgt gtacaagttt gtgtgcgagc cggaggccct
     2221 gttctctctg gccttcccag ataatcaacg tccagctctg aaggctgagt ttgaccggcc
     2281 agtcagtgag gaggacacag tccctttgtc ccacttggat gagagtcctg cctacctccc
     2341 agaactcact ggccccgctc cgcccttcgg ccacagaggt ggatattctt actaggaatt
     2401 ctgcagatat ccagcacagt ggcggccgct cgagtctaga gggcccgttt aaacccgctg
     2461 atcagcctcg actgtgcctt ctagttgcca gccatctgtt gtttgcccct cccccgtgcc
     2521 ttccttgacc ctggaaggtg ccactcccac tgtcctttcc taataaaatg aggaaattgc
     2581 atcgcattgt ctgagtaggt gtcattctat tctggggggt ggggtggggc aggacagcaa
     2641 gggggaggat tgggaagaca atagcaggca tgctggggat gcggtgggct ctatggcttc
     2701 tgaggcggaa agaaccagct ggggctctag ggggtatccc cacgcgccct gtagcggcgc
     2761 attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg ccagcgccct
     2821 agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg gctttccccg
     2881 tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac ggcacctcga
     2941 ccccaaaaaa cttgattagg gtgatggttc acgtagtggg ccatcgccct gatagacggt
     3001 ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt tccaaactgg
     3061 aacaacactc aaccctatct cggtctattc ttttgattta taagggattt tgccgatttc
     3121 ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt aattctgtgg
     3181 aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa
     3241 agcatgcatc tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc
     3301 agaagtatgc aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg
     3361 cccatcccgc ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt
     3421 ttttttattt atgcagaggc cgaggccgcc tctgcctctg agctattcca gaagtagtga
     3481 ggaggctttt ttggaggcct aggcttttgc aaaaagctcc cgggagcttg tatatccatt
     3541 ttcggatctg atcaagagac aggatgagga tcgtttcgca tgattgaaca agatggattg
     3601 cacgcaggtt ctccggccgc ttgggtggag aggctattcg gctatgactg ggcacaacag
     3661 acaatcggct gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg cccggttctt
     3721 tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc aggacgaggc agcgcggcta
     3781 tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg
     3841 ggaagggact ggctgctatt gggcgaagtg ccggggcagg atctcctgtc atctcacctt
     3901 gctcctgccg agaaagtatc catcatggct gatgcaatgc ggcggctgca tacgcttgat
     3961 ccggctacct gcccattcga ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg
     4021 atggaagccg gtcttgtcga tcaggatgat ctggacgaag agcatcaggg gctcgcgcca
     4081 gccgaactgt tcgccaggct caaggcgcgc atgcccgacg gcgaggatct cgtcgtgacc
     4141 catggcgatg cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc tggattcatc
     4201 gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc tacccgtgat
     4261 attgctgaag agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc
     4321 gctcccgatt cgcagcgcat cgccttctat cgccttcttg acgagttctt ctgagcggga
     4381 ctctggggtt cgaaatgacc gaccaagcga cgcccaacct gccatcacga gatttcgatt
     4441 ccaccgccgc cttctatgaa aggttgggct tcggaatcgt tttccgggac gccggctgga
     4501 tgatcctcca gcgcggggat ctcatgctgg agttcttcgc ccaccccaac ttgtttattg
     4561 cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt
     4621 tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctgta
     4681 taccgtcgac ctctagctag agcttggcgt aatcatggtc atagctgttt cctgtgtgaa
     4741 attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag tgtaaagcct
     4801 ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg cccgctttcc
     4861 agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg
     4921 gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc
     4981 ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc acagaatcag
     5041 gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa
     5101 aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat cacaaaaatc
     5161 gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag gcgtttcccc
     5221 ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga tacctgtccg
     5281 cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg tatctcagtt
     5341 cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt cagcccgacc
     5401 gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac gacttatcgc
     5461 cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc ggtgctacag
     5521 agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt ggtatctgcg
     5581 ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa
     5641 ccaccgctgg tagcggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat
     5701 ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac
     5761 gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt
     5821 aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct gacagttacc
     5881 aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca tccatagttg
     5941 cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct ggccccagtg
     6001 ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca ataaaccagc
     6061 cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc atccagtcta
     6121 ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg cgcaacgttg
     6181 ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct tcattcagct
     6241 ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa aaagcggtta
     6301 gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg
     6361 ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc ttttctgtga
     6421 ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg agttgctctt
     6481 gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa gtgctcatca
     6541 ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg agatccagtt
     6601 cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc accagcgttt
     6661 ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga
     6721 aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat cagggttatt
     6781 gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata ggggttccgc
     6841 gcacatttcc ccgaaaagtg ccacctgacg tc
//
