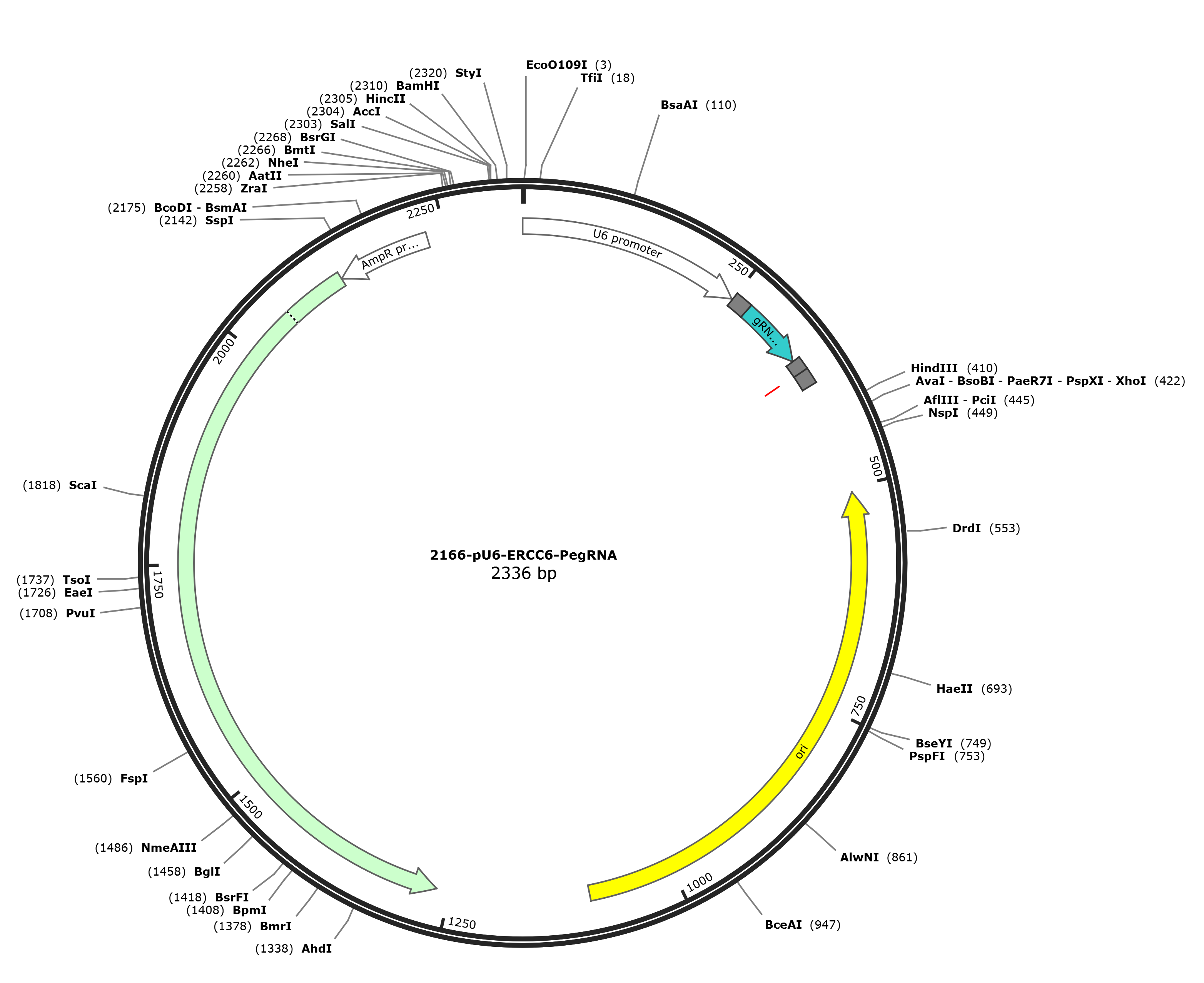

pU6-ERCC6-PegRNA

LOCUS       pU6-ERCC6-PegRNA               2336 bp DNA     circular SYN 13-MAR-2026
DEFINITION  Prime editing in mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2336)
  TITLE     Liu Lab plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 2336)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName:
            "Unpublished"
FEATURES             Location/Qualifiers
     source          1..2336
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     source          251..270
                     /chromosome="10"
                     /map="10q11.23"
                     /mol_type="mRNA"
                     /db_xref="taxon:9606"
                     /organism="Homo sapiens"
     source          347..379
                     /chromosome="10"
                     /map="10q11.23"
                     /mol_type="mRNA"
                     /db_xref="taxon:9606"
                     /organism="Homo sapiens"
     promoter        1..249
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1..21
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     172..191
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     primer_bind     247..273
                     /label=OL2777
     misc_feature    251..270
                     /label=ERCC6 spacer
     misc_RNA        271..346
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     misc_feature    347..361
                     /label=RTT
     primer_bind     complement(357..379)
                     /label=OL2778
     misc_feature    361
                     /label=a to g
     misc_feature    362..379
                     /label=PBS
     rep_origin      complement(506..1094)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(586..605)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(1265..2125)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     1888..1907
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(2126..2230)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
       61 ataattagaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
      121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
      181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
      241 cgaaacaccg tcaatgcttt catcaccaga gttttagagc tagaaatagc aagttaaaat
      301 aaggctagtc cgttatcaac ttgaaaaagt ggcaccgagt cggtgcactt ctatgccatc
      361 cggtgatgaa agcattgatg tcggcatggc cccattcgca cgttttttta agcttgggcc
      421 gctcgaggta cctctctaca tatgacatgt gagcaaaagg ccagcaaaag gccaggaacc
      481 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
      541 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
      601 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
      661 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
      721 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
      781 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
      841 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
      901 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
      961 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     1021 aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa
     1081 aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg
     1141 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc
     1201 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg
     1261 acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat
     1321 ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg
     1381 gccccagtgc tgcaatgata ccgcgagatc cacgctcacc ggctccagat ttatcagcaa
     1441 taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca
     1501 tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc
     1561 gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt
     1621 cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa
     1681 aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat
     1741 cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct
     1801 tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga
     1861 gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag
     1921 tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga
     1981 gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca
     2041 ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg
     2101 cgacacggaa atgttgaata ctcatactct tcctttttca atattattga agcatttatc
     2161 agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag
     2221 gggttccgcg cacatttccc cgaaaagtgc cacctgacgt cgctagctgt acaaaaaagc
     2281 aggctttaaa ggaaccaatt cagtcgactg gatccggtac caaggtcggg caggaa
//
