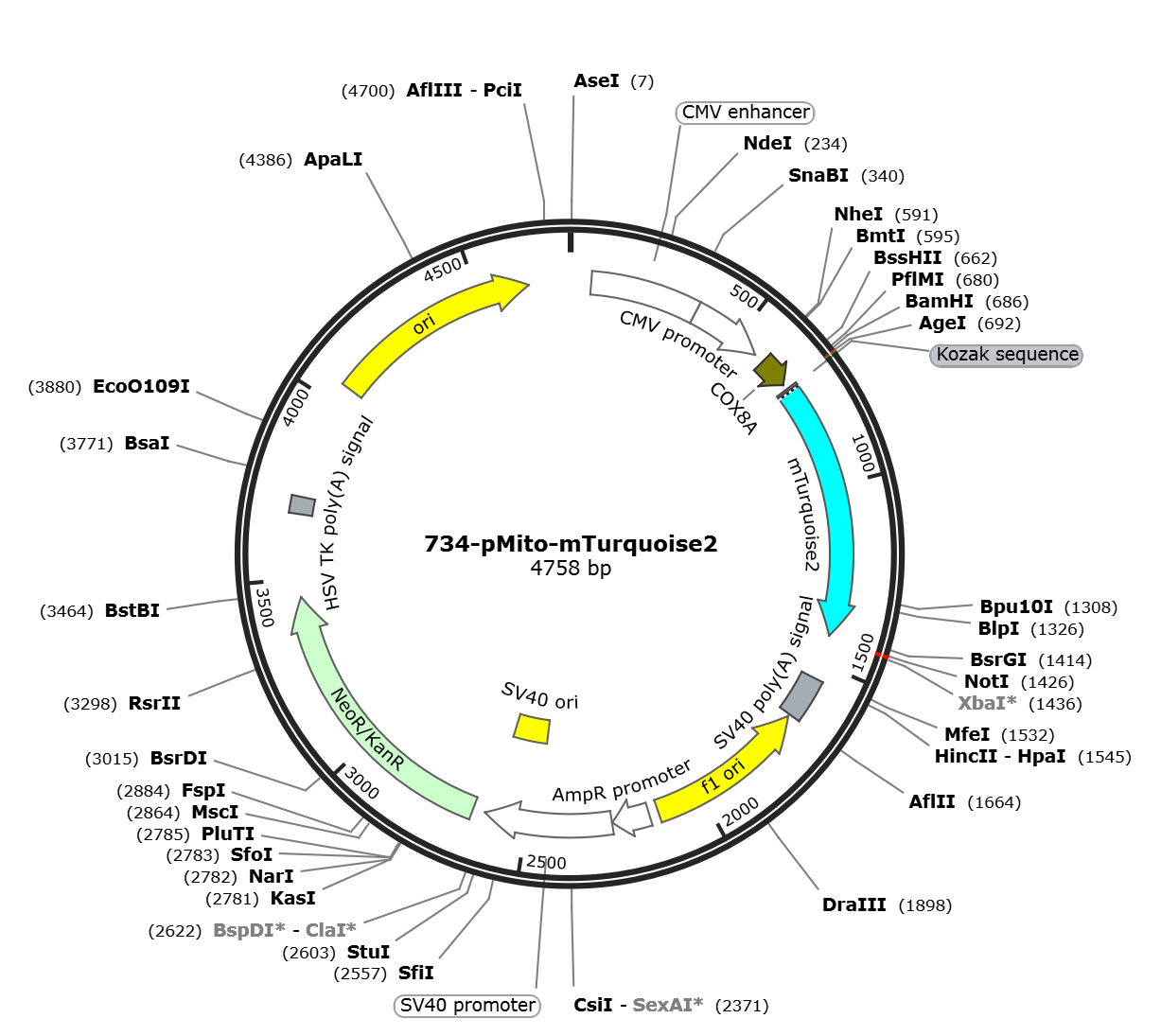

pMito-mTurquoise2

LOCUS       pMito-mTurquoise2            4758 bp DNA     circular SYN 09-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4758)
  AUTHORS   Shcherbakova DM, Verkhusha VV
  TITLE     Near-infrared fluorescent proteins for multicolor in vivo imaging.
  JOURNAL   Nat Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521.
  PUBMED    23770755
REFERENCE   2  (bases 1 to 4758)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Nat
            Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521."
FEATURES             Location/Qualifiers
     source          1..4758
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     464..483
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     CDS             597..683
                     /codon_start=1
                     /label=COX8A
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAKIHSL"
     primer_bind     685..724
                     /label=mNeonGreen_G183T-F
     regulatory      699..704
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             705..1421
                     /codon_start=1
                     /product="enhanced monomeric variant of CFP (Goedhart et
                     al., 2012)"
                     /label=mTurquoise2
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLSWGVQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYFSDNVYITADKQKNGIK
                     ANFKIRHNIEDGGVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     705..736
                     /label=Seq-1-Turq
     polyA_signal    1546..1667
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1583..1602)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1637..1656
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1674..2129)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1811..1832)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2023..2042
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2156..2260
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2262..2619
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2285..2305)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2470..2605
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2532..2551
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(2555..2566)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2654..3448
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2708..2727)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3318..3337
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3636..3655)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3680..3727
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4056..4644
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4545..4564
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgt
      601 ccgtcctgac gccgctgctg ctgcggggct tgacaggctc ggcccggcgg ctcccagtgc
      661 cgcgcgccaa gatccattcg ttgggggatc caccggtcgc caccatggtg agcaagggcg
      721 aggagctgtt caccggggtg gtgcccatcc tggtcgagct ggacggcgac gtaaacggcc
      781 acaagttcag cgtgtccggc gagggcgagg gcgatgccac ctacggcaag ctgaccctga
      841 agttcatctg caccaccggc aagctgcccg tgccctggcc caccctcgtg accaccctgt
      901 cctggggcgt gcagtgcttc gcccgctacc ccgaccacat gaagcagcac gacttcttca
      961 agtccgccat gcccgaaggc tacgtccagg agcgcaccat cttcttcaag gacgacggca
     1021 actacaagac ccgcgccgag gtgaagttcg agggcgacac cctggtgaac cgcatcgagc
     1081 tgaagggcat cgacttcaag gaggacggca acatcctggg gcacaagctg gagtacaact
     1141 actttagcga caacgtctat atcaccgccg acaagcagaa gaacggcatc aaggccaact
     1201 tcaagatccg ccacaacatc gaggacggcg gcgtgcagct cgccgaccac taccagcaga
     1261 acacccccat cggcgacggc cccgtgctgc tgcccgacaa ccactacctg agcacccagt
     1321 ccaagctgag caaagacccc aacgagaagc gcgatcacat ggtcctgctg gagttcgtga
     1381 ccgccgccgg gatcactctc ggcatggacg agctgtacaa gtaagcggcc gcgactctag
     1441 atcataatca gccataccac atttgtagag gttttacttg ctttaaaaaa cctcccacac
     1501 ctccccctga acctgaaaca taaaatgaat gcaattgttg ttgttaactt gtttattgca
     1561 gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa agcatttttt
     1621 tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttaagg cgtaaattgt
     1681 aagcgttaat attttgttaa aattcgcgtt aaatttttgt taaatcagct cattttttaa
     1741 ccaataggcc gaaatcggca aaatccctta taaatcaaaa gaatagaccg agatagggtt
     1801 gagtgttgtt ccagtttgga acaagagtcc actattaaag aacgtggact ccaacgtcaa
     1861 agggcgaaaa accgtctatc agggcgatgg cccactacgt gaaccatcac cctaatcaag
     1921 ttttttgggg tcgaggtgcc gtaaagcact aaatcggaac cctaaaggga gcccccgatt
     1981 tagagcttga cggggaaagc cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg
     2041 agcgggcgct agggcgctgg caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc
     2101 cgcgcttaat gcgccgctac agggcgcgtc aggtggcact tttcggggaa atgtgcgcgg
     2161 aacccctatt tgtttatttt tctaaataca ttcaaatatg tatccgctca tgagacaata
     2221 accctgataa atgcttcaat aatattgaaa aaggaagagt cctgaggcgg aaagaaccag
     2281 ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag gctccccagc aggcagaagt
     2341 atgcaaagca tgcatctcaa ttagtcagca accaggtgtg gaaagtcccc aggctcccca
     2401 gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccatagt cccgccccta
     2461 actccgccca tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga
     2521 ctaatttttt ttatttatgc agaggccgag gccgcctcgg cctctgagct attccagaag
     2581 tagtgaggag gcttttttgg aggcctaggc ttttgcaaag atcgatcaag agacaggatg
     2641 aggatcgttt cgcatgattg aacaagatgg attgcacgca ggttctccgg ccgcttgggt
     2701 ggagaggcta ttcggctatg actgggcaca acagacaatc ggctgctctg atgccgccgt
     2761 gttccggctg tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc
     2821 cctgaatgaa ctgcaagacg aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc
     2881 ttgcgcagct gtgctcgacg ttgtcactga agcgggaagg gactggctgc tattgggcga
     2941 agtgccgggg caggatctcc tgtcatctca ccttgctcct gccgagaaag tatccatcat
     3001 ggctgatgca atgcggcggc tgcatacgct tgatccggct acctgcccat tcgaccacca
     3061 agcgaaacat cgcatcgagc gagcacgtac tcggatggaa gccggtcttg tcgatcagga
     3121 tgatctggac gaagagcatc aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc
     3181 gagcatgccc gacggcgagg atctcgtcgt gacccatggc gatgcctgct tgccgaatat
     3241 catggtggaa aatggccgct tttctggatt catcgactgt ggccggctgg gtgtggcgga
     3301 ccgctatcag gacatagcgt tggctacccg tgatattgct gaagagcttg gcggcgaatg
     3361 ggctgaccgc ttcctcgtgc tttacggtat cgccgctccc gattcgcagc gcatcgcctt
     3421 ctatcgcctt cttgacgagt tcttctgagc gggactctgg ggttcgaaat gaccgaccaa
     3481 gcgacgccca acctgccatc acgagatttc gattccaccg ccgccttcta tgaaaggttg
     3541 ggcttcggaa tcgttttccg ggacgccggc tggatgatcc tccagcgcgg ggatctcatg
     3601 ctggagttct tcgcccaccc tagggggagg ctaactgaaa cacggaagga gacaataccg
     3661 gaaggaaccc gcgctatgac ggcaataaaa agacagaata aaacgcacgg tgttgggtcg
     3721 tttgttcata aacgcggggt tcggtcccag ggctggcact ctgtcgatac cccaccgaga
     3781 ccccattggg gccaatacgc ccgcgtttct tccttttccc caccccaccc cccaagttcg
     3841 ggtgaaggcc cagggctcgc agccaacgtc ggggcggcag gccctgccat agcctcaggt
     3901 tactcatata tactttagat tgatttaaaa cttcattttt aatttaaaag gatctaggtg
     3961 aagatccttt ttgataatct catgaccaaa atcccttaac gtgagttttc gttccactga
     4021 gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta
     4081 atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa
     4141 gagctaccaa ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact
     4201 gtccttctag tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca
     4261 tacctcgctc tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt
     4321 accgggttgg actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg
     4381 ggttcgtgca cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag
     4441 cgtgagctat gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta
     4501 agcggcaggg tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat
     4561 ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg
     4621 tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc
     4681 ttttgctggc cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac
     4741 cgtattaccg ccatgcat
//
