| 质粒名称: | pMal-c5x-bk1 |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0002154 |
| 产品用途: | Prokaryotic expression vector with Prokaryotic expression tags |
| 存储实验室: | Chen Caiyan Lab (陈彩艳实验室) |
|
载体骨架基本信息 |
|
| 载体名称: | pMal-c5x |
| 表达系统: | 细菌表达 |
| 启动子: |
tac
|
| 拷贝数: | 低拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | DH5alpha |
|
插入基因信息 |
|
| 插入基因名称: | MBP |
| 物种来源: | 无 |
| 密码子优化: | 未优化 |
买家导航
pMal-c5x-bk1载体质粒基本信息

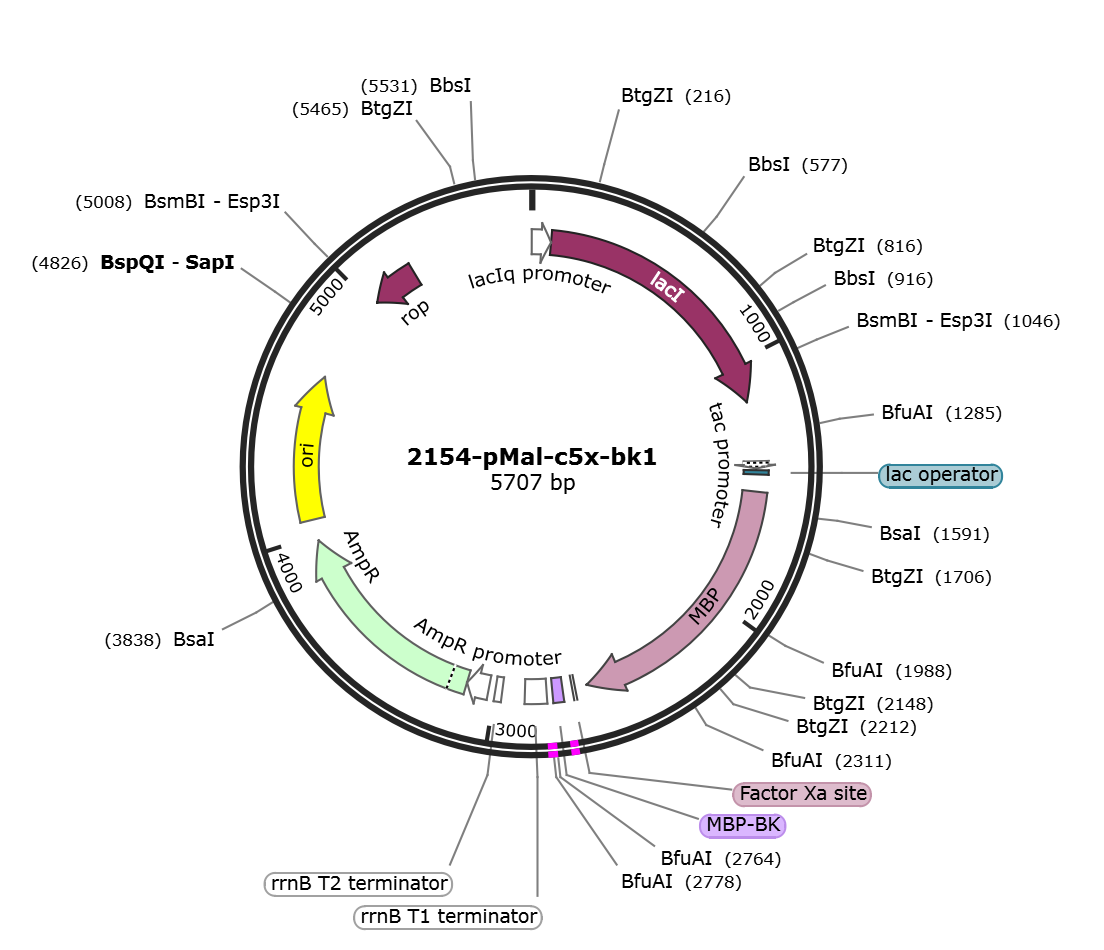

pMal-c5x-bk1质粒图谱载体图谱和pMal-c5x-bk1载体序列质粒序列多克隆位点信息
pMal-c5x-bk1质粒载体简介
pMal-c5x-bk1质粒序列载体序列
LOCUS pMal-c5x-bk1 5707 bp DNA circular SYN 03-APR-2026
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5707)
AUTHORS Triple Threat
TITLE Direct Submission
JOURNAL Exported Apr 21, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..5707
/mol_type="other DNA"
/organism="synthetic DNA construct"
promoter 3..80
/gene="lacI (mutant)"
/label=lacIq promoter
/note="In the lacIq allele, a single base change in the
promoter boosts expression of the lacI gene about 10-fold."
CDS 81..1163
/codon_start=1
/gene="lacI"
/product="lac repressor"
/label=lacI
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
/translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
ALADSLMQLARQVSRLESGQ"
promoter 1406..1434
/label=tac promoter
/note="strong E. coli promoter; hybrid between the trp and
lac UV5 promoters"
protein_bind 1442..1458
/label=lac operator
/bound_moiety="lac repressor encoded by lacI"
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
CDS 1528..2628
/codon_start=1
/gene="malE (mutated)"
/product="maltose binding protein from E. coli"
/label=MBP
/note="This version of the gene does not encode a signal
sequence, so MBP will remain in the cytosol."
/translation="MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLE
EKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKL
IAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIA
ADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGE
TAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFL
ENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAF
WYAVRTAVINAASGRQTVDEALKDAQT"
CDS 2677..2688
/codon_start=1
/product="Factor Xa recognition and cleavage site"
/label=Factor Xa site
/translation="IEGR"
misc_feature 2728..2769
/label=MBP-BK
terminator 2793..2879
/gene="Escherichia coli rrnB"
/label=rrnB T1 terminator
/note="transcription terminator T1 from the E. coli rrnB
gene"
terminator 2971..2998
/label=rrnB T2 terminator
/note="transcription terminator T2 from the E. coli rrnB
gene"
promoter 3026..3116
/gene="bla"
/label=AmpR promoter
CDS 3117..3977
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
rep_origin 4065..4653
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(5023..5214)
/codon_start=1
/gene="rop"
/product="Rop protein, which maintains plasmids at low copy
number"
/label=rop
/translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
DELYRSCLARFGDDGENL"
ORIGIN
1 ccgacaccat cgaatggtgc aaaacctttc gcggtatggc atgatagcgc ccggaagaga
61 gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca gagtatgccg
121 gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt tctgcgaaaa
181 cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac cgcgtggcac
241 aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt ctggccctgc
301 acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg ggtgccagcg
361 tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg gtgcacaatc
421 ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac caggatgcca
481 ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc tctgaccaga
541 cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc gtggagcatc
601 tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt tctgtctcgg
661 cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt cagccgatag
721 cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg caaatgctga
781 atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg ctgggcgcaa
841 tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatttcggta gtgggatacg
901 acgataccga agacagctca tgttatatcc cgccgttaac caccatcaaa caggattttc
961 gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc caggcggtga
1021 agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg gcgcccaata
1081 cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca cgacaggttt
1141 cccgactgga aagcgggcag tgagcgcaac gcaattaatg taagttagct cactcattag
1201 gcacaattct catgtttgac agcttatcat cgactgcacg gtgcaccaat gcttctggcg
1261 tcaggcagcc atcggaagct gtggtatggc tgtgcaggtc gtaaatcact gcataattcg
1321 tgtcgctcaa ggcgcactcc cgttctggat aatgtttttt gcgccgacat cataacggtt
1381 ctggcaaata ttctgaaatg agctgttgac aattaatcat cggctcgtat aatgtgtgga
1441 attgtgagcg gataacaatt tcacacagga aacagccagt ccgtttaggt gttttcacga
1501 gcaattgacc aacaaggacc atagattatg aaaatcgaag aaggtaaact ggtaatctgg
1561 attaacggcg ataaaggcta taacggtctc gctgaagtcg gtaagaaatt cgagaaagat
1621 accggaatta aagtcaccgt tgagcatccg gataaactgg aagagaaatt cccacaggtt
1681 gcggcaactg gcgatggccc tgacattatc ttctgggcac acgaccgctt tggtggctac
1741 gctcaatctg gcctgttggc tgaaatcacc ccggacaaag cgttccagga caagctgtat
1801 ccgtttacct gggatgccgt acgttacaac ggcaagctga ttgcttaccc gatcgctgtt
1861 gaagcgttat cgctgattta taacaaagat ctgctgccga acccgccaaa aacctgggaa
1921 gagatcccgg cgctggataa agaactgaaa gcgaaaggta agagcgcgct gatgttcaac
1981 ctgcaagaac cgtacttcac ctggccgctg attgctgctg acgggggtta tgcgttcaag
2041 tatgaaaacg gcaagtacga cattaaagac gtgggcgtgg ataacgctgg cgcgaaagcg
2101 ggtctgacct tcctggttga cctgattaaa aacaaacaca tgaatgcaga caccgattac
2161 tccatcgcag aagctgcctt taataaaggc gaaacagcga tgaccatcaa cggcccgtgg
2221 gcatggtcca acatcgacac cagcaaagtg aattatggtg taacggtact gccgaccttc
2281 aagggtcaac catccaaacc gttcgttggc gtgctgagcg caggtattaa cgccgccagt
2341 ccgaacaaag agctggcaaa agagttcctc gaaaactatc tgctgactga tgaaggtctg
2401 gaagcggtta ataaagacaa accgctgggt gccgtagcgc tgaagtctta cgaggaagag
2461 ttggtgaaag atccgcgtat tgccgccact atggaaaacg cccagaaagg tgaaatcatg
2521 ccgaacatcc cgcagatgtc cgctttctgg tatgccgtgc gtactgcggt gatcaacgcc
2581 gccagcggtc gtcagactgt cgatgaagcc ctgaaagacg cgcagactaa ttcgagctcg
2641 aacaacaaca acaataacaa taacaacaac ctcgggatcg agggaaggat ttcacatatg
2701 tccatgggcg gccgcgatat cgtcgaccag gtcgactctc gaggatccgg tacccggtat
2761 cgatttaaac ctgcaggtaa ttaaataagc ttcaaataaa acgaaaggct cagtcgaaag
2821 actgggcctt tcgttttatc tgttgtttgt cggtgaacgc tctcctgagt aggacaaatc
2881 cgccgggagc ggatttgaac gttgcgaagc aacggcccgg agggtggcgg gcaggacgcc
2941 cgccataaac tgccaggcat caaattaagc agaaggccat cctgacggat ggcctttttg
3001 cgtttctaca aactctttcg gtccgttgtt tatttttcta aatacattca aatatgtatc
3061 cgctcatgag acaataaccc tgataaatgc ttcaataata ttgaaaaagg aagagtatga
3121 gtattcaaca tttccgtgtc gcccttattc ccttttttgc ggcattttgc cttcctgttt
3181 ttgctcaccc agaaacgctg gtgaaagtaa aagatgctga agatcagttg ggtgcacgag
3241 tgggttacat cgaactggat ctcaacagcg gtaagatcct tgagagtttt cgccccgaag
3301 aacgtttccc aatgatgagc acttttaaag ttctgctatg tggcgcggta ttatcccgtg
3361 ttgacgccgg gcaagagcaa ctcggtcgcc gcatacacta ttctcagaat gacttggttg
3421 agtactcacc agtcacagaa aagcatctta cggatggcat gacagtaaga gaattatgca
3481 gtgctgccat aaccatgagt gataacactg cggccaactt acttctgaca acgatcggag
3541 gaccgaagga gctaaccgct tttttgcaca acatggggga tcatgtaact cgccttgatc
3601 gttgggaacc ggagctgaat gaagccatac caaacgacga gcgtgacacc acgatgcctg
3661 tagcaatggc aacaacgttg cgcaaactat taactggcga actacttact ctagcttccc
3721 ggcaacaatt aatagactgg atggaggcgg ataaagttgc aggaccactt ctgcgctcgg
3781 cccttccggc tggctggttt attgctgata aatctggagc cggtgagcgt gggtctcgcg
3841 gtatcattgc agcactgggg ccagatggta agccctcccg tatcgtagtt atctacacga
3901 cggggagtca ggcaactatg gatgaacgaa atagacagat cgctgagata ggtgcctcac
3961 tgattaagca ttggtaactg tcagaccaag tttactcata tatactttag attgatttcc
4021 ttaggactga gcgtcaaccc cgtagaaaag atcaaaggat cttcttgaga tccttttttt
4081 ctgcgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc taccagcggt ggtttgtttg
4141 ccggatcaag agctaccaac tctttttccg aaggtaactg gcttcagcag agcgcagata
4201 ccaaatactg tccttctagt gtagccgtag ttaggccacc acttcaagaa ctctgtagca
4261 ccgcctacat acctcgctct gctaatcctg ttaccagtgg ctgctgccag tggcgataag
4321 tcgtgtctta ccgggttgga ctcaagacga tagttaccgg ataaggcgca gcggtcgggc
4381 tgaacggggg gttcgtgcac acagcccagc ttggagcgaa cgacctacac cgaactgaga
4441 tacctacagc gtgagctatg agaaagcgcc acgcttcccg aagggagaaa ggcggacagg
4501 tatccggtaa gcggcagggt cggaacagga gagcgcacga gggagcttcc agggggaaac
4561 gcctggtatc tttatagtcc tgtcgggttt cgccacctct gacttgagcg tcgatttttg
4621 tgatgctcgt caggggggcg gagcctatgg aaaaacgcca gcaacgcggc ctttttacgg
4681 ttcctggcct tttgctggcc ttttgctcac atgttctttc ctgcgttatc ccctgattct
4741 gtggataacc gtattaccgc ctttgagtga gctgataccg ctcgccgcag ccgaacgacc
4801 gagcgcagcg agtcagtgag cgaggaagcg gaagagcgcc tgatgcggta ttttctcctt
4861 acgcatctgt gcggtatttc acaccgcata taaggtgcac tgtgactggg tcatggctgc
4921 gccccgacac ccgccaacac ccgctgacgc gccctgacgg gcttgtctgc tcccggcatc
4981 cgcttacaga caagctgtga ccgtctccgg gagctgcatg tgtcagaggt tttcaccgtc
5041 atcaccgaaa cgcgcgaggc agctgcggta aagctcatca gcgtggtcgt gcagcgattc
5101 acagatgtct gcctgttcat ccgcgtccag ctcgttgagt ttctccagaa gcgttaatgt
5161 ctggcttctg ataaagcggg ccatgttaag ggcggttttt tcctgtttgg tcactgatgc
5221 ctccgtgtaa gggggatttc tgttcatggg ggtaatgata ccgatgaaac gagagaggat
5281 gctcacgata cgggttactg atgatgaaca tgcccggtta ctggaacgtt gtgagggtaa
5341 acaactggcg gtatggatgc ggcgggacca gagaaaaatc actcagggtc aatgccagcg
5401 cttcgttaat acagatgtag gtgttccaca gggtagccag cagcatcctg cgatgcagat
5461 ccggaacata atggtgcagg gcgctgactt ccgcgtttcc agactttacg aaacacggaa
5521 accgaagacc attcatgttg ttgctcaggt cgcagacgtt ttgcagcagc agtcgcttca
5581 cgttcgctcg cgtatcggtg attcattctg ctaaccagta aggcaacccc gccagcctag
5641 ccgggtcctc aacgacagga gcacgatcat gcgcacccgt ggccaggacc caacgctgcc
5701 cgaaatt
//
pMal-c5x-bk1载体图谱质粒图谱pdf版和pMal-c5x-bk1载体序列质粒序列等相关资料下载
pMal-c5x-bk1质粒载体应用举例
