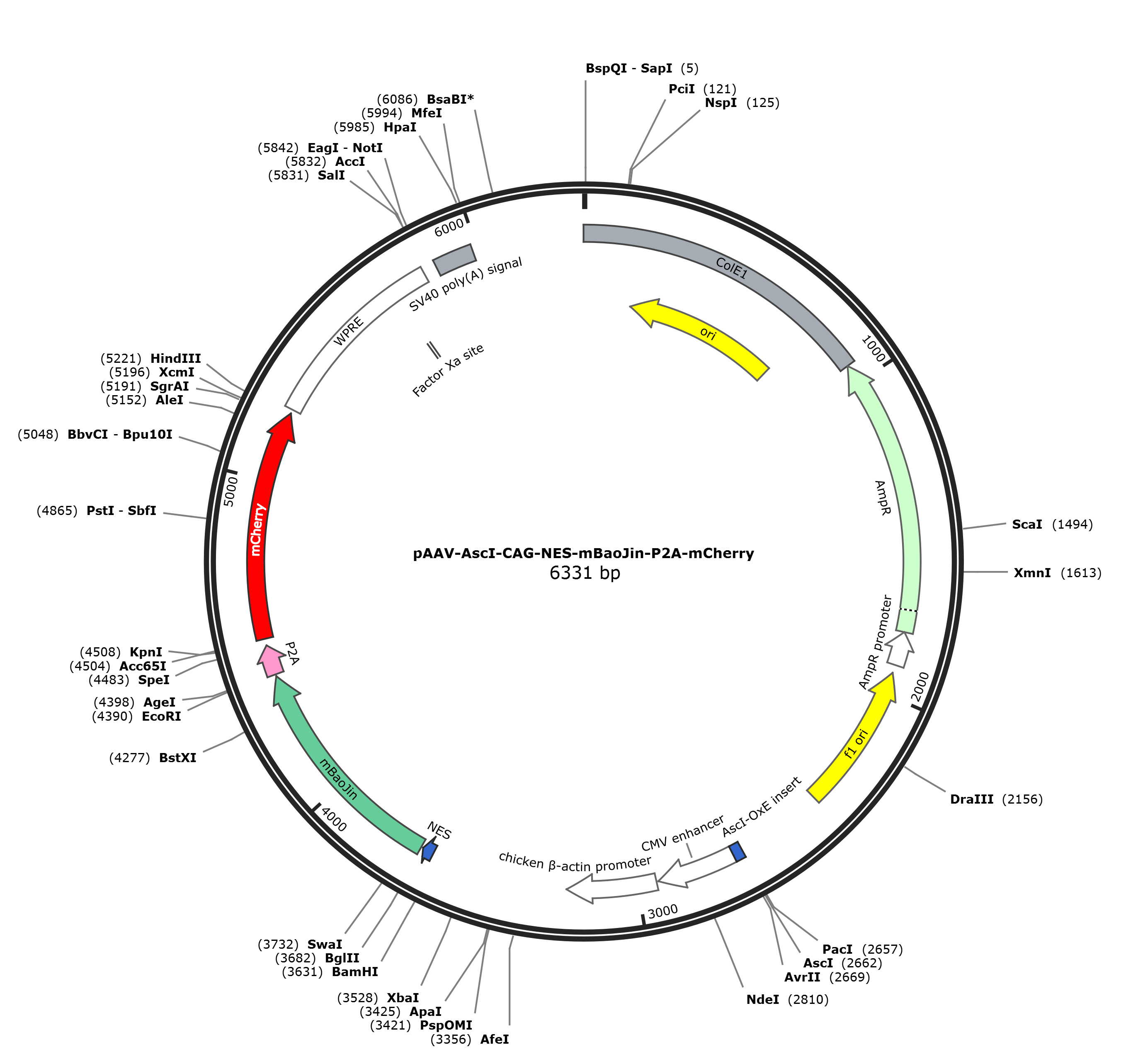

pAAV-AscI-CAG-NES-mBaoJin-P2A-mCherry

LOCUS       pAAV-AscI-CAG-NES-mBaoJin-P2A-mCherry              6328 bp DNA     circular SYN 17-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6328)
  AUTHORS   Vax
  TITLE     Direct Submission
  JOURNAL   Exported Jul 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6328
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     rep_origin      complement(182..770)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(941..1801)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(1802..1906)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(1932..2387)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     misc_feature    2661..2691
                     /label=AscI-OxE insert
                     /label=AscI-OxE\insert
                     /note="/vntifkey=21"
     misc_feature    2692..2935
                     /label=CMV enhancer
                     /label=CMV\enhancer
                     /note="/vntifkey=21"
     promoter        2942..3219
                     /label=chicken beta-actin promoter
     CDS             3643..3678
                     /codon_start=1
                     /label=NES
                     /note="/vntifkey=21"
                     /translation="LQLPPLERLTLS"
     CDS             3685..4386
                     /codon_start=1
                     /label=mBaoJin
                     /label=mStayGold
                     /note="/vntifkey=21"
                     /translation="MVSKGEEENMASTPFKFQLKGTINGKSFTVEGEGEGNSHEGSHKG
                     KYVCTSGKLPMSWAALGTTFGYGMKYYTKYPSGLKNWFREVMPGGFTYDRHIQYKGDGS
                     IHAKHQHFMKNGTYHNIVEFTGQDFKENSPVLTGDMNVSLPNEVPQIPRDDGVECPVTL
                     LYPLLSDKSKYVEAHQYTICKPLHNQPAPDVPYHWIRKQYTQSKDDAEERDHICQSETL
                     EAHLKGMDELYK"
     CDS             4393..4485
                     /codon_start=1
                     /label=P2A
                     /note="/vntifkey=21"
                     /translation="RPVHVGSGATNFSLLKQAGDVEENPGPHVTS"
     CDS             4507..5217
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    5230..5818
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5701..5712)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    5861..5982
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     misc_feature    join(6328,1..940)
                     /label=ColE1
                     /note="ColE1"
ORIGIN
        1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
       61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
      121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
      181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
      241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
      301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
      361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
      421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
      481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
      541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
      601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
      661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
      721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
      781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
      841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
      901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
      961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
     1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
     2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
     2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
     2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
     2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
     2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
     2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
     2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
     2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
     2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
     2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
     2641 gaagatcgta ggttaattaa ggcgcgcccc taggggagat ggccagccag cccattgacg
     2701 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
     2761 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
     2821 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
     2881 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
     2941 gtcgaggtga gccccacgtt ctgcttcact ctccccatct cccccccctc cccaccccca
     3001 attttgtatt tatttatttt ttaattattt tgtgcagcga tgggggcggg gggggggggg
     3061 gggcgcgcgc caggcggggc ggggcggggc gaggggcggg gcggggcgag gcggagaggt
     3121 gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc cttttatggc gaggcggcgg
     3181 cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg gagtcgctgc gcgctgcctt
     3241 cgccccgtgc cccgctccgc cgccgcctcg cgccgcccgc cccggctctg actgaccgcg
     3301 ttactcccac aggtgagcgg gcgggacggc ccttctcctc cgggctgtaa ttagcgcttg
     3361 gtttaatgac ggcttgtttc ttttctgtgg ctgcgtgaaa gccttgaggg gctccgggag
     3421 ggccctttgt gcggggggag cggctcgggg ctgtccgcgg ggggacggct gccttcgggg
     3481 gggacggggc agggcggggt tcggcttctg gcgtgtgacc ggcggctcta gagcctctgc
     3541 taaccatgtt catgccttct tctttttcct acagctcctg ggcaacgtgc tggttattgt
     3601 gctgtctcat cattttggca aagaattgga tccgacacca tgcttcaact tcctcctctt
     3661 gaacgtctta ctctttcgag atctatggtc tcaaagggag aggaggaaaa catggctagt
     3721 acaccattta aatttcaact taaaggaacc atcaatggca aatcgtttac cgttgaaggc
     3781 gaaggtgaag ggaactcaca tgaaggttct cataaaggaa aatatgtttg tacaagtgga
     3841 aaactaccga tgtcatgggc agcacttggg acaacctttg gttatggaat gaaatattat
     3901 accaaatatc ctagtggact gaagaactgg tttcgtgaag taatgcccgg aggctttacc
     3961 tacgatcgtc atattcaata taaaggcgat gggagtatcc atgcaaaaca ccaacacttt
     4021 atgaaaaatg ggacttatca caacattgta gaatttaccg gtcaggattt taaagaaaat
     4081 agtccagtct taactggaga tatgaatgtc tcattaccga atgaagtccc acaaataccc
     4141 agagatgatg gagtagaatg cccagtgacc ttgctttatc ctttattatc ggataaatca
     4201 aaatacgtcg aggctcacca atatacaatc tgcaagcctc ttcataatca accagcacct
     4261 gatgtcccat atcactggat tcgtaaacaa tacacacaaa gcaaagatga tgccgaggaa
     4321 cgcgatcata tctgtcaatc agagactctc gaagcacact taaagggcat ggacgagctg
     4381 tataaggaat tccgaccggt tcacgtggga agtggggcta caaacttctc actgctgaaa
     4441 caggccgggg atgtggagga aaacccagga ccacacgtga ctagtggtgg ttctggttct
     4501 ggtaccatgg tgagcaaggg cgaggaggat aacatggcca tcatcaagga gttcatgcgc
     4561 ttcaaggtgc acatggaggg ctccgtgaac ggccacgagt tcgagatcga gggcgagggc
     4621 gagggccgcc cctacgaggg cacccagacc gccaagctga aggtgaccaa gggtggcccc
     4681 ctgcccttcg cctgggacat cctgtcccct cagttcatgt acggctccaa ggcctacgtg
     4741 aagcaccccg ccgacatccc cgactacttg aagctgtcct tccccgaggg cttcaagtgg
     4801 gagcgcgtga tgaacttcga ggacggcggc gtggtgaccg tgacccagga ctcctccctg
     4861 caggacggcg agttcatcta caaggtgaag ctgcgcggca ccaacttccc ctccgacggc
     4921 cccgtaatgc agaagaagac catgggctgg gaggcctcct ccgagcggat gtaccccgag
     4981 gacggcgccc tgaagggcga gatcaagcag aggctgaagc tgaaggacgg cggccactac
     5041 gacgctgagg tcaagaccac ctacaaggcc aagaagcccg tgcagctgcc cggcgcctac
     5101 aacgtcaaca tcaagttgga catcacctcc cacaacgagg actacaccat cgtggaacag
     5161 tacgaacgcg ccgagggccg ccactccacc ggcggcatgg acgagctgta taagtaaaag
     5221 cttatcgata atcaacctct ggattacaaa atttgtgaaa gattgactgg tattcttaac
     5281 tatgttgctc cttttacgct atgtggatac gctgctttaa tgcctttgta tcatgctatt
     5341 gcttcccgta tggctttcat tttctcctcc ttgtataaat cctggttgct gtctctttat
     5401 gaggagttgt ggcccgttgt caggcaacgt ggcgtggtgt gcactgtgtt tgctgacgca
     5461 acccccactg gttggggcat tgccaccacc tgtcagctcc tttccgggac tttcgctttc
     5521 cccctcccta ttgccacggc ggaactcatc gccgcctgcc ttgcccgctg ctggacaggg
     5581 gctcggctgt tgggcactga caattccgtg gtgttgtcgg ggaaatcatc gtcctttcct
     5641 tggctgctcg cctgtgttgc cacctggatt ctgcgcggga cgtccttctg ctacgtccct
     5701 tcggccctca atccagcgga ccttccttcc cgcggcctgc tgccggctct gcggcctctt
     5761 ccgcgtcttc gccttcgccc tcagacgagt cggatctccc tttgggccgc ctccccgcat
     5821 cgataccgtc gacccgggcg gccgcttcga gcagacatga taagatacat tgatgagttt
     5881 ggacaaacca caactagaat gcagtgaaaa aaatgcttta tttgtgaaat ttgtgatgct
     5941 attgctttat ttgtaaccat tataagctgc aataaacaag ttaacaacaa caattgcatt
     6001 cattttatgt ttcaggttca gggggagatg tgggaggttt tttaaagcaa gtaaaacctc
     6061 tacaaatgtg gtaaaatcga taaggatctt cctagagcat ggctacgtag ataagtagca
     6121 tggcgggtta atcattaact acaaggaacc cctagtgatg gagttggcca ctccctctct
     6181 gcgcgctcgc tcgctcactg aggccgggcg accaaaggtc gcccgacgcc cgggctttgc
     6241 ccgggcggcc tcagtgagcg agcgagcgcg cagctgcatt aatgaatcgg ccaacgcgcg
     6301 gggagaggcg gtttgcgtat tgggcgct
//
