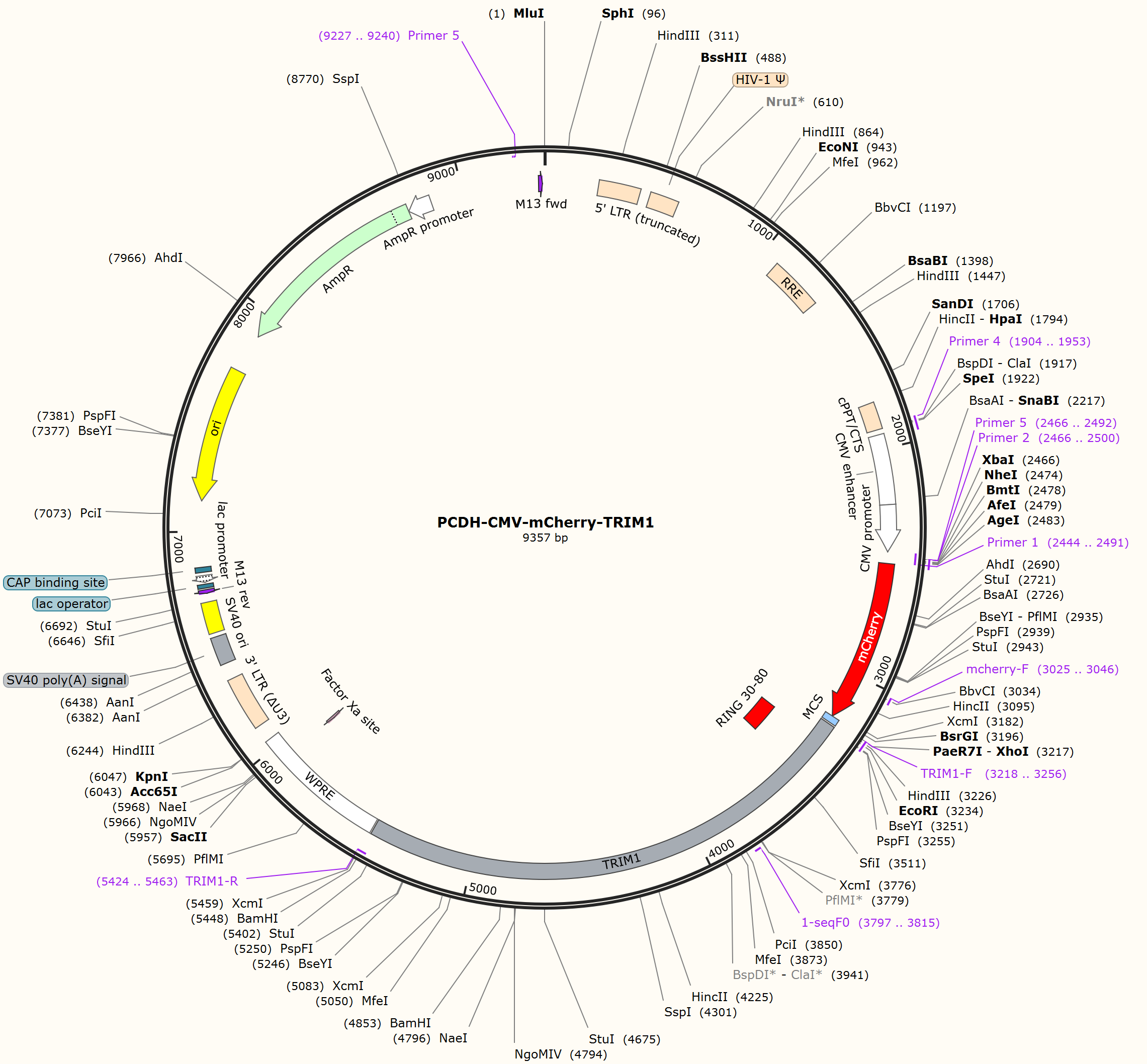

PCDH-CMV-mCherry-TRIM1

LOCUS      PCDH-CMV-mCherry-TRIM1             9357 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9357)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9357
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3218..3256
                     /label=TRIM1-F
     misc_feature    3240..5447
                     /label=TRIM1
     misc_feature    3327..3476
                     /label=RING 30-80
     primer_bind     3797..3815
                     /label=1-seqF0
     primer_bind     complement(5424..5463)
                     /label=TRIM1-R
     misc_feature    5454..6041
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5925..5936)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             6114..6347
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6419..6540
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6559..6694
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6732..6748)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6756..6772
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6780..6810)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6825..6846
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(7134..7722)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7893..8753)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8754..8858)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(9227..9240)
                     /label=Primer 5
     primer_bind     9332..9348
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgggtgaaag cccagcctcc gtggttctta atgcctcagg aggactattt tcactaaaga
     3301 tggaaacact ggagtctgaa ttgacctgtc caatctgcct agagttgttt gaagaccccc
     3361 ttctgctccc ttgtgctcac agcctctgct tcagctgtgc ccatcgcatt ttggtatcaa
     3421 gctgcagctc tggtgaatcc attgaaccca ttactgcttt ccagtgtcct acctgcaggt
     3481 atgttatctc gctgaaccac cggggcctgg atggcctcaa gaggaatgtg actctgcaga
     3541 acattattga tcgcttccag aaggcttcag tcagtgggcc caattcccct agtgagagcc
     3601 gccgggaaag gacttacagg cccaccactg ccatgtctag cgagcgaatt gcttgccaat
     3661 tctgtgagca ggacccgcca agggatgcag taaaaacatg catcacctgt gaggtctcct
     3721 actgtgaccg ttgcctgcgg gccacgcacc ccaacaagaa acctttcacc agccaccgcc
     3781 tggtggaacc agtgccagac acacatcttc gagggatcac ctgcctggac catgagaatg
     3841 agaaagtgaa catgtactgt gtatctgatg accaattgat ctgtgcctta tgcaaactgg
     3901 tgggtcgtca ccgagaccat caggtcgcat ccctgaatga tcgatttgag aaactcaagc
     3961 aaactctgga gatgaacctc accaacctgg ttaagcgcaa cagcgaacta gaaaatcaaa
     4021 tggccaaact aatacagatc tgccagcagg ttgaggtgaa tactgctatg catgaggcaa
     4081 aacttatgga agaatgtgac gagttggtag agatcatcca gcagaggaag caaatgatcg
     4141 ctgtcaaaat caaagagaca aaggttatga aactgagaaa gttggcacag caggttgcta
     4201 attgccgcca gtgtcttgaa cggtcaacag tcctcatcaa ccaagctgag catatcctga
     4261 aagaaaatga ccaggcacgg tttctacagt ctgcaaaaaa tattgctgag agggtcgcta
     4321 tggcaactgc atcttctcaa gttctgattc cagacatcaa ttttaatgat gcctttgaaa
     4381 actttgcttt agatttttcc agagaaaaga aactgctaga ggggttagat tatttaacag
     4441 ccccaaaccc accatctatc cgagaagaac tctgtactgc ctcccatgac accattacag
     4501 tccactggat ctcggatgat gagttcagca tcagctccta tgagcttcag tacaccatat
     4561 tcactggcca ggctaacttc atcagtaagt catggtgtag ttggggcctg tggccagaga
     4621 taaggaaatg taaggaagca gtaagctgct caagattggc cggggcgcca cgaggcctgt
     4681 ataattcagt agacagctgg atgattgttc ccaacattaa acagaaccat tacacagtgc
     4741 atggactcca gagcgggact cgctacatct tcatcgttaa agccataaac caagccggca
     4801 gccggaacag tgaacctacc cgactaaaaa caaacagcca accctttaaa ttggatccca
     4861 aaatgactca caagaagttg aagatctcca atgatggatt gcagatggag aaggatgaaa
     4921 gctctctaaa gaagagccac accccagaga ggtttagtgg cacagggtgc tatggggcag
     4981 caggaaatat attcattgac agtggctgcc actattggga ggtggtcatg ggttcctcaa
     5041 catggtatgc aattggcatt gcctacaaat cagctccaaa gaatgaatgg attggcaaga
     5101 atgcctcctc atgggtcttc tctcgctgca atagtaactt cgtggtgaga cacaacaaca
     5161 aggaaatgct ggtggatgtg cccccacacc tgaagcgtct gggtgtcctc ctggattatg
     5221 acaacaatat gctgtctttc tatgacccag ctaactctct ccatcttcat acttttgatg
     5281 tgaccttcat tcttccagtt tgtccaacat ttacaatctg gaacaaatcc ctaatgatcc
     5341 tgtctggctt gcctgcccca gattttattg attaccctga gcggcaggaa tgcaactgca
     5401 ggcctcaaga atccccttat gtttctggga tgaaaacctg tcattaagga tccaatcaac
     5461 ctctggatta caaaatttgt gaaagattga ctggtattct taactatgtt gctcctttta
     5521 cgctatgtgg atacgctgct ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt
     5581 tcattttctc ctccttgtat aaatcctggt tgctgtctct ttatgaggag ttgtggcccg
     5641 ttgtcaggca acgtggcgtg gtgtgcactg tgtttgctga cgcaaccccc actggttggg
     5701 gcattgccac cacctgtcag ctcctttccg ggactttcgc tttccccctc cctattgcca
     5761 cggcggaact catcgccgcc tgccttgccc gctgctggac aggggctcgg ctgttgggca
     5821 ctgacaattc cgtggtgttg tcggggaagc tgacgtcctt tccatggctg ctcgcctgtg
     5881 ttgccacctg gattctgcgc gggacgtcct tctgctacgt cccttcggcc ctcaatccag
     5941 cggaccttcc ttcccgcggc ctgctgccgg ctctgcggcc tcttccgcgt ctccgccttc
     6001 gccctcagac gagtcggatc tccctttggc cgcctccccg ccggtacctt taagaccaat
     6061 gacttacaag gcagctgtag atcttagcca ctttttaaaa gaaaaggggg gactggaagg
     6121 gctaattcac tcccaacgaa aataagatct gctttttgct tgtactgggt ctctctggtt
     6181 agaccagatc tgagcctggg agctctctgg ctaactaggg aacccactgc ttaagcctca
     6241 ataaagcttg ccttgagtgc ttcaagtagt gtgtgcccgt ctgttgtgtg actctggtaa
     6301 ctagagatcc ctcagaccct tttagtcagt gtggaaaatc tctagcagta gtagttcatg
     6361 tcatcttatt attcagtatt tataacttgc aaagaaatga atatcagaga gtgagaggaa
     6421 cttgtttatt gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa
     6481 taaagcattt ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta
     6541 tcatgtctgg ctctagctat cccgccccta actccgccca gttccgccca ttctccgccc
     6601 catggctgac taattttttt tatttatgca gaggccgagg ccgcctcggc ctctgagcta
     6661 ttccagaagt agtgaggagg cttttttgga ggcctagact tttgcagaga cggcccaaat
     6721 tcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac
     6781 aacatacgag ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc
     6841 acattaattg cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg
     6901 cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct
     6961 tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac
     7021 tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga
     7081 gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat
     7141 aggctccgcc cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac
     7201 ccgacaggac tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct
     7261 gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg
     7321 ctttctcata gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg
     7381 ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt
     7441 cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg
     7501 attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac
     7561 ggctacacta gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga
     7621 aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt
     7681 gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt
     7741 tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga
     7801 ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc
     7861 taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct
     7921 atctcagcga tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata
     7981 actacgatac gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca
     8041 cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga
     8101 agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga
     8161 gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg
     8221 gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga
     8281 gttacatgat cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt
     8341 gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct
     8401 cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca
     8461 ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat
     8521 accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga
     8581 aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc
     8641 aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg
     8701 caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc
     8761 ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt
     8821 gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca
     8881 cctgacgtct aagaaaccat tattatcatg acattaacct ataaaaatag gcgtatcacg
     8941 aggccctttc gtctcgcgcg tttcggtgat gacggtgaaa acctctgaca catgcagctc
     9001 ccggagacgg tcacagcttg tctgtaagcg gatgccggga gcagacaagc ccgtcagggc
     9061 gcgtcagcgg gtgttggcgg gtgtcggggc tggcttaact atgcggcatc agagcagatt
     9121 gtactgagag tgcaccatat gcggtgtgaa ataccgcaca gatgcgtaag gagaaaatac
     9181 cgcatcaggc gccattcgcc attcaggctg cgcaactgtt gggaagggcg atcggtgcgg
     9241 gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctgcaaggcg attaagttgg
     9301 gtaacgccag ggttttccca gtcacgacgt tgtaaaacga cggccagtgc caagctg
//
