pEarleyGate103

LOCUS       Exported               12411 bp ds-DNA     circular SYN 26-JUL-2016
DEFINITION  Gateway(R)-compatible plant transformation vector with GFP and 6xHis
            C-terminal tags.
ACCESSION   .
VERSION     .
KEYWORDS    pEarleyGate 103
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 12411)
  AUTHORS   Earley KW, Haag JR, Pontes O, Opper K, Juehne T, Song K, Pikaard CS.
  TITLE     Gateway-compatible vectors for plant functional genomics and
            proteomics.
  JOURNAL   Plant J. 2006;45:616-29.
  PUBMED    16441352
REFERENCE   2  (bases 1 to 12411)
  AUTHORS   Pikaard Lab
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, July 26, 2016 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
COMMENT     The sequence was corrected by inserting a G at position 8519.

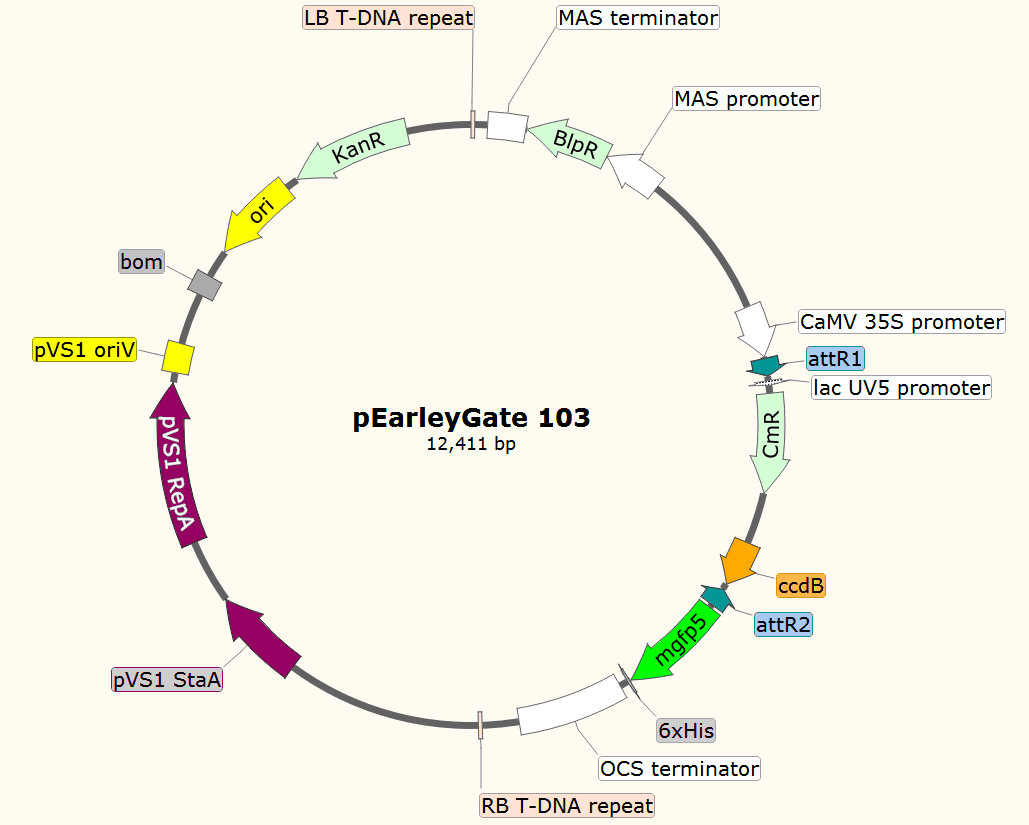

FEATURES             Location/Qualifiers
     source          1..12411
                     /organism="synthetic DNA construct"
                     /lab_host="Plant Cells"
                     /mol_type="other DNA"
     misc_feature    1..25
                     /note="LB T-DNA repeat"
                     /note="left border repeat from nopaline C58 T-DNA"
     terminator      111..363
                     /note="MAS terminator"
                     /note="mannopine synthase terminator"
     CDS             complement(373..924)
                     /codon_start=1
                     /gene="Streptomyces hygroscopicus bar"
                     /product="phosphinothricin acetyltransferase"
                     /note="BlpR"
                     /note="confers resistance to bialophos or phosphinothricin"
                     /translation="MSPERRPADIRRATEADMPAVCTIVNHYIETSTVNFRTEPQEPQE
                     WTDDLVRLRERYPWLVAEVDGEVAGIAYAGPWKARNAYDWTAESTVYVSPRHQRTGLGS
                     TLYTHLLKSLEAQGFKSVVAVIGLPNDPSVRMHEALGYAPRGMLRAAGFKHGNWHDVGF
                     WQLDFSLPVPPRPVLPVTEI"
     promoter        complement(930..1310)
                     /note="MAS promoter"
                     /note="mannopine synthase promoter (Velten et al., 1984)"
     promoter        2306..2651
                     /note="CaMV 35S promoter"
                     /note="strong constitutive promoter from cauliflower mosaic
                     virus"
     protein_bind    2663..2782
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR1"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        2812..2842
                     /note="lac UV5 promoter"
                     /note="E. coli lac promoter with an ""up"" mutation"
     CDS             2896..3555
                     /codon_start=1
                     /gene="cat"
                     /product="chloramphenicol acetyltransferase"
                     /note="CmR"
                     /note="confers resistance to chloramphenicol"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL
                     KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS
                     LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM
                     DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA"
     CDS             3897..4202
                     /codon_start=1
                     /gene="ccdB"
                     /product="CcdB, a bacterial toxin that poisons DNA gyrase"
                     /note="ccdB"
                     /note="Plasmids containing the ccdB gene cannot be
                     propagated in standard E. coli strains."
                     /translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK
                     VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI"
     protein_bind    complement(4243..4367)
                     /gene="mutant version of attR"
                     /bound_moiety="LR Clonase(TM)"
                     /note="attR2"
                     /note="recombination site for the Gateway(R) LR reaction"
     CDS             4390..5100
                     /codon_start=1
                     /gene="mgfp5"
                     /product="GFP with folding enhancement mutations"
                     /note="mgfp5"
                     /note="suitable for expression in plants due to removal of
                     a cryptic intron"
                     /translation="SKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKF
                     ICTTGKLPVPWPTLVTTFSYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTIFFKDDGN
                     YKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKAN
                     FKTRHNIEDGGVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEF
                     VTAAGITHGMDELYK"
     CDS             5107..5124
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /note="6xHis"
                     /translation="HHHHHH"
     terminator      5182..5889
                     /note="OCS terminator"
                     /note="octopine synthase terminator"
     misc_feature    6133..6157
                     /note="RB T-DNA repeat"
                     /note="right border repeat from nopaline C58 T-DNA"
     CDS             7457..8086
                     /codon_start=1
                     /product="stability protein from Pseudomonas plasmid pVS1"
                     /note="pVS1 StaA"
                     /translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR
                     DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP
                     VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI
                     LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI"
     CDS             8515..9588
                     /codon_start=1
                     /product="replication protein from Pseudomonas plasmid
                     pVS1"
                     /note="pVS1 RepA"
                     /translation="MSGRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESW
                     QAAADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLS
                     KRDRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKP
                     GRVFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGE
                     ALISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYR
                     LARRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPI
                     LVMRYRNLIEGEASAGS"
     rep_origin      9654..9848
                     /note="pVS1 oriV"
                     /note="origin of replication for the Pseudomonas plasmid
                     pVS1 (Heeb et al., 2000)"
     misc_feature    10192..10332
                     /note="bom"
                     /note="basis of mobility region from pBR322"
     rep_origin      complement(10518..11106)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(11193..11987)
                     /codon_start=1
                     /gene="aphA-3"
                     /product="aminoglycoside phosphotransferase"
                     /note="KanR"
                     /note="confers resistance to kanamycin"
                     /translation="MAKMRISPELKKLIEKYRCVKDTEGMSPAKVYKLVGENENLYLKM
                     TDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEEYED
                     EQSPEKIIELYAECIRLFHSIDISDCPYTNSLDSRLAELDYLLNNDLADVDCENWEEDT
                     PFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKWYDIA
                     FCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF"
ORIGIN
        1 tggcaggata tattgtggtg taaacaaatt gacgcttaga caacttaata acacattgcg
       61 gacgttttta atgtactgaa ttaacgccga attaattcga gctcggatct gataatttat
      121 ttgaaaattc ataagaaaag caaacgttac atgaattgat gaaacaatac aaagacagat
      181 aaagccacgc acatttagga tattggccga gattactgaa tattgagtaa gatcacggaa
      241 tttctgacag gagcatgtct tcaattcagc ccaaatggca gttgaaatac tcaaaccgcc
      301 ccatatgcag gagcggatca ttcattgttt gtttggttgc ctttgccaac atgggagtcc
      361 aagattctgc agtcaaatct cggtgacggg caggaccgga cggggcggta ccggcaggct
      421 gaagtccagc tgccagaaac ccacgtcatg ccagttcccg tgcttgaagc cggccgcccg
      481 cagcatgccg cggggggcat atccgagcgc ctcgtgcatg cgcacgctcg ggtcgttggg
      541 cagcccgatg acagcgacca cgctcttgaa gccctgtgcc tccagggact tcagcaggtg
      601 ggtgtagagc gtggagccca gtcccgtccg ctggtggcgg ggggagacgt acacggtcga
      661 ctcggccgtc cagtcgtagg cgttgcgtgc cttccagggg cccgcgtagg cgatgccggc
      721 gacctcgccg tccacctcgg cgacgagcca gggatagcgc tcccgcagac ggacgaggtc
      781 gtccgtccac tcctgcggtt cctgcggctc ggtacggaag ttgaccgtgc ttgtctcgat
      841 gtagtggttg acgatggtgc agaccgccgg catgtccgcc tcggtggcac ggcggatgtc
      901 ggccgggcgt cgttctgggc tcatcgattc gatttggtgt atcgagattg gttatgaaat
      961 tcagatgcta gtgtaatgta ttggtaattt gggaagatat aataggaagc aaggctattt
     1021 atccatttct gaaaaggcga aatggcgtca ccgcgagcgt cacgcgcatt ccgttcttgc
     1081 tgtaaagcgt tgtttggtac acttttgact agcgaggctt ggcgtgtcag cgtatctatt
     1141 caaaagtcgt taatggctgc ggatcaagaa aaagttggaa tagaaacaga atacccgcga
     1201 aattcaggcc cggttgccat gtcctacacg ccgaaataaa cgaccaaatt agtagaaaaa
     1261 taaaaactga ctcggatact tacgtcacgt cttgcgcact gatttgaaaa atctcagaat
     1321 tccaatccca caaaaatctg agcttaacag cacagttgct cctctcagag cagaatcggg
     1381 tattcaacac cctcatatca actactacgt tgtgtataac ggtccacatg ccggtatata
     1441 cgatgactgg ggttgtacaa aggcggcaac aaacggcgtt cccggagttg cacacaagaa
     1501 atttgccact attacagagg caagagcagc agctgacgcg tacacaacaa gtcagcaaac
     1561 agacaggttg aacttcatcc ccaaaggaga agctcaactc aagcccaaga gctttgctaa
     1621 ggccctaaca agcccaccaa agcaaaaagc ccactggctc acgctaggaa ccaaaaggcc
     1681 cagcagtgat ccagccccaa aagagatctc ctttgccccg gagattacaa tggacgattt
     1741 cctctatctt tacgatctag gaaggaagtt cgaaggtgaa ggtgacgaca ctatgttcac
     1801 cactgataat gagaaggtta gcctcttcaa tttcagaaag aatgctgacc cacagatggt
     1861 tagagaggcc tacgcagcag gtctcatcaa gacgatctac ccgagtaaca atctccagga
     1921 gatcaaatac cttcccaaga aggttaaaga tgcagtcaaa agattcagga ctaattgcat
     1981 caagaacaca gagaaagaca tatttctcaa gatcagaagt actattccag tatggacgat
     2041 tcaaggcttg cttcataaac caaggcaagt aatagagatt ggagtctcta aaaaggtagt
     2101 tcctactgaa tctaaggcca tgcatggagt ctaagattca aatcgaggat ctaacagaac
     2161 tcgccgtgaa gactggcgaa cagttcatac agagtctttt acgactcaat gacaagaaga
     2221 aaatcttcgt caacatggtg gagcacgaca ctctggtcta ctccaaaaat gtcaaagata
     2281 cagtctcaga agaccaaagg gctattgaga cttttcaaca aaggataatt tcgggaaacc
     2341 tcctcggatt ccattgccca gctatctgtc acttcatcga aaggacagta gaaaaggaag
     2401 gtggctccta caaatgccat cattgcgata aaggaaaggc tatcattcaa gatctctctg
     2461 ccgacagtgg tcccaaagat ggacccccac ccacgaggag catcgtggaa aaagaagacg
     2521 ttccaaccac gtcttcaaag caagtggatt gatgtgacat ctccactgac gtaagggatg
     2581 acgcacaatc ccactatcct tcgcaagacc cttcctctat ataaggaagt tcatttcatt
     2641 tggagaggac acgctcgaga tcacaagttt gtacaaaaaa gctgaacgag aaacgtaaaa
     2701 tgatataaat atcaatatat taaattagat tttgcataaa aaacagacta cataatactg
     2761 taaaacacaa catatccagt catattggcg gccgcattag gcaccccagg ctttacactt
     2821 tatgcttccg gctcgtataa tgtgtggatt ttgagttagg atccgtcgag attttcagga
     2881 gctaaggaag ctaaaatgga gaaaaaaatc actggatata ccaccgttga tatatcccaa
     2941 tggcatcgta aagaacattt tgaggcattt cagtcagttg ctcaatgtac ctataaccag
     3001 accgttcagc tggatattac ggccttttta aagaccgtaa agaaaaataa gcacaagttt
     3061 tatccggcct ttattcacat tcttgcccgc ctgatgaatg ctcatccgga attccgtatg
     3121 gcaatgaaag acggtgagct ggtgatatgg gatagtgttc acccttgtta caccgttttc
     3181 catgagcaaa ctgaaacgtt ttcatcgctc tggagtgaat accacgacga tttccggcag
     3241 tttctacaca tatattcgca agatgtggcg tgttacggtg aaaacctggc ctatttccct
     3301 aaagggttta ttgagaatat gtttttcgtc tcagccaatc cctgggtgag tttcaccagt
     3361 tttgatttaa acgtggccaa tatggacaac ttcttcgccc ccgttttcac catgggcaaa
     3421 tattatacgc aaggcgacaa ggtgctgatg ccgctggcga ttcaggttca tcatgccgtt
     3481 tgtgatggct tccatgtcgg cagaatgctt aatgaattac aacagtactg cgatgagtgg
     3541 cagggcgggg cgtaaacgcg tggatccggc ttactaaaag ccagataaca gtatgcgtat
     3601 ttgcgcgctg atttttgcgg tataagaata tatactgata tgtatacccg aagtatgtca
     3661 aaaagaggta tgctatgaag cagcgtatta cagtgacagt tgacagcgac agctatcagt
     3721 tgctcaaggc atatatgatg tcaatatctc cggtctggta agcacaacca tgcagaatga
     3781 agcccgtcgt ctgcgtgccg aacgctggaa agcggaaaat caggaaggga tggctgaggt
     3841 cgcccggttt attgaaatga acggctcttt tgctgacgag aacaggggct ggtgaaatgc
     3901 agtttaaggt ttacacctat aaaagagaga gccgttatcg tctgtttgtg gatgtacaga
     3961 gtgatattat tgacacgccc gggcgacgga tggtgatccc cctggccagt gcacgtctgc
     4021 tgtcagataa agtctcccgt gaactttacc cggtggtgca tatcggggat gaaagctggc
     4081 gcatgatgac caccgatatg gccagtgtgc cggtctccgt tatcggggaa gaagtggctg
     4141 atctcagcca ccgcgaaaat gacatcaaaa acgccattaa cctgatgttc tggggaatat
     4201 aaatgtcagg ctcccttata cacagccagt ctgcaggtcg accatagtga ctggatatgt
     4261 tgtgttttac agcattatgt agtctgtttt ttatgcaaaa tctaatttaa tatattgata
     4321 tttatatcat tttacgtttc tcgttcagct ttcttgtaca aagtggtgct cgagatggta
     4381 gatctgacta gtaaaggaga agaacttttc actggagttg tcccaattct tgttgaatta
     4441 gatggtgatg ttaatgggca caaattttct gtcagtggag agggtgaagg tgatgcaaca
     4501 tacggaaaac ttacccttaa atttatttgc actactggaa aactacctgt tccgtggcca
     4561 acacttgtca ctactttctc ttatggtgtt caatgctttt caagataccc agatcatatg
     4621 aagcggcacg acttcttcaa gagcgccatg cctgagggat acgtgcagga gaggaccatc
     4681 ttcttcaagg acgacgggaa ctacaagaca cgtgctgaag tcaagtttga gggagacacc
     4741 ctcgtcaaca ggatcgagct taagggaatc gatttcaagg aggacggaaa catcctcggc
     4801 cacaagttgg aatacaacta caactcccac aacgtataca tcatggccga caagcaaaag
     4861 aacggcatca aagccaactt caagacccgc cacaacatcg aagacggcgg cgtgcaactc
     4921 gctgatcatt atcaacaaaa tactccaatt ggcgatggcc ctgtcctttt accagacaac
     4981 cattacctgt ccacacaatc tgccctttcg aaagatccca acgaaaagag agaccacatg
     5041 gtccttcttg agtttgtaac agctgctggg attacacatg gcatggatga actatacaaa
     5101 gctagccacc accaccacca ccacgtgtga cctaggtgag tctagagagt taattaagac
     5161 ccgggactag tccctagagt cctgctttaa tgagatatgc gagacgccta tgatcgcatg
     5221 atatttgctt tcaattctgt tgtgcacgtt gtaaaaaacc tgagcatgtg tagctcagat
     5281 ccttaccgcc ggtttcggtt cattctaatg aatatatcac ccgttactat cgtattttta
     5341 tgaataatat tctccgttca atttactgat tgtaccctac tacttatatg tacaatatta
     5401 aaatgaaaac aatatattgt gctgaatagg tttatagcga catctatgat agagcgccac
     5461 aataacaaac aattgcgttt tattattaca aatccaattt taaaaaaagc ggcagaaccg
     5521 gtcaaaccta aaagactgat tacataaatc ttattcaaat ttcaaaagtg ccccaggggc
     5581 tagtatctac gacacaccga gcggcgaact aataacgctc actgaaggga actccggttc
     5641 cccgccggcg cgcatgggtg agattccttg aagttgagta ttggccgtcc gctctaccga
     5701 aagttacggg caccattcaa cccggtccag cacggcggcc gggtaaccga cttgctgccc
     5761 cgagaattat gcagcatttt tttggtgtat gtgggcccca aatgaagtgc aggtcaaacc
     5821 ttgacagtga cgacaaatcg ttgggcgggt ccagggcgaa ttttgcgaca acatgtcgag
     5881 gctcagcagg acctgcaggc atgcaagctt ggcactggcc gtcgttttac aacgtcgtga
     5941 ctgggaaaac cctggcgtta cccaacttaa tcgccttgca gcacatcccc ctttcgccag
     6001 ctggcgtaat agcgaagagg cccgcaccga tcgcccttcc caacagttgc gcagcctgaa
     6061 tggcgaatgc tagagcagct tgagcttgga tcagattgtc gtttcccgcc ttcagtttaa
     6121 actatcagtg tttgacagga tatattggcg ggtaaaccta agagaaaaga gcgtttatta
     6181 gaataacgga tatttaaaag ggcgtgaaaa ggtttatccg ttcgtccatt tgtatgtgca
     6241 tgccaaccac agggttcccc tcgggatcaa agtactttga tccaacccct ccgctgctat
     6301 agtgcagtcg gcttctgacg ttcagtgcag ccgtcttctg aaaacgacat gtcgcacaag
     6361 tcctaagtta cgcgacaggc tgccgccctg cccttttcct ggcgttttct tgtcgcgtgt
     6421 tttagtcgca taaagtagaa tacttgcgac tagaaccgga gacattacgc catgaacaag
     6481 agcgccgccg ctggcctgct gggctatgcc cgcgtcagca ccgacgacca ggacttgacc
     6541 aaccaacggg ccgaactgca cgcggccggc tgcaccaagc tgttttccga gaagatcacc
     6601 ggcaccaggc gcgaccgccc ggagctggcc aggatgcttg accacctacg ccctggcgac
     6661 gttgtgacag tgaccaggct agaccgcctg gcccgcagca cccgcgacct actggacatt
     6721 gccgagcgca tccaggaggc cggcgcgggc ctgcgtagcc tggcagagcc gtgggccgac
     6781 accaccacgc cggccggccg catggtgttg accgtgttcg ccggcattgc cgagttcgag
     6841 cgttccctaa tcatcgaccg cacccggagc gggcgcgagg ccgccaaggc ccgaggcgtg
     6901 aagtttggcc cccgccctac cctcaccccg gcacagatcg cgcacgcccg cgagctgatc
     6961 gaccaggaag gccgcaccgt gaaagaggcg gctgcactgc ttggcgtgca tcgctcgacc
     7021 ctgtaccgcg cacttgagcg cagcgaggaa gtgacgccca ccgaggccag gcggcgcggt
     7081 gccttccgtg aggacgcatt gaccgaggcc gacgccctgg cggccgccga gaatgaacgc
     7141 caagaggaac aagcatgaaa ccgcaccagg acggccagga cgaaccgttt ttcattaccg
     7201 aagagatcga ggcggagatg atcgcggccg ggtacgtgtt cgagccgccc gcgcacgtct
     7261 caaccgtgcg gctgcatgaa atcctggccg gtttgtctga tgccaagctg gcggcctggc
     7321 cggccagctt ggccgctgaa gaaaccgagc gccgccgtct aaaaaggtga tgtgtatttg
     7381 agtaaaacag cttgcgtcat gcggtcgctg cgtatatgat gcgatgagta aataaacaaa
     7441 tacgcaaggg gaacgcatga aggttatcgc tgtacttaac cagaaaggcg ggtcaggcaa
     7501 gacgaccatc gcaacccatc tagcccgcgc cctgcaactc gccggggccg atgttctgtt
     7561 agtcgattcc gatccccagg gcagtgcccg cgattgggcg gccgtgcggg aagatcaacc
     7621 gctaaccgtt gtcggcatcg accgcccgac gattgaccgc gacgtgaagg ccatcggccg
     7681 gcgcgacttc gtagtgatcg acggagcgcc ccaggcggcg gacttggctg tgtccgcgat
     7741 caaggcagcc gacttcgtgc tgattccggt gcagccaagc ccttacgaca tatgggccac
     7801 cgccgacctg gtggagctgg ttaagcagcg cattgaggtc acggatggaa ggctacaagc
     7861 ggcctttgtc gtgtcgcggg cgatcaaagg cacgcgcatc ggcggtgagg ttgccgaggc
     7921 gctggccggg tacgagctgc ccattcttga gtcccgtatc acgcagcgcg tgagctaccc
     7981 aggcactgcc gccgccggca caaccgttct tgaatcagaa cccgagggcg acgctgcccg
     8041 cgaggtccag gcgctggccg ctgaaattaa atcaaaactc atttgagtta atgaggtaaa
     8101 gagaaaatga gcaaaagcac aaacacgcta agtgccggcc gtccgagcgc acgcagcagc
     8161 aaggctgcaa cgttggccag cctggcagac acgccagcca tgaagcgggt caactttcag
     8221 ttgccggcgg aggatcacac caagctgaag atgtacgcgg tacgccaagg caagaccatt
     8281 accgagctgc tatctgaata catcgcgcag ctaccagagt aaatgagcaa atgaataaat
     8341 gagtagatga attttagcgg ctaaaggagg cggcatggaa aatcaagaac aaccaggcac
     8401 cgacgccgtg gaatgcccca tgtgtggagg aacgggcggt tggccaggcg taagcggctg
     8461 ggttgtctgc cggccctgca atggcactgg aacccccaag cccgaggaat cggcgtgagc
     8521 ggtcgcaaac catccggccc ggtacaaatc ggcgcggcgc tgggtgatga cctggtggag
     8581 aagttgaagg ccgcgcaggc cgcccagcgg caacgcatcg aggcagaagc acgccccggt
     8641 gaatcgtggc aagcggccgc tgatcgaatc cgcaaagaat cccggcaacc gccggcagcc
     8701 ggtgcgccgt cgattaggaa gccgcccaag ggcgacgagc aaccagattt tttcgttccg
     8761 atgctctatg acgtgggcac ccgcgatagt cgcagcatca tggacgtggc cgttttccgt
     8821 ctgtcgaagc gtgaccgacg agctggcgag gtgatccgct acgagcttcc agacgggcac
     8881 gtagaggttt ccgcagggcc ggccggcatg gccagtgtgt gggattacga cctggtactg
     8941 atggcggttt cccatctaac cgaatccatg aaccgatacc gggaagggaa gggagacaag
     9001 cccggccgcg tgttccgtcc acacgttgcg gacgtactca agttctgccg gcgagccgat
     9061 ggcggaaagc agaaagacga cctggtagaa acctgcattc ggttaaacac cacgcacgtt
     9121 gccatgcagc gtacgaagaa ggccaagaac ggccgcctgg tgacggtatc cgagggtgaa
     9181 gccttgatta gccgctacaa gatcgtaaag agcgaaaccg ggcggccgga gtacatcgag
     9241 atcgagctag ctgattggat gtaccgcgag atcacagaag gcaagaaccc ggacgtgctg
     9301 acggttcacc ccgattactt tttgatcgat cccggcatcg gccgttttct ctaccgcctg
     9361 gcacgccgcg ccgcaggcaa ggcagaagcc agatggttgt tcaagacgat ctacgaacgc
     9421 agtggcagcg ccggagagtt caagaagttc tgtttcaccg tgcgcaagct gatcgggtca
     9481 aatgacctgc cggagtacga tttgaaggag gaggcggggc aggctggccc gatcctagtc
     9541 atgcgctacc gcaacctgat cgagggcgaa gcatccgccg gttcctaatg tacggagcag
     9601 atgctagggc aaattgccct agcaggggaa aaaggtcgaa aaggtctctt tcctgtggat
     9661 agcacgtaca ttgggaaccc aaagccgtac attgggaacc ggaacccgta cattgggaac
     9721 ccaaagccgt acattgggaa ccggtcacac atgtaagtga ctgatataaa agagaaaaaa
     9781 ggcgattttt ccgcctaaaa ctctttaaaa cttattaaaa ctcttaaaac ccgcctggcc
     9841 tgtgcataac tgtctggcca gcgcacagcc gaagagctgc aaaaagcgcc tacccttcgg
     9901 tcgctgcgct ccctacgccc cgccgcttcg cgtcggccta tcgcggccgc tggccgctca
     9961 aaaatggctg gcctacggcc aggcaatcta ccagggcgcg gacaagccgc gccgtcgcca
    10021 ctcgaccgcc ggcgcccaca tcaaggcacc ctgcctcgcg cgtttcggtg atgacggtga
    10081 aaacctctga cacatgcagc tcccggagac ggtcacagct tgtctgtaag cggatgccgg
    10141 gagcagacaa gcccgtcagg gcgcgtcagc gggtgttggc gggtgtcggg gcgcagccat
    10201 gacccagtca cgtagcgata gcggagtgta tactggctta actatgcggc atcagagcag
    10261 attgtactga gagtgcacca tatgcggtgt gaaataccgc acagatgcgt aaggagaaaa
    10321 taccgcatca ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg
    10381 ctgcggcgag cggtatcagc tcactcaaag gcggtaatac ggttatccac agaatcaggg
    10441 gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag
    10501 gccgcgttgc tggcgttttt ccataggctc cgcccccctg acgagcatca caaaaatcga
    10561 cgctcaagtc agaggtggcg aaacccgaca ggactataaa gataccaggc gtttccccct
    10621 ggaagctccc tcgtgcgctc tcctgttccg accctgccgc ttaccggata cctgtccgcc
    10681 tttctccctt cgggaagcgt ggcgctttct catagctcac gctgtaggta tctcagttcg
    10741 gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac cccccgttca gcccgaccgc
    10801 tgcgccttat ccggtaacta tcgtcttgag tccaacccgg taagacacga cttatcgcca
    10861 ctggcagcag ccactggtaa caggattagc agagcgaggt atgtaggcgg tgctacagag
    10921 ttcttgaagt ggtggcctaa ctacggctac actagaagga cagtatttgg tatctgcgct
    10981 ctgctgaagc cagttacctt cggaaaaaga gttggtagct cttgatccgg caaacaaacc
    11041 accgctggta gcggtggttt ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga
    11101 tctcaagaag atcctttgat cttttctacg gggtctgacg ctcagtggaa cgaaaactca
    11161 cgttaaggga ttttggtcat gcattctagg tactaaaaca attcatccag taaaatataa
    11221 tattttattt tctcccaatc aggcttgatc cccagtaagt caaaaaatag ctcgacatac
    11281 tgttcttccc cgatatcctc cctgatcgac cggacgcaga aggcaatgtc ataccacttg
    11341 tccgccctgc cgcttctccc aagatcaata aagccactta ctttgccatc tttcacaaag
    11401 atgttgctgt ctcccaggtc gccgtgggaa aagacaagtt cctcttcggg cttttccgtc
    11461 tttaaaaaat catacagctc gcgcggatct ttaaatggag tgtcttcttc ccagttttcg
    11521 caatccacat cggccagatc gttattcagt aagtaatcca attcggctaa gcggctgtct
    11581 aagctattcg tatagggaca atccgatatg tcgatggagt gaaagagcct gatgcactcc
    11641 gcatacagct cgataatctt ttcagggctt tgttcatctt catactcttc cgagcaaagg
    11701 acgccatcgg cctcactcat gagcagattg ctccagccat catgccgttc aaagtgcagg
    11761 acctttggaa caggcagctt tccttccagc catagcatca tgtccttttc ccgttccaca
    11821 tcataggtgg tccctttata ccggctgtcc gtcattttta aatataggtt ttcattttct
    11881 cccaccagct tatatacctt agcaggagac attccttccg tatcttttac gcagcggtat
    11941 ttttcgatca gttttttcaa ttccggtgat attctcattt tagccattta ttatttcctt
    12001 cctcttttct acagtattta aagatacccc aagaagctaa ttataacaag acgaactcca
    12061 attcactgtt ccttgcattc taaaacctta aataccagaa aacagctttt tcaaagttgt
    12121 tttcaaagtt ggcgtataac atagtatcga cggagccgat tttgaaaccg cggtgatcac
    12181 aggcagcaac gctctgtcat cgttacaatc aacatgctac cctccgcgag atcatccgtg
    12241 tttcaaaccc ggcagcttag ttgccgttct tccgaatagc atcggtaaca tgagcaaagt
    12301 ctgccgcctt acaacggctc tcccgctgac gccgtcccgg actgatgggc tgcctgtatc
    12361 gagtggtgat tttgtgccga gctgccggtc ggggagctgt tggctggctg g
//
