PUAS-Luc2

LOCUS       pUAS-luc2                4623 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pUAS-luc2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4623)
  AUTHORS   Potter CJ, Tasic B, Russler EV, Liang L, Luo L.
  TITLE     The Q System: A Repressible Binary System for Transgene Expression,
            Lineage Tracing, and Mosaic Analysis
  JOURNAL   Volume 141, Issue 3, 536-548, 30 April 2010
  PUBMED    20434990
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|PUAS-Luc2|

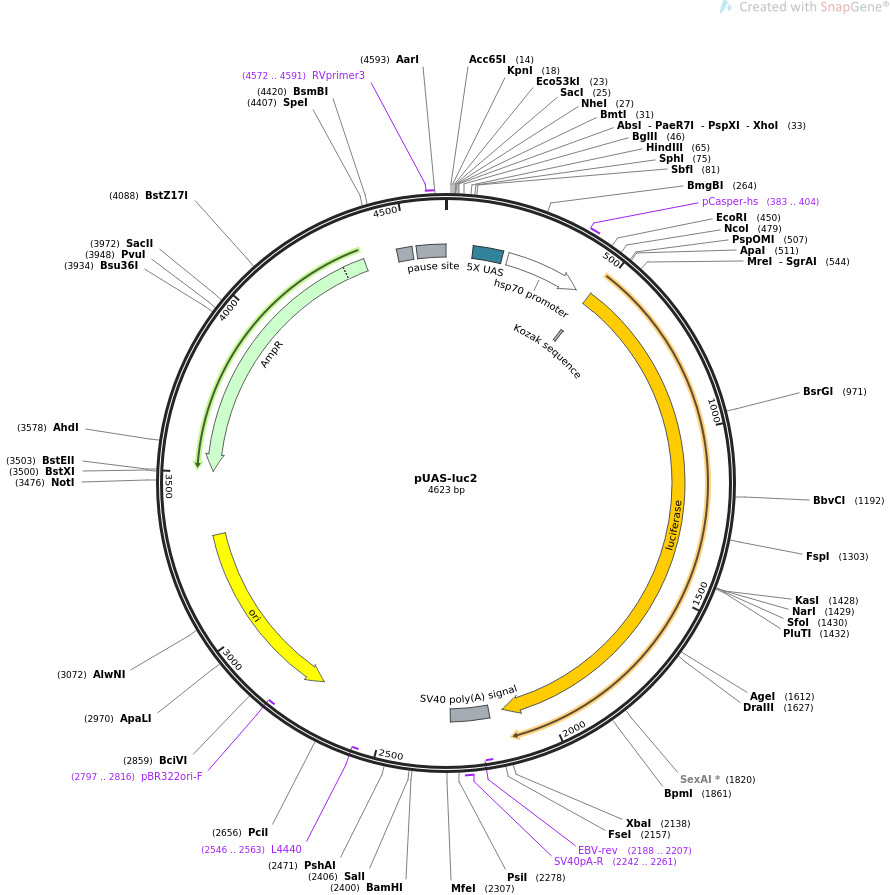

FEATURES             Location/Qualifiers
     source          1..4623
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     protein_bind    85..179
                     /label=5X UAS
                     /bound_moiety="GAL4"
                     /note="five tandem copies of the ""ScaI site"" 17-mer
                     CGGAGTACTGTCCTCCG, an upstream activating sequence (UAS)
                     that efficiently binds yeast Gal4 (Webster et al., 1988;
                     Pfeiffer et al., 2010)"
     promoter        198..436
                     /label=hsp70 promoter
                     /note="Drosophila melanogaster hsp70Bb promoter"
     primer_bind     383..404
                     /label=pCasper-hs
                     /note="Drosophila Hsp70 promoter, forward primer"
     regulatory      475..484
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             481..2133
                     /codon_start=1
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="synthetic luc2 version of the luciferase gene"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     polyA_signal    2177..2298
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2188..2207)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     2242..2261
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     complement(2546..2563)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(2717..3305)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2797..2816)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3505..4365)
                     /codon_start=1
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     polyA_signal    4470..4518
                     /note="synthetic polyadenylation signal"
     misc_feature    4532..4623
                     /label=pause site
                     /note="RNA polymerase II transcriptional pause signal from
                     the human alpha-2 globin gene"
     primer_bind     4572..4591
                     /label=RVprimer3
                     /note="pGL3 vector, forward primer"
ORIGIN
        1 ggcctaactg gccggtacct gagctcgcta gcctcgagga tatcaagatc tggcctcggc
       61 ggccaagctt gcatgcctgc aggtcggagt actgtcctcc gagcggagta ctgtcctccg
      121 agcggagtac tgtcctccga gcggagtact gtcctccgag cggagtactg tcctccgagc
      181 ggagactcta gcgagcgccg gagtataaat agaggcgctt cgtctacgga gcgacaattc
      241 aattcaaaca agcaaagtga acacgtcgct aagcgaaagc taagcaaata aacaagcgca
      301 gctgaacaag ctaaacaatc tgcagtaaag tgcaagttaa agtgaatcaa ttaaaagtaa
      361 ccagcaacca agtaaatcaa ctgcaactac tgaaatctgc caagaagtaa ttattgaata
      421 caagaagaga actctgaata gggaattggg aattcgttaa cagatccgat atccgccacc
      481 atggaagatg ccaaaaacat taagaagggc ccagcgccat tctacccact cgaagacggg
      541 accgccggcg agcagctgca caaagccatg aagcgctacg ccctggtgcc cggcaccatc
      601 gcctttaccg acgcacatat cgaggtggac attacctacg ccgagtactt cgagatgagc
      661 gttcggctgg cagaagctat gaagcgctat gggctgaata caaaccatcg gatcgtggtg
      721 tgcagcgaga atagcttgca gttcttcatg cccgtgttgg gtgccctgtt catcggtgtg
      781 gctgtggccc cagctaacga catctacaac gagcgcgagc tgctgaacag catgggcatc
      841 agccagccca ccgtcgtatt cgtgagcaag aaagggctgc aaaagatcct caacgtgcaa
      901 aagaagctac cgatcataca aaagatcatc atcatggata gcaagaccga ctaccagggc
      961 ttccaaagca tgtacacctt cgtgacttcc catttgccac ccggcttcaa cgagtacgac
     1021 ttcgtgcccg agagcttcga ccgggacaaa accatcgccc tgatcatgaa cagtagtggc
     1081 agtaccggat tgcccaaggg cgtagcccta ccgcaccgca ccgcttgtgt ccgattcagt
     1141 catgcccgcg accccatctt cggcaaccag atcatccccg acaccgctat cctcagcgtg
     1201 gtgccatttc accacggctt cggcatgttc accacgctgg gctacttgat ctgcggcttt
     1261 cgggtcgtgc tcatgtaccg cttcgaggag gagctattct tgcgcagctt gcaagactat
     1321 aagattcaat ctgccctgct ggtgcccaca ctatttagct tcttcgctaa gagcactctc
     1381 atcgacaagt acgacctaag caacttgcac gagatcgcca gcggcggggc gccgctcagc
     1441 aaggaggtag gtgaggccgt ggccaaacgc ttccacctac caggcatccg ccagggctac
     1501 ggcctgacag aaacaaccag cgccattctg atcacccccg aaggggacga caagcctggc
     1561 gcagtaggca aggtggtgcc cttcttcgag gctaaggtgg tggacttgga caccggtaag
     1621 acactgggtg tgaaccagcg cggcgagctg tgcgtccgtg gccccatgat catgagcggc
     1681 tacgttaaca accccgaggc tacaaacgct ctcatcgaca aggacggctg gctgcacagc
     1741 ggcgacatcg cctactggga cgaggacgag cacttcttca tcgtggaccg gctgaagagc
     1801 ctgatcaaat acaagggcta ccaggtagcc ccagccgaac tggagagcat cctgctgcaa
     1861 caccccaaca tcttcgacgc cggggtcgcc ggcctgcccg acgacgatgc cggcgagctg
     1921 cccgccgcag tcgtcgtgct ggaacacggt aaaaccatga ccgagaagga gatcgtggac
     1981 tatgtggcca gccaggttac aaccgccaag aagctgcgcg gtggtgttgt gttcgtggac
     2041 gaggtgccta aaggactgac cggcaagttg gacgcccgca agatccgcga gattctcatt
     2101 aaggccaaga agggcggcaa gatcgccgtg taataattct agagtcgggg cggccggccg
     2161 cttcgagcag acatgataag atacattgat gagtttggac aaaccacaac tagaatgcag
     2221 tgaaaaaaat gctttatttg tgaaatttgt gatgctattg ctttatttgt aaccattata
     2281 agctgcaata aacaagttaa caacaacaat tgcattcatt ttatgtttca ggttcagggg
     2341 gaggtgtggg aggtttttta aagcaagtaa aacctctaca aatgtggtaa aatcgataag
     2401 gatccgtcga ccgatgccct tgagagcctt caacccagtc agctccttcc ggtgggcgcg
     2461 gggcatgact atcgtcgccg cacttatgac tgtcttcttt atcatgcaac tcgtaggaca
     2521 ggtgccggca gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc
     2581 tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg
     2641 ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg
     2701 ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac
     2761 gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg
     2821 gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct
     2881 ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat ctcagttcgg
     2941 tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct
     3001 gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac
     3061 tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt
     3121 tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt atctgcgctc
     3181 tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca
     3241 ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat
     3301 ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac
     3361 gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt
     3421 aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct gacagcggcc
     3481 gcaaatgcta aaccactgca gtggttacca gtgcttgatc agtgaggcac cgatctcagc
     3541 gatctgccta tttcgttcgt ccatagtggc ctgactcccc gtcgtgtaga tcactacgat
     3601 tcgtgagggc ttaccatcag gccccagcgc agcaatgatg ccgcgagagc cgcgttcacc
     3661 ggcccccgat ttgtcagcaa tgaaccagcc agcagggagg gccgagcgaa gaagtggtcc
     3721 tgctactttg tccgcctcca tccagtctat gagctgctgt cgtgatgcta gagtaagaag
     3781 ttcgccagtg agtagtttcc gaagagttgt ggccattgct actggcatcg tggtatcacg
     3841 ctcgtcgttc ggtatggctt cgttcaactc tggttcccag cggtcaagcc gggtcacatg
     3901 atcacccata ttatgaagaa atgcagtcag ctccttaggg cctccgatcg ttgtcagaag
     3961 taagttggcc gcggtgttgt cgctcatggt aatggcagca ctacacaatt ctcttaccgt
     4021 catgccatcc gtaagatgct tttccgtgac cggcgagtac tcaaccaagt cgttttgtga
     4081 gtagtgtata cggcgaccaa gctgctcttg cccggcgtct atacgggaca acaccgcgcc
     4141 acatagcagt actttgaaag tgctcatcat cgggaatcgt tcttcggggc ggaaagactc
     4201 aaggatcttg ccgctattga gatccagttc gatatagccc actcttgcac ccagttgatc
     4261 ttcagcatct tttactttca ccagcgtttc ggggtgtgca aaaacaggca agcaaaatgc
     4321 cgcaaagaag ggaatgagtg cgacacgaaa atgttggatg ctcatactcg tcctttttca
     4381 atattattga agcatttatc agggttacta gtacgtctct caaggataag taagtaatat
     4441 taaggtacgg gaggtattgg acaggccgca ataaaatatc tttattttca ttacatctgt
     4501 gtgttggttt tttgtgtgaa tcgatagtac taacatacgc tctccatcaa aacaaaacga
     4561 aacaaaacaa actagcaaaa taggctgtcc ccagtgcaag tgcaggtgcc agaacatttc
     4621 tct
//
