pBiFC-bJunVN173

价格:1200元

联系方式:I47-825O-882O

买家导航

质粒基本信息

质粒名称: pBiFC-bJunVN173
出品公司: 爱迪基因
目录编号: 22012
存储实验室: Chang-Deng Hu

载体骨架基本信息
载体名称: pFLAG-CMV
载体出品公司: Sigma
载体抗性: 氨苄霉素
空载体大小: 4646 bp
载体类型: 哺乳细胞表达
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: bJunVN173
物种来源: R. norvegicus (rat); Aequorea Victoria
插入大小: 774 bp
基因突变: c-Jun(257-338)-Venus(1-172)
标签/融合蛋白: FLAG(N端)
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未破坏)
3' 克隆位点: BamHI (未破坏)
5' 测序引物 CMV-F
3' 测序引物 hGH-PA-R

文献引用方法
材料和方法部分: pBiFC-bJunVN173 was a gift from Chang-Deng Hu (Addgene plasmid # 22012)
参考文献部分: Identification of new fluorescent protein fragments for bimolecular fluorescence complementation analysis under physiological conditions. Shyu YJ, Liu H, Deng X, Hu CD. Biotechniques. 2006 Jan . 40(1):61-6. 10.2144/000112036 PubMed 16454041

质粒图谱信息

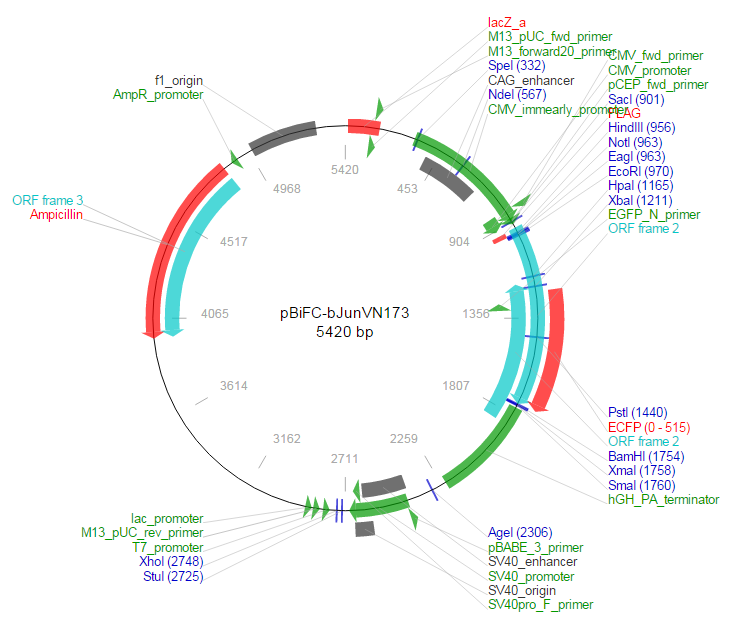

pBiFC-bJunVN173载体图谱

质粒简介

质粒序列

LOCUS       pBiFC-bJunVN173	5420 bp 	DNA	SYN
DEFINITION  pBiFC-bJunVN173
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5420
                     /organism="pBiFC-bJunVN173"
                     /mol_type="other DNA"
     misc_feature    complement(12..155)
                     /label="lacZ_a"
     misc_feature    126..148
                     /label="M13_pUC_fwd_primer"
     promoter        141..157
                     /label="M13_forward20_primer"
     promoter        319..895
                     /label="CMV_immearly_promoter"
     misc_feature    398..685
                     /label="CAG_enhancer"
     promoter        841..912
                     /label="CMV_promoter"
     misc_feature    852..872
                     /label="CMV_fwd_primer"
     misc_feature    896..915
                     /label="pCEP_fwd_primer"
     CDS             932..1753
                     /label="ORF frame 2"
     misc_feature    935..958
                     /label="FLAG"
     CDS             complement(1187..1861)
                     /label="ORF frame 2"
     gene            1235..1750
                     /label="ECFP (0 - 515)"
                     /gene="ECFP (0 - 515)"
     misc_feature    complement(1277..1298)
                     /label="EGFP_N_primer"
     terminator      1771..2237
                     /label="hGH_PA_terminator"
     misc_feature    complement(2407..2427)
                     /label="pBABE_3_primer"
     misc_feature    complement(2413..2628)
                     /label="SV40_enhancer"
     promoter        2425..2693
                     /label="SV40_promoter"
     rep_origin      2592..2669
                     /label="SV40_origin"
     misc_feature    2654..2673
                     /label="SV40pro_F_primer"
     promoter        complement(2780..2798)
                     /label="T7_promoter"
     misc_feature    complement(2825..2847)
                     /label="M13_pUC_rev_primer"
     promoter        complement(2861..2890)
                     /label="lac_promoter"
     gene            complement(3973..4833)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(3973..4833)
                     /label="ORF frame 3"
     promoter        complement(4875..4903)
                     /label="AmpR_promoter"
     rep_origin      4982..5288
                     /label="f1_origin"
ORIGIN
    1 CCATTCGCCA TTCAGGCTGC GCAACTGTTG GGAAGGGCGA TCGGTGCGGG CCTCTTCGCT
   61 ATTACGCCAG CTGGCGAAAG GGGGATGTGC TGCAAGGCGA TTAAGTTGGG TAACGCCAGG
  121 GTTTTCCCAG TCACGACGTT GTAAAACGAC GGCCAGTGCC AAGCTGATCT ATACATTGAA
  181 TCAATATTGG CAATTAGCCA TATTAGTCAT TGGTTATATA GCATAAATCA ATATTGGCTA
  241 TTGGCCATTG CATACGTTGT ATCTATATCA TAATATGTAC ATTTATATTG GCTCATGTCC
  301 AATATGACCG CCATGTTGAC ATTGATTATT GACTAGTTAT TAATAGTAAT CAATTACGGG
  361 GTCATTAGTT CATAGCCCAT ATATGGAGTT CCGCGTTACA TAACTTACGG TAAATGGCCC
  421 GCCTGGCTGA CCGCCCAACG ACCCCCGCCC ATTGACGTCA ATAATGACGT ATGTTCCCAT
  481 AGTAACGCCA ATAGGGACTT TCCATTGACG TCAATGGGTG GAGTATTTAC GGTAAACTGC
  541 CCACTTGGCA GTACATCAAG TGTATCATAT GCCAAGTCCG CCCCCTATTG ACGTCAATGA
  601 CGGTAAATGG CCCGCCTGGC ATTATGCCCA GTACATGACC TTACGGGACT TTCCTACTTG
  661 GCAGTACATC TACGTATTAG TCATCGCTAT TACCATGGTG ATGCGGTTTT GGCAGTACAC
  721 CAATGGGCGT GGATAGCGGT TTGACTCACG GGGATTTCCA AGTCTCCACC CCATTGACGT
  781 CAATGGGAGT TTGTTTTGGC ACCAAAATCA ACGGGACTTT CCAAAATGTC GTAATAACCC
  841 CGCCCCGTTG ACGCAAATGG GCGGTAGGCG TGTACGGTGG GAGGTCTATA TAAGCAGAGC
  901 TCGTTTAGTG AACCGTCAGA ATTGATCTAC CATGGACTAC AAAGACGATG ACGACAAGCT
  961 TGCGGCCGCG AATTCAAAGG CGGAGAGGAA GCGCATGAGA AACCGCATCG CTGCCTCCAA
 1021 GTGCCGGAAA AGGAAGCTGG AGCGGATCGC CCGGCTAGAG GAAAAAGTGA AAACCTTGAA
 1081 AGCGCAAAAC TCCGAGCTGG CGTCCACGGC CAACATGCTC AGGGAACAGG TGGCACAGCT
 1141 TAAACAGAAA GTCATGAACC ACGTTAACAG TGGGTGCCAA CTCATGCTAA CGCAGCAGTT
 1201 GCAAACGTTT TCTAGAAGAT CCATCGCCAC CATGGTGAGC AAGGGCGAGG AGCTGTTCAC
 1261 CGGGGTGGTG CCCATCCTGG TCGAGCTGGA CGGCGACGTA AACGGCCACA AGTTCAGCGT
 1321 GTCCGGCGAG GGCGAGGGCG ATGCCACCTA CGGCAAGCTG ACCCTGAAGC TGATCTGCAC
 1381 CACCGGCAAG CTGCCCGTGC CCTGGCCCAC CCTCGTGACC ACCCTGGGCT ACGGCCTGCA
 1441 GTGCTTCGCC CGCTACCCCG ACCACATGAA GCAGCACGAC TTCTTCAAGT CCGCCATGCC
 1501 CGAAGGCTAC GTCCAGGAGC GCACCATCTT CTTCAAGGAC GACGGCAACT ACAAGACCCG
 1561 CGCCGAGGTG AAGTTCGAGG GCGACACCCT GGTGAACCGC ATCGAGCTGA AGGGCATCGA
 1621 CTTCAAGGAG GACGGCAACA TCCTGGGGCA CAAGCTGGAG TACAACTACA ACAGCCACAA
 1681 CGTCTATATC ACCGCCGACA AGCAGAAGAA CGGCATCAAG GCCAACTTCA AGATCCGCCA
 1741 CAACATCGAG TAGGGATCCC GGGTGGCATC CCTGTGACCC CTCCCCAGTG CCTCTCCTGG
 1801 CCCTGGAAGT TGCCACTCCA GTGCCCACCA GCCTTGTCCT AATAAAATTA AGTTGCATCA
 1861 TTTTGTCTGA CTAGGTGTCC TTCTATAATA TTATGGGGTG GAGGGGGGTG GTATGGAGCA
 1921 AGGGGCAAGT TGGGAAGACA ACCTGTAGGG CCTGCGGGGT CTATTGGGAA CCAAGCTGGA
 1981 GTGCAGTGGC ACAATCTTGG CTCACTGCAA TCTCCGCCTC CTGGGTTCAA GCGATTCTCC
 2041 TGCCTCAGCC TCCCGAGTTG TTGGGATTCC AGGCATGCAT GACCAGGCTC AGCTAATTTT
 2101 TGTTTTTTTG GTAGAGACGG GGTTTCACCA TATTGGCCAG GCTGGTCTCC AACTCCTAAT
 2161 CTCAGGTGAT CTACCCACCT TGGCCTCCCA AATTGCTGGG ATTACAGGCG TGAACCACTG
 2221 CTCCCTTCCC TGTCCTTCTG ATTTTAAAAT AACTATACCA GCAGGAGGAC GTCCAGACAC
 2281 AGCATAGGCT ACCTGGCCAT GCCCAACCGG TGGGACATTT GAGTTGCTTG CTTGGCACTG
 2341 TCCTCTCATG CGTTGGGTCC ACTCAGTAGA TGCCTGTTGA ATTGGGTACG CGGCCAGCTT
 2401 GGCTGTGGAA TGTGTGTCAG TTAGGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA
 2461 GTATGCAAAG CATGCATCTC AATTAGTCAG CAACCAGGTG TGGAAAGTCC CCAGGCTCCC
 2521 CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC AGCAACCATA GTCCCGCCCC
 2581 TAACTCCGCC CATCCCGCCC CTAACTCCGC CCAGTTCCGC CCATTCTCCG CCCCATGGCT
 2641 GACTAATTTT TTTTATTTAT GCAGAGGCCG AGGCCGCCTC GGCCTCTGAG CTATTCCAGA
 2701 AGTAGTGAGG AGGCTTTTTT GGAGGCCTAG GCTTTTGCAA AAAGCTCCTC GAGGAACTGA
 2761 AAAACCAGAA AGTTAATTCC CTATAGTGAG TCGTATTAAA TTCGTAATCA TGTCATAGCT
 2821 GTTTCCTGTG TGAAATTGTT ATCCGCTCAC AATTCCACAC AACATACGAG CCGGAAGCAT
 2881 AAAGTGTAAA GCCTGGGGTG CCTAATGAGT GAGCTAACTC ACATTAATTG CGTTGCGCTC
 2941 ACTGCCCGCT TTCCAGTCGG GAAACCTGTC GTGCCAGCTG CATTAATGAA TCGGCCAACG
 3001 CGCGGGGAGA GGCGGTTTGC GTATTGGGCG CTCTTCCGCT TCCTCGCTCA CTGACTCGCT
 3061 GCGCTCGGTC GTTCGGCTGC GGCGAGCGGT ATCAGCTCAC TCAAAGGCGG TAATACGGTT
 3121 ATCCACAGAA TCAGGGGATA ACGCAGGAAA GAACATGTGA GCAAAAGGCC AGCAAAAGGC
 3181 CAGGAACCGT AAAAAGGCCG CGTTGCTGGC GTTTTTCCAT AGGCTCCGCC CCCCTGACGA
 3241 GCATCACAAA AATCGACGCT CAAGTCAGAG GTGGCGAAAC CCGACAGGAC TATAAAGATA
 3301 CCAGGCGTTT CCCCCTGGAA GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC
 3361 CGGATACCTG TCCGCCTTTC TCCCTTCGGG AAGCGTGGCG CTTTCTCATA GCTCACGCTG
 3421 TAGGTATCTC AGTTCGGTGT AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC ACGAACCCCC
 3481 CGTTCAGCCC GACCGCTGCG CCTTATCCGG TAACTATCGT CTTGAGTCCA ACCCGGTAAG
 3541 ACACGACTTA TCGCCACTGG CAGCAGCCAC TGGTAACAGG ATTAGCAGAG CGAGGTATGT
 3601 AGGCGGTGCT ACAGAGTTCT TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGAACAGT
 3661 ATTTGGTATC TGCGCTCTGC TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG
 3721 ATCCGGCAAA CAAACCACCG CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC AGCAGATTAC
 3781 GCGCAGAAAA AAAGGATCTC AAGAAGATCC TTTGATCTTT TCTACGGGGT CTGACGCTCA
 3841 GTGGAACGAA AACTCACGTT AAGGGATTTT GGTCATGAGA TTATCAAAAA GGATCTTCAC
 3901 CTAGATCCTT TTAAATTAAA AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAAAC
 3961 TTGGTCTGAC AGTTACCAAT GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT
 4021 TCGTTCATCC ATAGTTGCCT GACTCCCCGT CGTGTAGATA ACTACGATAC GGGAGGGCTT
 4081 ACCATCTGGC CCCAGTGCTG CAATGATACC GCGAGACCCA CGCTCACCGG CTCCAGATTT
 4141 ATCAGCAATA AACCAGCCAG CCGGAAGGGC CGAGCGCAGA AGTGGTCCTG CAACTTTATC
 4201 CGCCTCCATC CAGTCTATTA ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA
 4261 TAGTTTGCGC AACGTTGTTG CCATTGCTAC AGGCATCGTG GTGTCACGCT CGTCGTTTGG
 4321 TATGGCTTCA TTCAGCTCCG GTTCCCAACG ATCAAGGCGA GTTACATGAT CCCCCATGTT
 4381 GTGCAAAAAA GCGGTTAGCT CCTTCGGTCC TCCGATCGTT GTCAGAAGTA AGTTGGCCGC
 4441 AGTGTTATCA CTCATGGTTA TGGCAGCACT GCATAATTCT CTTACTGTCA TGCCATCCGT
 4501 AAGATGCTTT TCTGTGACTG GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG
 4561 GCGACCGAGT TGCTCTTGCC CGGCGTCAAT ACGGGATAAT ACCGCGCCAC ATAGCAGAAC
 4621 TTTAAAAGTG CTCATCATTG GAAAACGTTC TTCGGGGCGA AAACTCTCAA GGATCTTACC
 4681 GCTGTTGAGA TCCAGTTCGA TGTAACCCAC TCGTGCACCC AACTGATCTT CAGCATCTTT
 4741 TACTTTCACC AGCGTTTCTG GGTGAGCAAA AACAGGAAGG CAAAATGCCG CAAAAAAGGG
 4801 AATAAGGGCG ACACGGAAAT GTTGAATACT CATACTCTTC CTTTTTCAAT ATTATTGAAG
 4861 CATTTATCAG GGTTATTGTC TCATGAGCGG ATACATATTT GAATGTATTT AGAAAAATAA
 4921 ACAAATAGGG GTTCCGCGCA CATTTCCCCG AAAAGTGCCA CCTGACGCGC CCTGTAGCGG
 4981 CGCATTAAGC GCGGCGGGTG TGGTGGTTAC GCGCAGCGTG ACCGCTACAC TTGCCAGCGC
 5041 CCTAGCGCCC GCTCCTTTCG CTTTCTTCCC TTCCTTTCTC GCCACGTTCG CCGGCTTTCC
 5101 CCGTCAAGCT CTAAATCGGG GGCTCCCTTT AGGGTTCCGA TTTAGTGCTT TACGGCACCT
 5161 CGACCCCAAA AAACTTGATT AGGGTGATGG TTCACGTAGT GGGCCATCGC CCTGATAGAC
 5221 GGTTTTTCGC CCTTTGACGT TGGAGTCCAC GTTCTTTAAT AGTGGACTCT TGTTCCAAAC
 5281 TGGAACAACA CTCAACCCTA TCTCGGTCTA TTCTTTTGAT TTATAAGGGA TTTTGCCGAT
 5341 TTCGGCCTAT TGGTTAAAAA ATGAGCTGAT TTAACAAAAA TTTAACGCGA ATTTTAACAA
 5401 AATATTAACG CTTACAATTT
//
