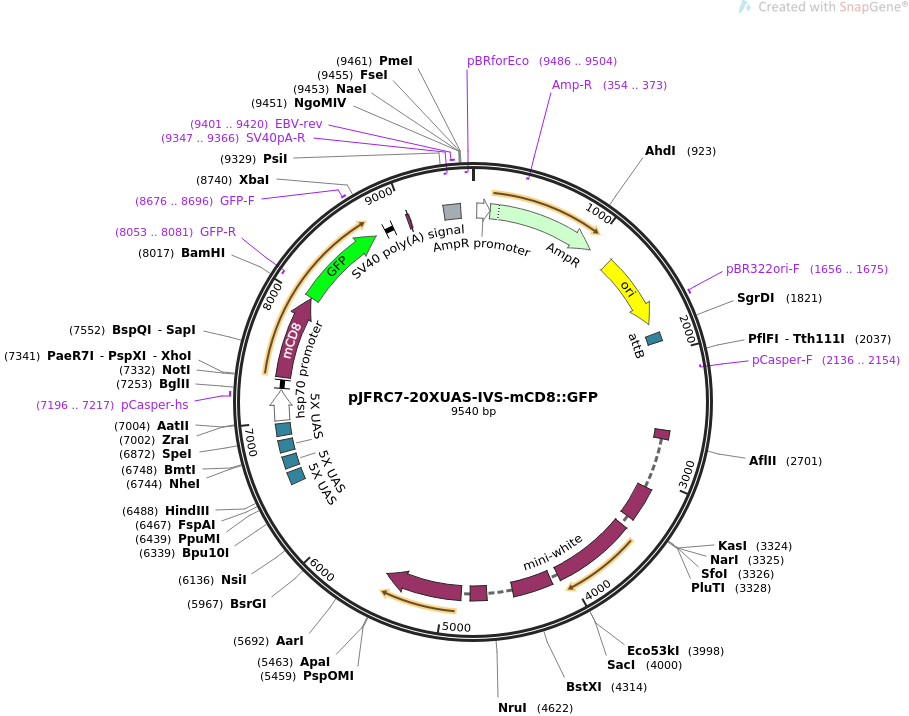

pJFRC7-20XUAS-IVS-mCD8::GFP

LOCUS       pJFRC7-20XUAS-IVS-mCD8::GFP                9540 bp ds-DNA     circular SYN 10-JAN-

2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pJFRC7-20XUAS-IVS-mCD8::GFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9540)
  AUTHORS   Pfeiffer BD, Ngo TT, Hibbard KL, Murphy C, Jenett A, Truman JW,
            Rubin GM
  TITLE     Refinement of Tools for Targeted Gene Expression in Drosophila.
  JOURNAL   Genetics. 2010 Aug 9. ():.
  PUBMED    20697123
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pJFRC7-20XUAS-IVS-mCD8::GFP|
FEATURES             Location/Qualifiers
     source          1..9540
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        31..135
                     /gene="bla"
                     /label=AmpR promoter
     CDS             136..996
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(354..373)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      1167..1755
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     1656..1675
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     protein_bind    1842..1911
                     /label=attB
                     /bound_moiety="phage phi-C31 integrase"
                     /note="attB site for the phi-C31 integrase (Groth et al.,
                     2000)"
     primer_bind     complement(2136..2154)
                     /label=pCasper-F
                     /note="Drosophila mini-white gene, reverse primer"
     CDS             join(2606..2677,3079..3352,3427..4081,4143..4458,4662..4793,
                     4864..5478)
                     /codon_start=1
                     /gene="white"
                     /product="Drosophila white gene eye color pigment"
                     /label=mini-white
                     /note="This is a modified version of the white gene lacking
                     part of the first intron."
                     /translation="MGQEDQELLIRGGSKHPSAEHLNNGDSGAASQSCINQGFGQAKNY
                     GTLRPPSPPEDSGSGSGQLAENLTYAWHNMDIFGAVNQPGSGWRQLVNRTRGLFCNERH
                     IPAPRKHLLKNVCGVAYPGELLAVMGSSGAGKTTLLNALAFRSPQGIQVSPSGMRLLNG
                     QPVDAKEMQARCAYVQQDDLFIGSLTAREHLIFQAMVRMPRHLTYRQRVARVDQVIQEL
                     SLSKCQHTIIGVPGRVKGLSGGERKRLAFASEALTDPPLLICDEPTSGLDSFTAHSVVQ
                     VLKKLSQKGKTVILTIHQPSSELFELFDKILLMAEGRVAFLGTPSEAVDFFSYVGAQCP
                     TNYNPADFYVQVLAVVPGREIESRDRIAKICDNFAISKVARDMEQLLATKNLEKPLEQP
                     ENGYTYKATWFMQFRAVLWRSWLSVLKEPLLVKVRLIQTTMVAILIGLIFLGQQLTQVG
                     VMNINGAIFLFLTNMTFQNVFATINVFTSELPVFMREARSRLYRCDTYFLGKTIAELPL
                     FLTVPLVFTAIAYPMIGLRAGVLHFFNCLALVTLVANVSTSFGYLISCASSSTSMALSV
                     GPPVIIPFLLFGGFFLNSGSVPVYLKWLSYLSWFRYANEGLLINQWADVEPGEISCTSS
                     NTTCPSSGKVILETLNFSAADLPLDYVGLAILIVSFRVLAYLALRLRARRKE"
     protein_bind    6508..6602
                     /label=5X UAS
                     /bound_moiety="GAL4"
                     /note="five tandem copies of the ""ScaI site"" 17-mer
                     CGGAGTACTGTCCTCCG, an upstream activating sequence (UAS)
                     that efficiently binds yeast Gal4 (Webster et al., 1988;
                     Pfeiffer et al., 2010)"
     protein_bind    6636..6730
                     /label=5X UAS
                     /bound_moiety="GAL4"
                     /note="five tandem copies of the ""ScaI site"" 17-mer
                     CGGAGTACTGTCCTCCG, an upstream activating sequence (UAS)
                     that efficiently binds yeast Gal4 (Webster et al., 1988;
                     Pfeiffer et al., 2010)"
     protein_bind    6764..6858
                     /label=5X UAS
                     /bound_moiety="GAL4"
                     /note="five tandem copies of the ""ScaI site"" 17-mer
                     CGGAGTACTGTCCTCCG, an upstream activating sequence (UAS)
                     that efficiently binds yeast Gal4 (Webster et al., 1988;
                     Pfeiffer et al., 2010)"
     protein_bind    6892..6986
                     /label=5X UAS
                     /bound_moiety="GAL4"
                     /note="five tandem copies of the ""ScaI site"" 17-mer
                     CGGAGTACTGTCCTCCG, an upstream activating sequence (UAS)
                     that efficiently binds yeast Gal4 (Webster et al., 1988;
                     Pfeiffer et al., 2010)"
     promoter        7011..7249
                     /label=hsp70 promoter
                     /note="Drosophila melanogaster hsp70Bb promoter"
     primer_bind     7196..7217
                     /label=pCasper-hs
                     /note="Drosophila Hsp70 promoter, forward primer"
     intron          7264..7330
                     /label=Mhc intron
                     /note="modified Drosophila myosin heavy chain intron 16
                     (Pfeiffer et al., 2010)"
     CDS             7351..8016
                     /codon_start=1
                     /product="mouse lymphocyte antigen CD8 alpha chain"
                     /label=mCD8
                     /translation="MASPLTRFLSLNLLLLGESIILGSGEAKPQAPELRIFPKKMDAEL
                     GQKVDLVCEVLGSVSQGCSWLFQNSSSKLPQPTFVVYMASSHNKITWDEKLNSSKLFSA
                     MRDTNNKYVLTLNKFSKENEGYYFCSVISNSVMYFSSVVPVLQKVNSTTTKPVLRTPSP
                     VHPTGTSQPQRPEDCRPRGSVKGTGLDFACDIYIWAPLAGICVALLLSLIITLICYHSR
                     "
     CDS             8023..8739
                     /codon_start=1
                     /product="Aequoria victoria green fluorescent protein"
                     /label=GFP
                     /translation="MSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     primer_bind     complement(8053..8081)
                     /label=GFP-R
                     /note="GFP, reverse primer. Does NOT anneal to EGFP"
     primer_bind     8676..8696
                     /label=GFP-F
                     /note="GFP, forward primer. Does NOT anneal to EGFP"
     intron          8823..8888
                     /label=small t intron
                     /note="SV40 (simian virus 40) small t antigen intron"
     CDS             9018..9038
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     polyA_signal    9310..9444
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(9347..9366)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     9401..9420
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(9486..9504)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
ORIGIN
        1 gactcaggtg gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa
       61 atacattcaa atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat
      121 tgaaaaagga agagtatgag tattcaacat ttccgtgtcg cccttattcc cttttttgcg
      181 gcattttgcc ttcctgtttt tgctcaccca gaaacgctgg tgaaagtaaa agatgctgaa
      241 gatcagttgg gtgcacgagt gggttacatc gaactggatc tcaacagcgg taagatcctt
      301 gagagttttc gccccgaaga acgttttcca atgatgagca cttttaaagt tctgctatgt
      361 ggcgcggtat tatcccgtat tgacgccggg caagagcaac tcggtcgccg catacactat
      421 tctcagaatg acttggttga gtactcacca gtcacagaaa agcatcttac ggatggcatg
      481 acagtaagag aattatgcag tgctgccata accatgagtg ataacactgc ggccaactta
      541 cttctgacaa cgatcggagg accgaaggag ctaaccgctt ttttgcacaa catgggggat
      601 catgtaactc gccttgatcg ttgggaaccg gagctgaatg aagccatacc aaacgacgag
      661 cgtgacacca cgatgcctgt agcaatggca acaacgttgc gcaaactatt aactggcgaa
      721 ctacttactc tagcttcccg gcaacaatta atagactgga tggaggcgga taaagttgca
      781 ggaccacttc tgcgctcggc ccttccggct ggctggttta ttgctgataa atctggagcc
      841 ggtgagcgtg ggtctcgcgg tatcattgca gcactggggc cagatggtaa gccctcccgt
      901 atcgtagtta tctacacgac ggggagtcag gcaactatgg atgaacgaaa tagacagatc
      961 gctgagatag gtgcctcact gattaagcat tggtaactgt cagaccaagt ttactcatat
     1021 atactttaga ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt
     1081 tttgataatc tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagac
     1141 cccgtagaaa agatcaaagg atcttcttga gatccttttt ttctgcgcgt aatctgctgc
     1201 ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt tgccggatca agagctacca
     1261 actctttttc cgaaggtaac tggcttcagc agagcgcaga taccaaatac tgttcttcta
     1321 gtgtagccgt agttaggcca ccacttcaag aactctgtag caccgcctac atacctcgct
     1381 ctgctaatcc tgttaccagt ggctgctgcc agtggcgata agtcgtgtct taccgggttg
     1441 gactcaagac gatagttacc ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc
     1501 acacagccca gcttggagcg aacgacctac accgaactga gatacctaca gcgtgagcta
     1561 tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca ggtatccggt aagcggcagg
     1621 gtcggaacag gagagcgcac gagggagctt ccagggggaa acgcctggta tctttatagt
     1681 cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg
     1741 cggagcctat ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc cttttgctgg
     1801 ccttttgctc acatgttacc gtcgacgatg taggtcacgg tctcgaagcc gcggtgcggg
     1861 tgccagggcg tgcccttggg ctccccgggc gcgtactcca cctcacccat ctggtccatc
     1921 atgatgaacg ggtcgaggtg gcggtagttg atcccggcga acgcgcggcg caccgggaag
     1981 ccctcgccct cgaaaccgct gggcgcggtg gtcacggtga gcacgggacg tgcgacggcg
     2041 tcggcgggtg cggatacgcg gggcagcgtc agcgggttct cgacggtcac ggcgggcatg
     2101 tcgacaagcc gaacatatgg gcgcgcctag tatgtatgta agttaataaa acccattttt
     2161 gcggaaagta gataaaaaaa acattttttt tttttactgc actggatatc attgaactta
     2221 tctgatcagt tttaaattta cttcgatcca agggtatttg atgtaccagg ttctttcgat
     2281 tacctctcac tcaaaatgac attccactca aagtcagcgc tgtttgcctc cttctctgtc
     2341 cacagaaata tcgccgtctc tttcgccgct gcgtccgcta tctctttcgc caccgtttgt
     2401 agcgttacgt agcgtcaatg tccgccttca gttgcatttt gtcagcggtt tcgtgacgaa
     2461 gctccaagcg gtttacgcca tcaattaaac acaaagtgct gtgccaaaac tcctctcgct
     2521 tcttattttt gtttgttttt tgagtgattg gggtggtgat tggttttggg tgggtaagca
     2581 ggggaaagtg tgaaaaatcc cggcaatggg ccaagaggat caggagctat taattcgcgg
     2641 aggcagcaaa cacccatctg ccgagcatct gaacaatgtg agtagtacat gtgcatacat
     2701 cttaagttca cttgatctat aggaactgcg attgcaacat caaattgtct gcggcgtgag
     2761 aactgcgacc cacaaaaatc ccaaaccgca attgcacaaa caaatagtga cacgaaacag
     2821 attattctgg tagctgttct cgctatataa gacaattttt gagatcatat catgatcaag
     2881 acatctaaag gcattcattt tcgactatat tcttttttac aaaaaatata acaaccagat
     2941 attttaagct gatcctagat gcacaaaaaa taaataaaag tataaaccta cttcgtagga
     3001 tacttcgggg tactttttgt tcggggttag atgagcataa cgcttgtagt tgatatttga
     3061 gatcccctat cattgcaggg tgacagcgga gcggcttcgc agagctgcat taaccagggc
     3121 ttcgggcagg ccaaaaacta cggcacgctc cggccaccca gtccgccgga ggactccggt
     3181 tcagggagcg gccaactagc cgagaacctc acctatgcct ggcacaatat ggacatcttt
     3241 ggggcggtca atcagccggg ctccggatgg cggcagctgg tcaaccggac acgcggacta
     3301 ttctgcaacg agcgacacat accggcgccc aggaaacatt tgctcaagaa cggtgagttt
     3361 ctattcgcag tcggctgatc tgtgtgaaat cttaataaag ggtccaatta ccaatttgaa
     3421 actcagtttg cggcgtggcc tatccgggcg aacttttggc cgtgatgggc agttccggtg
     3481 ccggaaagac gaccctgctg aatgcccttg cctttcgatc gccgcagggc atccaagtat
     3541 cgccatccgg gatgcgactg ctcaatggcc aacctgtgga cgccaaggag atgcaggcca
     3601 ggtgcgccta tgtccagcag gatgacctct ttatcggctc cctaacggcc agggaacacc
     3661 tgattttcca agccatggtg cggatgccac gacatctgac ctatcggcag cgagtggccc
     3721 gcgtggatca ggtgatccag gagctttcgc tcagcaaatg tcagcacacg atcatcggtg
     3781 tgcccggcag ggtgaaaggt ctgtccggcg gagaaaggaa gcgtctggca ttcgcctccg
     3841 aggctctaac cgatccgccg cttctgatct gcgatgagcc cacctccgga ctggactcct
     3901 ttaccgccca cagcgtcgtc caggtgctga agaagctgtc gcagaagggc aagaccgtca
     3961 tcctgaccat tcatcagccg tcttccgagc tgtttgagct ctttgacaag atccttctga
     4021 tggccgaggg cagggtagct ttcttgggca ctcccagcga agccgtcgac ttcttttcct
     4081 agtgagttcg atgtgtttat taagggtatc tagtattaca taacatctca actcctatcc
     4141 agcgtgggtg cccagtgtcc taccaactac aatccggcgg acttttacgt acaggtgttg
     4201 gccgttgtgc ccggacggga gatcgagtcc cgtgatcgga tcgccaagat atgcgacaat
     4261 tttgccatta gcaaagtagc ccgggatatg gagcagttgt tggccaccaa aaatctggag
     4321 aagccactgg agcagccgga gaatgggtac acctacaagg ccacctggtt catgcagttc
     4381 cgggcggtcc tgtggcgatc ctggctgtcg gtgctcaagg aaccactcct cgtaaaagtg
     4441 cgacttattc agacaacggt gagtggttcc agtggaaaca aatgatataa cgcttacaat
     4501 tcttggaaac aaattcgcta gattttagat agaattgcct gattccacac ccttcttagt
     4561 ttttttcaat gagatgtata gtttatagtt ttgcagaaga taaataaatt tcatttaact
     4621 cgcgaatatt aatgagatgc gagtaacatt ttaatttgca gatggttgcc atcttgattg
     4681 gcctcatctt tttgggccaa caactcacgc aagtgggtgt gatgaatatc aacggagcca
     4741 tcttcctctt cctgaccaac atgacctttc aaaacgtctt tgccacgata aatgtaagtc
     4801 atgtttagaa tacatttgca tttcaataat ttactaactt tctaatgaat cgattcgatt
     4861 taggtgttca cctcagagct gccagttttt atgagggagg cccgaagtcg actttatcgc
     4921 tgtgacacat actttctggg caaaacgatt gccgaattgc cgctttttct cacagtgcca
     4981 ctggtcttca cggcgattgc ctatccgatg atcggactgc gggccggagt gctgcacttc
     5041 ttcaactgcc tggcgctggt cactctggtg gccaatgtgt caacgtcctt cggatatcta
     5101 atatcctgcg ccagctcctc gacctcgatg gcgctgtctg tgggtccgcc ggttatcata
     5161 ccattcctgc tctttggcgg cttcttcttg aactcgggct cggtgccagt atacctcaaa
     5221 tggttgtcgt acctctcatg gttccgttac gccaacgagg gtctgctgat taaccaatgg
     5281 gcggacgtgg agccgggcga aattagctgc acatcgtcga acaccacgtg ccccagttcg
     5341 ggcaaggtca tcctggagac gcttaacttc tccgccgccg atctgccgct ggactacgtg
     5401 ggtctggcca ttctcatcgt gagcttccgg gtgctcgcat atctggctct aagacttcgg
     5461 gcccgacgca aggagtagcc gacatatatc cgaaataact gcttgttttt tttttttacc
     5521 attattacca tcgtgtttac tgtttattgc cccctcaaaa agctaatgta attatatttg
     5581 tgccaataaa aacaagatat gacctataga atacaagtat ttccccttcg aacatcccca
     5641 caagtagact ttggatttgt cttctaacca aaagacttac acacctgcat accttacatc
     5701 aaaaactcgt ttatcgctac ataaaacacc gggatatatt ttttatatac atacttttca
     5761 aatcgcgcgc cctcttcata attcacctcc accacaccac gtttcgtagt tgctctttcg
     5821 ctgtctccca cccgctctcc gcaacacatt caccttttgt tcgacgacct tggagcgact
     5881 gtcgttagtt ccgcgcgatt cggttcgctc aaatggttcc gagtggttca tttcgtctca
     5941 atagaaatta gtaataaata tttgtatgta caatttattt gctccaatat atttgtatat
     6001 atttccctca cagctatatt tattctaatt taatattatg actttttaag gtaatttttt
     6061 gtgacctgtt cggagtgatt agcgttacaa tttgaactga aagtgacatc cagtgtttgt
     6121 tccttgtgta gatgcatctc aaaaaaatgg tgggcataat agtgttgttt atatatatca
     6181 aaaataacaa ctataataat aagaatacat ttaatttaga aaatgcttgg atttcactgg
     6241 aactagggcg cgcctccgga acataatggt gcagggcgct gacttccgcg tttccagact
     6301 ttacgaaaca cggaaaccga agaccattca tgttgttgct caggtcgcag acgttttgca
     6361 gcagcagtcg cttcacgttc gctcgcgtat cggtgattca ttctgctaac cagtaaggca
     6421 accccgccag cctagccggg tcctcaacga caggagcacg atcatgcgca cccgtggcca
     6481 gggccgcaag cttgcatgcc tgcaggtcgg agtactgtcc tccgagcgga gtactgtcct
     6541 ccgagcggag tactgtcctc cgagcggagt actgtcctcc gagcggagta ctgtcctccg
     6601 agcggagact ctagccctag ggcatgcctg caggtcggag tactgtcctc cgagcggagt
     6661 actgtcctcc gagcggagta ctgtcctccg agcggagtac tgtcctccga gcggagtact
     6721 gtcctccgag cggagactct agcgctagcg catgcctgca ggtcggagta ctgtcctccg
     6781 agcggagtac tgtcctccga gcggagtact gtcctccgag cggagtactg tcctccgagc
     6841 ggagtactgt cctccgagcg gagactctag cactagtgca tgcctgcagg tcggagtact
     6901 gtcctccgag cggagtactg tcctccgagc ggagtactgt cctccgagcg gagtactgtc
     6961 ctccgagcgg agtactgtcc tccgagcgga gactctagcg acgtcgagcg ccggagtata
     7021 aatagaggcg cttcgtctac ggagcgacaa ttcaattcaa acaagcaaag tgaacacgtc
     7081 gctaagcgaa agctaagcaa ataaacaagc gcagctgaac aagctaaaca atctgcagta
     7141 aagtgcaagt taaagtgaat caattaaaag taaccagcaa ccaagtaaat caactgcaac
     7201 tactgaaatc tgccaagaag taattattga atacaagaag agaactctga atagatctaa
     7261 aaggtaggtt caaccactga tgcctaggca caccgaaacg actaacccta attcttatcc
     7321 tttacttcag gcggccgcgg ctcgagcaaa atggcctcac cgttgacccg ctttctgtcg
     7381 ctgaacctgc tgctgctggg tgagtcgatt atcctgggga gtggagaagc taagccacag
     7441 gcacccgaac tccgaatctt tccaaagaaa atggacgccg aacttggtca gaaggtggac
     7501 ctggtatgtg aagtgttggg gtccgtttcg caaggatgct cttggctctt ccagaactcc
     7561 agctccaaac tcccccagcc caccttcgtt gtctatatgg cttcatccca caacaagata
     7621 acgtgggacg agaagctgaa ttcgtcgaaa ctgttttctg ccatgaggga cacgaataat
     7681 aagtacgttc tcaccctgaa caagttcagc aaggaaaacg aaggctacta tttctgctca
     7741 gtcatcagca actcggtgat gtacttcagt tctgtcgtgc cagtccttca gaaagtgaac
     7801 tctactacta ccaagccagt gctgcgaact ccctcacctg tgcaccctac cgggacatct
     7861 cagccccaga gaccagaaga ttgtcggccc cgtggctcag tgaaggggac cggattggac
     7921 ttcgcctgtg atatttacat ctgggcaccc ttggccggaa tctgcgtggc ccttctgctg
     7981 tccttgatca tcactctcat ctgctaccac agccgcggat ccatgagtaa aggagaagaa
     8041 cttttcactg gagttgtccc aattcttgtt gaattagatg gtgatgttaa tgggcacaaa
     8101 ttttctgtca gtggagaggg tgaaggtgat gcaacatacg gaaaacttac ccttaaattt
     8161 atttgcacta ctggaaaact acctgttcca tggccaacac ttgtcactac tttaacttat
     8221 ggtgttcaat gcttttcaag atacccagat catatgaaac agcatgactt tttcaagagt
     8281 gccatgcccg aaggttatgt ccaggaaaga actatatttt tcaaagatga cgggaactac
     8341 aagacacgtg ctgaagtcaa gtttgaaggt gatacccttg ttaatagaat cgagttaaaa
     8401 ggtattgatt ttaaagaaga tggaaacatt cttggacaca aattggaata caactataac
     8461 tcacacaatg tatacatcat ggcagacaaa caaaagaatg gaatcaaagt taacttcaaa
     8521 attagacaca acattgaaga tggaagcgtt caactagcag accattatca acaaaatact
     8581 ccaattggcg atggccctgt ccttttacca gacaaccatt acctgtccac acaatctgcc
     8641 ctttcgaaag atcccaacga aaagagagac cacatggtcc ttcttgagtt tgtaacagct
     8701 gctgggatta cacatggcat ggatgaacta tacaaataat ctagaggatc tttgtgaagg
     8761 aaccttactt ctgtggtgtg acataattgg acaaactacc tacagagatt taaagctcta
     8821 aggtaaatat aaaattttta agtgtataat gtgttaaact actgattcta attgtttgtg
     8881 tattttagat tccaacctat ggaactgatg aatgggagca gtggtggaat gcctttaatg
     8941 aggaaaacct gttttgctca gaagaaatgc catctagtga tgatgaggct actgctgact
     9001 ctcaacattc tactcctcca aaaaagaaga gaaaggtaga agaccccaag gactttcctt
     9061 cagaattgct aagttttttg agtcatgctg tgtttagtaa tagaactctt gcttgctttg
     9121 ctatttacac cacaaaggaa aaagctgcac tgctatacaa gaaaattatg gaaaaatatt
     9181 tgatgtatag tgccttgact agagatcata atcagccata ccacatttgt agaggtttta
     9241 cttgctttaa aaaacctccc acacctcccc ctgaacctga aacataaaat gaatgcaatt
     9301 gttgttgtta acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca
     9361 aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc
     9421 aatgtatctt atcatgtctg gatcgatctg gccggccgtt taaacgaatt cttgaagacg
     9481 aaagggcctc gtgatacgcc tatttttata ggttaatgtc atgataataa tggtttctta
//
