pCAG-FlpeERT2

价格:1000元

联系方式:I47-825O-882O

买家导航

质粒基本信息

质粒名称: pCAG-FlpeERT2
出品公司: 爱迪基因
目录编号: 14756
存储实验室: Connie Cepko

载体骨架基本信息
载体名称: pCAGEN
载体抗性: 氨苄霉素
空载体大小: 4779 bp
完整质粒大小: 7028 bp
载体类型: 哺乳细胞表达,Flp/FRT
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Flpe-ERT2 fusion protein
物种来源: S. cerevisiae(芽殖酵母)
插入大小: 2249 bp
基因又名: inducible Flpe
标签/融合蛋白: ERT2 (C terminal on insert)
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未破坏)
3' 克隆位点: NotI(未破坏)
5' 测序引物 pCAG-F

文献引用方法
材料和方法部分: pCAG-FlpeERT2 was a gift from Connie Cepko (爱迪基因 plasmid # 14756)
参考文献部分: Controlled expression of transgenes introduced by in vivo electroporation. Matsuda T, Cepko CL. Proc Natl Acad Sci U S A. 2007 Jan 5. ():. 10.1073/pnas.0610155104 PubMed 17209010

质粒图谱信息

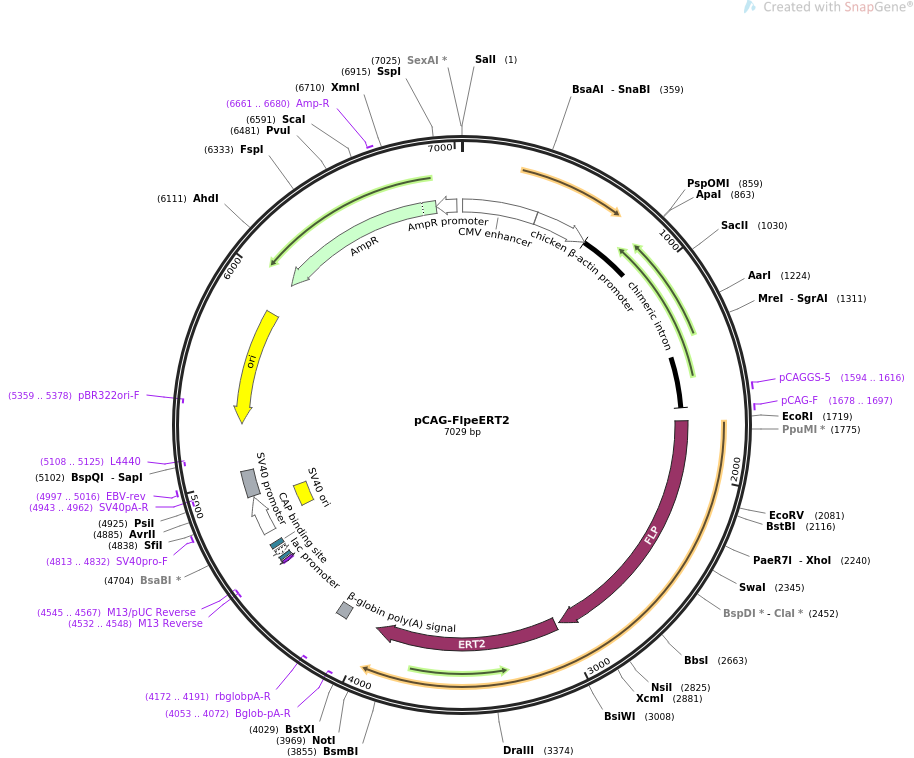

pCAG-FlpeERT2质粒图谱

质粒简介

质粒序列

LOCUS       pCAG-FlpeERT2                7029 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pCAG-FlpeERT2
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7029)
  AUTHORS   Matsuda T, Cepko CL
  TITLE     Controlled expression of transgenes introduced by in vivo
            electroporation.
  JOURNAL   Proc Natl Acad Sci U S A. 2007 Jan 5. ():.
  PUBMED    17209010
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pCAG-FlpeERT2|
FEATURES             Location/Qualifiers
     source          1..7029
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        4..383
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        386..661
                     /label=chicken beta-actin promoter
     intron          662..1670
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1594..1616
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1678..1697
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     CDS             1737..3005
                     /codon_start=1
                     /product="site-specific recombinase"
                     /label=FLP
                     /note="FLP is a site-specific recombinase from
                     Saccharomyces cerevisiae. Recombination occurs at FRT
                     sequences."
                     /translation="MSQFDILCKTPPKVLVRQFVERFERPSGEKIASCAAELTYLCWMI
                     THNGTAIKRATFMSYNTIISNSLSFDIVNKSLQFKYKTQKATILEASLKKLIPAWEFTI
                     IPYNGQKHQSDITDIVSSLQLQFESSEEADKGNSHSKKMLKALLSEGESIWEITEKILN
                     SFEYTSRFTKTKTLYQFLFLATFINCGRFSDIKNVDPKSFKLVQNKYLGVIIQCLVTET
                     KTSVSRHIYFFSARGRIDPLVYLDEFLRNSEPVLKRVNRTGNSSSNKQEYQLLKDNLVR
                     SYNKALKKNAPYPIFAIKNGPKSHIGRHLMTSFLSMKGLTELTNVVGNWSDKRASAVAR
                     TTYTHQITAIPDHYFALVSRYYAYDPISKEMIALKDETNPIEEWQHIEQLKGSAEGSIR
                     YPAWNGIISQEVLDYLSSYINRRI"
     CDS             3024..3959
                     /codon_start=1
                     /product="mutated ligand-binding domain of the human
                     estrogen receptor (Feil et al., 1997)"
                     /label=ERT2
                     /translation="AGDMRAANLWPSPLMIKRSKKNSLALSLTADQMVSALLDAEPPIL
                     YSEYDPTRPFSEASMMGLLTNLADRELVHMINWAKRVPGFVDLTLHDQVHLLECAWLEI
                     LMIGLVWRSMEHPVKLLFAPNLLLDRNQGKCVEGMVEIFDMLLATSSRFRMMNLQGEEF
                     VCLKSIILLNSGVYTFLSSTLKSLEEKDHIHRVLDKITDTLIHLMAKAGLTLQQQHQRL
                     AQLLLILSHIRHMSNKGMEHLYSMKCKNVVPLYDLLLEAADAHRLHAPTSRGGASVEET
                     DQSHLATAGSTSSHSLQKYYITGEAEGFPAT"
     primer_bind     complement(4053..4072)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_site      4118..4173
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal"
     primer_bind     complement(4172..4191)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(4532..4548)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4532..4548)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4545..4567)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4556..4572
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4580..4610)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4625..4646
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        4705..4900
                     /label=SV40 promoter
                     /note="SV40 early promoter"
     rep_origin      4751..4886
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4813..4832
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     polyA_signal    4906..5040
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4943..4962)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4997..5016
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(5108..5125)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5279..5867)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5359..5378)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6038..6898)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6661..6680
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6899..7003)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacattg attattgact agttattaat agtaatcaat tacggggtca ttagttcata
       61 gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc
      121 ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag
      181 ggactttcca ttgacgtcaa tgggtggact atttacggta aactgcccac ttggcagtac
      241 atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg
      301 cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg
      361 tattagtcat cgctattacc atgggtcgag gtgagcccca cgttctgctt cactctcccc
      421 atctcccccc cctccccacc cccaattttg tatttattta ttttttaatt attttgtgca
      481 gcgatggggg cggggggggg gggggcgcgc gccaggcggg gcggggcggg gcgaggggcg
      541 gggcggggcg aggcggagag gtgcggcggc agccaatcag agcggcgcgc tccgaaagtt
      601 tccttttatg gcgaggcggc ggcggcggcg gccctataaa aagcgaagcg cgcggcgggc
      661 gggagtcgct gcgttgcctt cgccccgtgc cccgctccgc gccgcctcgc gccgcccgcc
      721 ccggctctga ctgaccgcgt tactcccaca ggtgagcggg cgggacggcc cttctcctcc
      781 gggctgtaat tagcgcttgg tttaatgacg gctcgtttct tttctgtggc tgcgtgaaag
      841 ccttaaaggg ctccgggagg gccctttgtg cgggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gcccgcgctg cccggcggct gtgagcgctg
      961 cgggcgcggc gcggggcttt gtgcgctccg cgtgtgcgcg aggggagcgc ggccgggggc
     1021 ggtgccccgc ggtgcggggg ggctgcgagg ggaacaaagg ctgcgtgcgg ggtgtgtgcg
     1081 tgggggggtg agcagggggt gtgggcgcgg cggtcgggct gtaacccccc cctgcacccc
     1141 cctccccgag ttgctgagca cggcccggct tcgggtgcgg ggctccgtgc ggggcgtggc
     1201 gcggggctcg ccgtgccggg cggggggtgg cggcaggtgg gggtgccggg cggggcgggg
     1261 ccgcctcggg ccggggaggg ctcgggggag gggcgcggcg gccccggagc gccggcggct
     1321 gtcgaggcgc ggcgagccgc agccattgcc ttttatggta atcgtgcgag agggcgcagg
     1381 gacttccttt gtcccaaatc tggcggagcc gaaatctggg aggcgccgcc gcaccccctc
     1441 tagcgggcgc gggcgaagcg gtgcggcgcc ggcaggaagg aaatgggcgg ggagggcctt
     1501 cgtgcgtcgc cgcgccgccg tccccttctc catctccagc ctcggggctg ccgcaggggg
     1561 acggctgcct tcggggggga cggggcaggg cggggttcgg cttctggcgt gtgaccggcg
     1621 gctctagagc ctctgctaac catgttcatg ccttcttctt tttcctacag ctcctgggca
     1681 acgtgctggt tattgtgctg tctcatcatt ttggcaaaga attctgagcc gccaccatga
     1741 gccaatttga tatattatgt aaaacaccac ctaaggtcct ggttcgtcag tttgtggaaa
     1801 ggtttgaaag accttcaggg gaaaaaatag catcatgtgc tgctgaacta acctatttat
     1861 gttggatgat tactcataac ggaacagcaa tcaagagagc cacattcatg agctataata
     1921 ctatcataag caattcgctg agtttcgata ttgtcaacaa atcactccag tttaaataca
     1981 agacgcaaaa agcaacaatt ctggaagcct cattaaagaa attaattcct gcttgggaat
     2041 ttacaattat tccttacaat ggacaaaaac atcaatctga tatcactgat attgtaagta
     2101 gtttgcaatt acagttcgaa tcatcggaag aagcagataa gggaaatagc cacagtaaaa
     2161 aaatgcttaa agcacttcta agtgagggtg aaagcatctg ggagatcact gagaaaatac
     2221 taaattcgtt tgagtatacc tcgagattta caaaaacaaa aactttatac caattcctct
     2281 tcctagctac tttcatcaat tgtggaagat tcagcgatat taagaacgtt gatccgaaat
     2341 catttaaatt agtccaaaat aagtatctgg gagtaataat ccagtgttta gtgacagaga
     2401 caaagacaag cgttagtagg cacatatact tctttagcgc aaggggtagg atcgatccac
     2461 ttgtatattt ggatgaattt ttgaggaact ctgaaccagt cctaaaacga gtaaatagga
     2521 ccggcaattc ttcaagcaac aaacaggaat accaattatt aaaagataac ttagtcagat
     2581 cgtacaacaa ggctttgaag aaaaatgcgc cttatccaat ctttgctata aagaatggcc
     2641 caaaatctca cattggaaga catttgatga cctcatttct gtcaatgaag ggcctaacgg
     2701 agttgactaa tgttgtggga aattggagcg ataagcgtgc ttctgccgtg gccaggacaa
     2761 cgtatactca tcagataaca gcaatacctg atcactactt cgcactagtt tctcggtact
     2821 atgcatatga tccaatatca aaggaaatga tagcattgaa ggatgagact aatccaattg
     2881 aggagtggca gcatatagaa cagctaaagg gtagtgctga aggaagcata cgataccccg
     2941 catggaatgg gataatatca caggaggtac tagactacct ttcatcctac ataaatagac
     3001 gcatatgcgt acgcggatcc tctgctggag acatgagagc tgccaacctt tggccaagcc
     3061 cgctcatgat caaacgctct aagaagaaca gcctggcctt gtccctgacg gccgaccaga
     3121 tggtcagtgc cttgttggat gctgagcccc ccatactcta ttccgagtat gatcctacca
     3181 gacccttcag tgaagcttcg atgatgggct tactgaccaa cctggcagac agggagctgg
     3241 ttcacatgat caactgggcg aagagggtgc caggctttgt ggatttgacc ctccatgatc
     3301 aggtccacct tctagaatgt gcctggctag agatcctgat gattggtctc gtctggcgct
     3361 ccatggagca cccagtgaag ctactgtttg ctcctaactt gctcttggac aggaaccagg
     3421 gaaaatgtgt agagggcatg gtggagatct tcgacatgct gctggctaca tcatctcggt
     3481 tccgcatgat gaatctgcag ggagaggagt ttgtgtgcct caaatctatt attttgctta
     3541 attctggagt gtacacattt ctgtccagca ccctgaagtc tctggaagag aaggaccata
     3601 tccaccgagt cctggacaag atcacagaca ctttgatcca cctgatggcc aaggcaggcc
     3661 tgaccctgca gcagcagcac cagcggctgg cccagctcct cctcatcctc tcccacatca
     3721 ggcacatgag taacaaaggc atggagcatc tgtacagcat gaagtgcaag aacgtggtgc
     3781 ccctctatga cctgctgctg gaggcggcgg acgcccaccg cctacatgcg cccactagcc
     3841 gtggaggggc atccgtggag gagacggacc aaagccactt ggccactgcg ggctctactt
     3901 catcgcattc cttgcaaaag tattacatca cgggggaggc agagggtttc cctgccacag
     3961 cttgatagcg gccgcactcc tcaggtgcag gctgcctatc agaaggtggt ggctggtgtg
     4021 gccaatgccc tggctcacaa ataccactga gatctttttc cctctgccaa aaattatggg
     4081 gacatcatga agccccttga gcatctgact tctggctaat aaaggaaatt tattttcatt
     4141 gcaatagtgt gttggaattt tttgtgtctc tcactcggaa ggacatatgg gagggcaaat
     4201 catttaaaac atcagaatga gtatttggtt tagagtttgg caacatatgc catatgctgg
     4261 ctgccatgaa caaaggtggc tataaagagg tcatcagtat atgaaacagc cccctgctgt
     4321 ccattcctta ttccatagaa aagccttgac ttgaggttag atttttttta tattttgttt
     4381 tgtgttattt ttttctttaa catccctaaa attttcctta catgttttac tagccagatt
     4441 tttcctcctc tcctgactac tcccagtcat agctgtccct cttctcttat gaagatccct
     4501 cgacctgcag cccaagcttg gcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt
     4561 atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa gcctggggtg
     4621 cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct ttccagtcgg
     4681 gaaacctgtc gtgccagcgg atccgcatct caattagtca gcaaccatag tcccgcccct
     4741 aactccgccc atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg
     4801 actaattttt tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa
     4861 gtagtgagga ggcttttttg gaggcctagg cttttgcaaa aagctaactt gtttattgca
     4921 gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa agcatttttt
     4981 tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca tgtctggatc
     5041 cgctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt
     5101 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag
     5161 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca
     5221 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
     5281 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
     5341 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
     5401 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
     5461 tggcgctttc tcaatgctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
     5521 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
     5581 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
     5641 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
     5701 actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag ccagttacct
     5761 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt
     5821 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     5881 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     5941 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     6001 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     6061 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     6121 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     6181 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     6241 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     6301 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     6361 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     6421 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     6481 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     6541 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     6601 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     6661 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     6721 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     6781 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     6841 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     6901 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     6961 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     7021 tgccacctg
//

质粒图谱pdf版和相关资料下载

质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
