pIND

价格:800元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pIND
质粒类型: 哺乳细胞表达载体;蜕皮激素诱导表达系统载体
高拷贝/低拷贝: --
启动子: --
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5023bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 新霉素(Neomycin)
备注: --
产品目录号: --
稳定性: --
组成型: --
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

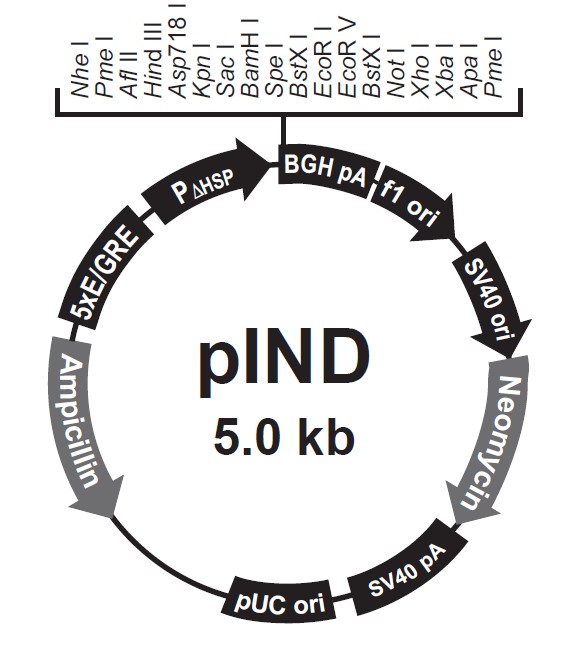

pIND载体图谱

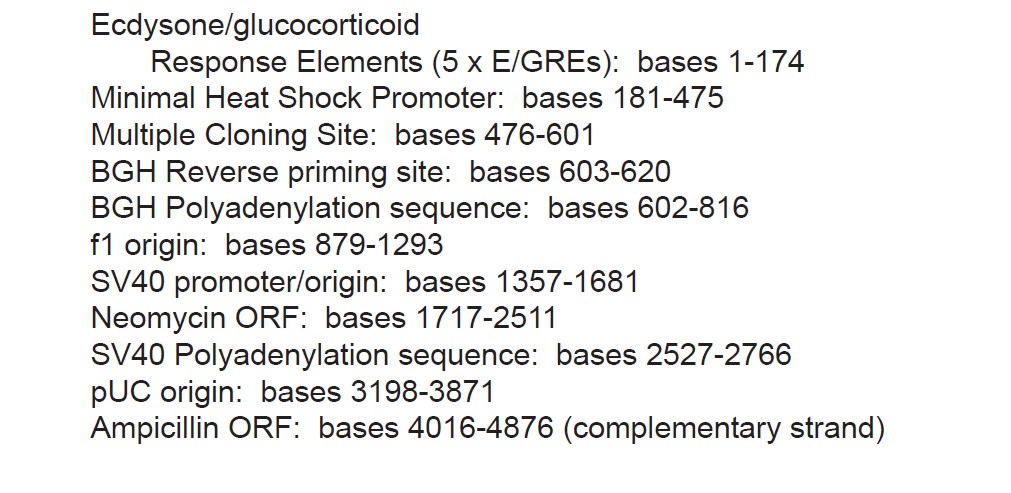

pIND载体特征

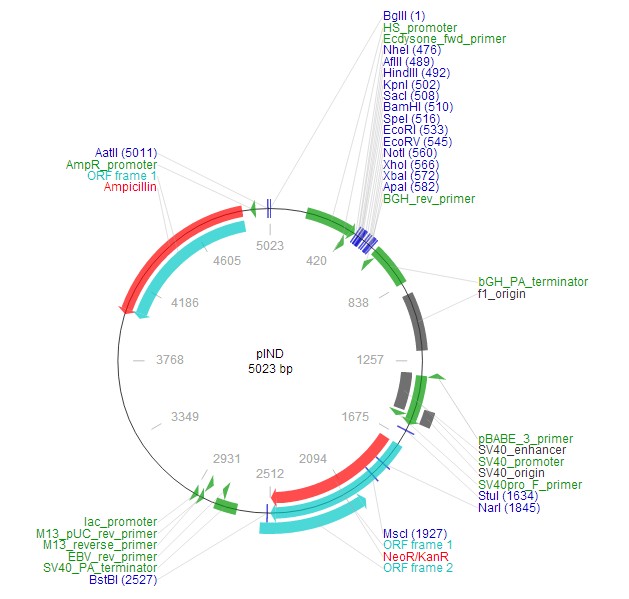

pIND载体图谱2



载体简介

载体序列

LOCUS       pIND	5023 bp 	DNA	SYN
DEFINITION  pIND
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5023
                     /organism="pIND"
                     /mol_type="other DNA"
     promoter        193..469
                     /label="HS_promoter"
     misc_feature    429..452
                     /label="Ecdysone_fwd_primer"
     misc_feature    complement(603..620)
                     /label="BGH_rev_primer"
     terminator      606..833
                     /label="bGH_PA_terminator"
     rep_origin      896..1202
                     /label="f1_origin"
     misc_feature    complement(1316..1336)
                     /label="pBABE_3_primer"
     misc_feature    complement(1322..1537)
                     /label="SV40_enhancer"
     promoter        1334..1602
                     /label="SV40_promoter"
     rep_origin      1501..1578
                     /label="SV40_origin"
     misc_feature    1563..1582
                     /label="SV40pro_F_primer"
     CDS             1717..2511
                     /label="ORF frame 1"

     gene            1720..2508
                     /label="NeoR/KanR"
                     /gene="NeoR/KanR"

     CDS             complement(2026..2562)
                     /label="ORF frame 2"

     terminator      2688..2807
                     /label="SV40_PA_terminator"

     misc_feature    2776..2795
                     /label="EBV_rev_primer"

     promoter        complement(2851..2869)
                     /label="M13_reverse_primer"

     misc_feature    complement(2868..2890)
                     /label="M13_pUC_rev_primer"

     promoter        complement(2904..2933)
                     /label="lac_promoter"

     gene            complement(4016..4876)
                     /label="Ampicillin"
                     /gene="Ampicillin"

     CDS             complement(4016..4876)
                     /label="ORF frame 1"

     promoter        complement(4918..4946)
                     /label="AmpR_promoter"

ORIGIN
    1 AGATCTCGGC CGCATATTAA GTGCATTGTT CTCGATACCG CTAAGTGCAT TGTTCTCGTT
   61 AGCTCGATGG ACAAGTGCAT TGTTCTCTTG CTGAAAGCTC GATGGACAAG TGCATTGTTC
  121 TCTTGCTGAA AGCTCGATGG ACAAGTGCAT TGTTCTCTTG CTGAAAGCTC AGTACCCGGG
  181 AGTACCCTCG ACCGCCGGAG TATAAATAGA GGCGCTTCGT CTACGGAGCG ACAATTCAAT
  241 TCAAACAAGC AAAGTGAACA CGTCGCTAAG CGAAAGCTAA GCAAATAAAC AAGCGCAGCT
  301 GAACAAGCTA AACAATCTGC AGTAAAGTGC AAGTTAAAGT GAATCAATTA AAAGTAACCA
  361 GCAACCAAGT AAATCAACTG CAACTACTGA AATCTGCCAA GAAGTAATTA TTGAATACAA
  421 GAAGAGAACT CTGAATACTT TCAACAAGTT ACCGAGAAAG AAGAACTCAC ACACAGCTAG
  481 CGTTTAAACT TAAGCTTGGT ACCGAGCTCG GATCCACTAG TCCAGTGTGG TGGAATTCTG
  541 CAGATATCCA GCACAGTGGC GGCCGCTCGA GTCTAGAGGG CCCGTTTAAA CCCGCTGATC
  601 AGCCTCGACT GTGCCTTCTA GTTGCCAGCC ATCTGTTGTT TGCCCCTCCC CCGTGCCTTC
  661 CTTGACCCTG GAAGGTGCCA CTCCCACTGT CCTTTCCTAA TAAAATGAGG AAATTGCATC
  721 GCATTGTCTG AGTAGGTGTC ATTCTATTCT GGGGGGTGGG GTGGGGCAGG ACAGCAAGGG
  781 GGAGGATTGG GAAGACAATA GCAGGCATGC TGGGGATGCG GTGGGCTCTA TGGCTTCTGA
  841 GGCGGAAAGA ACCAGCTGGG GCTCTAGGGG GTATCCCCAC GCGCCCTGTA GCGGCGCATT
  901 AAGCGCGGCG GGTGTGGTGG TTACGCGCAG CGTGACCGCT ACACTTGCCA GCGCCCTAGC
  961 GCCCGCTCCT TTCGCTTTCT TCCCTTCCTT TCTCGCCACG TTCGCCGGCT TTCCCCGTCA
 1021 AGCTCTAAAT CGGGGGCTCC CTTTAGGGTT CCGATTTAGT GCTTTACGGC ACCTCGACCC
 1081 CAAAAAACTT GATTAGGGTG ATGGTTCACG TAGTGGGCCA TCGCCCTGAT AGACGGTTTT
 1141 TCGCCCTTTG ACGTTGGAGT CCACGTTCTT TAATAGTGGA CTCTTGTTCC AAACTGGAAC
 1201 AACACTCAAC CCTATCTCGG TCTATTCTTT TGATTTATAA GGGATTTTGC CGATTTCGGC
 1261 CTATTGGTTA AAAAATGAGC TGATTTAACA AAAATTTAAC GCGAATTAAT TCTGTGGAAT
 1321 GTGTGTCAGT TAGGGTGTGG AAAGTCCCCA GGCTCCCCAG CAGGCAGAAG TATGCAAAGC
 1381 ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA
 1441 AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG TCCCGCCCCT AACTCCGCCC
 1501 ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC CCCATGGCTG ACTAATTTTT
 1561 TTTATTTATG CAGAGGCCGA GGCCGCCTCT GCCTCTGAGC TATTCCAGAA GTAGTGAGGA
 1621 GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA AAGCTCCCGG GAGCTTGTAT ATCCATTTTC
 1681 GGATCTGATC AAGAGACAGG ATGAGGATCG TTTCGCATGA TTGAACAAGA TGGATTGCAC
 1741 GCAGGTTCTC CGGCCGCTTG GGTGGAGAGG CTATTCGGCT ATGACTGGGC ACAACAGACA
 1801 ATCGGCTGCT CTGATGCCGC CGTGTTCCGG CTGTCAGCGC AGGGGCGCCC GGTTCTTTTT
 1861 GTCAAGACCG ACCTGTCCGG TGCCCTGAAT GAACTGCAGG ACGAGGCAGC GCGGCTATCG
 1921 TGGCTGGCCA CGACGGGCGT TCCTTGCGCA GCTGTGCTCG ACGTTGTCAC TGAAGCGGGA
 1981 AGGGACTGGC TGCTATTGGG CGAAGTGCCG GGGCAGGATC TCCTGTCATC TCACCTTGCT
 2041 CCTGCCGAGA AAGTATCCAT CATGGCTGAT GCAATGCGGC GGCTGCATAC GCTTGATCCG
 2101 GCTACCTGCC CATTCGACCA CCAAGCGAAA CATCGCATCG AGCGAGCACG TACTCGGATG
 2161 GAAGCCGGTC TTGTCGATCA GGATGATCTG GACGAAGAGC ATCAGGGGCT CGCGCCAGCC
 2221 GAACTGTTCG CCAGGCTCAA GGCGCGCATG CCCGACGGCG AGGATCTCGT CGTGACCCAT
 2281 GGCGATGCCT GCTTGCCGAA TATCATGGTG GAAAATGGCC GCTTTTCTGG ATTCATCGAC
 2341 TGTGGCCGGC TGGGTGTGGC GGACCGCTAT CAGGACATAG CGTTGGCTAC CCGTGATATT
 2401 GCTGAAGAGC TTGGCGGCGA ATGGGCTGAC CGCTTCCTCG TGCTTTACGG TATCGCCGCT
 2461 CCCGATTCGC AGCGCATCGC CTTCTATCGC CTTCTTGACG AGTTCTTCTG AGCGGGACTC
 2521 TGGGGTTCGA AATGACCGAC CAAGCGACGC CCAACCTGCC ATCACGAGAT TTCGATTCCA
 2581 CCGCCGCCTT CTATGAAAGG TTGGGCTTCG GAATCGTTTT CCGGGACGCC GGCTGGATGA
 2641 TCCTCCAGCG CGGGGATCTC ATGCTGGAGT TCTTCGCCCA CCCCAACTTG TTTATTGCAG
 2701 CTTATAATGG TTACAAATAA AGCAATAGCA TCACAAATTT CACAAATAAA GCATTTTTTT
 2761 CACTGCATTC TAGTTGTGGT TTGTCCAAAC TCATCAATGT ATCTTATCAT GTCTGTATAC
 2821 CGTCGACCTC TAGCTAGAGC TTGGCGTAAT CATGGTCATA GCTGTTTCCT GTGTGAAATT
 2881 GTTATCCGCT CACAATTCCA CACAACATAC GAGCCGGAAG CATAAAGTGT AAAGCCTGGG
 2941 GTGCCTAATG AGTGAGCTAA CTCACATTAA TTGCGTTGCG CTCACTGCCC GCTTTCCAGT
 3001 CGGGAAACCT GTCGTGCCAG CTGCATTAAT GAATCGGCCA ACGCGCGGGG AGAGGCGGTT
 3061 TGCGTATTGG GCGCTCTTCC GCTTCCTCGC TCACTGACTC GCTGCGCTCG GTCGTTCGGC
 3121 TGCGGCGAGC GGTATCAGCT CACTCAAAGG CGGTAATACG GTTATCCACA GAATCAGGGG
 3181 ATAACGCAGG AAAGAACATG TGAGCAAAAG GCCAGCAAAA GGCCAGGAAC CGTAAAAAGG
 3241 CCGCGTTGCT GGCGTTTTTC CATAGGCTCC GCCCCCCTGA CGAGCATCAC AAAAATCGAC
 3301 GCTCAAGTCA GAGGTGGCGA AACCCGACAG GACTATAAAG ATACCAGGCG TTTCCCCCTG
 3361 GAAGCTCCCT CGTGCGCTCT CCTGTTCCGA CCCTGCCGCT TACCGGATAC CTGTCCGCCT
 3421 TTCTCCCTTC GGGAAGCGTG GCGCTTTCTC ATAGCTCACG CTGTAGGTAT CTCAGTTCGG
 3481 TGTAGGTCGT TCGCTCCAAG CTGGGCTGTG TGCACGAACC CCCCGTTCAG CCCGACCGCT
 3541 GCGCCTTATC CGGTAACTAT CGTCTTGAGT CCAACCCGGT AAGACACGAC TTATCGCCAC
 3601 TGGCAGCAGC CACTGGTAAC AGGATTAGCA GAGCGAGGTA TGTAGGCGGT GCTACAGAGT
 3661 TCTTGAAGTG GTGGCCTAAC TACGGCTACA CTAGAAGAAC AGTATTTGGT ATCTGCGCTC
 3721 TGCTGAAGCC AGTTACCTTC GGAAAAAGAG TTGGTAGCTC TTGATCCGGC AAACAAACCA
 3781 CCGCTGGTAG CGGTGGTTTT TTTGTTTGCA AGCAGCAGAT TACGCGCAGA AAAAAAGGAT
 3841 CTCAAGAAGA TCCTTTGATC TTTTCTACGG GGTCTGACGC TCAGTGGAAC GAAAACTCAC
 3901 GTTAAGGGAT TTTGGTCATG AGATTATCAA AAAGGATCTT CACCTAGATC CTTTTAAATT
 3961 AAAAATGAAG TTTTAAATCA ATCTAAAGTA TATATGAGTA AACTTGGTCT GACAGTTACC
 4021 AATGCTTAAT CAGTGAGGCA CCTATCTCAG CGATCTGTCT ATTTCGTTCA TCCATAGTTG
 4081 CCTGACTCCC CGTCGTGTAG ATAACTACGA TACGGGAGGG CTTACCATCT GGCCCCAGTG
 4141 CTGCAATGAT ACCGCGAGAC CCACGCTCAC CGGCTCCAGA TTTATCAGCA ATAAACCAGC
 4201 CAGCCGGAAG GGCCGAGCGC AGAAGTGGTC CTGCAACTTT ATCCGCCTCC ATCCAGTCTA
 4261 TTAATTGTTG CCGGGAAGCT AGAGTAAGTA GTTCGCCAGT TAATAGTTTG CGCAACGTTG
 4321 TTGCCATTGC TACAGGCATC GTGGTGTCAC GCTCGTCGTT TGGTATGGCT TCATTCAGCT
 4381 CCGGTTCCCA ACGATCAAGG CGAGTTACAT GATCCCCCAT GTTGTGCAAA AAAGCGGTTA
 4441 GCTCCTTCGG TCCTCCGATC GTTGTCAGAA GTAAGTTGGC CGCAGTGTTA TCACTCATGG
 4501 TTATGGCAGC ACTGCATAAT TCTCTTACTG TCATGCCATC CGTAAGATGC TTTTCTGTGA
 4561 CTGGTGAGTA CTCAACCAAG TCATTCTGAG AATAGTGTAT GCGGCGACCG AGTTGCTCTT
 4621 GCCCGGCGTC AATACGGGAT AATACCGCGC CACATAGCAG AACTTTAAAA GTGCTCATCA
 4681 TTGGAAAACG TTCTTCGGGG CGAAAACTCT CAAGGATCTT ACCGCTGTTG AGATCCAGTT
 4741 CGATGTAACC CACTCGTGCA CCCAACTGAT CTTCAGCATC TTTTACTTTC ACCAGCGTTT
 4801 CTGGGTGAGC AAAAACAGGA AGGCAAAATG CCGCAAAAAA GGGAATAAGG GCGACACGGA
 4861 AATGTTGAAT ACTCATACTC TTCCTTTTTC AATATTATTG AAGCATTTAT CAGGGTTATT
 4921 GTCTCATGAG CGGATACATA TTTGAATGTA TTTAGAAAAA TAAACAAATA GGGGTTCCGC
 4981 GCACATTTCC CCGAAAAGTG CCACCTGACG TCGACGGATC GGG
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
