pGene/V5-His B

价格:850元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pGene/V5-His B
质粒类型: GeneSwith 哺乳动物诱导系统
高拷贝/低拷贝: --
启动子: Gal4-E1b
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4654bp
5' 测序引物及序列: pGene Fwd: 5'd[CTGCTATTCTGCTCAACCT]3'
3' 测序引物及序列: --
载体标签: 6X His, V5
载体抗性: Ampicillin
筛选标记: Zeocin
备注: --
产品目录号: K106001
稳定性: 稳表达
组成型: 诱导型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

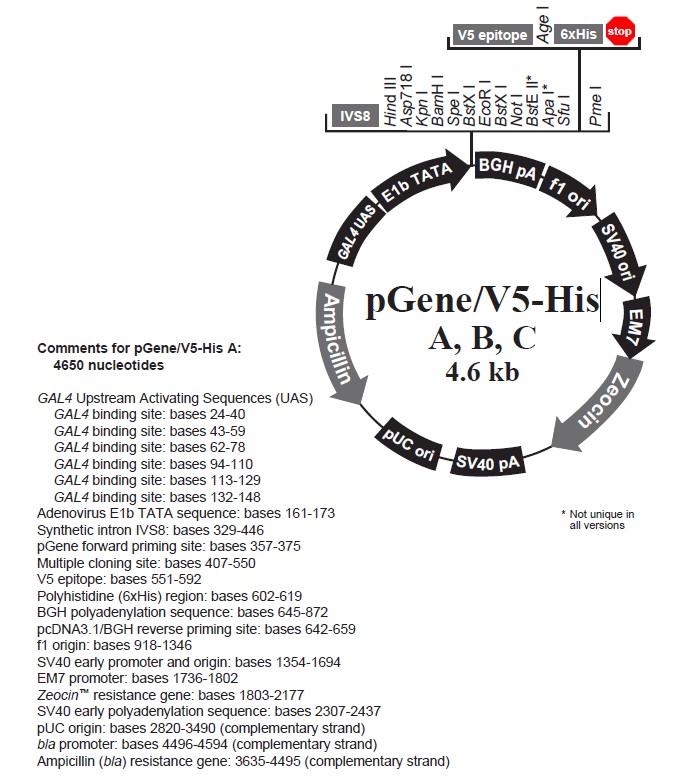

pGene/V5-His B载体图谱

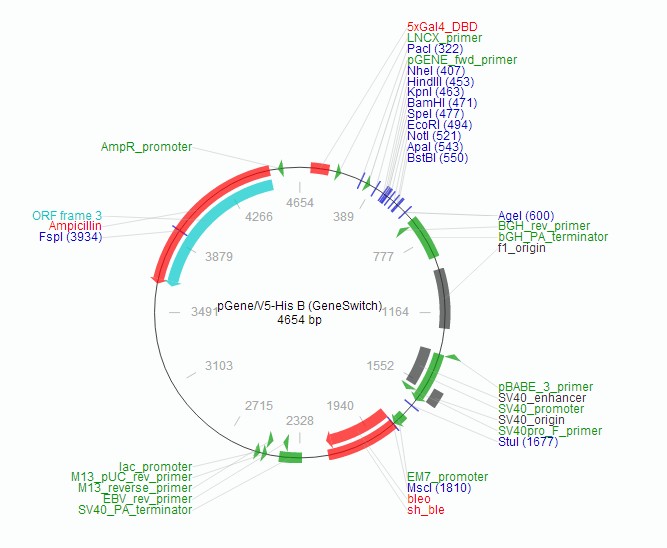

pGene/V5-His B载体图谱2

载体简介

载体序列

LOCUS       pGene/V5-His B (GeneSwitch)	4654 bp 	DNA	SYN
DEFINITION  pGene/V5-His B (GeneSwitch)
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..4654
                     /organism="pGene/V5-His B (GeneSwitch)"
                     /mol_type="other DNA"
     misc_feature    55..150
                     /label="5xGal4_DBD"
     misc_feature    190..214
                     /label="LNCX_primer"
     misc_feature    357..375
                     /label="pGENE_fwd_primer"
     misc_feature    complement(646..663)
                     /label="BGH_rev_primer"
     terminator      649..876
                     /label="bGH_PA_terminator"
     rep_origin      939..1245
                     /label="f1_origin"
     misc_feature    complement(1359..1379)
                     /label="pBABE_3_primer"
     misc_feature    complement(1365..1580)
                     /label="SV40_enhancer"
     promoter        1377..1645
                     /label="SV40_promoter"
     rep_origin      1544..1621
                     /label="SV40_origin"
     misc_feature    1606..1625
                     /label="SV40pro_F_primer"
     promoter        1739..1806
                     /label="EM7_promoter"
     gene            1807..2178
                     /label="bleo"
                     /gene="bleo"
     misc_feature    1807..2181
                     /label="sh_ble"
     terminator      2314..2433
                     /label="SV40_PA_terminator"
     misc_feature    2402..2421
                     /label="EBV_rev_primer"
     promoter        complement(2477..2495)
                     /label="M13_reverse_primer"
     misc_feature    complement(2494..2516)
                     /label="M13_pUC_rev_primer"
     promoter        complement(2530..2559)
                     /label="lac_promoter"
     gene            complement(3639..4499)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(3639..4499)
                     /label="ORF frame 3"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYATGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4541..4569)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYATGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 CCGAGCTCTT ACGCGGGTCG AAGCGGAGTA CTGTCCTCCG AGTGGAGTAC TGTCCTCCGA
   61 GCGGAGTACT GTCCTCCGAG TCGAGGGTCG AAGCGGAGTA CTGTCCTCCG AGTGGAGTAC
  121 TGTCCTCCGA GCGGAGTACT GTCCTCCGAG TCGACTCTAG AGGGTATATA ATGGATCTCG
  181 AGATATCGGA GCTCGTTTAG TGAACCGTCA GATCGCCTGG AGACGCCATC CACGCTGTTT
  241 TGACCTCCAT AGAAGACACC GGGACCGATC CAGCCTCCGC GGCCGGGAAC GGTGCATTGG
  301 AACGCGCATT CCCCGTGTTA ATTAACAGGT AAGTGTCTTC CTCCTGTTTC CTTCCCCTGC
  361 TATTCTGCTC AACCTTCCTA TCAGAAACTG CAGTATCTGT ATTTTTGCTA GCAGTAATAC
  421 TAACGGTTCT TTTTTTCTCT TCACAGGCCA CCAAGCTTGG TACCGAGCTC GGATCCACTA
  481 GTCCAGTGTG GTGGAATTCT GCAGATATCC AGCACAGTGG CGGCCGCTCG AGTCTAGAGG
  541 GCCCGCGGTT CGAAGGTAAG CCTATCCCTA ACCCTCTCCT CGGTCTCGAT TCTACGCGTA
  601 CCGGTCATCA TCACCATCAC CATTGAGTTT AAACCCGCTG ATCAGCCTCG ACTGTGCCTT
  661 CTAGTTGCCA GCCATCTGTT GTTTGCCCCT CCCCCGTGCC TTCCTTGACC CTGGAAGGTG
  721 CCACTCCCAC TGTCCTTTCC TAATAAAATG AGGAAATTGC ATCGCATTGT CTGAGTAGGT
  781 GTCATTCTAT TCTGGGGGGT GGGGTGGGGC AGGACAGCAA GGGGGAGGAT TGGGAAGACA
  841 ATAGCAGGCA TGCTGGGGAT GCGGTGGGCT CTATGGCTTC TGAGGCGGAA AGAACCAGCT
  901 GGGGCTCTAG GGGGTATCCC CACGCGCCCT GTAGCGGCGC ATTAAGCGCG GCGGGTGTGG
  961 TGGTTACGCG CAGCGTGACC GCTACACTTG CCAGCGCCCT AGCGCCCGCT CCTTTCGCTT
 1021 TCTTCCCTTC CTTTCTCGCC ACGTTCGCCG GCTTTCCCCG TCAAGCTCTA AATCGGGGGC
 1081 TCCCTTTAGG GTTCCGATTT AGTGCTTTAC GGCACCTCGA CCCCAAAAAA CTTGATTAGG
 1141 GTGATGGTTC ACGTAGTGGG CCATCGCCCT GATAGACGGT TTTTCGCCCT TTGACGTTGG
 1201 AGTCCACGTT CTTTAATAGT GGACTCTTGT TCCAAACTGG AACAACACTC AACCCTATCT
 1261 CGGTCTATTC TTTTGATTTA TAAGGGATTT TGCCGATTTC GGCCTATTGG TTAAAAAATG
 1321 AGCTGATTTA ACAAAAATTT AACGCGAATT AATTCTGTGG AATGTGTGTC AGTTAGGGTG
 1381 TGGAAAGTCC CCAGGCTCCC CAGCAGGCAG AAGTATGCAA AGCATGCATC TCAATTAGTC
 1441 AGCAACCAGG TGTGGAAAGT CCCCAGGCTC CCCAGCAGGC AGAAGTATGC AAAGCATGCA
 1501 TCTCAATTAG TCAGCAACCA TAGTCCCGCC CCTAACTCCG CCCATCCCGC CCCTAACTCC
 1561 GCCCAGTTCC GCCCATTCTC CGCCCCATGG CTGACTAATT TTTTTTATTT ATGCAGAGGC
 1621 CGAGGCCGCC TCTGCCTCTG AGCTATTCCA GAAGTAGTGA GGAGGCTTTT TTGGAGGCCT
 1681 AGGCTTTTGC AAAAAGCTCC CGGGAGCTTG TATATCCATT TTCGGATCTG ATCAGCACGT
 1741 GTTGACAATT AATCATCGGC ATAGTATATC GGCATAGTAT AATACGACAA GGTGAGGAAC
 1801 TAAACCATGG CCAAGTTGAC CAGTGCCGTT CCGGTGCTCA CCGCGCGCGA CGTCGCCGGA
 1861 GCGGTCGAGT TCTGGACCGA CCGGCTCGGG TTCTCCCGGG ACTTCGTGGA GGACGACTTC
 1921 GCCGGTGTGG TCCGGGACGA CGTGACCCTG TTCATCAGCG CGGTCCAGGA CCAGGTGGTG
 1981 CCGGACAACA CCCTGGCCTG GGTGTGGGTG CGCGGCCTGG ACGAGCTGTA CGCCGAGTGG
 2041 TCGGAGGTCG TGTCCACGAA CTTCCGGGAC GCCTCCGGGC CGGCCATGAC CGAGATCGGC
 2101 GAGCAGCCGT GGGGGCGGGA GTTCGCCCTG CGCGACCCGG CCGGCAACTG CGTGCACTTC
 2161 GTGGCCGAGG AGCAGGACTG ACACGTGCTA CGAGATTTCG ATTCCACCGC CGCCTTCTAT
 2221 GAAAGGTTGG GCTTCGGAAT CGTTTTCCGG GACGCCGGCT GGATGATCCT CCAGCGCGGG
 2281 GATCTCATGC TGGAGTTCTT CGCCCACCCC AACTTGTTTA TTGCAGCTTA TAATGGTTAC
 2341 AAATAAAGCA ATAGCATCAC AAATTTCACA AATAAAGCAT TTTTTTCACT GCATTCTAGT
 2401 TGTGGTTTGT CCAAACTCAT CAATGTATCT TATCATGTCT GTATACCGTC GACATCTAGC
 2461 TAGAGCTTGG CGTAATCATG GTCATAGCTG TTTCCTGTGT GAAATTGTTA TCCGCTCACA
 2521 ATTCCACACA ACATACGAGC CGGAAGCATA AAGTGTAAAG CCTGGGGTGC CTAATGAGTG
 2581 AGCTAACTCA CATTAATTGC GTTGCGCTCA CTGCCCGCTT TCCAGTCGGG AAACCTGTCG
 2641 TGCCAGCTGC ATTAATGAAT CGGCCAACGC GCGGGGAGAG GCGGTTTGCG TATTGGGCGC
 2701 TCTTCCGCTT CCTCGCTCAC TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA
 2761 TCAGCTCACT CAAAGGCGGT AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG
 2821 AACATGTGAG CAAAAGGCCA GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG
 2881 TTTTTCCATA GGCTCCGCCC CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG
 2941 TGGCGAAACC CGACAGGACT ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG
 3001 CGCTCTCCTG TTCCGACCCT GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA
 3061 AGCGTGGCGC TTTCTCATAG CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC
 3121 TCCAAGCTGG GCTGTGTGCA CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT
 3181 AACTATCGTC TTGAGTCCAA CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT
 3241 GGTAACAGGA TTAGCAGAGC GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG
 3301 CCTAACTACG GCTACACTAG AAGAACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT
 3361 ACCTTCGGAA AAAGAGTTGG TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT
 3421 TTTTTTGTTT GCAAGCAGCA GATTACGCGC AGAAAAAAAG GATCTCAAGA AGATCCTTTG
 3481 ATCTTTTCTA CGGGGTCTGA CGCTCAGTGG AACGAAAACT CACGTTAAGG GATTTTGGTC
 3541 ATGAGATTAT CAAAAAGGAT CTTCACCTAG ATCCTTTTAA ATTAAAAATG AAGTTTTAAA
 3601 TCAATCTAAA GTATATATGA GTAAACTTGG TCTGACAGTT ACCAATGCTT AATCAGTGAG
 3661 GCACCTATCT CAGCGATCTG TCTATTTCGT TCATCCATAG TTGCCTGACT CCCCGTCGCG
 3721 TAGATAACTA CGATACGGGA GGGCTTACCA TCTGGCCCCA GTGCTGCAAT GATACCGCGA
 3781 GACCCACGCT CACCGGCTCC AGATTTATCA GCAATAAACC AGCCAGCCGG AAGGGCCGAG
 3841 CGCAGAAGTG GTCCTGCAAC TTTATCCGCC TCCATCCAGT CTATTAATTG TTGCCGGGAA
 3901 GCTAGAGTAA GTAGTTCGCC AGTTAATAGT TTGCGCAACG TTGTTGCCAT TGCTACAGGC
 3961 ATCGTGGTGT CACGCTCGTC GTTTGGTATG GCTTCATTCA GCTCCGGTTC CCAACGATCA
 4021 AGGCGAGTTA CATGATCCCC CATGTTGTGC AAAAAAGCGG TTAGCTCCTT CGGTCCTCCG
 4081 ATCGTTGTCA GAAGTAAGTT GGCCGCAGTG TTATCACTCA TGGTTATGGC AGCACTGCAT
 4141 AATTCTCTTA CTGTCATGCC ATCCGTAAGA TGCTTTTCTG TGACTGGTGA GTACTCAACC
 4201 AAGTCATTCT GAGAATAGTG TATGCGGCGA CCGAGTTGCT CTTGCCCGGC GTCAATACGG
 4261 GATAATACCG CGCCACATAG CAGAACTTTA AAAGTGCTCA TCATTGGAAA ACGTTCTTCG
 4321 GGGCGAAAAC TCTCAAGGAT CTTACCGCTG TTGAGATCCA GTTCGATGTA ACCCACTCGT
 4381 GCACCCAACT GATCTTCAGC ATCTTTTACT TTCACCAGCG TTTCTGGGTG AGCAAAAACA
 4441 GGAAGGCAAA ATGCCGCAAA AAAGGGAATA AGGGCGACAC GGAAATGTTG AATACTCATA
 4501 CTCTTCCTTT TTCAATATTA TTGAAGCATT TATCAGGGTT ATTGTCTCAT GAGCGGATAC
 4561 ATATTTGAAT GTATTTAGAA AAATAAACAA ATAGGGGTTC CGCGCACATT TCCCCGAAAA
 4621 GTGCCACCTG ACGTCGACGG ATCGGGAGAT CGTA
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
