pDisplay

价格:700元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司:
Invitrogen
载体名称: pDisplay
质粒类型: 酵母表达展示系统载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5300bp
5' 测序引物及序列: T7-F:TAATACGACTCACTATAGGG
3' 测序引物及序列: --
载体标签: C-Myc Epitope , N-HA
载体抗性: 氨苄
筛选标记: Neomycin
备注:
产品目录号: V66020
稳定性: 瞬表达
组成型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

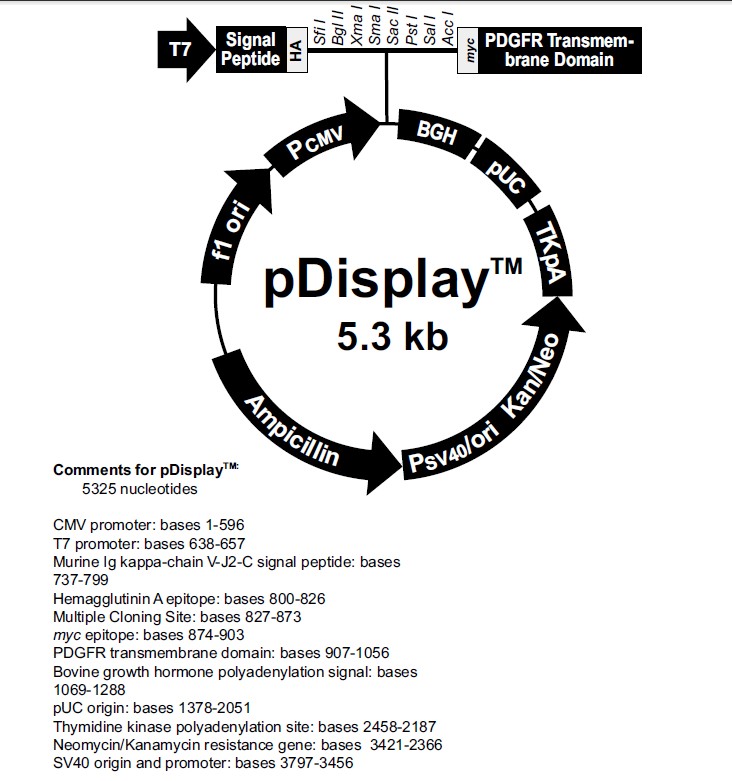

pDisplay载体图谱



pDisplay多克隆位点

载体简介

载体序列

LOCUS       pDisplay	5325 bp 	DNA	SYN
DEFINITION  pDisplay
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5325
                     /organism="pDisplay"
                     /mol_type="other DNA"
     promoter        11..627
                     /label="CMV_immearly_promoter"
     misc_feature    90..377
                     /label="CAG_enhancer"
     misc_feature    544..564
                     /label="CMV_fwd_primer"
     promoter        638..656
                     /label="T7_promoter"
     misc_feature    737..799
                     /label="IgK_secretion"
     misc_feature    complement(1075..1092)
                     /label="BGH_rev_primer"
     terminator      1078..1305
                     /label="bGH_PA_terminator"
     rep_origin      complement(1422..2041)
                     /label="pBR322_origin"
     terminator      complement(2189..2458)
                     /label="TK_PA_terminator"
     CDS             2582..3112
                     /label="ORF frame 2"
     CDS             complement(2633..3421)
                     /label="ORF frame 3"
     misc_feature    complement(3527..3546)
                     /label="SV40pro_F_primer"
     rep_origin      complement(3531..3608)
                     /label="SV40_origin"
     misc_feature    3773..3793
                     /label="pBABE_3_primer"
     gene            complement(3876..4736)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(3876..4736)
                     /label="ORF frame 2"
     promoter        complement(4778..4806)
                     /label="AmpR_promoter"
     rep_origin      4885..5191
                     /label="f1_origin"
ORIGIN
    1 GCGCGCGTTG ACATTGATTA TTGACTAGTT ATTAATAGTA ATCAATTACG GGGTCATTAG
   61 TTCATAGCCC ATATATGGAG TTCCGCGTTA CATAACTTAC GGTAAATGGC CCGCCTGGCT
  121 GACCGCCCAA CGACCCCCGC CCATTGACGT CAATAATGAC GTATGTTCCC ATAGTAACGC
  181 CAATAGGGAC TTTCCATTGA CGTCAATGGG TGGACTATTT ACGGTAAACT GCCCACTTGG
  241 CAGTACATCA AGTGTATCAT ATGCCAAGTA CGCCCCCTAT TGACGTCAAT GACGGTAAAT
  301 GGCCCGCCTG GCATTATGCC CAGTACATGA CCTTATGGGA CTTTCCTACT TGGCAGTACA
  361 TCTACGTATT AGTCATCGCT ATTACCATGG TGATGCGGTT TTGGCAGTAC ATCAATGGGC
  421 GTGGATAGCG GTTTGACTCA CGGGGATTTC CAAGTCTCCA CCCCATTGAC GTCAATGGGA
  481 GTTTGTTTTG GCACCAAAAT CAACGGGACT TTCCAAAATG TCGTAACAAC TCCGCCCCAT
  541 TGACGCAAAT GGGCGGTAGG CGTGTACGGT GGGAGGTCTA TATAAGCAGA GCTCTCTGGC
  601 TAACTAGAGA ACCCACTGCT TACTGGCTTA TCGAAATTAA TACGACTCAC TATAGGGAGA
  661 CCCAAGCTTG GTACCGAGCT CGGATCCACT AGTAACGGCC GCCAGTGTGC TGGAATTCGG
  721 CTTGGGGATA TCCACCATGG AGACAGACAC ACTCCTGCTA TGGGTACTGC TGCTCTGGGT
  781 TCCAGGTTCC ACTGGTGACT ATCCATATGA TGTTCCAGAT TATGCTGGGG CCCAGCCGGC
  841 CAGATCTCCC GGGATCCGCG GCTGCAGGTC GACGAACAAA AACTCATCTC AGAAGAGGAT
  901 CTGAATGCTG TGGGCCAGGA CACGCAGGAG GTCATCGTGG TGCCACACTC CTTGCCCTTT
  961 AAGGTGGTGG TGATCTCAGC CATCCTGGCC CTGGTGGTGC TCACCATCAT CTCCCTTATC
 1021 ATCCTCATCA TGCTTTGGCA GAAGAAGCCA CGTTAGGCGG CCGCTCGAGA TCAGCCTCGA
 1081 CTGTGCCTTC TAGTTGCCAG CCATCTGTTG TTTGCCCCTC CCCCGTGCCT TCCTTGACCC
 1141 TGGAAGGTGC CACTCCCACT GTCCTTTCCT AATAAAATGA GGAAATTGCA TCGCATTGTC
 1201 TGAGTAGGTG TCATTCTATT CTGGGGGGTG GGGTGGGGCA GGACAGCAAG GGGGAGGATT
 1261 GGGAAGACAA TAGCAGGCAT GCTGGGGATG CGGTGGGCTC TATGGCTTCT GAGGCGGAAA
 1321 GAACCAGTGG CGGTAATACG GTTATCCACA GAATCAGGGG ATAACGCAGG AAAGAACATG
 1381 TGAGCAAAAG GCCAGCAAAA GGCCAGGAAC CGTAAAAAGG CCGCGTTGCT GGCGTTTTTC
 1441 CATAGGCTCC GCCCCCCTGA CGAGCATCAC AAAAATCGAC GCTCAAGTCA GAGGTGGCGA
 1501 AACCCGACAG GACTATAAAG ATACCAGGCG TTTCCCCCTG GAAGCTCCCT CGTGCGCTCT
 1561 CCTGTTCCGA CCCTGCCGCT TACCGGATAC CTGTCCGCCT TTCTCCCTTC GGGAAGCGTG
 1621 GCGCTTTCTC ATAGCTCACG CTGTAGGTAT CTCAGTTCGG TGTAGGTCGT TCGCTCCAAG
 1681 CTGGGCTGTG TGCACGAACC CCCCGTTCAG CCCGACCGCT GCGCCTTATC CGGTAACTAT
 1741 CGTCTTGAGT CCAACCCGGT AAGACACGAC TTATCGCCAC TGGCAGCAGC CACTGGTAAC
 1801 AGGATTAGCA GAGCGAGGTA TGTAGGCGGT GCTACAGAGT TCTTGAAGTG GTGGCCTAAC
 1861 TACGGCTACA CTAGAAGGAC AGTATTTGGT ATCTGCGCTC TGCTGAAGCC AGTTACCTTC
 1921 GGAAAAAGAG TTGGTAGCTC TTGATCCGGC AAACAAACCA CCGCTGGTAG CGGTGGTTTT
 1981 TTTGTTTGCA AGCAGCAGAT TACGCGCAGA AAAAAAGGAT CTCAAGAAGA TCCTTTGATC
 2041 TTTTCTACGG GGTCTGACGC TCAGTGGAAC GAAAACTCAC GTTAAGGGAT TTTGGTCATG
 2101 AGATTATCAA AAAGGATCTT CACCTAGATC CTTTTAAATT AAAAATGAAG TTTTAAATCA
 2161 ATCTAAAGTA TATATGAGTA ACCTGAGGCT ATGGCAGGGC CTGCCGCCCC GACGTTGGCT
 2221 GCGAGCCCTG GGCCTTCACC CGAACTTGGG GGGTGGGGTG GGGAAAAGGA AGAAACGCGG
 2281 GCGTATTGGC CCCAATGGGG TCTCGGTGGG GTATCGACAG AGTGCCAGCC CTGGGACCGA
 2341 ACCCCGCGTT TATGAACAAA CGACCCAACA CCGTGCGTTT TATTCTGTCT TTTTATTGCC
 2401 GTCATAGCGC GGGTTCCTTC CGGTATTGTC TCCTTCCGTG TTTCAGTTAG CCTCCCCCTA
 2461 GGGTGGGCGA AGAACTCCAG CATGAGATCC CCGCGCTGGA GGATCATCCA GCCGGCGTCC
 2521 CGGAAAACGA TTCCGAAGCC CAACCTTTCA TAGAAGGCGG CGGTGGAATC GAAATCTCGT
 2581 GATGGCAGGT TGGGCGTCGC TTGGTCGGTC ATTTCGAACC CCAGAGTCCC GCTCAGAAGA
 2641 ACTCGTCAAG AAGGCGATAG AAGGCGATGC GCTGCGAATC GGGAGCGGCG ATACCGTAAA
 2701 GCACGAGGAA GCGGTCAGCC CATTCGCCGC CAAGCTCTTC AGCAATATCA CGGGTAGCCA
 2761 ACGCTATGTC CTGATAGCGG TCCGCCACAC CCAGCCGGCC ACAGTCGATG AATCCAGAAA
 2821 AGCGGCCATT TTCCACCATG ATATTCGGCA AGCAGGCATC GCCATGGGTC ACGACGAGAT
 2881 CCTCGCCGTC GGGCATGCTC GCCTTGAGCC TGGCGAACAG TTCGGCTGGC GCGAGCCCCT
 2941 GATGCTCTTG ATCATCCTGA TCGACAAGAC CGGCTTCCAT CCGAGTACGT GCTCGCTCGA
 3001 TGCGATGTTT CGCTTGGTGG TCGAATGGGC AGGTAGCCGG ATCAAGCGTA TGCAGCCGCC
 3061 GCATTGCATC AGCCATGATG GATACTTTCT CGGCAGGAGC AAGGTGAGAT GACAGGAGAT
 3121 CCTGCCCCGG CACTTCGCCC AATAGCAGCC AGTCCCTTCC CGCTTCAGTG ACAACGTCGA
 3181 GCACAGCTGC GCAAGGAACG CCCGTCGTGG CCAGCCACGA TAGCCGCGCT GCCTCGTCTT
 3241 GCAGTTCATT CAGGGCACCG GACAGGTCGG TCTTGACAAA AAGAACCGGG CGCCCCTGCG
 3301 CTGACAGCCG GAACACGGCG GCATCAGAGC AGCCGATTGT CTGTTGTGCC CAGTCATAGC
 3361 CGAATAGCCT CTCCACCCAA GCGGCCGGAG AACCTGCGTG CAATCCATCT TGTTCAATCA
 3421 TGCGAAACGA TCCTCATCCT GTCTCTTGAT CGATCTTTGC AAAAGCCTAG GCCTCCAAAA
 3481 AAGCCTCCTC ACTACTTCTG GAATAGCTCA GAGGCCGAGG AGGCGGCCTC GGCCTCTGCA
 3541 TAAATAAAAA AAATTAGTCA GCCATGGGGC GGAGAATGGG CGGAACTGGG CGGAGTTAGG
 3601 GGCGGGATGG GCGGAGTTAG GGGCGGGACT ATGGTTGCTG ACTAATTGAG ATGCATGCTT
 3661 TGCATACTTC TGCCTGCTGG GGAGCCTGGG GACTTTCCAC ACCTGGTTGC TGACTAATTG
 3721 AGATGCATGC TTTGCATACT TCTGCCTGCT GGGGAGCCTG GGGACTTTCC ACACCCTAAC
 3781 TGACACACAT TCCACAGCTG GTTCTTTCCG CCTCAGGACT CTTCCTTTTT CAATAAATCA
 3841 ATCTAAAGTA TATATGAGTA AACTTGGTCT GACAGTTACC AATGCTTAAT CAGTGAGGCA
 3901 CCTATCTCAG CGATCTGTCT ATTTCGTTCA TCCATAGTTG CCTGACTCCC CGTCGTGTAG
 3961 ATAACTACGA TACGGGAGGG CTTACCATCT GGCCCCAGTG CTGCAATGAT ACCGCGAGAC
 4021 CCACGCTCAC CGGCTCCAGA TTTATCAGCA ATAAACCAGC CAGCCGGAAG GGCCGAGCGC
 4081 AGAAGTGGTC CTGCAACTTT ATCCGCCTCC ATCCAGTCTA TTAATTGTTG CCGGGAAGCT
 4141 AGAGTAAGTA GTTCGCCAGT TAATAGTTTG CGCAACGTTG TTGCCATTGC TACAGGCATC
 4201 GTGGTGTCAC GCTCGTCGTT TGGTATGGCT TCATTCAGCT CCGGTTCCCA ACGATCAAGG
 4261 CGAGTTACAT GATCCCCCAT GTTGTGCAAA AAAGCGGTTA GCTCCTTCGG TCCTCCGATC
 4321 GTTGTCAGAA GTAAGTTGGC CGCAGTGTTA TCACTCATGG TTATGGCAGC ACTGCATAAT
 4381 TCTCTTACTG TCATGCCATC CGTAAGATGC TTTTCTGTGA CTGGTGAGTA CTCAACCAAG
 4441 TCATTCTGAG AATAGTGTAT GCGGCGACCG AGTTGCTCTT GCCCGGCGTC AATACGGGAT
 4501 AATACCGCGC CACATAGCAG AACTTTAAAA GTGCTCATCA TTGGAAAACG TTCTTCGGGG
 4561 CGAAAACTCT CAAGGATCTT ACCGCTGTTG AGATCCAGTT CGATGTAACC CACTCGTGCA
 4621 CCCAACTGAT CTTCAGCATC TTTTACTTTC ACCAGCGTTT CTGGGTGAGC AAAAACAGGA
 4681 AGGCAAAATG CCGCAAAAAA GGGAATAAGG GCGACACGGA AATGTTGAAT ACTCATACTC
 4741 TTCCTTTTTC AATATTATTG AAGCATTTAT CAGGGTTATT GTCTCATGAG CGGATACATA
 4801 TTTGAATGTA TTTAGAAAAA TAAACAAATA GGGGTTCCGC GCACATTTCC CCGAAAAGTG
 4861 CCACCTGACG CGCCCTGTAG CGGCGCATTA AGCGCGGCGG GTGTGGTGGT TACGCGCAGC
 4921 GTGACCGCTA CACTTGCCAG CGCCCTAGCG CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT
 4981 CTCGCCACGT TCGCCGGCTT TCCCCGTCAA GCTCTAAATC GGGGGCTCCC TTTAGGGTTC
 5041 CGATTTAGTG CTTTACGGCA CCTCGACCCC AAAAAACTTG ATTAGGGTGA TGGTTCACGT
 5101 AGTGGGCCAT CGCCCTGATA GACGGTTTTT CGCCCTTTGA CGTTGGAGTC CACGTTCTTT
 5161 AATAGTGGAC TCTTGTTCCA AACTGGAACA ACACTCAACC CTATCTCGGT CTATTCTTTT
 5221 GATTTATAAG GGATTTTGCC GATTTCGGCC TATTGGTTAA AAAATGAGCT GATTTAACAA
 5281 AAATTTAACG CGAATTTTAA CAAAATATTA ACGCTTACAA TTTAC
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
