pCantab 5E

价格:1500元

联系方式:I47-825O-882O

买家导航

pCantab5E载体基本信息

出品公司: Amersham Biosciences/ GE
载体名称: pCantab 5E, pCantab5E, pCantab-5E
质粒类型: 重组噬菌体抗体系统, 噬菌体展示系统
高拷贝/低拷贝: 低拷贝
启动子: Lac
克隆方法: 多克隆位点,限制性内切酶
载体大小: 4522 bp
5' 测序引物及序列: pCantab5-R1: ccatgattacgccaagctttggagcc
3' 测序引物及序列: pCantab5-R2: cgatctaaagttttgtcgtctttcc
载体标签: --
载体抗性: 氨苄
筛选标记: --
备注: 由噬菌体展示系统发展而来。
产品目录号: 27-9400-01/ 27-9401-01/ 27-9402-01
稳定性: --
组成型: --
病毒/非病毒: 非病毒

pCantab5E载体质粒图谱和多克隆位点信息

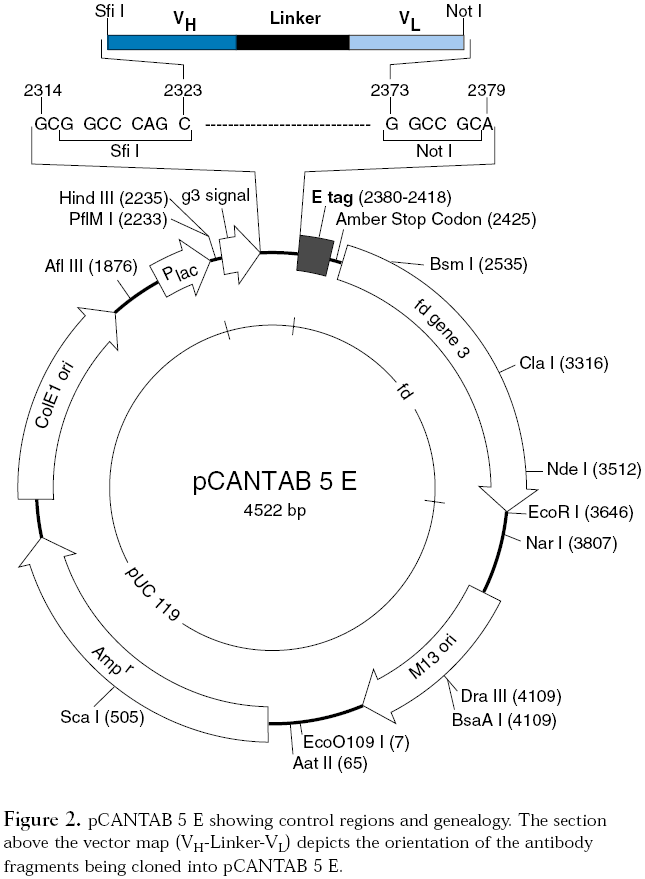

pCantab 5E载体图谱

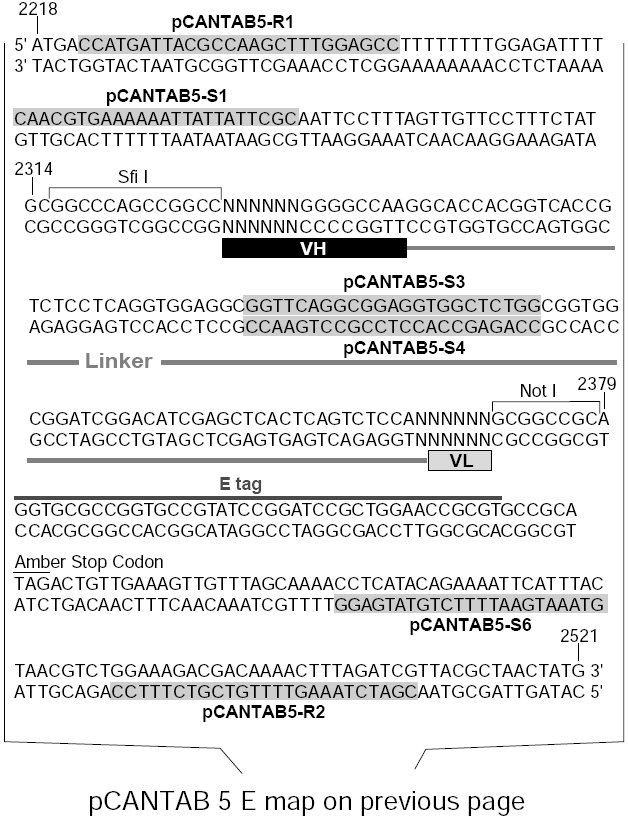

pCantab 5E多克隆位点

pCantab5E载体简介

重组噬菌体抗体系统是设计用来克隆小鼠的抗体基因,表达,检测功能性抗体。本载体是基于噬菌体展示系统,将克隆得到的抗体片段表达出来并且在噬菌体表面展示出来。当抗体基因被克隆进入pCantab 5E载体,可溶性的重组抗体也可以作为免疫试剂使用。

pCantab5E载体序列

LOCUS       pCANTAB 5E             4591 bp    DNA     circular SYN 31-OCT-2013
DEFINITION  pCANTAB5E.
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     promoter        131..159
                     /vntifkey="30"
                     /label=AmpR_promoter
     CDS             201..1061
                     /gene="Ampicillin"
                     /vntifkey="4"
                     /label=Ampicillin
                     /note="ORF frame 3"
     gene            201..1061
                     /gene="Ampicillin"
                     /vntifkey="60"
     rep_origin      1216..1835
                     /vntifkey="33"
                     /label=pBR322_origin
     promoter        2144..2173
                     /vntifkey="30"
                     /label=lac_promoter
     misc_feature    2187..2209
                     /vntifkey="21"
                     /label=M13_pUC_rev_primer
     misc_feature    2208..2226
                     /vntifkey="21"
                     /label=M13_reverse_primer
     CDS             2218..3713
                     /vntifkey="4"
                     /label=ORF\frame\1
     misc_feature    complement(3723..3739)
                     /vntifkey="21"
                     /label=M13_forward20_primer
     misc_feature    complement(3732..3754)
                     /vntifkey="21"
                     /label=M13_pUC_fwd_primer
     misc_feature    3720..3875
                     /vntifkey="21"
                     /label=lacZ_a
     rep_origin      complement(4067..4373)
                     /vntifkey="33"
                     /label=f1_origin
     misc_feature    4541..4563
                     /vntifkey="21"
                     /label=pGEX_3_primer
     misc_feature    2329..2342
                     /vntifkey="21"
                     /label=VH
     misc_feature    2437..2441
                     /vntifkey="21"
                     /label=VL
     misc_feature    2376..2398
                     /vntifkey="21"
                     /label=pCantab5-S3
     misc_feature    complement(2376..2398)
                     /vntifkey="21"
                     /label=pCantab5-S4
     primer          2222..2247
                     /vntifkey="27"
                     /label=pCantab5-R1
     primer          2265..2288
                     /vntifkey="27"
                     /label=pCantab5-S1
     misc_feature    complement(2523..2545)
                     /vntifkey="21"
                     /label=pCantab-S6
     misc_feature    complement(2554..2578)
                     /vntifkey="21"
                     /label=pCantab-R2
     misc_feature    2451..2489
                     /vntifkey="21"
                     /label=E\Tag
     misc_feature    2496..2498
                     /vntifkey="21"
                     /label=Amber\Stop\Codon
BASE COUNT     1112 a      1099 c      1172 g      1196 t        12 others
ORIGIN
        1 gacgaaaggg cctcgtgata cgcctatttt tataggttaa tgtcatgata ataatggttt
       61 cttagacgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt
      121 tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat
      181 aatattgaaa aaggaagagt atgagtattc aacatttccg tgtcgccctt attccctttt
      241 ttgcggcatt ttgccttcct gtttttgctc acccagaaac gctggtgaaa gtaaaagatg
      301 ctgaagatca gttgggtgct cgagtgggtt acatcgaact ggatctcaac agcggtaaga
      361 tccttgagag ttttcgcccc gaagaacgtt ttccaatgat gagcactttt aaagttctgc
      421 tatgtggcgc ggtattatcc cgtattgacg ccgggcaaga gcaactcggt cgccgcatac
      481 actattctca gaatgacttg gttgagtact caccagtcac agaaaagcat cttacggatg
      541 gcatgacagt aagagaatta tgcagtgctg ccataaccat gagtgataac actgcggcca
      601 acttacttct gacaacgatc ggaggaccga aggagctaac cgcttttttg cacaacatgg
      661 gggatcatgt aactcgcctt gatcgttggg aaccggagct gaatgaagcc ataccaaacg
      721 acgagcgtga caccacgatg cctgtagcaa tggcaacaac gttgcgcaaa ctattaactg
      781 gcgaactact tactctagct tcccggcaac aattaataga ctggatggag gcggataaag
      841 ttgcaggacc acttctgcgc tcggcccttc cggctggctg gtttattgct gataaatctg
      901 gagccggtga gcgtgggtct cgcggtatca ttgcagcact ggggccagat ggtaagccct
      961 cccgtatcgt agttatctac acgacgggga gtcaggcaac tatggatgaa cgaaatagac
     1021 agatcgctga gataggtgcc tcactgatta agcattggta actgtcagac caagtttact
     1081 catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga
     1141 tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt
     1201 cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct
     1261 gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc
     1321 taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgttc
     1381 ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc
     1441 tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg tgtcttaccg
     1501 ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga acggggggtt
     1561 cgtgcataca gcccagcttg gagcgaacga cctacaccga actgagatac ctacagcgtg
     1621 agcattgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat ccggtaagcg
     1681 gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc tggtatcttt
     1741 atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga tgctcgtcag
     1801 gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc ctggcctttt
     1861 gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg gataaccgta
     1921 ttaccgcctt tgagtgagct gataccgctc gccgcagccg aacgaccgag cgcagcgagt
     1981 cagtgagcga ggaagcggaa gagcgcccaa tacgcaaacc gcctctcccc gcgcgttggc
     2041 cgattcatta atgcagctgg cacgacaggt ttcccgactg gaaagcgggc agtgagcgca
     2101 acgcaattaa tgtgagttag ctcactcatt aggcacccca ggctttacac tttatgcttc
     2161 cggctcgtat gttgtgtgga attgtgagcg gataacaatt tcacacagga aacagctatg
     2221 accatgatta cgccaagctt tggagccttt tttttggaga ttttcaacgt gaaaaaatta
     2281 ttattcgcaa ttcctttagt tgttcctttc tatgcggccc agccggccnn nnnnggggcc
     2341 aaggcaccac ggtcaccgtc tcctcaggtg gaggcggttc aggcggaggt ggctctggcg
     2401 gtggcggatc ggacatcgag ctcactcagt ctccannnnn ngcggccgca ggtgcgccgg
     2461 tgccgtatcc ggatccgctg gaaccgcgtg ccgcatagac tgttgaaagt tgtttagcaa
     2521 aacctcatac agaaaattca tttactaacg tctggaaaga cgacaaaact ttagatcgtt
     2581 acgctaacta tgagggctgt ctgtggaatg ctacaggcgt tgtggtttgt actggtgacg
     2641 aaactcagtg ttacggtaca tgggttccta ttgggcttgc tatccctgaa aatgagggtg
     2701 gtggctctga gggtggcggt tctgagggtg gcggttctga gggtggcggt actaaacctc
     2761 ctgagtacgg tgatacacct attccgggct atacttatat caaccctctc gacggcactt
     2821 atccgcctgg tactgagcaa aaccccgcta atcctaatcc ttctcttgag gagtctcagc
     2881 ctcttaatac tttcatgttt cagaataata ggttccgaaa taggcagggt gcattaactg
     2941 tttatacggg cactgttact caaggcactg accccgttaa aacttattac cagtacactc
     3001 ctgtatcatc aaaagccatg tatgacgctt actggaacgg taaattcaga gactgcgctt
     3061 tccattctgg ctttaatgag gatccattcg tttgtgaata tcaaggccaa tcgtctgacc
     3121 tgcctcaacc tcctgtcaat gctggcggcg gctctggtgg tggttctggt ggcggctctg
     3181 agggtggcgg ctctgagggt ggcggttctg agggtggcgg ctctgagggt ggcggttccg
     3241 gtggcggctc cggttccggt gattttgatt atgaaaaaat ggcaaacgct aataaggggg
     3301 ctatgaccga aaatgccgat gaaaacgcgc tacagtctga cgctaaaggc aaacttgatt
     3361 ctgtcgctac tgattacggt gctgctatcg atggtttcat tggtgacgtt tccggccttg
     3421 ctaatggtaa tggtgctact ggtgattttg ctggctctaa ttcccaaatg gctcaagtcg
     3481 gtgacggtga taattcacct ttaatgaata atttccgtca atatttacct tctttgcctc
     3541 agtcggttga atgtcgccct tatgtctttg gcgctggtaa accatatgaa ttttctattg
     3601 attgtgacaa aataaactta ttccgtggtg tctttgcgtt tcttttatat gttgccacct
     3661 ttatgtatgt attttcgacg tttgctaaca tactgcgtaa taaggagtct taataagaat
     3721 tcactggccg tcgttttaca acgtcgtgac tgggaaaacc ctggcgttac ccaacttaat
     3781 cgccttgcag cacatccccc tttcgccagc tggcgtaata gcgaagaggc ccgcaccgat
     3841 cgcccttccc aacagttgcg cagcctgaat ggcgaatggc gcctgatgcg gtattttctc
     3901 cttacgcatc tgtgcggtat ttcacaccgc atataaattg taaacgttaa tattttgtta
     3961 aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc cgaaatcggc
     4021 aaaatccctt ataaatcaaa agaatagccc gagatagggt tgagtgttgt tccagtttgg
     4081 aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa aaccgtctat
     4141 cagggcgatg gcccactacg tgaaccatca cccaaatcaa gttttttggg gtcgaggtgc
     4201 cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg acggggaaag
     4261 ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg
     4321 gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta
     4381 cagggcgcgt actatggttg ctttgacggg tgcagtctca gtacaatctg ctctgatgcc
     4441 gcatagttaa gccagccccg acacccgcca acacccgctg acgcgccctg acgggcttgt
     4501 ctgctcccgg catccgctta cagacaagct gtgaccgtct ccgggagctg catgtgtcag
     4561 aggttttcac cgtcatcacc gaaacgcgcg a
//

pCantab5E载体质粒图谱pdf版和相关资料下载

pCantab5E载体应用举例
