pBridge

价格:900元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Clontech
载体名称: pBridge
质粒类型: 酵母表达载体
高拷贝/低拷贝: --
启动子: ADH1
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6526bp
5' 测序引物及序列: Match: 5'd[TCATCGGAAGAGAGTAGT]3'
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: TRP1
备注: Used as bait (& bridge) for yeast 3-hybrid screen.
产品目录号: 6184-1
稳定性: --
组成型: 组成型
病毒/非病毒: --

载体质粒图谱和多克隆位点信息

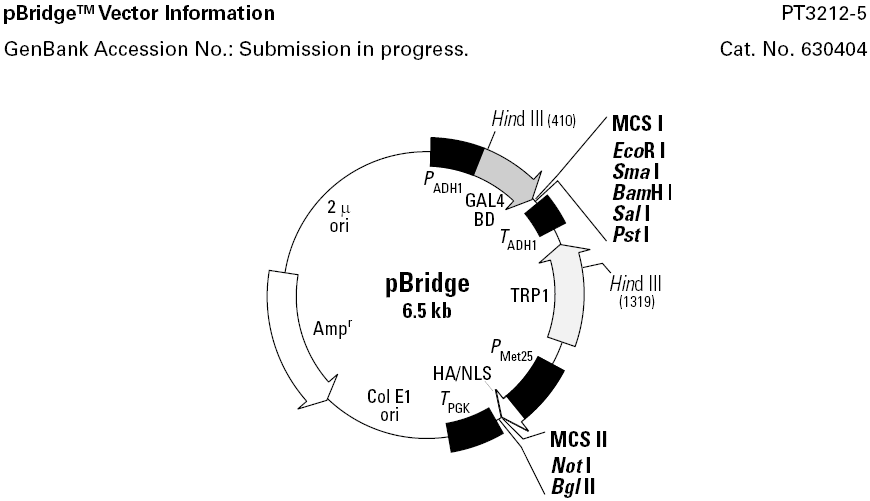

pBridge载体图谱



pBridge多克隆位点

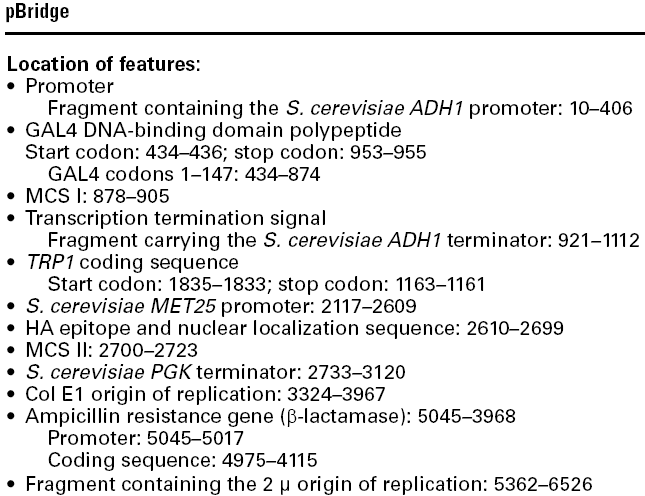

pBridge载体特征

载体简介

载体序列

LOCUS       pBridge    6526 bp    DNA    SYN    30-Oct-2013
DEFINITION  pBridge
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6526
                     /organism="pBridge"
                     /mol_type="other DNA"
     promoter        10..406
                     /label="yADH1_promoter"
     misc_feature    434..874
                     /label="Gal4_DBD"
     misc_feature    838..856
                     /label="Gal4_N_term_primer"
     misc_feature    complement(976..1000)
                     /label="pHybLex_rev_primer"
     terminator      921..1112
                     /label="yADH1_terminator"
     CDS             complement(1161..1835)
                     /label="TRP1"
                     /gene="TRP1"
                     /note="ORF frame 3"
                     /translation="MSVINFTGSSGPLVKVCGLQSTEAAECALDSDADLLGIICVPNR
                     KRTIDPVIARKISSLVKAYKNSSGTPKYLVGVFRNQPKEDVLALVNDYGIDIVQLHGD
                     ESWQEYQEFLGLPVIKRLVFPKDCNILLSAASQKPHSFIPLFDSEAGGTGELLDWNSI
                     SDWVGRQESPESLHFMLAGGLTPENVGDALRLNGVIGVDVSGGVETNGVKDSNKIANF
                     VKNAKK*"
     gene            complement(1161..1835)
                     /label="TRP1"
                     /gene="TRP1"
     misc_feature    complement(1964..1986)
                     /label="M13_pUC_rev_primer"
     promoter        complement(2000..2029)
                     /label="lac_promoter"
     rep_origin      complement(3341..3960)
                     /label="pBR322_origin"
     CDS             complement(4115..4975)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /note="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     gene            complement(4115..4975)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     promoter        complement(5017..5045)
                     /label="AmpR_promoter"
     misc_feature    complement(5204..5226)
                     /label="pGEX_3_primer"
     rep_origin      5362..6526
                     /label="2micron2_origin"
ORIGIN
    1 GCTTGCATGC AACTTCTTTT CTTTTTTTTT CTTTTCTCTC TCCCCCGTTG TTGTCTCACC
   61 ATATCCGCAA TGACAAAAAA ATGATGGAAG ACACTAAAGG AAAAAATTAA CGACAAAGAC
  121 AGCACCAACA GATGTCGTTG TTCCAGAGCT GATGAGGGGT ATCTCGAAGC ACACGAAACT
  181 TTTTCCTTCC TTCATTCACG CACACTACTC TCTAATGAGC AACGGTATAC GGCCTTCCTT
  241 CCAGTTACTT GAATTTGAAA TAAAAAAAAG TTTGCTGTCT TGCTATCAAG TATAAATAGA
  301 CCTGCAATTA TTAATCTTTT GTTTCCTCGT CATTGTTCTC GTTCCCTTTC TTCCTTGTTT
  361 CTTTTTCTGC ACAATATTTC AAGCTATACC AAGCATACAA TCAACTCCAA GCTTGAAGCA
  421 AGCCTCCTGA AAGATGAAGC TACTGTCTTC TATCGAACAA GCATGCGATA TTTGCCGACT
  481 TAAAAAGCTC AAGTGCTCCA AAGAAAAACC GAAGTGCGCC AAGTGTCTGA AGAACAACTG
  541 GGAGTGTCGC TACTCTCCCA AAACCAAAAG GTCTCCGCTG ACTAGGGCAC ATCTGACAGA
  601 AGTGGAATCA AGGCTAGAAA GACTGGAACA GCTATTTCTA CTGATTTTTC CTCGAGAAGA
  661 CCTTGACATG ATTTTGAAAA TGGATTCTTT ACAGGATATA AAAGCATTGT TAACAGGATT
  721 ATTTGTACAA GATAATGTGA ATAAAGATGC CGTCACAGAT AGATTGGCTT CAGTGGAGAC
  781 TGATATGCCT CTAACATTGA GACAGCATAG AATAAGTGCG ACATCATCAT CGGAAGAGAG
  841 TAGTAACAAA GGTCAAAGAC AGTTGACTGT ATCGCCGGAA TTCCCGGGGA TCCGTCGACC
  901 TGCAGCCAAG CTAATTCCGG GCGAATTTCT TATGATTTAT GATTTTTATT ATTAAATAAG
  961 TTATAAAAAA AATAAGTGTA TACAAATTTT AAAGTGACTC TTAGGTTTTA AAACGAAAAT
 1021 TCTTGTTCTT GAGTAACTCT TTCCTGTAGG TCAGGTTGCT TTCTCAGGTA TAGCATGAGG
 1081 TCGCTCTTAT TGACCACACC TCTACCGGCA TGCCGGCAAG TGCACAAACA ATACTTAAAT
 1141 AAATACTACT CAGTAATAAC CTATTTCTTA GCATTTTTGA CGAAATTTGC TATTTTGTTA
 1201 GAGTCTTTTA CACCATTTGT CTCCACACCT CCGCTTACAT CAACACCAAT AACGCCATTT
 1261 AATCTAAGCG CATCACCAAC ATTTTCTGGC GTCAGTCCAC CAGCTAACAT AAAATGTAAG
 1321 CTTTCGGGGC TCTCTTGCCT TCCAACCCAG TCAGAAATCG AGTTCCAATC CAAAAGTTCA
 1381 CCTGTCCCAC CTGCTTCTGA ATCAAACAAG GGAATAAACG AATGAGGTTT CTGTGAAGCT
 1441 GCACTGAGTA GTATGTTGCA GTCTTTTGGA AATACGAGTC TTTTAATAAC TGGCAAACCG
 1501 AGGAACTCTT GGTATTCTTG CCACGACTCA TCTCCATGCA GTTGGACGAT ATCAATGCCG
 1561 TAATCATTGA CCAGAGCCAA AACATCCTCC TTAGGTTGAT TACGAAACAC GCCAACCAAG
 1621 TATTTCGGAG TGCCTGAACT ATTTTTATAT GCTTTTACAA GACTTGAAAT TTTCCTTGCA
 1681 ATAACCGGGT CAATTGTTCT CTTTCTATTG GGCACACATA TAATACCCAG CAAGTCAGCA
 1741 TCGGAATCTA GAGCACATTC TGCGGCCTCT GTGCTCTGCA AGCCGCAAAC TTTCACCAAT
 1801 GGACCAGAAC TACCTGTGAA ATTAATAACA GACATACTCC AAGCTGCCTT TGTGTGCTTA
 1861 ATCACGTATA CTCACGTGCT CAATAGTCAC CAATGCCCTC CCTCTTGGCC CTCTCCTTTT
 1921 CTTTTTTCGA CCGAATTAAT TCGTAATCAT GTCATAGCTG TTTCCTGTGT GAAATTGTTA
 1981 TCCGCTCACA ATTCCACACA ACATACGAGC CGGAAGCATA AAGTGTAAAG CCTGGGGTGC
 2041 CTAATGAGTG AGGTAACTCA CATTAATTGC GTTGCGCTCA CTGCCCGCTT TCCAGTCGGG
 2101 AAACCTGTCG TGCCAGGAAG ATCCGAGGCC TAGCTTCTAA TTCTTCCAAC ATACAATGGG
 2161 AGTTTGGCCG AGTGGTTTAA GGCGTCAGAT TTAGGTGGAT TTAACCTCTA AAATCTCTGA
 2221 TATCTTCGGA TGCAAGGGTT CGAATCCCTT AGCTCTCATT ATTTTTTGCT TTTTCTCTTG
 2281 AGGTCACATG ATCGCAAAAT GGCAAATGGC ACGTGAAGCT GTCGATATTG GGGAACTGTG
 2341 GTGGTTGGCA AATGACTAAT TAAGTTAGTC AAGGCGCCAT CCTCATGAAA ACTGTGTAAC
 2401 ATAATAACCG AAGTGTCGAA AAGGTGGCAC CTTGTCCAAT TGAACACGCT CGATGAAAAA
 2461 AATAAGATAT ATATAAGGTT AAGTAAAGCG TCTGTTAGAA AGGAAGTTTT TCCTTTTTCT
 2521 TGCTCTCTTG TCTTTTCATC TACTATTTCC TTCGTGTAAT ACAGGGTCGT CAGATACATA
 2581 GATACAATTC TATTACCCCC ATCCATACAA TGGGCCATAT GGCTTCTAGC TATCCTTATG
 2641 ACGTGCCTGA CTATGCCAGC CTGGGAGGAC CTTCTAGTCC TAAGAAGAAG AGAAAGGTGG
 2701 CGGCCGCATT AGCCCGAAGA TCTTCGGGCT GATCTCCCAT GTCTCTACTG GTGGTGGTGC
 2761 TTCTTTGGAA TTATTGGAAG GTAAGGAATT GCCAGGTGTT GCTTTCTTAT CCGAAAAGAA
 2821 ATAAATTGAA TTGAATTGAA ATCGATAGAT CAATTTTTTT CTTTTCTCTT TCCCCATCCT
 2881 TTACGCTAAA ATAATAGTTT ATTTTATTTT TTGAATATTT TTTATTTATA TACGTATATA
 2941 TAGACTATTA TTTATCTTTT AATGATTATT AAGATTTTTA TTAAAAAAAA ATTCGCTCCT
 3001 CTTTTAATGC CTTTATGCAG TTTTTTTTTC CCATTCGATA TTTCTATGTT CGGGTTCAGC
 3061 GTATTTTAAG TTTAATAACT CGAAAATTCT GCGTTCGTTA AAGCTAGGCC TCGGATCTTC
 3121 CTGCATTAAT GAATCGGCCA ACGCGCGGGG AGAGGCGTTT GCGTATTGGG CGCTCTTCCG
 3181 CTTCCTCGCT CACTGACTCG CTGCGCTCGG TCGTTCGGCT GCGGCGAGCG GTATCAGCTC
 3241 ACTCAAAGGC GGTAATACGG TTATCCACAG AATCAGGGGA TAACGCAGGA AAGAACATGT
 3301 GAGCAAAAGG CCAGCAAAAG GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC
 3361 ATAGGCTCCG CCCCCCTGAC GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA
 3421 ACCCGACAGG ACTATAAAGA TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC
 3481 CTGTTCCGAC CCTGCCGCTT ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG
 3541 CGCTTTCTCA TAGCTCACGC TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC
 3601 TGGGCTGTGT GCACGAACCC CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC
 3661 GTCTTGAGTC CAACCCGGTA AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA
 3721 GGATTAGCAG AGCGAGGTAT GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT
 3781 ACGGCTACAC TAGAAGAACA GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG
 3841 GAAAAAGAGT TGGTAGCTCT TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT
 3901 TTGTTTGCAA GCAGCAGATT ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT
 3961 TTTCTACGGG GTCTGACGCT CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGA
 4021 GATTATCAAA AAGGATCTTC ACCTAGATCC TTTTAAATTA AAAATGAAGT TTTAAATCAA
 4081 TCTAAAGTAT ATATGAGTAA ACTTGGTCTG ACAGTTACCA ATGCTTAATC AGTGAGGCAC
 4141 CTATCTCAGC GATCTGTCTA TTTCGTTCAT CCATAGTTGC CTGACTCCCC GTCGTGTAGA
 4201 TAACTACGAT ACGGGAGGGC TTACCATCTG GCCCCAGTGC TGCAATGATA CCGCGAGACC
 4261 CACGCTCACC GGCTCCAGAT TTATCAGCAA TAAACCAGCC AGCCGGAAGG GCCGAGCGCA
 4321 GAAGTGGTCC TGCAACTTTA TCCGCCTCCA TCCAGTCTAT TAATTGTTGC CGGGAAGCTA
 4381 GAGTAAGTAG TTCGCCAGTT AATAGTTTGC GCAACGTTGT TGCCATTGCT ACAGGCATCG
 4441 TGGTGTCACG CTCGTCGTTT GGTATGGCTT CATTCAGCTC CGGTTCCCAA CGATCAAGGC
 4501 GAGTTACATG ATCCCCCATG TTGTGCAAAA AAGCGGTTAG CTCCTTCGGT CCTCCGATCG
 4561 TTGTCAGAAG TAAGTTGGCC GCAGTGTTAT CACTCATGGT TATGGCAGCA CTGCATAATT
 4621 CTCTTACTGT CATGCCATCC GTAAGATGCT TTTCTGTGAC TGGTGAGTAC TCAACCAAGT
 4681 CATTCTGAGA ATAGTGTATG CGGCGACCGA GTTGCTCTTG CCCGGCGTCA ATACGGGATA
 4741 ATACCGCGCC ACATAGCAGA ACTTTAAAAG TGCTCATCAT TGGAAAACGT TCTTCGGGGC
 4801 GAAAACTCTC AAGGATCTTA CCGCTGTTGA GATCCAGTTC GATGTAACCC ACTCGTGCAC
 4861 CCAACTGATC TTCAGCATCT TTTACTTTCA CCAGCGTTTC TGGGTGAGCA AAAACAGGAA
 4921 GGCAAAATGC CGCAAAAAAG GGAATAAGGG CGACACGGAA ATGTTGAATA CTCATACTCT
 4981 TCCTTTTTCA ATATTATTGA AGCATTTATC AGGGTTATTG TCTCATGAGC GGATACATAT
 5041 TTGAATGTAT TTAGAAAAAT AAACAAATAG GGGTTCCGCG CACATTTCCC CGAAAAGTGC
 5101 CACCTGACGT CTAAGAAACC ATTATTATCA TGACATTAAC CTATAAAAAT AGGCGTATCA
 5161 CGAGGCCCTT TCGTCTCGCG CGTTTCGGTG ATGACGGTGA AAACCTCTGA CACATGCAGC
 5221 TCCCGGAGAC GGTCACAGCT TGTCTGTAAG CGGATGCCGG GAGCAGACAA GCCCGTCAGG
 5281 GCGCGTCAGC GGGTGTTGGC GGGTGTCGGG GCTGGCTTAA CTATGCGGCA TCAGAGCAGA
 5341 TTGTACTGAG AGTGCACCAT AACGCATTTA AGCATAAACA CGCACTATGC CGTTCTTCTC
 5401 ATGTATATAT ATATACAGGC AACACGCAGA TATAGGTGCG ACGTGAACAG TGAGCTGTAT
 5461 GTGCGCAGCT CGCGTTGCAT TTTCGGAAGC GCTCGTTTTC GGAAACGCTT TGAAGTTCCT
 5521 ATTCCGAAGT TCCTATTCTC TAGCTAGAAA GTATAGGAAC TTCAGAGCGC TTTTGAAAAC
 5581 CAAAAGCGCT CTGAAGACGC ACTTTCAAAA AACCAAAAAC GCACCGGACT GTAACGAGCT
 5641 ACTAAAATAT TGCGAATACC GCTTCCACAA ACATTGCTCA AAAGTATCTC TTTGCTATAT
 5701 ATCTCTGTGC TATATCCCTA TATAACCTAC CCATCCACCT TTCGCTCCTT GAACTTGCAT
 5761 CTAAACTCGA CCTCTACATT TTTTATGTTT ATCTCTAGTA TTACTCTTTA GACAAAAAAA
 5821 TTGTAGTAAG AACTATTCAT AGAGTGAATC GAAAACAATA CGAAAATGTA AACATTTCCT
 5881 ATACGTAGTA TATAGAGACA AAATAGAAGA AACCGTTCAT AATTTTCTGA CCAATGAAGA
 5941 ATCATCAACG CTATCACTTT CTGTTCACAA AGTATGCGCA ATCCACATCG GTATAGAATA
 6001 TAATCGGGGA TGCCTTTATC TTGAAAAAAT GCACCCGCAG CTTCGCTAGT AATCAGTAAA
 6061 CGCGGGAAGT GGAGTCAGGC TTTTTTTATG GAAGAGAAAA TAGACACCAA AGTAGCCTTC
 6121 TTCTAACCTT AACGGACCTA CAGTGCAAAA AGTTATCAAG AGACTGCATT ATAGAGCGCA
 6181 CAAAGGAGAA AAAAAGTAAT CTAAGATGCT TTGTTAGAAA AATAGCGCTC TCGGGATGCA
 6241 TTTTTGTAGA ACAAAAAAGA AGTATAGATT CTTTGTTGGT AAAATAGCGC TCTCGCGTTG
 6301 CATTTCTGTT CTGTAAAAAT GCAGCTCAGA TTCTTTGTTT GAAAAATTAG CGCTCTCGCG
 6361 TTGCATTTTT GTTTTACAAA AATGAAGCAC AGATTCTTCG TTGGTAAAAT AGCGCTTTCG
 6421 CGTTGCATTT CTGTTCTGTA AAAATGCAGC TCAGATTCTT TGTTTGAAAA ATTAGCGCTC
 6481 TCGCGTTGCA TTTTTGTTCT ACAAAATGAA GCACAGATGC TTCGTT
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
