pBTL-5

价格:2500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品人: Lynch,M.D. and Gill,R.T.
载体名称: pBTL-5
质粒类型: 广宿主载体;克隆载体;原核表达载体
高拷贝/低拷贝: --
克隆方法: 限制性内切酶,多克隆位点
启动子: lac
载体大小: 2039 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 甲氧氨苄嘧啶
克隆菌株: DH5α 等
宿主细胞(系): 多个菌属
备注: --
产品目录号: --
组成型/诱导型: 诱导型

载体质粒图谱和多克隆位点信息

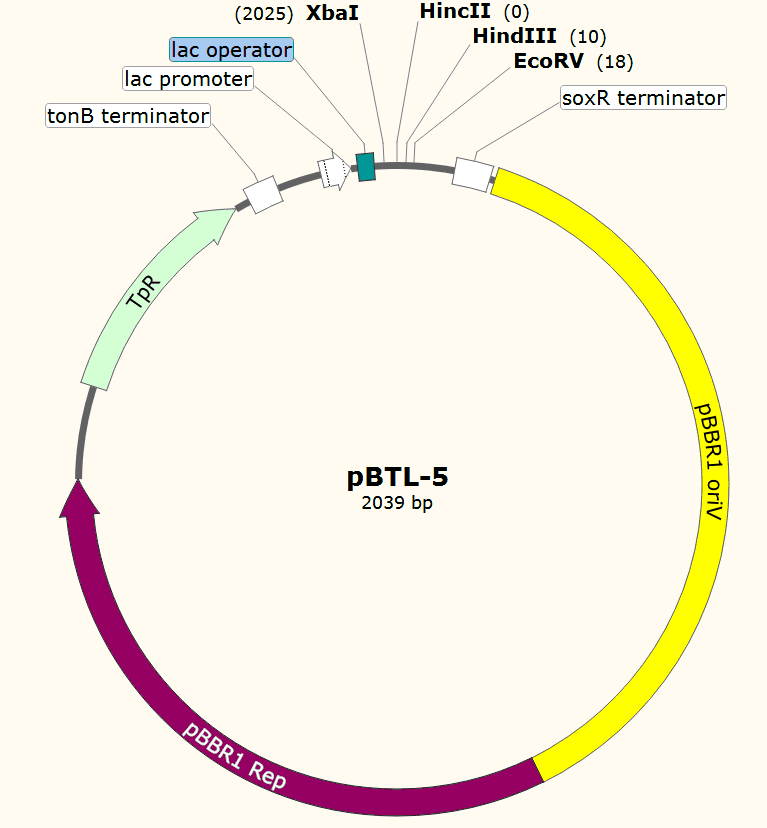

pBTL-5载体图谱



载体简介

载体序列

LOCUS       DQ058743                2039 bp    DNA     circular SYN 08-MAY-2006
DEFINITION  Broad host range vector pBTL-5, complete sequence.
ACCESSION   DQ058743
VERSION     DQ058743.1  GI:69048483
  AUTHORS   Lynch,M.D. and Gill,R.T.
  TITLE     Broad host range vectors for stable genomic library construction
  JOURNAL   Submitted (12-MAY-2005) Chemical & Biological Engineering,
            University of Colorado, ECCH 111, Campus Box 424, Boulder, CO
            80309, USA
FEATURES             Location/Qualifiers
     source          1..2039
                     /organism="Broad host range vector pBTL-5"
                     /mol_type="other DNA"
                     /db_xref="taxon:334975"
     regulatory      60..96
                     /regulatory_class="terminator"
                     /note="SoxR terminator"
     gene            872..1534
                     /gene="rep"
                     /note="rep gene from pBBR1, GenBank Accession Number
                     X66730"
     CDS             872..1534
                     /gene="rep"
                     /note="required for replication"
                     /codon_start=1
                     /transl_table=11
                     /product="Rep"
                     /protein_id="AAY99755.1"
                     /db_xref="GI:69048484"
                     /translation="MATQSREIGIQAKNKPGHWVQTERKAHEAWAGLIARKPTAAMLL
                     HHLVAQMGHQNAVVVSQKTLSKLIGRSLRTVQYAVKDLVAERWISVVKLNGPGTVSAY
                     VVNDRVAWGQPRDQLRLSVFSAAVVVDHDDQDESLLGHGDLRRIPTLYPGEQQLPTGP
                     GEEPPSQPGIPGMEPDLPALTETEEWERRGQQRLPMPDEPCFLDDGEPLEPPTRVTLP
                     RR"
     gene            1631..1867
                     /gene="dhfrIIb"
                     /note="dhfrIIb gene from R388"
     CDS             1631..1867
                     /gene="dhfrIIb"
                     /codon_start=1
                     /transl_table=11
                     /product="dihydrofolate reductase"
                     /protein_id="AAY99756.1"
                     /db_xref="GI:69048485"
                     /translation="MGQSSDEANAPVAGQFALPLSATFGLGDRVRKKSGAAWQGQVVG
                     WYCTKLTPEGYAVESESHPGSVQIYPVAALERVA"
     regulatory      1884..1915
                     /regulatory_class="terminator"
                     /note="TonB terminator"
     regulatory      1942..2024
                     /regulatory_class="promoter"
                     /note="lac promoter"
ORIGIN
        1 aacgaattca agcttgatat cattcaggac gagcctcaga ctccagcgta actggactga
       61 aaacaaacta aagcgccctt gtggcgcttt agttttgttc cgcggccacc ggctggctcg
      121 cttcgctcgg cccgtggaca accctgctgg acaagctgat ggacaggctg cgcctgccca
      181 cgagcttgac cacagggatt gcccaccggc tacccagcct tcgaccacat acccaccggc
      241 tccaactgcg cggcctgcgg ccttgcccca tcaatttttt taattttctc tggggaaaag
      301 cctccggcct gcggcctgcg cgcttcgctt gccggttgga caccaagtgg aaggcgggtc
      361 aaggctcgcg cagcgaccgc gcagcggctt ggccttgacg cgcctggaac gacccaagcc
      421 tatgcgagtg ggggcagtcg aaggcgaagc ccgcccgcct gccccccgag cctcacggcg
      481 gcgagtgcgg gggttccaag ggggcagcgc caccttgggc aaggccgaag gccgcgcagt
      541 cgatcaacaa gccccggagg ggccactttt tgccggaggg ggagccgcgc cgaaggcgtg
      601 ggggaacccc gcaggggtgc ccttctttgg gcaccaaaga actagatata gggcgaaatg
      661 cgaaagactt aaaaatcaac aacttaaaaa aggggggtac gcaacagctc attgcggcac
      721 cccccgcaat agctcattgc gtaggttaaa gaaaatctgt aattgactgc cacttttacg
      781 caacgcataa ttgttgtcgc gctgccgaaa agttgcagct gattgcgcat ggtgccgcaa
      841 ccgtgcggca ccctaccgca tggagataag catggccacg cagtccagag aaatcggcat
      901 tcaagccaag aacaagcccg gtcactgggt gcaaacggaa cgcaaagcgc atgaggcgtg
      961 ggccgggctt attgcgagga aacccacggc ggcaatgctg ctgcatcacc tcgtggcgca
     1021 gatgggccac cagaacgccg tggtggtcag ccagaagaca ctttccaagc tcatcggacg
     1081 ttctttgcgg acggtccaat acgcagtcaa ggacttggtg gccgagcgct ggatctccgt
     1141 cgtgaagctc aacggccccg gcaccgtgtc ggcctacgtg gtcaatgacc gcgtggcgtg
     1201 gggccagccc cgcgaccagt tgcgcctgtc ggtgttcagt gccgccgtgg tggttgatca
     1261 cgacgaccag gacgaatcgc tgttggggca tggcgacctg cgccgcatcc cgaccctgta
     1321 tccgggcgag cagcaactac cgaccggccc cggcgaggag ccgcccagcc agcccggcat
     1381 tccgggcatg gaaccagacc tgccagcctt gaccgaaacg gaggaatggg aacggcgcgg
     1441 gcagcagcgc ctgccgatgc ccgatgagcc gtgttttctg gacgatggcg agccgttgga
     1501 gccgccgaca cgggtcacgc tgccgcgccg gtagtacgta agaggttcca actttcacca
     1561 taatgaaata agatcactac cgggcgtatt ttttgagtta tcgagatttt caggagctaa
     1621 ggaagctaaa atgggtcaaa gtagcgatga agccaacgct cccgttgcag ggcagtttgc
     1681 gcttcccctg agtgccacct ttggcttagg ggatcgcgta cgcaagaaat ctggtgccgc
     1741 ttggcagggt caagtcgtcg gttggtattg cacaaaactc actcctgaag gctatgcggt
     1801 cgagtccgaa tcccacccag gctcagtgca aatttatcct gtggctgcac ttgaacgtgt
     1861 ggcctaagaa tggatccccc tcaagtcaaa agcctccggt cggaggcttt tgactttctg
     1921 ctatggaggt caggtatgat tttgcattag gcaccccagg ctttacactt tatgcttccg
     1981 gctcgtatgt tgtgtggaat tgtgagcgga taacaatttc acactctaga gaattcgtc
//

载体质粒图谱pdf版和相关资料下载

载体应用举例
