pMA2775

价格:1000元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pMA2775
出品公司: 爱迪基因
目录编号: 46884
存储实验室: Mikhail Alexeyev

载体骨架基本信息
载体名称: pMA2780
载体出品公司: Homemade
载体抗性: 氨苄霉素
空载体大小: 6686 bp
完整质粒大小: 7545 bp
载体类型: 哺乳细胞表达,Lentiviral
筛选标记: 嘌呤霉素
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: exonucleaseIII E. coli
物种来源: E. coli
插入大小: 950 bp
基因又名: exoIII
启动子 TRE-Tight
标签/融合蛋白: Myc (N terminal on insert)
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未破坏)
3' 克隆位点: NotI (未破坏)
5' 测序引物 ctatagtgaatagagttagg

文献引用方法
材料和方法部分: pMA2775 was a gift from Mikhail Alexeyev (爱迪基因 plasmid # 46884)
参考文献部分: Persistent damage induces mitochondrial DNA degradation. Shokolenko IN, Wilson GL, Alexeyev MF. DNA Repair (Amst). 2013 Jul;12(7):488-99. doi: 10.1016/j.dnarep.2013.04.023. Epub 2013 May 27. 10.1016/j.dnarep.2013.04.023 PubMed 23721969

载体图谱质粒图谱和多克隆位点信息

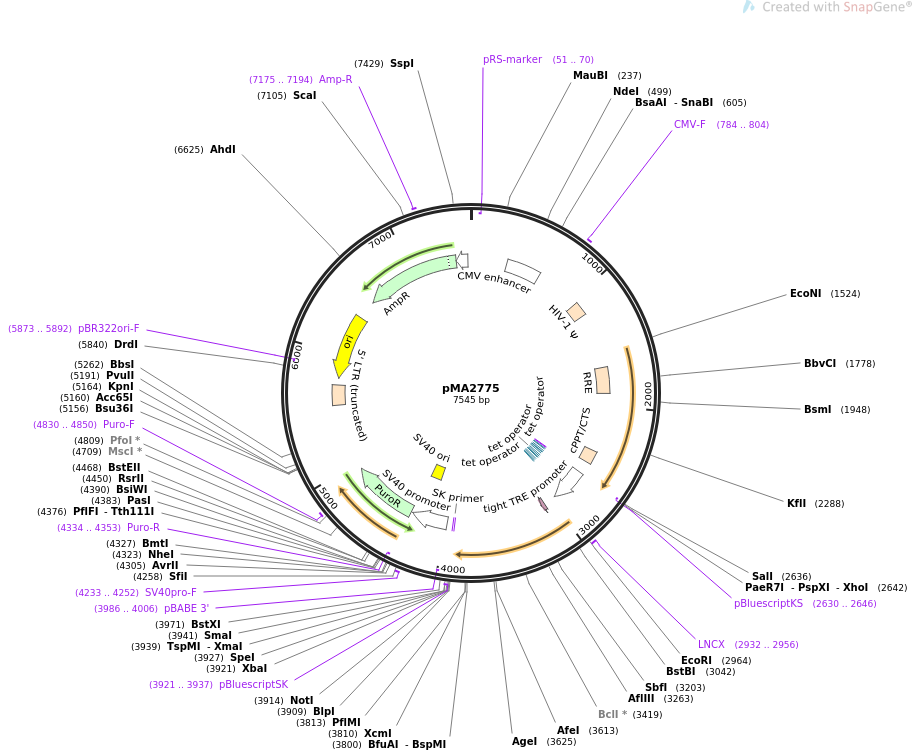

pMA2775质粒图谱

载体简介

载体序列

LOCUS       pMA2775                7545 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  Lentiviral vector encoding Tet-inducible mitochondrially targeted
            myc-tagged E.coli exonuclease III.
ACCESSION   .
VERSION     .
KEYWORDS    pMA2775
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7545)
  AUTHORS   Shokolenko IN, Wilson GL, Alexeyev MF
  TITLE     Persistent damage induces mitochondrial DNA degradation.
  JOURNAL   DNA Repair (Amst). 2013 Jul;12(7):488-99. doi:
            10.1016/j.dnarep.2013.04.023. Epub 2013 May 27.
  PUBMED    23721969
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|pMA2775|
FEATURES             Location/Qualifiers
     source          1..7545
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(51..70)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        326..629
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     784..804
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     misc_feature    1035..1160
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1657..1890
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    2413..2530
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     complement(2629..2645)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2630..2646)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     promoter        2645..2959
                     /label=tight TRE promoter
                     /note="Tet-responsive promoter PTight, consisting of seven
                     tet operator sequences followed by the minimal CMV
                     promoter"
     protein_bind    2653..2671
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2689..2707
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2724..2742
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2760..2778
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2796..2814
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2831..2849
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2867..2885
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     primer_bind     2932..2956
                     /label=LNCX
                     /note="Human CMV promoter, forward primer"
     CDS             3073..3102
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     primer_bind     3921..3937
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     3921..3937
                     /label=pBluescriptSK
                     /note="For pBluescript vector"
     primer_bind     complement(3986..4006)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3991..4320
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      4171..4306
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4233..4252
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             4334..4933
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(4334..4353)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     4830..4850
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     LTR             5551..5731
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     rep_origin      complement(5793..6381)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5873..5892)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6552..7412)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     7175..7194
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7413..7517)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgatcgac ggatcgggag atctcccgat cccctatggt gcactctcag tacaatctgc
       61 tctgatgccg catagttaag ccagtatctg ctccctgctt gtgtgttgga ggtcgctgag
      121 tagtgcgcga gcaaaattta agctacaaca aggcaaggct tgaccgacaa ttgcatgaag
      181 aatctgctta gggttaggcg ttttgcgctg cttcgcgatg tacgggccag atatacgcgc
      241 gcgttgacat tgattattga ctagctagtt attaatagta atcaattacg gggtcattag
      301 ttcatagccc atatatggag ttccgcgtta cataacttac ggtaaatggc ccgcctggct
      361 gaccgcccaa cgacccccgc ccattgacgt caataatgac gtatgttccc atagtaacgc
      421 caatagggac tttccattga cgtcaatggg tggagtattt acggtaaact gcccacttgg
      481 cagtacatca agtgtatcat atgccaagta cgccccctat tgacgtcaat gacggtaaat
      541 ggcccgcctg gcattatgcc cagtacatga ccttatggga ctttcctact tggcagtaca
      601 tctacgtatt agtcatcgct attaccatgg tgatgcggtt ttggcagtac atcaatgggc
      661 gtggatagcg gtttgactca cggggatttc caagtctcca ccccattgac gtcaatggga
      721 gtttgttttg gcaccaaaat caacgggact ttccaaaatg tcgtaacaac tccgccccat
      781 tgacgcaaat gggcggtagg cgtgtacggt gggaggtcta tagaccagat ctgagcctgg
      841 gagctctctg gctaactagg gaacccactg cttaagcctc aataaagctt gccttgagtg
      901 cttcaagtag tgtgtgcccg tctgttgtgt gactctggta actagagatc cctcagaccc
      961 ttttagtcag tgtggaaaat ctctagcagt ggcgcccgaa cagggacttg aaagcgaaag
     1021 ggaaaccaga ggagctctct cgacgcagga ctcggcttgc tgaagcgcgc acggcaagag
     1081 gcgaggggcg gcgactggtg agtacgccaa aaattttgac tagcggaggc tagaaggaga
     1141 gagatgggtg cgagagcgtc agtattaagc gggggagaat tagatcgcga tgggaaaaaa
     1201 ttcggttaag gccaggggga aagaaaaaat ataaataaac atatagtatg ggcaagcagg
     1261 gagctagaac gattcgcagt taatcctggc ctgttagaaa catcagaagg ctgtagacaa
     1321 atactgggac agctacaacc atcccttcag acaggatcag aagaacttag atcattatat
     1381 aatacagtag caaccctcta ttgtgtgcat caaaggatag agataaaaga caccaaggaa
     1441 gctttagaca agatagagga agagcaaaac aaaagtaaga ccaccgcaca gcaagcggcc
     1501 ggccgcgctg atcttcagac ctggaggagg agatatgagg gacaattgga gaagtgaatt
     1561 atataaatat aaagtagtaa aaattgaacc attaggagta gcacccacca aggcaaagag
     1621 aagagtggtg cagagagaaa aaagagcagt gggaatagga gctttgttcc ttgggttctt
     1681 gggagcagca ggaagcacta tgggcgcagc gtcaatgacg ctgacggtac aggccagaca
     1741 attattgtct ggtatagtgc agcagcagaa caatttgctg agggctattg aggcgcaaca
     1801 gcatctgttg caactcacag tctggggcat caagcagctc caggcaagaa tcctggctgt
     1861 ggaaagatac ctaaaggatc aacagctcct ggggatttgg ggttgctctg gaaaactcat
     1921 ttgcaccact gctgtgcctt ggaatgctag ttggagtaat aaatctctgg aacagatttg
     1981 gaatcacacg acctggatgg agtgggacag agaaattaac aattacacaa gcttaataca
     2041 ctccttaatt gaagaatcgc aaaaccagca agaaaagaat gaacaagaat tattggaatt
     2101 agataaatgg gcaagtttgt ggaattggtt taacataaca aattggctgt ggtatataaa
     2161 attattcata atgatagtag gaggcttggt aggtttaaga atagtttttg ctgtactttc
     2221 tatagtgaat agagttaggc agggatattc accattatcg tttcagaccc acctcccaac
     2281 cccgagggga cccgacaggc ccgaaggaat agaagaagaa ggtggagaga gagacagaga
     2341 cagatccatt cgattagtga acggatcggc actgcgtgcg ccaattcgac aaatggcagt
     2401 attcatccac aattttaaaa gaaaaggggg gattgggggg tacagtgcag gggaaagaat
     2461 agtagacata atagcaacag acatacaaac taaagaatta caaaaacaaa ttacaaaaat
     2521 tcaaaatttt cgggtttatt acagggacag cagagatcca gtttggttag taccgggccg
     2581 gcccgctcta gctagacgta ttaccgccag atcccccatc aagcttatcg ataccgtcga
     2641 cctcgagttt actccctatc agtgatagag aacgtatgtc gagtttactc cctatcagtg
     2701 atagagaacg atgtcgagtt tactccctat cagtgataga gaacgtatgt cgagtttact
     2761 ccctatcagt gatagagaac gtatgtcgag tttactccct atcagtgata gagaacgtat
     2821 gtcgagttta tccctatcag tgatagagaa cgtatgtcga gtttactccc tatcagtgat
     2881 agagaacgta tgtcgaggta ggcgtgtacg gtgggaggcc tatataagca gagctcgttt
     2941 agtgaaccgt cagatcgcct ggagaattcc gccaccatgc tgtttaatct gaggattctg
     3001 ttaaacaatg cagcttttag aaatggtcac aacttcatgg ttcgaaattt tcggtgtgga
     3061 caaccactac aagagcagaa actcatcagc gaggaggacc tgggatccaa atttgtctct
     3121 tttaatatca acggcctgcg cgccagacct caccagcttg aagccatcgt cgaaaagcac
     3181 caaccggatg tgattggcct gcaggagaca aaagttcatg acgatatgtt tccgctcgaa
     3241 gaggtggcga agctcggcta caacgtgttt tatcacgggc agaaaggcca ttatggcgtg
     3301 gcgctgctga ccaaagagac gccgattgcc gtgcgtcgcg gctttcccgg tgacgacgaa
     3361 gaggcgcagc ggcggattat tatggcggaa atcccctcac tgctgggtaa tgtcaccgtg
     3421 atcaacggtt acttcccgca gggtgaaagc cgcgaccatc cgataaaatt cccggcaaaa
     3481 gcgcagtttt atcagaatct gcaaaactac ctggaaaccg aactcaaacg tgataatccg
     3541 gtactgatta tgggcgatat gaatatcagc cctacagatc tggacatcgg cattggcgaa
     3601 gaaaaccgta agcgctggct gcgtaccggt aaatgctctt tcctgccgga agagcgcgaa
     3661 tggatggaca ggctgatgag ctgggggttg gtcgatacct tccgccatgc gaatccgcaa
     3721 acagcagatc gtttctcatg gtttgattac cgctcaaaag gttttgacga taaccgtggt
     3781 ctgcgcatcg acctgctgct cgccagccaa ccgctggcag aatgttgcgt agaaaccggc
     3841 atcgactatg aaatccgcag catggaaaaa ccgtccgatc acgcccccgt ctgggcgacc
     3901 ttccgccgct gagcggccgc tctagaacta gtggatcccc cgggctgcag gaattgatgg
     3961 ccgccaccgc ggtggaggac cctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca
     4021 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt
     4081 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     4141 gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc
     4201 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg
     4261 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa
     4321 aagctagctt accatgaccg agtacaagcc cacggtgcgc ctcgccaccc gcgacgacgt
     4381 ccccagggcc gtacgcaccc tcgccgccgc gttcgccgac taccccgcca cgcgccacac
     4441 cgtcgatccg gaccgccaca tcgagcgggt caccgagctg caagaactct tcctcacgcg
     4501 cgtcgggctc gacatcggca aggtgtgggt cgcggacgac ggcgccgcgg tggcggtctg
     4561 gaccacgccg gagagcgtcg aagcgggggc ggtgttcgcc gagatcggcc cgcgcatggc
     4621 cgagttgagc ggttcccggc tggccgcgca gcaacagatg gaaggcctcc tggcgccgca
     4681 ccggcccaag gagcccgcgt ggttcctggc caccgtcggc gtctcgcccg accaccaggg
     4741 caagggtctg ggcagcgccg tcgtgctccc cggagtggag gcggccgagc gcgccggggt
     4801 gcccgccttc ctggagacct ccgcgccccg caacctcccc ttctacgagc ggctcggctt
     4861 caccgtcacc gccgacgtcg aggtgcccga aggaccgcgc acctggtgca tgacccgcaa
     4921 gcccggtgcc tgacgcccgc cccacgaccc gcagcgcccg accgaaagga gcgcacgacc
     4981 ccatgcatcg atcaattcga tgggggatca attcgattaa gtcgagggtc gatcgacctc
     5041 gatcgagacc tagaaaaaca tggagcaatc acaagtagca atacagcagc taccaatgct
     5101 gattgtgcct ggctagaagc acaagaggag gaggaggtgg gttttccagt cacacctcag
     5161 gtacctttaa gaccaatgac ttacaaggca gctgtagatc ttagccactt tttaaaagaa
     5221 aaggggggac tggaagggct aattcactcc caacgaagac aagatatcct tgatctgtgg
     5281 atctaccaca cacaaggcta cttccctgat tggcagaact acacaccagg gccagggatc
     5341 agatatccac tgacctttgg atggtgctac aagctagtac cagttgagca agagaaggta
     5401 gaagaagcca atgaaggaga gaacacccgc ttgttacacc ctgtgagcct gcatgggatg
     5461 gatgacccgg agagagaagt attagagtgg aggtttgaca gccgcctagc atttcatcac
     5521 atggcccgag agctgcatcc ggactgtact gggtctctct ggttagacca gatctgagcc
     5581 tgggagctct ctggctaact agggaaccca ctgcttaagc ctcaataaag cttgccttga
     5641 gtgcttcaag tagtgtgtgc ccgtctgttg tgtgactctg gtaactagag atccctcaga
     5701 cccttttagt cagtgtggaa aatctctagc agcatgtgag caaaaggcca gcaaaaggcc
     5761 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     5821 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     5881 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     5941 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     6001 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     6061 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     6121 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     6181 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aagaacagta
     6241 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     6301 tccggcaaac aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg
     6361 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     6421 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     6481 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     6541 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     6601 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     6661 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     6721 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     6781 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     6841 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     6901 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     6961 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     7021 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     7081 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     7141 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     7201 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     7261 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     7321 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     7381 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     7441 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     7501 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
